Slattfpv 2306.3 Frestyle FPV Motor KV1700 KV2500

25.90

Available points: 0 Points Points reward: 25 Points

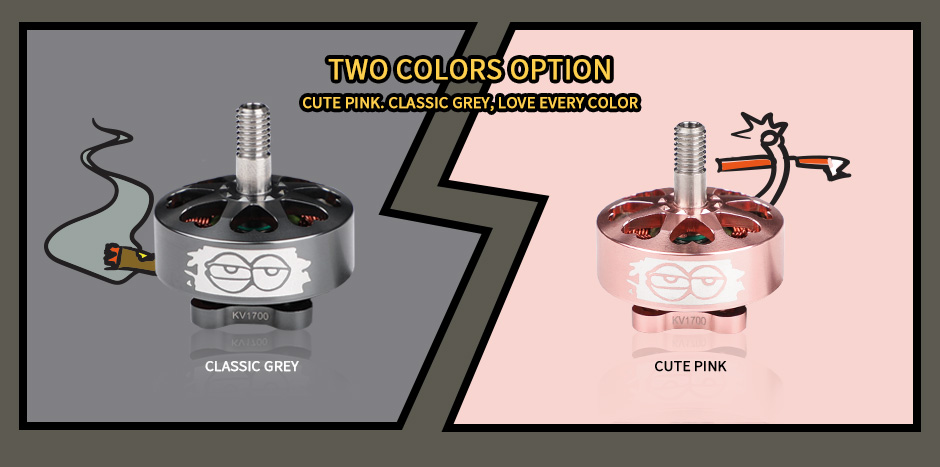

Color：
  • Grey
  • Pink
KV：
  • KV1700
  • KV2500
Quantity：

25.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

About LIGPOWER IT'S 2306.5 FPV Freestyle Motor


The LIGPOWER Slatts 2306.3 Motor continues the lineage of great FPV racing motors by LIGPOWER!

Slatts were designed in collaboration with SlattFPV for Bando, Flow, and Freestyle flying.

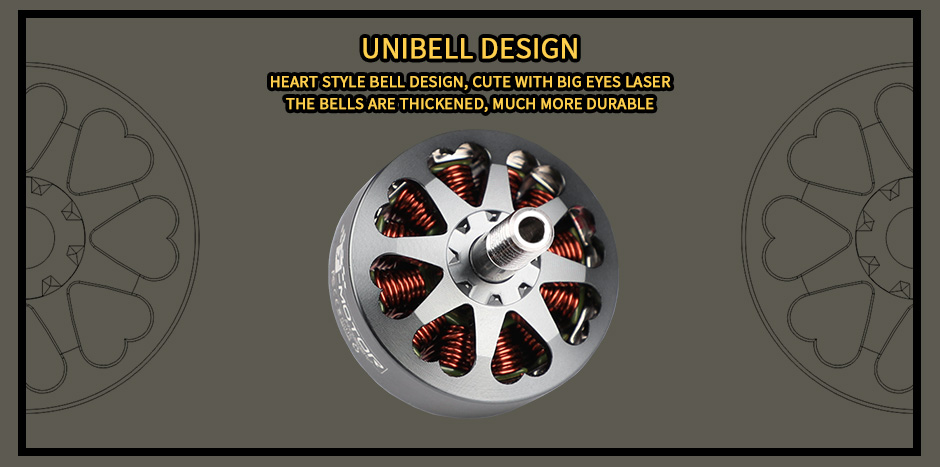

This motor features a 2306.3 stator and unibell design with a 5mm shaft in a classic gray color.


IT'S 2306.5 Hightlight:


LIGPOWER Slatts 2306.3 Motor - 1700KV/2500KV

The LIGPOWER Slatts 2306.3 Motor continues the lineage of great FPV racing motors by LIGPOWER! Slaats was designed in collaboration with SlattFPV.


Packing List Includes:


1xLIGPOWER x slatts Powerful Freestyle Motor 1700KV 2500KV

1x Hardware Set


Matching Frame:


5 Inch


Matching Guide:


F55A PROⅡ 6S 4IN1

F7 flight controller / Pacer F7 flight controller

P49436 Propeller / T5143s Propeller

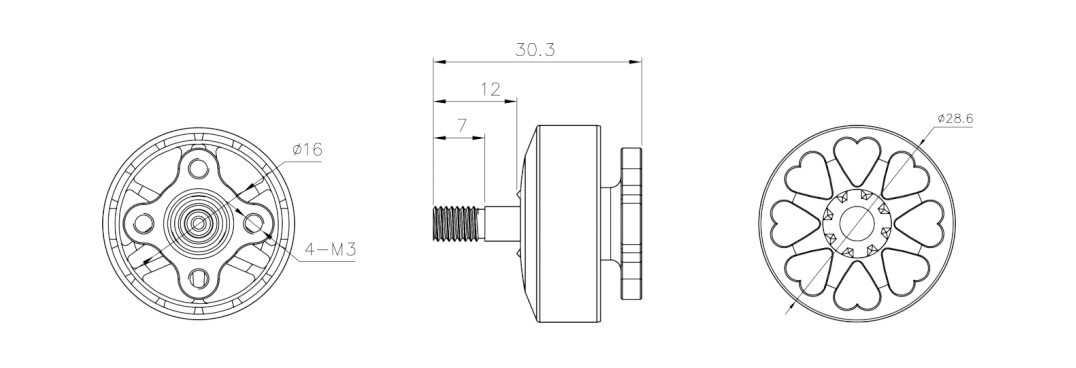

Technical Drawing

Specification
KVKV1700Configuration12N14P
Shaft Diameter4mmLead20#150mm
Weight (Incl. Cable)34.1gVoltage25.2V
Idle Current（10V）0.93AMax. Power（10s）856.7W
Peak Current（10s）34.7A

KVKV2500Configuration12N14P
Shaft Diameter4mmLead20#150mm
Weight (Incl. Cable)33.8gVoltage25.2V
Idle Current（10V）1.45AMax. Power（10s）629.3W
Peak Current（10s）38.7A

Test Data
PropellerTypeThrottleVoltage
(V)		Current
(A)		RPMThrust
(g)		Power
(W)		Efficiency
(g/W)

LIGPOWER
T5143S-3

1700KV20%25.21.711559.6148.042.53.48
40%25.16.018247.2445.3149.72.97
60%25.011.923370.1756.4297.02.55
80%24.923.829470.41191.8591.72.01
100%24.734.732684.51463.0856.71.71
2500KV20%16.82.110666.3127.235.43.59
40%16.77.416992.4377.5123.13.07
60%16.613.621227612.2226.32.71
80%16.526.126555.4977.1429.62.27
100%16.338.629911.71233.7627.51.97
GF F3-31700KV20%25.21.711730.5161.942.13.85
40%25.15.918390484.2148.33.27
60%25.111.623415.4812.6289.72.80
80%24.923.329720.81335.8578.42.31
100%24.733.833130.21680.6834.72.01
2500KV20%16.82.110845.6140.435.33.98
40%16.77.317109.5417.4122.43.41
60%16.713.421334.3668.6222.53.00
80%16.525.626706.91076.8420.62.56
100%16.337.630188.11390.2612.62.27

HQ J37-3		1700KV20%25.21.711655.2160.142.33.78
40%25.15.918440.8471.5148.33.18
60%25.111.623394.9783.2291.12.69
80%24.923.829532.31244.4591.92.10
100%24.734.632861.91468.9853.41.72
2500KV20%16.82.110732.1120.935.73.39
40%16.77.417154392.9123.03.19
60%16.713.421314.8634.9223.92.84
80%16.526.126629.31017.2428.92.37
100%16.338.7299821280.8629.32.04

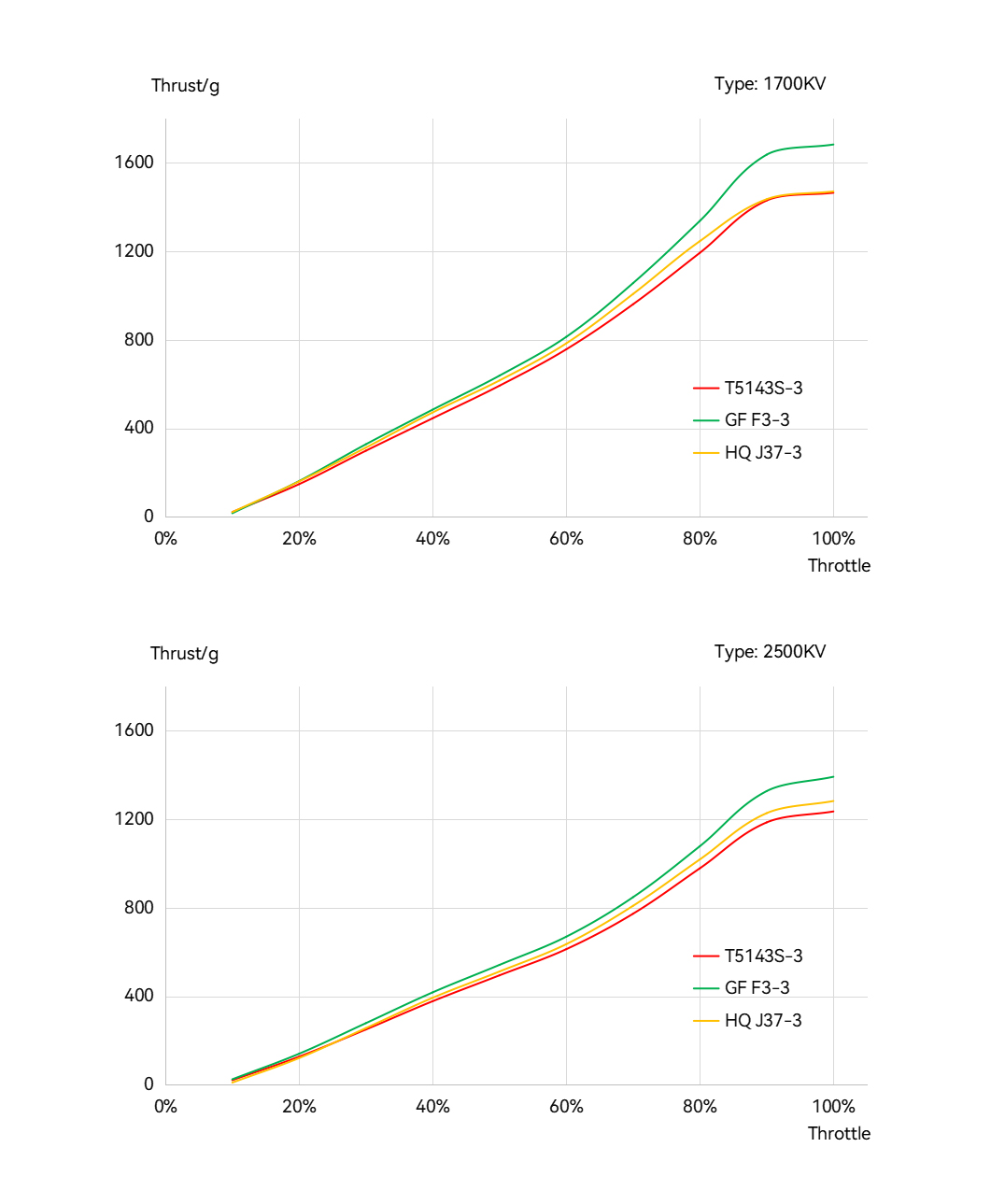

Analysis Chart

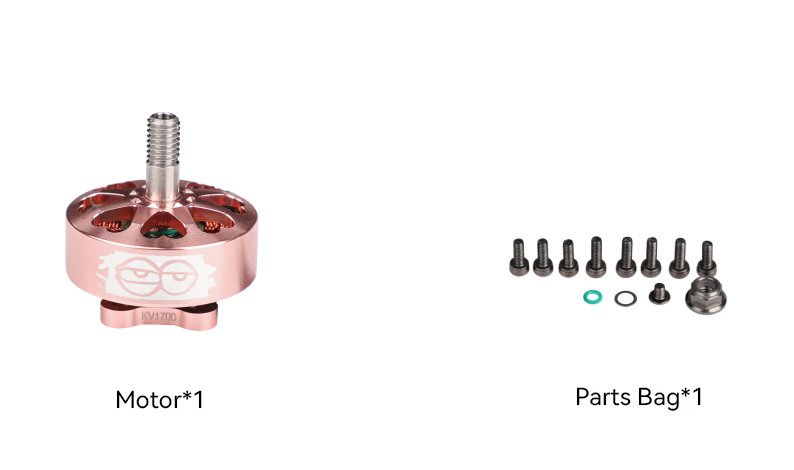

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
