How to Choose Fixed Wing Propellers?
Selecting appropriate propellers for fixed-wing aircraft requires understanding the relationship between propeller geometry, motor characteristics, and mission requirements. This guide provides practical selection methodology based on established aerodynamic principles and operational constraints.
Understanding Fixed Wing Propeller Fundamentals
Diameter and Pitch Relationship
Propeller diameter determines the disc area and theoretical maximum thrust generation capability. Larger diameters typically provide higher static thrust and improved low-speed performance but may introduce increased drag during cruise flight.
Pitch represents the theoretical forward distance traveled per complete revolution in undisturbed air. Higher pitch angles favor cruise efficiency at the expense of static thrust, while lower pitch provides better acceleration and climb performance.
Pitch ratio (pitch ÷ diameter) provides useful guidance for application matching:
- Low pitch ratio (0.35-0.55): Enhanced static thrust for aerobatic applications and climb performance
- Medium pitch ratio (0.55-0.80): Balanced performance for general-purpose fixed-wing operations
- High pitch ratio (≥0.80, including ≥1.0): Optimized for high-speed cruise and racing applications
Note: High-performance and racing propellers often use pitch ratios exceeding 1.0 (such as 9×10 or 6.5×7.0 configurations). Always consult manufacturer performance data and conduct bench testing to verify compatibility with your specific motor and voltage combination.
Material Considerations
Polymer + fiberglass construction balances strength, weight, and cost-effectiveness for fixed wing applications. This composite structure provides adequate stiffness while maintaining impact resistance during ground handling and operations.
Carbon fiber reinforced polymer materials reduce deformation under centrifugal loads, maintaining blade geometry across the operational RPM range. This dimensional stability ensures consistent thrust output and minimizes vibration compared to pure polymer alternatives.
Silent blade design is incorporated into many T-MOTOR fixed-wing propellers to reduce perceived noise during operation. Combined with non-slip tooth hub designs, these features enhance both operational comfort and secure mounting.
Straight vs. Folding Configurations
Straight propellers offer maximum aerodynamic efficiency with simplified installation and maintenance. The continuous blade structure eliminates hinge mechanisms and provides optimal thrust generation for applications where portability is not a primary constraint.
Folding propellers feature blade designs that rotate to reduce drag during unpowered gliding phases or storage. The TF Series incorporates hub mechanisms rated for -40℃ to 65℃ operation, maintaining reliable folding action across temperature extremes. Folding configurations benefit long-range gliders and transport-constrained operations where reduced storage volume justifies slight efficiency reductions.
Matching Propellers to Motors
Motor Specifications and Operating Point
KV rating represents the motor's velocity constant (RPM per volt). No-load RPM ≈ KV × Voltage, though actual loaded RPM will be lower due to voltage sag and motor losses. Lower KV motors efficiently drive larger diameter propellers at reduced RPM, while higher KV motors pair with smaller propellers operating at increased rotational speeds.
Operational RPM affects both thrust generation and efficiency:
- Verify propeller maximum RPM limits against motor specifications
- Account for voltage sag under load when calculating actual operating RPM
- Keep tip Mach number below approximately 0.85 to avoid significant compressibility losses and noise increase; for low-noise applications, target 0.75-0.80 or lower
Tip speed calculation: V_tip = π × D × RPM / 60, where tip Mach = V_tip / speed of sound (approximately 340 m/s at sea level)
Current draw validation prevents motor and ESC thermal issues:
- Bench test actual current consumption across throttle range using a wattmeter
- Rule of thumb: maintain at least 20% ESC current headroom above measured peak current for thermal safety
- Monitor ESC temperature rise and battery voltage sag during full-throttle ground tests
- Consider battery C-rating and sustained discharge capabilities
Power System Integration
Voltage selection impacts propeller performance through RPM modulation. Higher voltages increase rotational speed for given propeller size, requiring pitch or diameter adjustments to maintain optimal loading.
Mounting interface compatibility requires verification of:
- Hub bore diameter matching motor shaft specifications—verify dimensions against product technical drawings before ordering
- Appropriate adapter systems for secure propeller retention (washers, collets, spinners)
- Non-slip tooth designs preventing rotation under load
- Proper hardware torque specifications per manufacturer requirements
CW/CCW rotation may apply to specific fixed-wing configurations utilizing counter-rotating propeller pairs. Verify rotation direction requirements for your specific airframe design.

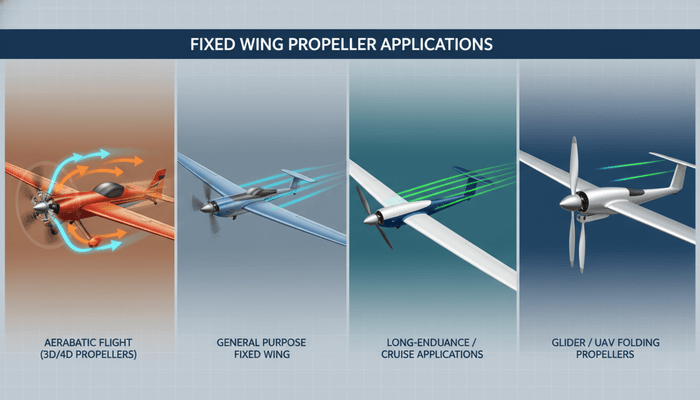

Application-Specific Selection
Aerobatic Flight (3D, 4D Applications)
T8542 F3P 4D configuration features specialized geometry for forward/reverse rotation capability during aerobatic maneuvers:
- Lower pitch ratios enable rapid thrust direction changes
- Lightweight construction (approximately 5g) minimizes rotational inertia
- Enhanced control authority during hovering and tumbling maneuvers
Selection criteria for aerobatic applications:
- Prioritize rapid thrust response over cruise efficiency
- Smaller diameters reduce propeller disc interference effects
- Lower pitch enables higher RPM operation within motor limits
General Purpose Fixed Wing
T126, T136.5 configurations provide balanced performance for training aircraft and recreational flying:
- Medium pitch ratios (0.46-0.50) balance climb and cruise requirements
- Polymer + fiberglass construction offers impact resistance during training operations
- Silent blade design reduces operational noise signature
Operational parameters:
- T12*6: 12-inch diameter, 6-inch pitch, maximum 18,000 RPM, weight 20.8g
- T13*6.5: 13-inch diameter, 6.5-inch pitch, maximum 15,000 RPM, weight 27.9g
- Both feature polymer + fiberglass construction with silent blade design and non-slip tooth hubs
Long-Endurance and Cruise Applications
T168, T1710 configurations optimize cruise efficiency for extended flight missions:
- Higher pitch ratios favor sustained cruise performance
- Larger diameters improve propulsive efficiency at moderate RPM
- Enhanced structural design accommodates continuous operation requirements
T17*10 specifications suit both fixed-wing and VTOL transition applications:
- Compatible with dual-mode aircraft requiring versatile thrust characteristics
- Silent blade design benefits extended operations near populated areas
- Non-slip tooth hub design ensures retention during varied flight regimes
Glider and UAV Applications (Folding Propellers)
TF158, TF168 folding configurations address transport and drag reduction requirements:
- CFD-optimized blade geometry and airfoil design for enhanced performance
- Heat-insulating coating with high light-blocking properties for temperature resistance
- Operational temperature range: -40℃ to 65℃ for diverse environments
Performance specifications:
- TF15*8: Recommended thrust 2-4.2kg at 5,600-8,000 RPM; maximum 5.5kg at 9,000 RPM
- TF16*8: Recommended thrust 2.2-5.4kg at 5,300-8,000 RPM; maximum 6.3kg at 8,600 RPM
- Single blade weight: 10.9g and 13g for transport efficiency
Selection Workflow and Common Pitfalls
Step-by-Step Selection Process
Define mission profile and performance requirements
- Determine primary flight mode (aerobatic, cruise, mixed operations)
- Establish thrust requirements for takeoff and climb phases
- Identify cruise speed and endurance targets
Calculate motor and propeller matching
- Verify motor KV rating and operational voltage
- Select diameter based on thrust requirements and clearance constraints
- Choose pitch to match intended cruise speed and efficiency targets
Validate electrical system compatibility
- Confirm propeller maximum RPM limits exceed motor operating speed
- Verify ESC current capacity provides adequate margin (20-30%)
- Check battery C-rating supports sustained current requirements
Confirm mechanical compatibility
- Match hub bore to motor shaft diameter
- Verify mounting system compatibility (direct mount, adapters, spinners)
- Ensure adequate clearance from fuselage, landing gear, and ground
Test and validate performance
- Conduct bench testing to measure actual current draw
- Monitor motor temperature during sustained operations
- Verify thrust output meets takeoff and climb requirements
Common Selection Errors
Over-propping consequences: Excessive propeller size or pitch causes motor current limits to be exceeded, resulting in thermal overload, voltage brownouts, and potential ESC damage. Symptoms include motor overheating above 80°C and reduced flight performance as thermal protection reduces power output.
Insufficient thrust margin: Inadequate static thrust for aircraft weight results in extended takeoff distances or inability to achieve flight. Verify thrust-to-weight ratio provides adequate margin for wind conditions and altitude operations.
Clearance miscalculations: Ground strikes during takeoff and landing damage propellers and motors. Account for propeller tip deflection under load and landing gear compression during ground contact.
Mounting interface mismatches: Incorrect hub bore diameter or adapter selection prevents secure propeller installation. Verify exact specifications before ordering to avoid compatibility issues.
RPM limit violations: Operating propellers beyond rated maximum RPM risks structural failure. Cross-reference motor speed capabilities against propeller specifications to ensure safe operation.
Quick Reference Selection Table
This reference provides initial sizing guidance. Actual selection should incorporate specific motor characteristics, mission requirements, and electrical system constraints for optimal performance.
Recommended Fixed Wing Propellers
The following comparison highlights LIGPOWER fixed wing propellers across different application categories, enabling rapid selection based on mission requirements and aircraft specifications:

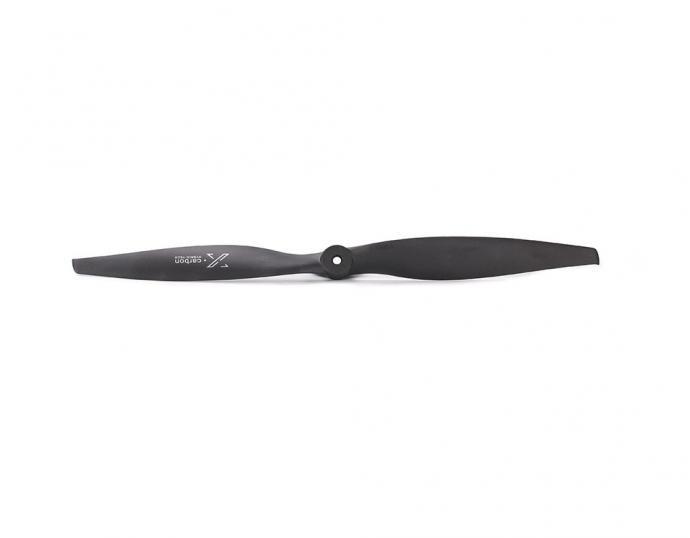

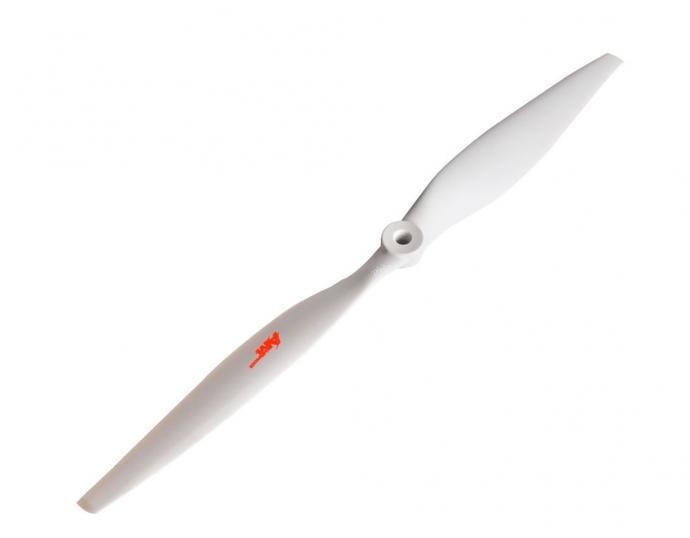

T Series Polymer Straight Propellers
All T Series propellers feature polymer + fiberglass material and -10℃ to 50℃ storage temperature ratings

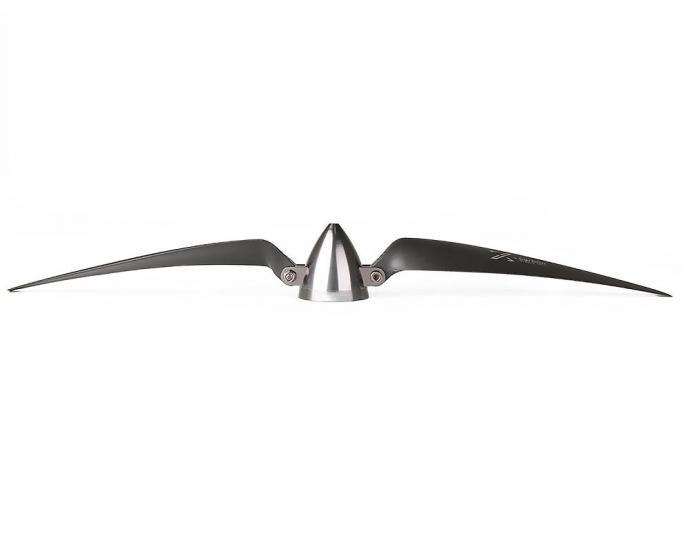

TF Series Polymer Folding Propellers
TF Series propellers utilize folding mechanisms for compact storage and reduced drag during gliding phases
The T Series progression provides options from lightweight aerobatic configurations to larger cruise-optimized designs. For 3D flight applications, the T8542 F3P offers specialized forward/reverse capability. General purpose aircraft benefit from T126 or T136.5 configurations balancing climb and cruise performance. Extended endurance missions utilize T168 or T1710 models with higher pitch ratios for cruise efficiency.
TF Series folding propellers suit glider applications and transport-constrained operations where storage volume and glide-phase drag reduction provide operational advantages. Both TF158 and TF168 incorporate CFD-optimized blade geometry and heat-insulating coatings for extended outdoor operations across wide temperature ranges.
Fixed Wing Propeller Frequently Asked Questions
What distinguishes fixed wing propellers from multirotor propellers?
Fixed wing propellers prioritize cruise efficiency and sustained forward flight performance. Multirotor propellers commonly use lower pitch ratios (such as 10×4.5 or 13×4.5) for hover efficiency and rapid throttle response. Fixed wing applications span a wider range: from low pitch ratios for aerobatic flight (such as 13×4) to high pitch ratios for high-speed cruise (such as 9×9 with P/D = 1.0 or higher). Propeller selection depends on specific mission requirements, flight speed profiles, and performance priorities rather than a single universal range.
How do I determine the correct propeller size for my motor?
Start with KV × battery voltage to estimate no-load RPM. Loaded RPM will be significantly lower depending on propeller load and system resistance—the reduction varies widely with operating conditions. Use a wattmeter or thrust stand to measure actual current, RPM, thrust, and efficiency during bench testing. Select propeller diameter and pitch combinations that keep operation within motor and propeller specifications while meeting thrust requirements. Maintain at least 20% ESC current headroom above measured peak current (increase to 30% for demanding thermal environments or aggressive flight profiles).
What are the advantages of folding propellers for fixed wing aircraft?
Folding propellers provide significant drag reduction during unpowered gliding or coasting phases, which is the primary performance benefit. They also minimize storage and transport volume. Whether powered-flight efficiency differs from straight propellers depends on specific design quality and manufacturing precision—some well-designed folding propellers achieve performance very close to straight baseline designs. Consult manufacturer thrust-RPM data or conduct testing to verify actual performance for your application. Folding mechanisms require periodic inspection of hinges and retention hardware.
Can LIGPOWER fixed wing propellers operate in extreme temperature conditions?
Temperature ratings vary by specific model. For example, TF16×8 folding propellers specify ambient operating temperature -40℃ to 65℃ with storage conditions -10℃ to 50℃ at <85% RH. T Series straight propellers like T12×6 specify storage temperature -10℃ to 50℃ at <85% RH. Always verify specifications on the specific product page. Note that complete system operational limits typically depend on motor, ESC, and battery temperature constraints, which are often more restrictive than propeller ratings. Verify all components support your intended operating environment.
What maintenance do polymer fixed wing propellers require?
Conduct pre-flight visual inspection for cracks, chips, or delamination, particularly at blade roots and leading edges. For cleaning, use clean water with mild soap and a soft cloth to remove debris and insect residue—avoid harsh solvents, abrasive materials, or high-pressure washing that could damage polymer materials. For folding propellers, periodically inspect hinge mechanisms, retention hardware, and folding action for smooth operation. Verify all mounting screws and fasteners remain properly torqued per manufacturer specifications. Replace propellers immediately upon detecting any structural damage, significant imbalance, or performance degradation.
How do I prevent propeller-related failures during operation?
Verify hub bore matches motor shaft diameter precisely and apply proper installation torque per manufacturer specifications. When using threadlocker compounds, ensure material compatibility: anaerobic threadlockers (such as Loctite 243) are suitable for metal-to-metal connections but should not contact plastic components due to stress cracking risk. For assemblies involving plastic or composite parts, use plastic-safe adhesives or mechanical locking methods. Ensure adequate clearance from fuselage, landing gear, and ground during all flight phases. Monitor motor temperature during initial test flights to detect over-propping conditions before thermal damage occurs.
What is the expected service life of fixed wing propellers?
Propeller service life depends on operating hours, environmental exposure, and usage patterns. Within similar resin systems and manufacturing processes, fiberglass-reinforced polymer generally offers better impact toughness compared to carbon fiber composites, which are lighter and stiffer but more brittle. This makes polymer + fiberglass propellers typically more tolerant of minor ground handling impacts and rough field operations, though actual durability still depends on specific layup design and use conditions. Conduct regular inspections and provide proper storage protection from UV exposure. Replace propellers showing signs of material degradation, UV damage, imbalance, or performance changes even if no visible structural damage is apparent.
Are LIGPOWER fixed wing propellers compatible with VTOL aircraft?
The T17×10 model is specifically designated for VTOL fixed-wing drone applications, offering thrust characteristics suitable for dual-mode operations. However, VTOL aircraft face significantly different operating conditions between hover and cruise phases. System-level validation is essential: verify thrust margin meets hover requirements with adequate safety factor, confirm motor thermal limits support sustained vertical operations, and validate propeller efficiency across the complete flight envelope from hover through transition to cruise. Consult manufacturer specifications and conduct comprehensive ground and flight testing for VTOL propulsion system integration.
