UAV Propulsion Systems

How to Choose UAV Propulsion Systems?

Selecting the right UAV propulsion system requires careful evaluation of your aircraft's operational requirements, payload capacity, and mission profile. This guide covers the essential factors to consider when choosing between integrated propulsion solutions.

Understanding Propulsion System Types

UAV propulsion systems fall into several categories, each optimized for specific applications:

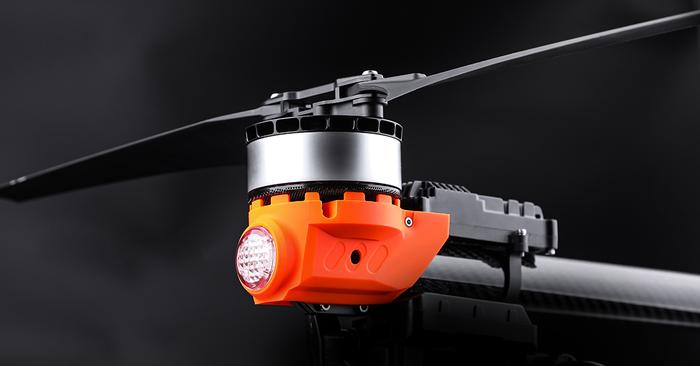

Modular Systems

Modular propulsion systems like the A-Series integrate motors, ESCs, and propellers into pre-configured packages. The A-Series offers 32 models with rated thrust ranging from 2kg to 60kg per arm, supporting 14S, 18S, and 24S battery configurations. These systems feature MPET (Modular Propulsion for Electric Transport) technology, which assembles power components into modules that mount directly onto UAV arms, eliminating individual component assembly.

Key features include:

• Plug-and-play installation: Five-step mounting process without component assembly
• Component compatibility: Pre-matched motors, ESCs, and propellers optimized for each configuration
• Safety features: Propeller adaptive locking design prevents assembly errors
• Thermal management: Cyclic cooling technology with sealed and potted construction for enhanced heat dissipation

Standard Integrated Systems

Standard systems like the X-Standard series provide arm-set configurations for industrial drones. Most models (such as XU8-X) support 25mm/30mm tube compatibility, while some models (like X-701/705) accommodate 30mm/35mm tubes (adapter rings included). Available models include 501-X through 705-X, plus specialized U8Ⅱ-X and 6007Ⅱ-X variants.

Technical characteristics:

• Voltage options: 6S and 12S configurations with Alpha or Flame ESCs
• Motor specifications: KV ratings from 85 to 380 depending on voltage and application
• Propeller integration: Default X·Carbon folding propellers with optional upgrades
• Weight range: 485g to 490g for U8 series arm sets including cables

Coaxial Configurations

Coaxial systems feature counter-rotating propellers on the same axis, eliminating torque effects. Available models include X-501 through X-U8Ⅱ configurations priced from $360to$360to795.

Design benefits:

• Torque cancellation: Opposite rotation eliminates reactive torque
• Compact footprint: Reduced lateral dimensions compared to single-rotor setups
• Enhanced stability: Improved hover performance in variable conditions
• Propeller requirements: Carbon fiber folding propellers are recommended for coaxial configurations; polymer propellers are not suitable due to rigidity requirements

Agricultural Solutions

Agricultural systems (X-Agricultural) are designed for farming applications with specialized mounting and protection features. Available models include P60-X ($229)andP80-X($229)andP80−X(349).

Application-specific features:

• Chemical resistance: Sealing and potting process allows direct water cleaning after pesticide operations
• Power configurations: P60-X uses Flame 60A ESC with KV170 motor; P80-X offers Alpha 80A with KV100/KV120 options
• Tube compatibility: P60-X supports 25mm/30mm tubes; P80-X accommodates 30mm/35mm/40mm
• Built-in indicators: Integrated lighting improves visibility during early morning or evening operations

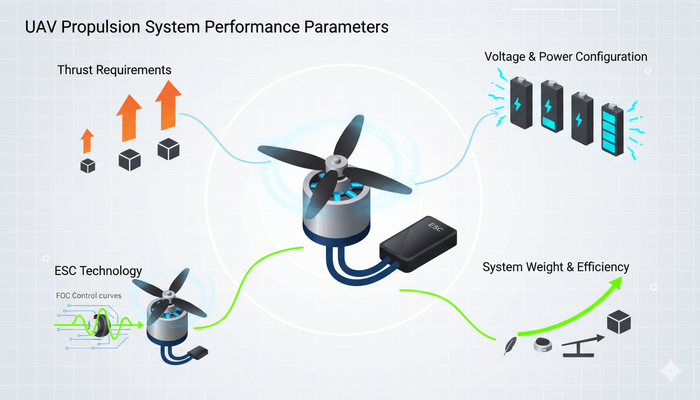

Key Selection Factors

Thrust Requirements

Calculate total thrust needed based on:

Aircraft Weight: Include frame, batteries, payload, and propulsion system weight

• A6-M-6S: 2-2.5kg rated thrust per arm, recommended for 8-10kg multirotors
• A10: 7-11kg rated thrust per arm, suitable for 16L quadcopter or 25L hexacopter
• A12XL-14S: 20-22kg rated thrust per arm, designed for 40L quadcopter or 60L hexacopter

Thrust-to-Weight Ratio: Maintain minimum 2:1 ratio for basic maneuverability; agricultural and inspection applications typically require 2.5:1 or higher for loaded hover performance.

Mission Profile: Consider whether operations involve stationary hovering (inspection, photography) or dynamic flight (delivery, mapping).

Voltage and Power Configuration

Battery voltage selection affects motor efficiency and component compatibility:

6S Systems (22.2V nominal):

• Commonly used for lighter platforms; refer to specific model recommendations for takeoff weight (e.g., A6-M-6S: 8-10kg quadcopter, 12-15kg hexacopter)
• Available in A6-M-6S, U8Ⅱ-X KV150/190, and various X-Standard models
• Lower component stress but requires higher current for equivalent power

12-14S Systems (44.4-51.8V nominal):

• Standard for agricultural drones (5-60L payload capacity)
• A-Series models from A6 through A14-14S
• Balanced voltage and current characteristics

18S Systems (66.6V nominal):

• Available in A12-18S, A12L-18S, A12XL-18S, A14-18S
• Higher efficiency for medium to heavy lift applications
• Reduced wire gauge requirements due to lower current

24S Systems (88.8V nominal):

• A-Series coaxial models (X-A12XL-24S)
• Manned aircraft systems (U15L, U15XL, U15XXL)
• Maximum voltage for highest thrust applications

ESC Technology

Electronic Speed Controllers vary by application:

FOC ESCs (Field-Oriented Control):

• Standard on A-Series systems with integrated ESC support for DRONECAN, UAVCAN, and CUBECAN protocols
• X-Standard systems use various ESC models (Alpha, Flame, AM series); protocol compatibility depends on specific ESC variant
• Sine wave modulation provides smooth motor control
• A-Series features include built-in monitoring, kinetic energy recovery, and intelligent protections

ESC Specifications (examples from official datasheets):

• 6S FOC 50A ESC: Used in A6-M-6S systems
• 14S FOC 80A/100A ESC: Used in A6, A6L, A8 series
• 14S FOC 200A ESC: Used in A10L, A10XL, A12XL-14S series
• Thunder 300A 24S: Continuous 240A / Peak 300A (10 seconds) for manned systems

System Weight and Efficiency

Weight directly impacts flight time and payload capacity. System weight varies by configuration (single/coaxial, propeller choice, cable length). Refer to specific model product pages for exact weights including all components.

Lightweight Solutions:

• A6-M-6S: 375g (including propeller and cables)
• A6-M-12S: 380g system weight

Medium to Heavy-Lift Systems:

• Weight specifications vary significantly by model and configuration
• Coaxial variants are heavier than single-rotor configurations due to dual propeller setup
• Example: A12XL-14S (single) vs. X-A12XL-14S (coaxial) have different weight specifications

Efficiency Ratings (overall efficiency in gf/W at rated thrust points):

• A6-M-6S: Approximately 9gf/W at 2.5kg thrust
• A12XL-14S: Approximately 8.7gf/W at 21kg thrust
• A14-18S: Approximately 10gf/W at 25kg thrust
• Efficiency varies with propeller choice, voltage, and thrust level; consult product datasheets for specific operating points

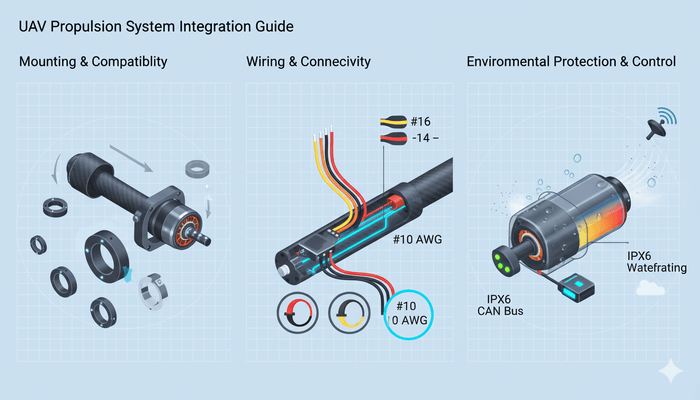

Integration Considerations

Mounting and Compatibility

Tube Diameter:

• 25mm/30mm: Most X-Standard systems use these sizes (adaptable with included rings)
• 30mm/35mm: Some X-Standard models (e.g., X-701/705)
• 40mm: Mid to heavy-lift A-Series applications (A10, A12, A14 series)
• 50mm: Heavy-lift A-Series systems (A12/A14 larger variants)

Wire Specifications:

• 16#AWG: 6S to low-current 12S systems (600mm standard length)
• 14#AWG: Medium power 12-14S systems (1000-1100mm length)
• 12#AWG: High power 14S and agricultural systems (1100-1230mm length)
• 10#AWG: Heavy-lift 14S and all 18S/24S systems (1200-1700mm length)

Environmental Protection

IP Rating: Protection levels vary by system type

• A-Series systems: IPX6 (dust-tight, protection against powerful water jets, suitable for direct water cleaning)
• X-Standard systems: Motor protection typically IP45; overall system protection varies by model
• Agricultural systems: IPX6 sealing enables direct water cleaning after pesticide operations

Temperature Range (typical specifications, varies by model):

• Most A-Series systems: -20°C to 55°C (some models -20°C to 50°C)
• Manned aircraft systems (U15 series): -20°C to 60°C
• Refer to specific product pages for exact operating temperature ranges

Communication and Control

Protocol Support:

• PWM: Traditional throttle control (1050-1950µs range typical), supported across all systems
• CAN bus: A-Series integrated ESCs support DRONECAN, UAVCAN, CUBECAN protocols with dual PWM/CAN backup
• X-Standard protocol capability varies by ESC model (Alpha, Flame, AM series); check specific ESC specifications

Built-in Features (A-Series):

• Full state monitoring and data logging
• Real-time operational data transmission
• Cloud-based configuration tools (CLOUDLINK LITE, CLOUDLINK MINI)
• Adjustable navigation lights with parameter tuning capability

Popular UAV Propulsion Systems

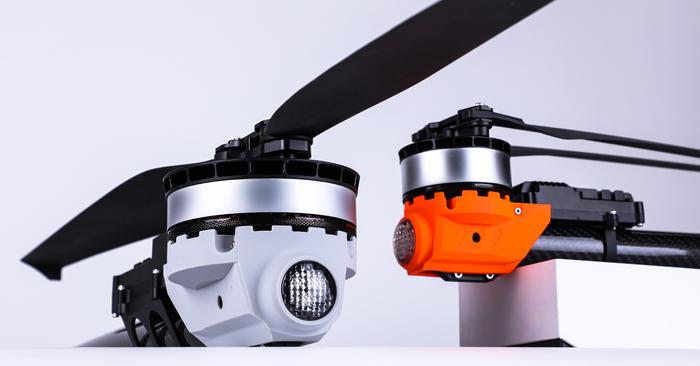

A-Series Modular Systems

The following table compares representative A-Series propulsion systems across different thrust and voltage categories:

Selection Notes:

The A-Series systems show clear thrust scaling across voltage and size categories. Efficiency ratings are measured at specific thrust points and vary with propeller choice, voltage, and operating conditions. For example, A6-M-6S achieves approximately 9g/W at 2.5kg thrust, while A12XL-14S delivers approximately 8.7g/W at 21kg thrust. Lower thrust systems (A6-M through A6L) suit 5-10L agricultural or mapping applications. Mid-range options (A8, A10) provide thrust suitable for 10-25L payloads. Heavy-lift systems (A12, A14) offer 15-27kg rated thrust for 30-60L industrial applications.

System selection depends on three primary factors: total aircraft weight (frame + batteries + payload), required thrust-to-weight ratio (typically 2:1 minimum for basic flight, 2.5:1+ for loaded agricultural hover), and mission profile (continuous high thrust vs. cruise-efficient operations).

For voltage selection: 6S systems minimize component stress for lighter applications; 12-14S configurations balance voltage and current for mainstream agricultural use; 18S options improve efficiency for heavy-lift scenarios; 24S systems appear in specialized coaxial and manned applications.

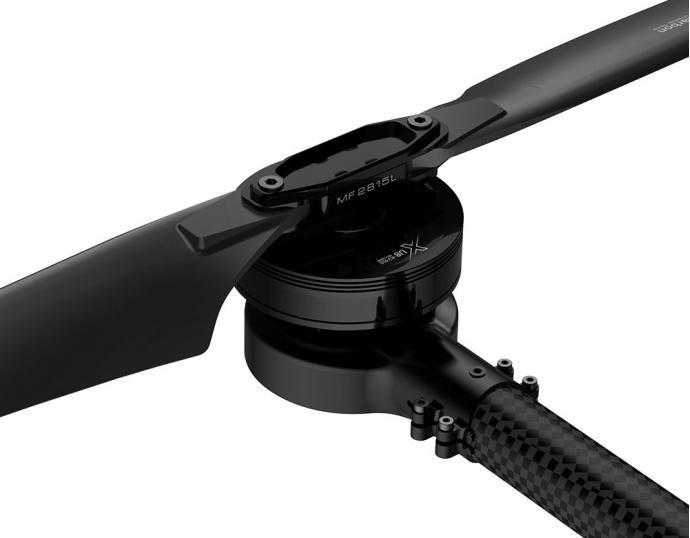

Standard Integrated Systems

System Comparison:

Standard integrated systems offer pre-assembled arm configurations with tube size flexibility. Most models support 25mm/30mm compatibility (such as the U8 series), while some models (like 701-X, 705-X) accommodate 30mm/35mm tubes using adapter rings. The U8 series (XU8-X, U8Ⅱ-X) provides balanced performance at 6S/12S with KV85-KV190 motor options and 485-490g system weight including MF2815 propellers.

Mid-tier options like 6007Ⅱ-X and 501-X focus on efficiency and cost-effectiveness. The 6007Ⅱ-X offers KV160/KV320 configurations optimized for long-endurance missions, while 501-X provides KV240/KV300/KV360 options for lightweight applications starting at $180.

Higher-power systems (701-X, 705-X) employ Alpha 80A ESCs and larger propellers (MF2614, G26*8.5) for increased thrust requirements. These configurations suit industrial drones requiring greater payload capacity or extended flight time under load.

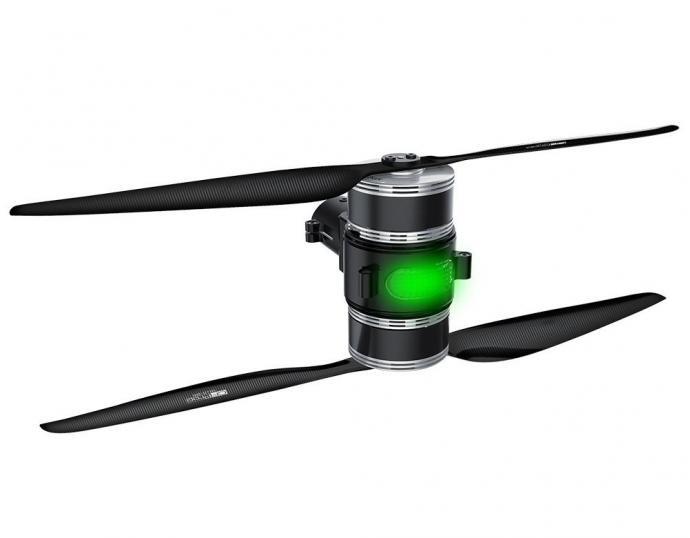

Coaxial Propulsion Systems

Coaxial System Characteristics:

Coaxial propulsion systems use counter-rotating propellers on the same axis to eliminate torque effects. The X-501 entry model ($360) provides 6S/12S flexibility with three KV options (240/300/360) for varying speed and torque requirements.

Mid-range X-601 and X-605 systems offer KV170/320 dual-voltage capability suitable for both low-voltage (6S) and high-voltage (12S) operation. These configurations balance cost and performance for standard coaxial platforms.

Premium X-U8Ⅱ ($795) features four KV variants (85/100/150/190) covering both 6S and 12S optimized configurations. Default G28*9.2 propellers provide efficient thrust with reduced noise. The X-701/705 series employs Alpha 80A Round ESCs for higher current demands.

Important: Carbon fiber folding propellers are recommended for coaxial configurations to ensure proper rigidity and efficiency; polymer propellers are not suitable. Coaxial systems require tube sizes 25mm/30mm (or 30mm/35mm for 701/705 series) with adapter rings included for compatibility.

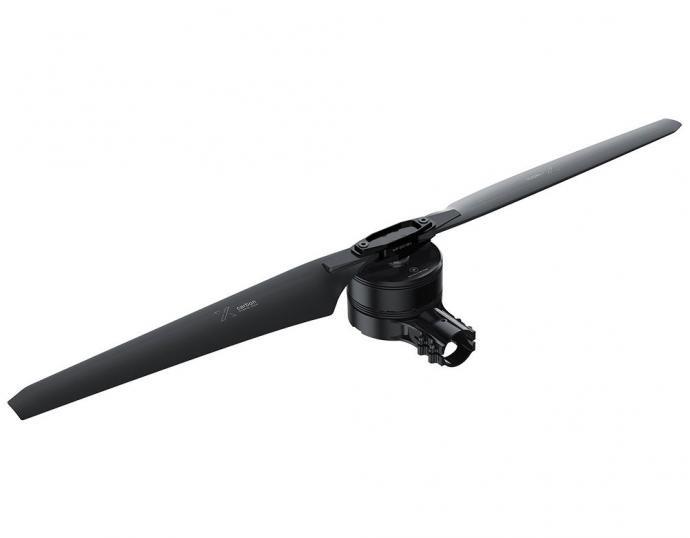

Agricultural Propulsion Systems

Agricultural System Features:

Agricultural propulsion systems incorporate specialized design elements for farming environments. P60-X (retail price: $229) uses P60 KV170 motor with Flame 60A ESC, supporting 25mm/30mm tube sizes via adapter. Optional MF2211 propeller provides balanced thrust and efficiency.

P80-X (retail price: $349) offers two motor variants (KV100, KV120) matched with Alpha 80A HV ESC for higher power output. Tube compatibility spans 30mm/35mm/40mm configurations. Optional MF3016 propeller delivers increased thrust for heavier payloads.

Both systems feature IPX6 sealing and potting process allowing direct water cleaning after pesticide operations. Integrated lighting improves visibility during early morning or evening spraying sessions. The modular design enables quick maintenance and component replacement in field conditions. Prices and configurations are subject to change; refer to product pages for current specifications.

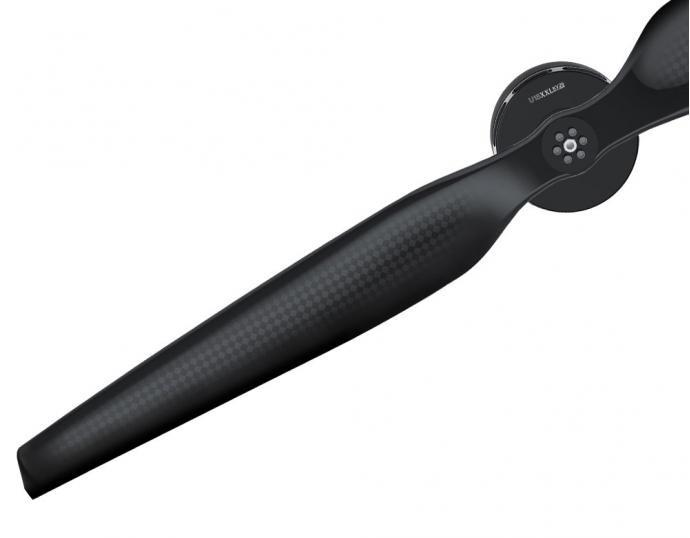

Manned Aircraft Propulsion Systems

Manned System Specifications:

Manned aircraft propulsion systems represent the highest thrust category, designed for human-carrying platforms and extreme heavy-lift applications. All three systems utilize Thunder 300A 24S ESCs (continuous 240A, peak 300A for 10 seconds) with 14-24S voltage support.

U15L system delivers up to 63kg maximum thrust (laboratory test conditions) using KV43 motor (3,600g weight) paired with NS4718 carbon fiber propeller. Motor specifications include Φ151.586mm dimensions, 20mΩ internal resistance, 36N42P configuration, and 135A peak current over 120 seconds at 2,800W rated power.

U15XL configuration provides up to 81kg maximum thrust via KV38 motor (4,408g weight) and NS5220 propeller. Increased stator length (Φ151.596mm) and reduced internal resistance (17mΩ) enable 180A peak current with 3,550W rated power output.

U15XXL achieves up to 100kg maximum thrust (laboratory test conditions) using KV29 motor (5,130g) with choice of NS5722 or NS6224 propellers. Motor features Φ151.5*106mm dimensions, 210A peak current (80 seconds), and 3,300W rated power. All systems operate across 50-100V range with -20°C to 60°C temperature capability. Note that maximum thrust values are obtained under test conditions; actual flight operation is limited by continuous power ratings and thermal management.

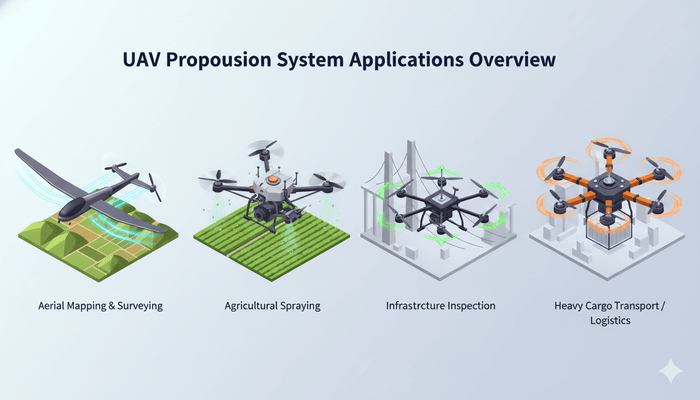

UAV Propulsion Systems Application Scenarios

Aerial Mapping and Surveying

Application Overview

Aerial mapping and surveying applications require stable, efficient propulsion systems that maintain consistent altitude while carrying photogrammetry equipment. Flight times typically range from 20 to 45 minutes depending on payload and coverage area requirements.

Suitable Systems

A6-M-12S and A6 series propulsion systems suit lightweight mapping drones (8-10kg total weight) carrying compact survey cameras. These systems provide 2.5-5kg thrust per arm, optimizing battery consumption during extended survey missions.

For larger mapping operations with heavier sensors (LiDAR, multispectral cameras), A8 or A10 systems deliver 5-11kg thrust per arm. The A10 configuration supports 16L quadcopter or 25L hexacopter platforms commonly used in professional surveying applications.

Technical Considerations

Mapping drones benefit from the A-Series cyclic cooling technology with sealed and potted construction, maintaining consistent performance during long flights. Built-in monitoring and real-time data storage ensure flight log accuracy for post-processing workflows. The IPX6 rating on A-Series systems provides protection against rain exposure during outdoor survey operations.

Agricultural Spraying and Precision Farming

Application Overview

Agricultural drones operate in demanding environments with chemical exposure, varying payloads (5-60L tank capacity), and intensive flight cycles. Propulsion systems must withstand frequent water cleaning while delivering adequate thrust for loaded takeoffs.

Suitable Systems

A6/A6L systems handle 5L quadcopter or 10L hexacopter configurations with 3.5-5.5kg thrust per arm. The A8 model supports 10L quadcopter or 16L hexacopter platforms with 5-7kg thrust capability. For larger operations, A10L and A12XL-14S provide 11-22kg thrust for 20-60L payload capacity.

Agricultural-specific P60-X and P80-X systems integrate Flame or Alpha ESCs with integrated lighting for early morning operations. The sealing and potting process enables direct water cleaning after pesticide application.

Technical Considerations

Agricultural systems feature propeller adaptive locking design preventing loosening during high-vibration spraying operations. The 40mm and 50mm tube sizes (A8 through A14 models) provide structural strength for heavy liquid payloads. A-Series ESCs incorporate kinetic energy recovery (regenerative braking) that recaptures energy during deceleration and descent phases, optimizing overall mission energy efficiency.

Infrastructure Inspection and Monitoring

Application Overview

Inspection drones require precise positioning and stable hover capability while carrying high-resolution cameras or thermal sensors. Missions involve close proximity to structures like bridges, power lines, and wind turbines, demanding responsive flight control.

Suitable Systems

X-Standard 601-X and 605-X systems provide compact integrated solutions suitable for inspection platforms. The MN601-S and MN605-S motors offer KV170/320 options matching 6S or 12S battery configurations based on required flight time versus payload weight tradeoffs.

For industrial inspection with heavier sensor packages, U8Ⅱ-X or 6007Ⅱ-X systems deliver higher thrust while maintaining system weight around 485-490g per arm. The modular design allows quick field replacement if components require maintenance.

Technical Considerations

Inspection applications benefit from FOC ESC smooth motor control reducing vibration that could affect camera footage quality. Dual PWM/CAN communication provides redundant signal paths important for proximity operations. The 25mm/30mm tube compatibility (via adapter rings) enables integration with various inspection drone frames.

Heavy Cargo Transport and Logistics

Application Overview

Cargo drones transport packages, medical supplies, or equipment across distances where ground delivery is inefficient. These platforms require maximum thrust-to-weight ratios and robust construction to handle payload variations.

Suitable Systems

A12-18S and A12XL-18S systems provide 15-22kg thrust per arm with 18S battery efficiency. The MF4114P and MF4918P propellers optimize thrust while maintaining 8.6-9.1g/W efficiency at rated loads. For maximum capacity requirements, A14-18S delivers 25-27kg thrust with 10g/W efficiency using MF5620P propellers.

Heavy-lift applications also utilize A-Series coaxial systems (X-A12XL-14S/18S/24S) providing 30-35kg thrust per arm for 100-120kg total platform weight. These systems employ PFZ4918P carbon fiber folding propellers and support coaxial configurations.

Technical Considerations

Cargo systems incorporate strength and fatigue simulation on structural components verified through 100-cycle drop testing. The external protective covers reduce fracture failure from ground handling impacts. Multiple mounting configurations (14S, 18S, 24S) enable optimization between delivery range and payload capacity based on route requirements.

Coaxial Platform Applications

Application Overview

Coaxial platforms use counter-rotating propellers to eliminate torque effects, improving stability and reducing flight controller workload. Applications include aerial photography requiring steady hover, indoor operations in confined spaces, and heavy-lift where compact dimensions benefit operational efficiency.

Suitable Systems

Entry-level X-501 coaxial system ($360)suitseducationalandlightcommercialplatforms.TheX-U8\text{Ⅱ}($360)suitseducationalandlightcommercialplatforms.TheX−U8Ⅱ(795) serves professional coaxial applications requiring four KV options across 6S and 12S voltages. X-701 and X-705 systems provide Alpha 80A ESC capability for higher current demands in heavy coaxial configurations.

For industrial coaxial platforms, X-A12XL series delivers 30-35kg thrust using 14S, 18S, or 24S configurations. These systems include matched PFZ4918P carbon fiber propellers engineered for coaxial interference characteristics.

Technical Considerations

Coaxial efficiency depends on propeller spacing and load conditions. Proper installation requires propeller pairs positioned 180° apart with matched pitch to prevent blade interference. The counter-rotating design provides inherent yaw stability, beneficial for payload delivery and inspection applications. Carbon fiber folding propellers are recommended for coaxial configurations to ensure proper rigidity and efficiency; polymer propellers are not suitable for this application.

Manned eVTOL and Heavy-Lift Aviation

Application Overview

Manned electric aircraft and extreme heavy-lift applications demand the highest thrust outputs with stringent safety and redundancy requirements. Operating voltages range from 50V to 100V with thrust per motor from 63kg to 100kg maximum.

Suitable Systems

U15L system (63kg max thrust) provides entry capability for light manned aircraft and heavy cargo drones. U15XL configuration (81kg thrust) targets disaster response drones and industrial heavy-lift platforms. U15XXL system (100kg thrust) serves prototype manned multicopters and specialized cargo operations.

All three systems utilize Thunder 300A 24S ESCs with 240A continuous current and 300A peak capability. Propeller options scale from NS4718 (47 inch diameter) through NS6224 (62 inch) matching motor specifications.

Technical Considerations

Manned systems feature 50-100V voltage compatibility enabling flexible battery configurations. Aerospace-grade materials construction includes hardened 25mm motor shafts and CF+Epoxy propeller fabrication. Operating temperature range (-20°C to 60°C) covers diverse climate conditions. The 12-24S voltage support provides operational flexibility while motor configurations (KV29, KV38, KV43) optimize thrust versus RPM characteristics.

UAV Propulsion Systems Common Questions

Q: What is the difference between modular and integrated propulsion systems?

A: Modular propulsion systems like the A-Series feature MPET technology where motors, ESCs, and propellers are pre-assembled into complete modules that mount directly onto UAV arms. This eliminates individual component assembly and matching. Integrated systems such as X-Standard offer arm-set configurations where components are integrated but may require some assembly. Both approaches simplify installation compared to purchasing separate components.

Q: How do I determine the correct thrust rating for my UAV?

A: Calculate total aircraft weight including frame, batteries, payload, and propulsion components. Multiply by desired thrust-to-weight ratio (minimum 2:1 for basic flight, 2.5:1 or higher for agricultural and heavy-lift applications). Divide by number of motors to get per-motor thrust requirement. For example, a 40kg quadcopter with 2.5:1 ratio needs (40kg × 2.5) ÷ 4 = 25kg thrust per motor. The A14-14S system with 25-27kg rated thrust would be appropriate.

Q: What battery voltage should I select for my application?

A: Voltage selection depends on aircraft size and efficiency requirements. 6S (22.2V) is commonly used for lighter platforms—refer to specific model recommendations for takeoff weight (e.g., A6-M-6S: 8-10kg quadcopter, 12-15kg hexacopter). 12-14S (44.4-51.8V) provides balanced characteristics for agricultural drones from 5L to 60L capacity. 18S (66.6V) improves efficiency for heavy-lift scenarios with reduced wire gauge requirements. 24S (88.8V) appears in specialized coaxial and manned applications requiring maximum voltage.

Q: Can I replace individual components in a propulsion system?

A: A-Series and X-Standard systems are designed for component replacement. Motors, ESCs, and propellers can be serviced or upgraded individually without replacing the complete system. Maintain compatibility specifications when replacing components. PWM throttle ranges vary by model (for example: A12XL-14S uses 1100-1940µs; A14-18S uses 1040-1840µs). Always refer to the specific product datasheet for throttle range, voltage limits, and propeller specifications. Ensure flight controller settings match the ESC parameters.

Q: What maintenance is required for UAV propulsion systems?

A: Regular maintenance includes pre-flight inspections of propeller condition and mounting security, periodic motor bearing assessment, ESC firmware updates when available, and wire connection integrity checks. Agricultural systems benefit from water cleaning after chemical exposure (IPX6 rating supports this). A-Series systems feature 2,000+ hour aging test design life. Component replacement schedules depend on flight hours and operating conditions.

Q: How does IPX6 rating affect operational capability?

A: IPX6 ingress protection provides protection against powerful water jets (approximately 100 liters/minute at 100kPa pressure from 2.5-3m distance). The "X" in IPX6 means dust protection is not rated in this specification—for combined dust and water protection, IP66 would be required. This IPX6 rating is standard on A-Series systems and allows operation in rain and water jet cleaning after pesticide operations. Note that IPX6 does not guarantee resistance to extreme high-pressure or high-temperature washing (such as IPX9K conditions). X-Standard systems typically have IP45 motor protection; overall system protection varies by model. The sealing and potting process protects electrical connections while maintaining heat dissipation efficiency.

Q: What is the purpose of FOC ESC technology?

A: FOC (Field-Oriented Control) ESCs use sine wave modulation providing smooth motor control, reduced electrical noise, and improved efficiency compared to square wave ESCs. A-Series integrated FOC ESCs feature built-in monitoring with real-time data storage, kinetic energy recovery for increased efficiency, intelligent protection including over-voltage/under-voltage/over-current/over-temperature safeguards, and multi-protocol compatibility (DRONECAN, UAVCAN, CUBECAN). X-Standard systems use various ESC models with different feature sets. This technology meets demands of professional agricultural, mapping, and industrial applications.

Q: How do coaxial propulsion systems differ from standard configurations?

A: Coaxial systems use two propellers rotating in opposite directions on the same axis. This eliminates reactive torque requiring compensation, reduces vibration through balanced rotation, improves hover stability, and enables compact footprint versus single-rotor equivalent thrust. Design considerations include that carbon fiber folding propellers are strongly recommended due to higher rigidity demands from rotor interaction (polymer propellers are generally not recommended, though suitability depends on load and diameter), propeller pairs must be positioned 180° apart, matched pitch prevents blade interference, and efficiency varies with propeller spacing and load conditions.

Q: What communication protocols do A-Series systems support?

A: A-Series ESCs support PWM (traditional throttle control; throttle range varies by model), DRONECAN, UAVCAN, and CUBECAN protocols. Note that DRONECAN and UAVCAN v1 have implementation differences; when integrating with PX4 or ArduPilot flight controllers, configuration typically follows the DroneCAN ecosystem guidelines. Systems feature dual PWM/CAN backup with shielded signal wires and redundant control capability. Real-time operational data monitoring and parameter configuration use cloud-based tools (CLOUDLINK LITE for computer connection, CLOUDLINK MINI as portable configuration tool).

Q: Can propulsion systems operate in extreme temperature environments?

A: Operating temperature ranges vary by model. Most A-Series systems support -20°C to 55°C (some models -20°C to 50°C). Manned aircraft systems (U15L/XL/XXL) operate from -20°C to 60°C. Temperature affects battery performance, motor efficiency, and ESC thermal characteristics. Cold weather reduces battery capacity requiring payload or flight time adjustments. High temperature operation benefits from cyclic cooling technology with sealed and potted construction in A-Series systems. Thermal management features help maintain consistent performance across the operating temperature range. Always refer to specific model datasheets for exact temperature specifications.

UAV Propulsion Systems Knowledge Expansion

Related Product Categories

Expand your understanding of UAV propulsion technology by exploring complementary product categories and system components. LIGPOWER offers comprehensive solutions across multiple drone applications and power configurations.

Comprehensive Propulsion Solutions

• A-Series UAV Modular Propulsion Systems - Complete 32-model lineup featuring MPET technology with 2-60kg thrust range, 14S/18S/24S configurations, and ready-to-use modular design for multirotor applications including standard and coaxial variants.

Specialized System Categories

• Coaxial Integrated Propulsion - Counter-rotating propeller systems featuring torque cancellation, enhanced stability, and compact design for professional coaxial platforms ranging from $360to$360to795.

• Standard Integrated Propulsion Systems - X-Standard arm-set series combining motors, FOC ESCs, and X·Carbon propellers in plug-and-play configurations with 25mm/30mm/35mm tube compatibility.

• X-Agricultural Integrated Propulsion - Farm-specific systems featuring IPX6 sealing, direct water cleaning capability, built-in LED lighting, and chemical-resistant construction for agricultural UAV applications.

Component Categories

• Drone Motors - Browse individual motor options across multiple series including FPV, agricultural, heavy-lift, and manned aircraft configurations with detailed specifications.

• Drone ESCs - Electronic speed controllers featuring FOC technology, protocol compatibility (DRONECAN/UAVCAN/CUBECAN), and power ratings from 40A to 300A across voltage ranges.

• Drone Propellers - Carbon fiber and polymer propeller options including folding, straight, and specialized designs matched to specific motor and ESC combinations.

High-Performance Systems

• Manned Aircraft Power - U15 series systems delivering 63-100kg maximum thrust with Thunder 300A 24S ESCs, NS-series carbon fiber propellers, and 50-100V voltage compatibility for human-carrying platforms.
