F50 5'' Racing Motor

29.90

Available points: 0 Points Points reward: 29 Points

Quantity:

29.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
F50

LIGHTWEIGHT DESIGN

Each motor weighs only 28.56g (excluding cables). Greatly reduces the drone weight and brings better rotational inertia.

arrow

F50

TAKE THE LEAD IN CORNERING

Every subtle stick movement of pilots can be accurately captured andresponded to immediately. In the fiercely racing, the drone can quickly adjust its flight attitude and easily overtake on a curve, leaving the opponent far behind.

arrow

F50

SUPERB CONTROL CAPABILITY

High instantaneous torque rapidly provides strong power output, enabling the racing drone to achieve rapid acceleration in a shorter time. The throttle response is linear and smooth, ensuring more stable flights.

arrow

F50

FULL THROTTLE, AMPLE THRUST

The robust thrust enables the drone to attain high speed, swiftly exhibiting astonishing explosive power. Even at full throttle, the motor consistently delivers ample thrust, ensuring the drone maintains a stable flight attitude both during curve negotiation and straight-line acceleration.

arrow

Technical Drawing


Specification
TypeF50Motor DimensionΦ27*29.5mm
MagnetBlack nickel
plated arc magnet
Coil insulation test300V withstand voltage test
Waterproof and
dustproof class
/Configuration12N14P
Dynamic balance
requirements standards
≤3mgBearingsImported 684ZZ/MR84ZZ
bearings
Shaft Diameter5mmLead20AWG*150mm
Screw DiameterΦ16-M3-4Prop Adapter Shaft ThreadM5*10.75mm
Packing SizeΦ68*35.0mmPacking Weight55g
Tech Specs
KV2150Idle Current(10V)≦1.6A
Max Power1273WInternal Resistance50mΩ
Rated Voltage (Lipo)24VPeak Current54.8A
Max Thrust2136gWeight (excl. cable)28.56g
KV2200Idle Current(10V)≦1.6A
Max Power1315WInternal Resistance47mΩ
Rated Voltage (Lipo)24VPeak Current56.63A
Max Thrust2134gWeight (excl. cable)28.36g
Recommended
MotorF50Frame TypeX4
Prop5-inch 3-blade prop with
small and medium pitch
(TMHOBBY F5146)
Lipo Cells6S
ESCTMHOBBY F60A 8S 4IN1Recommended
takeoff weight range
Within 500g
FCTMHOBBY MINI F7
MPU6000
Max Takeoff Weight800g
Recommended ESC settings:
AM32: start power 100%, maximum timing angle, pwm frequency ≥ 32khz, kv value slightly higher than motor kv
BL32: start power about 40%, maximum timing angle, pwm frequency: 48-byrpm
Disclaimer: Desyncs is related to many factors, including FC parameters, motor usage, installation status, etc.
Test Data
Test Data
TypePropellerVoltage
(V)
Throttle
(%)
Current
(A)
RPMThrust
(g)
Power
(W)
Efficiency
(g/W)
Torque
(N*m)
Operating
Temperature
(℃)
F50 2150KVTM-HOBBY F514624.0410%0.40543638103.970.00102
24.0220%1.4110238152344.500.02
23.9930%3.4714754341834.100.03
23.9540%6.67187465721603.580.06
23.8850%10.97221948242623.150.08
23.7960%17.232560111204102.730.11
23.6870%24.762839214075862.400.14
23.5680%33.123102617047802.190.17
23.4290%42.8033213197510021.970.20
23.28100%52.5235042213612221.750.22
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
F50 2150KVHQ MCK24.0310%0.3854253793.960.00132
24.0120%1.3910223144334.330.02
23.9930%3.3814796316813.900.03
23.9440%6.51188275281563.390.05
23.8850%10.70223637582562.970.08
23.8060%16.712584110193982.560.11
23.6970%23.892870712815662.260.13
23.5780%32.063135315317562.030.16
23.4490%41.153387317889641.850.19
23.29100%51.1635724198311921.660.21
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
F50 2150KVGF51377-324.0310%0.3952944094.290.00122
24.0120%1.4810018161354.550.02
23.9830%3.6914490354894.000.04
23.9340%7.02182415771683.430.06
23.8650%11.63216738242772.970.09
23.7760%18.292502011254352.590.12
23.6470%26.382773914486242.320.15
23.5280%34.843007317158202.090.18
23.3890%44.4932041190510401.830.20
23.23100%54.8033808210012731.650.23
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
F50 2200KVTM-HOBBY F514624.0210%0.3955603994.200.00125
24.0120%1.4510454158354.550.02
23.9730%3.5715080353864.120.03
23.9340%6.99191285911673.540.06
23.8750%11.48226028442743.080.08
23.7760%18.052601511444292.670.11
23.6570%25.832881114296112.340.14
23.5380%34.763115316958182.070.17
23.3990%44.8233585199710481.910.20
23.26100%54.1935287213412601.690.22
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
F50 2200KVHQ MCK24.0210%0.40554638103.970.00152
24.0120%1.4610475151354.330.02
23.9830%3.5415107330853.890.03
23.9340%6.86192235471643.330.06
23.8750%11.23227597762682.900.08
23.7860%17.522624310424162.500.11
23.6770%24.922909812935902.190.13
23.5580%33.383174615487861.970.16
23.4190%42.9234228180410051.800.19
23.27100%53.1136000199512361.610.21
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
F50 2200KVGF51377-324.0110%0.47539042113.690.01145
23.9920%1.7210159165413.990.02
23.9630%4.0314725362973.740.04
23.9140%7.53185525891803.270.06
23.8450%12.46219448412972.830.09
23.7460%19.452529011454622.480.12
23.6270%27.842801314596572.220.15
23.5080%36.503042417088581.990.18
23.3690%46.2032492192810791.790.20
23.21100%56.6334082209613151.590.23
Note: Motor temperature is motor surface temperature running at 80% throttle for 10 seconds.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

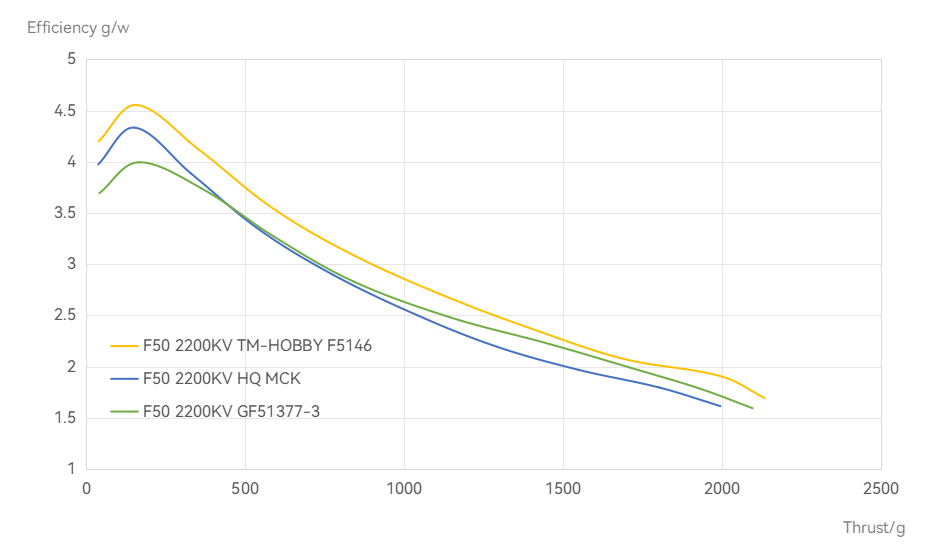

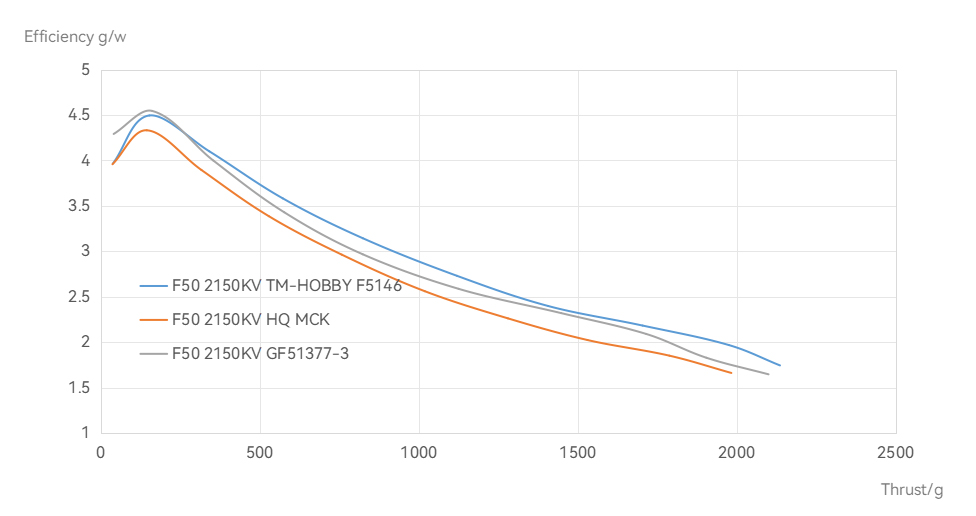

Analysis Chart

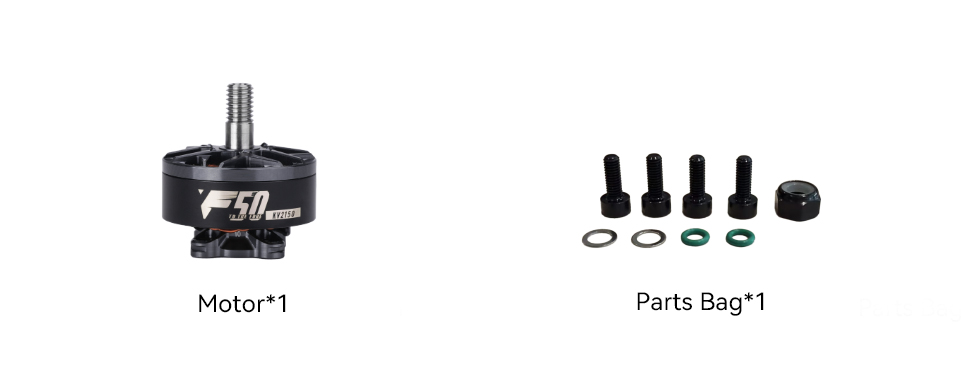

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
