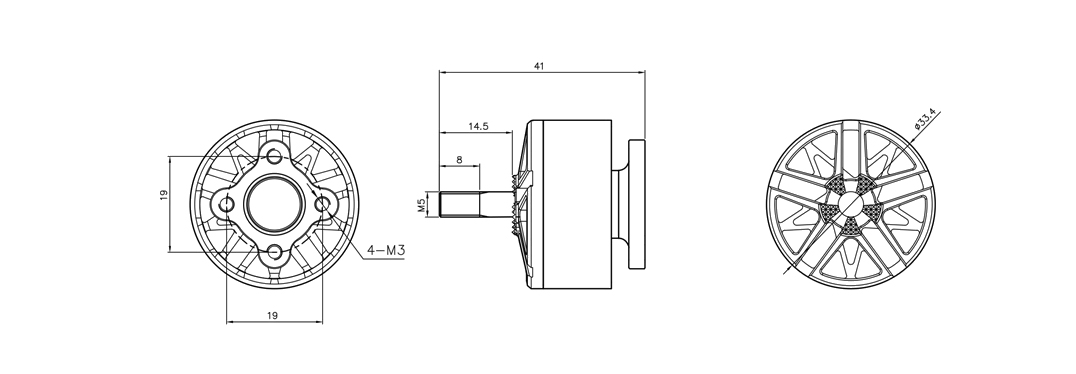

工程图
大陆地区免邮
中文简体
- 中文简体
- English
| 型号 | KV925 | 槽极 | 12N14P |
| 轴径 | 4mm | 电机硅胶线规格 | 18#250mm |
| 电机重量（含线) | 78.6g | 测试电压 | 25.2V |
| 空载电流（10V） | 1.16A | 最大功率（10s） | 1013.3W |
| 最大电流（10s） | 41.4A |
| 型号 | KV1155 | 槽极 | 12N14P |
| 轴径 | 4mm | 电机硅胶线规格 | 18#250mm |
| 电机重量（含线) | 78g | 测试电压 | 25.2V |
| 空载电流（10V） | 1.52A | 最大功率（10s） | 1520.6W |
| 最大电流（10s） | 63.1A |

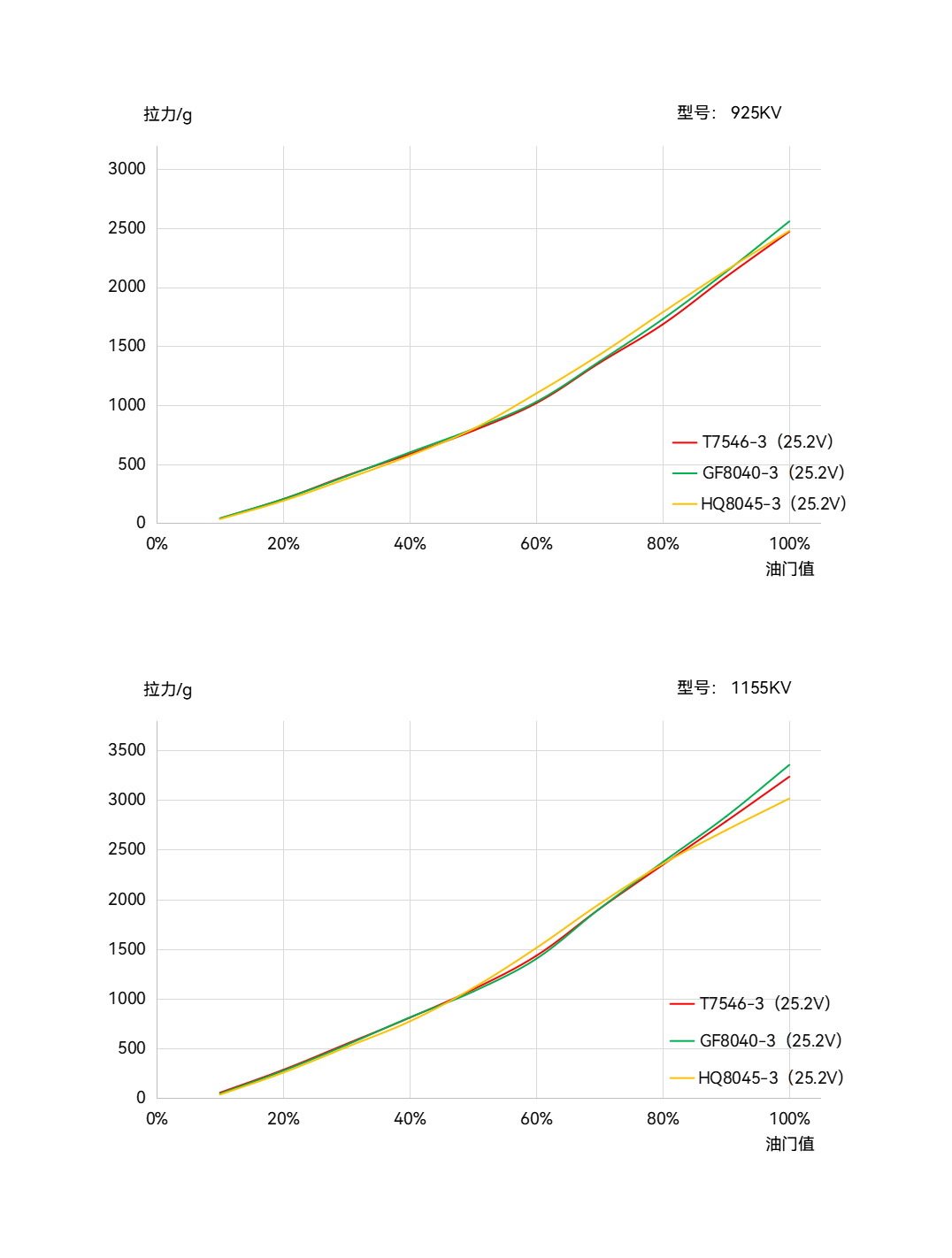

| 螺旋桨 | 测试型号 | 油门值 | 电压 | 电流 （A） | 转速 （RPM） | 拉力 (g) | 功率 (W) | 力效 (g/W) |
LIGPOWER | 925KV | 20% | 25.2 | 1.6 | 5772.6 | 204.4 | 41.0 | 4.99 |
| 40% | 25.2 | 5.1 | 8944 | 586.0 | 128.0 | 4.58 | ||
| 60% | 25.0 | 10.3 | 11624.4 | 1016.9 | 258.9 | 3.93 | ||
| 80% | 24.9 | 20.6 | 14861 | 1684.7 | 511.8 | 3.29 | ||
| 100% | 24.7 | 35.8 | 17690.8 | 2470.0 | 883.6 | 2.80 | ||
| 1155KV | 20% | 25.2 | 2.6 | 6707.2 | 286.1 | 64.5 | 4.44 | |
| 40% | 25.1 | 8.5 | 10407.8 | 810.4 | 212.0 | 3.82 | ||
| 60% | 24.9 | 17.4 | 13720.8 | 1433.1 | 432.8 | 3.31 | ||
| 80% | 24.7 | 36.1 | 17231.3 | 2348.0 | 889.5 | 2.64 | ||
| 100% | 24.3 | 59.2 | 20049.6 | 3233.8 | 1437.9 | 2.25 | ||
| GF8040-3 | 925KV | 20% | 25.2 | 1.6 | 5965.1 | 204.6 | 40.4 | 5.06 |
| 40% | 25.2 | 5.1 | 9196.6 | 599.9 | 127.1 | 4.72 | ||
| 60% | 25.1 | 9.8 | 11764.9 | 1028.3 | 245.7 | 4.18 | ||
| 80% | 24.9 | 19.6 | 15013 | 1728.9 | 488.8 | 3.54 | ||
| 100% | 24.7 | 34.7 | 17843.1 | 2556.5 | 855.5 | 2.99 | ||
| 1155KV | 20% | 25.2 | 2.5 | 6970.9 | 276.8 | 64.0 | 4.33 | |
| 40% | 25.1 | 8.2 | 10727.5 | 813.3 | 206.3 | 3.94 | ||
| 60% | 25.0 | 16.2 | 14016 | 1402.6 | 403.6 | 3.48 | ||
| 80% | 24.7 | 34.1 | 17549.3 | 2375.0 | 842.7 | 2.82 | ||
| 100% | 24.3 | 57.5 | 20334.9 | 3352.8 | 1397.7 | 2.40 | ||
| HQ8045-3 | 925KV | 20% | 25.2 | 1.5 | 4714.92 | 190.0 | 37.7 | 5.04 |
| 40% | 25.1 | 5.1 | 7324.83 | 572.7 | 128.1 | 4.47 | ||
| 60% | 25.0 | 12.0 | 9961.83 | 1099.2 | 299.7 | 3.67 | ||
| 80% | 24.8 | 24.2 | 12473.19 | 1787.1 | 599.9 | 2.98 | ||
| 100% | 24.5 | 41.4 | 14533.92 | 2476.8 | 1013.3 | 2.44 | ||
| 1155KV | 20% | 25.2 | 2.4 | 5470.92 | 257.9 | 60.4 | 4.27 | |
| 40% | 25.1 | 8.4 | 8536.86 | 773.5 | 210.6 | 3.67 | ||
| 60% | 24.9 | 19.9 | 11564.01 | 1511.5 | 494.5 | 3.06 | ||
| 80% | 24.5 | 40.5 | 14091.12 | 2356.6 | 993.3 | 2.37 | ||
| 100% | 24.1 | 63.1 | 15759.63 | 3014.2 | 1520.6 | 1.98 |
