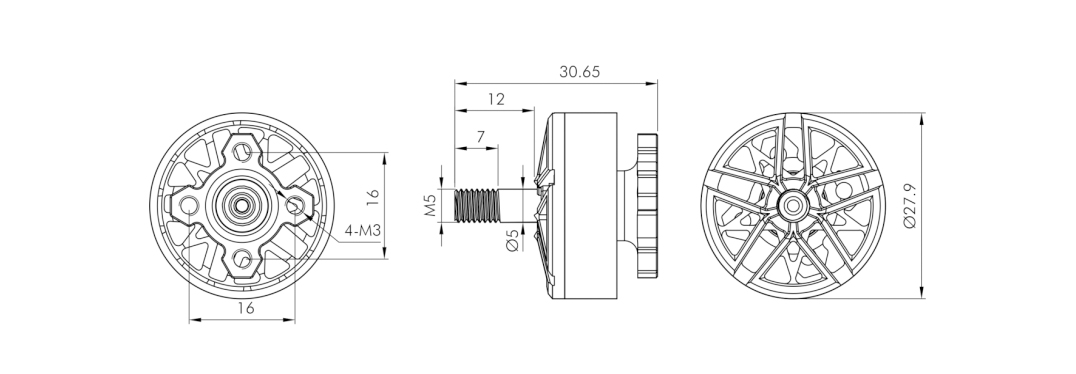

工程图
大陆地区免邮
中文简体
- 中文简体
- English

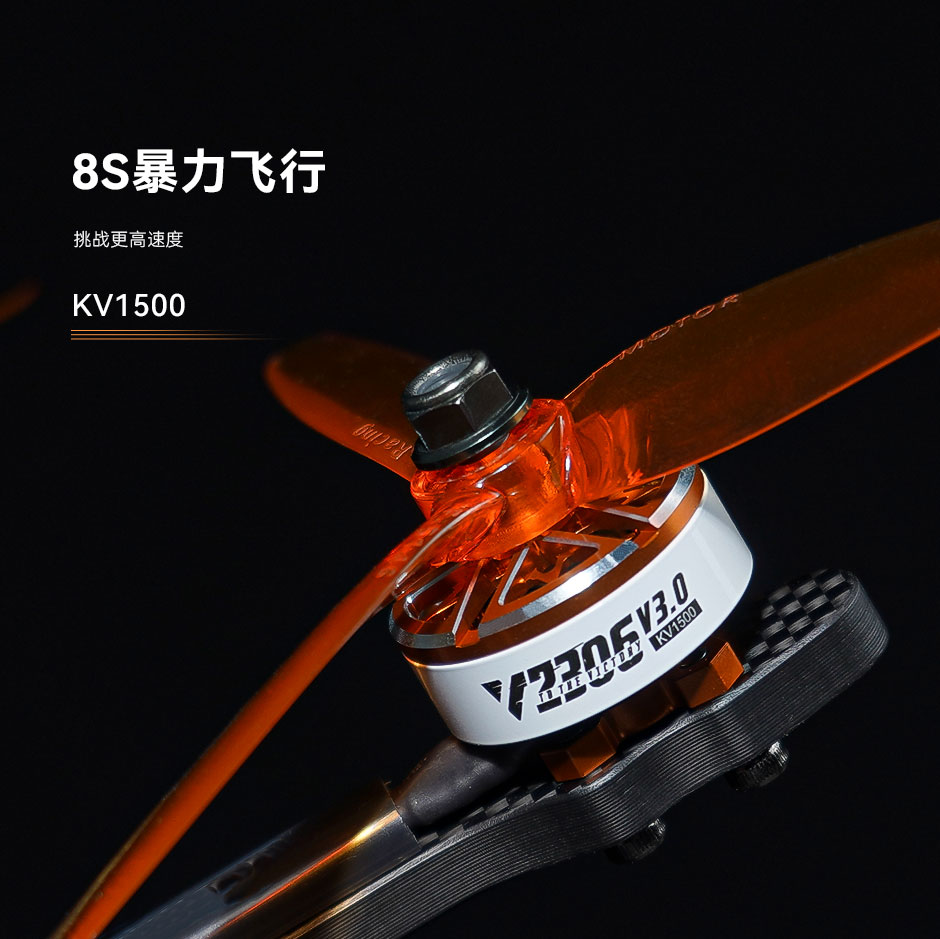

| 型号 | KV1500 | 槽极 | 12N14P |
| 轴径 | IN: 4mm OUT:5mm | 电机硅胶线规格 | 20#150mm |
| 电机重量（含线) | 32.7g | 测试电压 | 8S |
| 空载电流（10V） | 0.7A | 最大功率（60s） | 1969.9W |
| 最大电流（60s） | 34.5A |

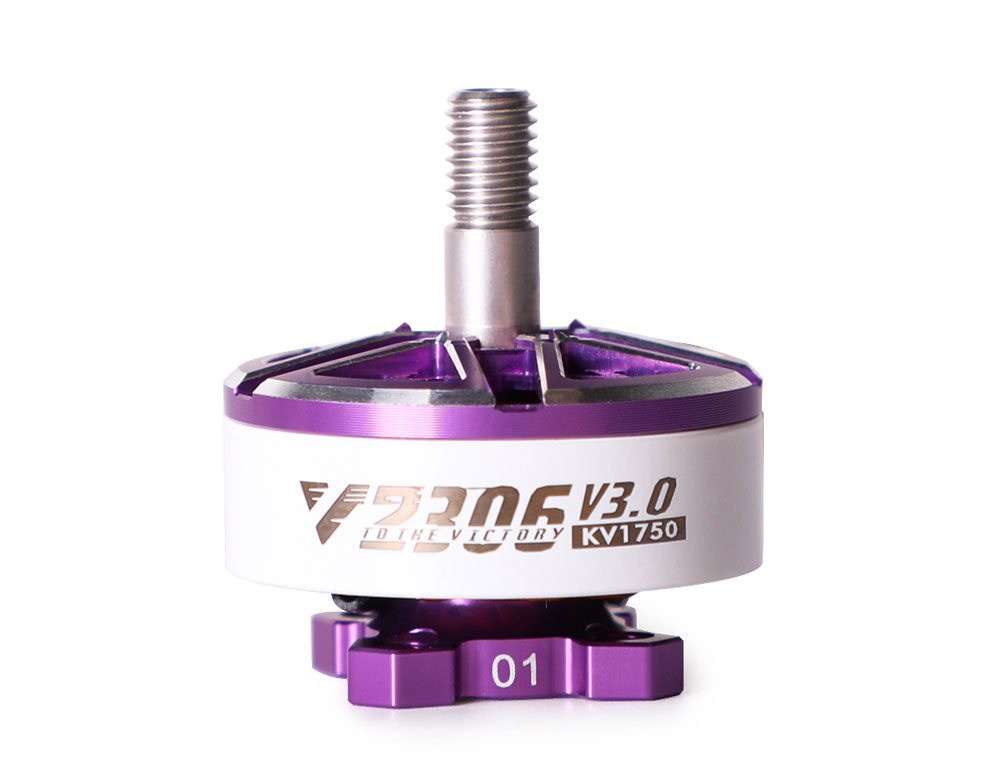

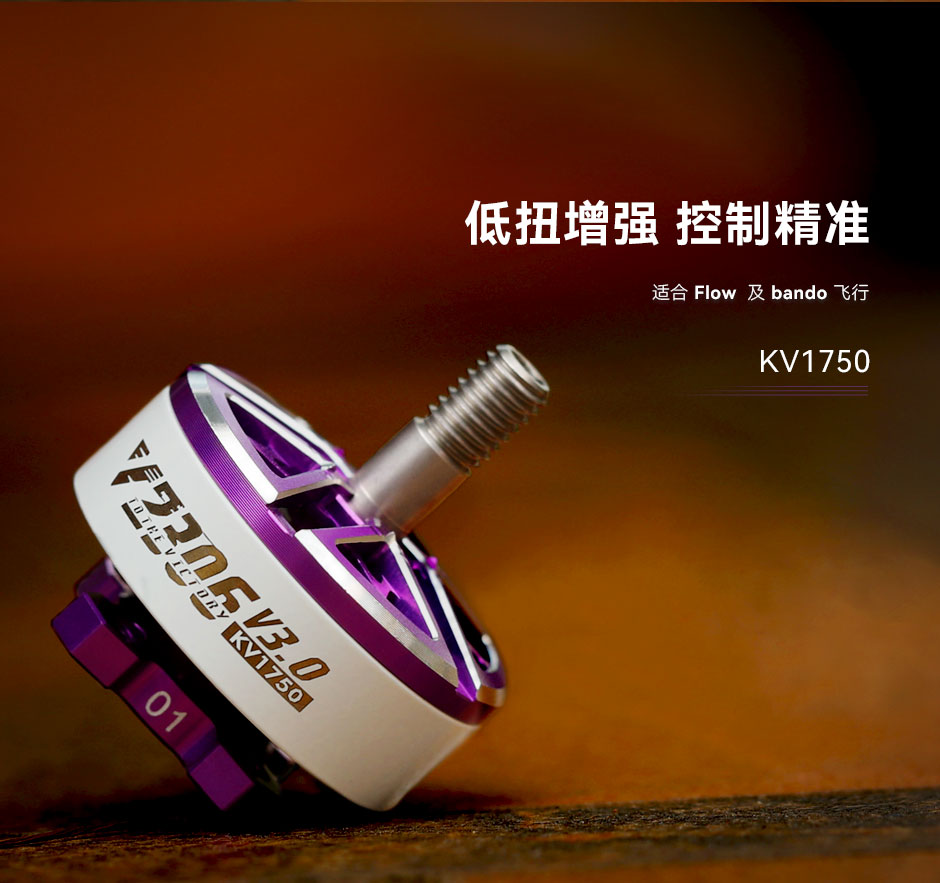

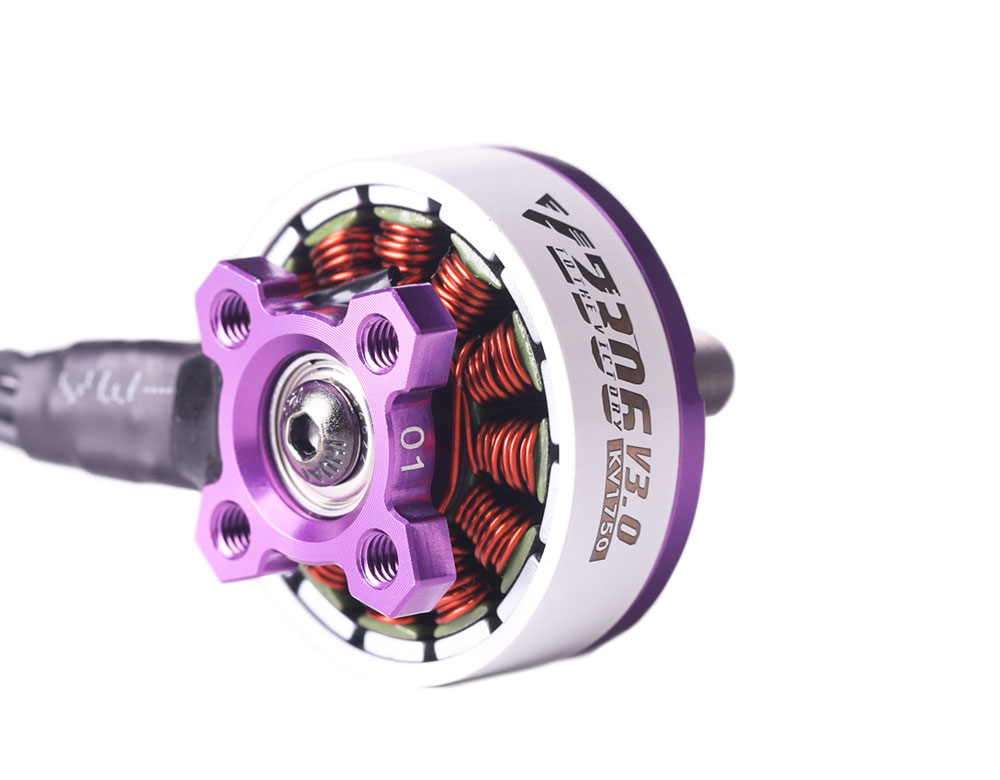

| 型号 | KV1750 | 槽极 | 12N14P |
| 轴径 | IN: 4mm OUT:5mm | 电机硅胶线规格 | 20#150mm |
| 电机重量（含线) | 33.8g | 测试电压 | 6S |
| 空载电流（10V） | 0.85A | 最大功率（60s） | 820.7W |
| 最大电流（60s） | 34.9A |

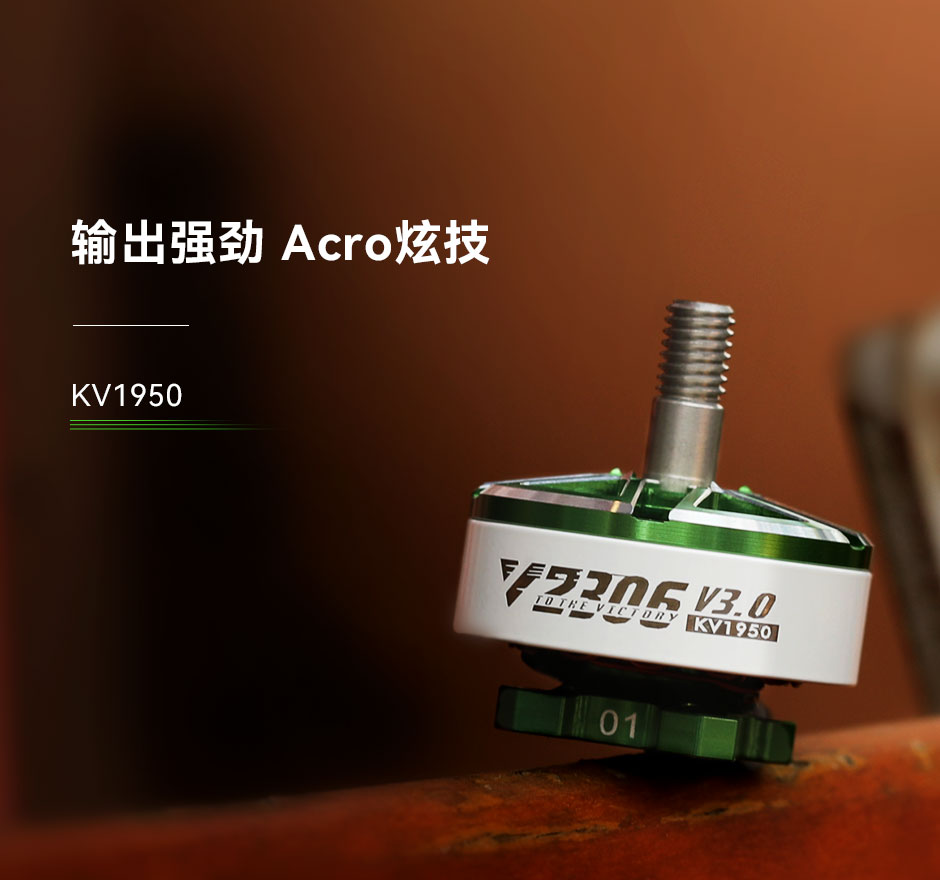

| 型号 | KV1950 | 槽极 | 12N14P |
| 轴径 | IN: 4mm OUT:5mm | 电机硅胶线规格 | 20#150mm |
| 电机重量（含线) | 33.7g | 测试电压 | 6S |
| 空载电流（10V） | 1.3A | 最大功率（60s） | 976W |
| 最大电流（60s） | 41.7A |

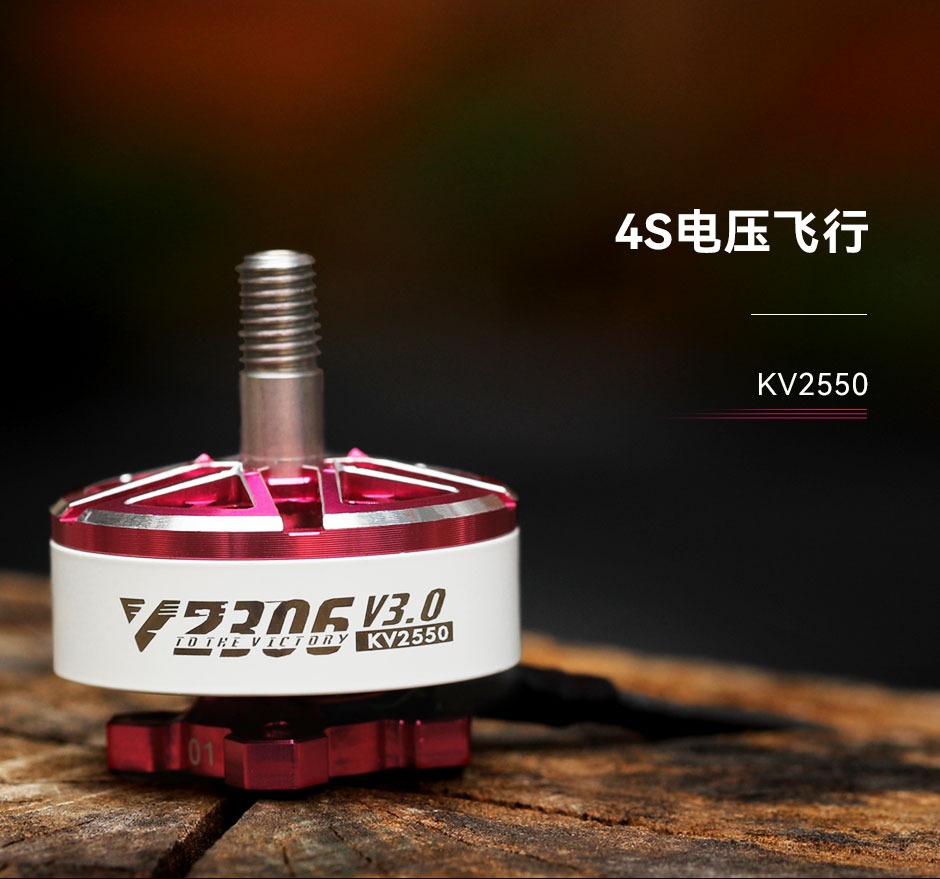

| 型号 | KV2550 | 槽极 | 12N14P |
| 轴径 | IN: 4mm OUT:5mm | 电机硅胶线规格 | 20#150mm |
| 电机重量（含线) | 32.6g | 测试电压 | 4S |
| 空载电流（10V） | 1.95A | 最大功率（60s） | 533.7W |
| 最大电流（60s） | 34.5A |
| 螺旋桨 | 测试型号 | 油门值 | 电压 | 电流 （A） | 转速 （RPM） | 拉力 (g) | 功率 (W) | 力效 (g/W) |
| LIGPOWER P49436-3 | 1500KV | 20% | 32.0 | 0.8 | 8892.6 | 96.4 | 24.7 | 3.90 |
| 40% | 32.0 | 3.9 | 17183.4 | 399.1 | 124.9 | 3.20 | ||
| 60% | 31.9 | 10.4 | 24164.7 | 867.8 | 331.8 | 2.62 | ||
| 80% | 31.7 | 20.9 | 29738.9 | 1320.9 | 664.4 | 1.99 | ||
| 100% | 31.5 | 34.5 | 34658.0 | 1760.0 | 1087.2 | 1.62 | ||
| 1750KV | 20% | 24.0 | 1.9 | 11818.1 | 176.6 | 45.1 | 3.92 | |
| 40% | 24.0 | 6.0 | 18030.9 | 439.4 | 142.9 | 3.07 | ||
| 60% | 23.9 | 10.7 | 22021.2 | 664.2 | 255.2 | 2.60 | ||
| 80% | 23.8 | 17.8 | 26399.3 | 953.8 | 422.3 | 2.26 | ||
| 100% | 23.6 | 30.0 | 31486.2 | 1353.1 | 706.6 | 1.91 | ||
| 1950KV | 20% | 24.0 | 2.3 | 12593.7 | 194.3 | 55.6 | 3.49 | |
| 40% | 23.9 | 7.3 | 19012.8 | 483.5 | 175.5 | 2.76 | ||
| 60% | 23.8 | 13.3 | 23336 | 740.1 | 316.1 | 2.34 | ||
| 80% | 23.7 | 22.0 | 27880.2 | 1074.2 | 520.8 | 2.06 | ||
| 100% | 23.5 | 36.8 | 32945.3 | 1466.9 | 863.9 | 1.70 | ||
| 2550KV | 20% | 16.0 | 2.3 | 10520.9 | 121.4 | 36.2 | 3.35 | |
| 40% | 15.9 | 6.8 | 16221.2 | 332.5 | 108.3 | 3.07 | ||
| 60% | 15.9 | 12.3 | 19987 | 531.8 | 195.3 | 2.72 | ||
| 80% | 15.7 | 19.4 | 23741 | 758.5 | 305.6 | 2.48 | ||
| 100% | 15.5 | 32.3 | 28139.9 | 1087.0 | 502.2 | 2.16 | ||
LIGPOWER | 1750KV | 20% | 24.0 | 1.9 | 11566.8 | 167.1 | 45.3 | 3.69 |
| 40% | 24.0 | 6.0 | 17835.1 | 426.8 | 143.1 | 2.98 | ||
| 60% | 23.9 | 10.8 | 21876.9 | 659.1 | 258.2 | 2.55 | ||
| 80% | 23.8 | 17.9 | 26306.5 | 961.5 | 425.3 | 2.26 | ||
| 100% | 23.6 | 30.3 | 31362.7 | 1356.8 | 714.2 | 1.90 | ||
| 1950KV | 20% | 24.0 | 2.3 | 12356.3 | 191.9 | 56.3 | 3.41 | |
| 40% | 23.9 | 7.4 | 18868.8 | 477.6 | 176.2 | 2.71 | ||
| 60% | 23.8 | 13.4 | 23124.7 | 743.7 | 320.4 | 2.32 | ||
| 80% | 23.7 | 22.2 | 27814.2 | 1070.7 | 526.5 | 2.03 | ||
| 100% | 23.5 | 37.1 | 32792.3 | 1481.3 | 871.8 | 1.70 | ||
| 2550KV | 20% | 16.0 | 2.3 | 10367.9 | 126.7 | 36.1 | 3.51 | |
| 40% | 15.9 | 6.8 | 16014.8 | 330.3 | 108.8 | 3.04 | ||
| 60% | 15.8 | 12.5 | 19778.6 | 521.8 | 197.4 | 2.64 | ||
| 80% | 15.7 | 19.8 | 23611.5 | 762.9 | 310.8 | 2.45 | ||
| 100% | 15.5 | 32.8 | 27994 | 1091.2 | 508.6 | 2.15 | ||
LIGPOWER | 1750KV | 20% | 24.0 | 1.9 | 10732.8 | 186.2 | 46.6 | 4.00 |
| 40% | 24.0 | 6.2 | 16597 | 471.7 | 147.6 | 3.20 | ||
| 60% | 23.9 | 11.9 | 20537.6 | 746.5 | 284.5 | 2.62 | ||
| 80% | 23.7 | 20.9 | 25207.7 | 1145.2 | 495.8 | 2.31 | ||
| 100% | 23.5 | 34.9 | 29715.1 | 1577.9 | 820.7 | 1.92 | ||
| 1950KV | 20% | 24.0 | 2.4 | 11491.1 | 208.8 | 57.0 | 3.66 | |
| 40% | 23.9 | 7.8 | 17710.9 | 542.1 | 186.5 | 2.91 | ||
| 60% | 23.8 | 14.9 | 21783.8 | 845.3 | 354.2 | 2.39 | ||
| 80% | 23.6 | 25.6 | 26358.4 | 1268.2 | 605.3 | 2.10 | ||
| 100% | 23.4 | 41.7 | 30816.2 | 1688.7 | 976.0 | 1.73 | ||
| 2550KV | 20% | 16.0 | 2.3 | 10315.5 | 137.8 | 36.2 | 3.81 | |
| 40% | 15.9 | 6.9 | 15688 | 367.3 | 109.9 | 3.34 | ||
| 60% | 15.8 | 12.8 | 19505.9 | 576.7 | 202.1 | 2.85 | ||
| 80% | 15.7 | 20.6 | 23309.5 | 849.4 | 324.3 | 2.62 | ||
| 100% | 15.5 | 34.5 | 27522.3 | 1221.6 | 533.7 | 2.29 | ||
LIGPOWER | 1500KV | 20% | 32.0 | 0.8 | 8851.831 | 104.1 | 24.1 | 4.31 |
| 40% | 32.0 | 3.9 | 17136.514 | 440.3 | 125.6 | 3.51 | ||
| 60% | 31.9 | 10.3 | 24159.533 | 929.9 | 328.8 | 2.83 | ||
| 80% | 31.7 | 20.9 | 29738.463 | 1443.4 | 662.0 | 2.18 | ||
| 100% | 31.5 | 34.5 | 34509.941 | 1969.9 | 1088.2 | 1.81 | ||
LIGPOWER | 1500KV | 10% | 24.0 | 0.2 | 3275.9 | 17.7 | 3.7 | 4.83 |
| 20% | 24.0 | 0.6 | 6315.3 | 71.3 | 15.1 | 4.74 | ||
| 30% | 24.0 | 1.7 | 9219.8 | 156.0 | 39.9 | 3.91 | ||
| 40% | 24.0 | 3.4 | 11992.8 | 280.6 | 82.4 | 3.41 | ||
| 50% | 23.9 | 6.1 | 14586.2 | 432.5 | 145.7 | 2.97 | ||
| 60% | 23.9 | 9.6 | 16902.8 | 595.4 | 228.5 | 2.61 | ||
| 70% | 23.8 | 13.9 | 18978.0 | 768.0 | 332.3 | 2.31 | ||
| 80% | 23.7 | 19.2 | 20865.8 | 943.9 | 455.3 | 2.07 | ||
| 90% | 23.6 | 25.2 | 22509.1 | 1107.7 | 594.9 | 1.86 | ||
| 100% | 23.5 | 31.6 | 23824.8 | 1251.0 | 743.1 | 1.68 | ||
LIGPOWER | 1500KV | 10% | 16.1 | 0.1 | 1850.8 | 23.1 | 2.0 | 11.39 |
| 20% | 16.0 | 0.7 | 3807.5 | 95.5 | 11.1 | 8.58 | ||
| 30% | 16.0 | 2.0 | 5522.9 | 206.9 | 31.8 | 6.51 | ||
| 40% | 16.0 | 4.1 | 7029.0 | 344.3 | 66.1 | 5.21 | ||
| 50% | 15.9 | 7.2 | 8329.6 | 497.8 | 114.3 | 4.36 | ||
| 60% | 15.9 | 10.9 | 9489.0 | 653.0 | 173.2 | 3.77 | ||
| 70% | 15.8 | 15.4 | 10490.8 | 803.7 | 243.6 | 3.30 | ||
| 80% | 15.7 | 20.5 | 11286.2 | 939.1 | 321.3 | 2.92 | ||
| 90% | 15.6 | 25.9 | 11956.2 | 1051.3 | 403.8 | 2.60 | ||
| 100% | 15.5 | 31.8 | 12503.3 | 1150.5 | 493.7 | 2.33 | ||
LIGPOWER | 1500KV | 10% | 24.0 | 0.2 | 2888.9 | 29.8 | 4.0 | 7.51 |
| 20% | 24.0 | 0.9 | 5832.3 | 120.4 | 21.1 | 5.71 | ||
| 30% | 24.0 | 2.4 | 8561.5 | 275.9 | 58.7 | 4.70 | ||
| 40% | 24.0 | 5.1 | 10983.1 | 474.2 | 122.8 | 3.86 | ||
| 50% | 23.9 | 9.1 | 13078.2 | 685.3 | 217.9 | 3.15 | ||
| 60% | 23.8 | 14.1 | 14893.9 | 889.1 | 335.3 | 2.65 | ||
| 70% | 23.7 | 19.7 | 16306.4 | 1074.5 | 466.4 | 2.30 | ||
| 80% | 23.6 | 26.0 | 17463.1 | 1233.8 | 614.3 | 2.01 | ||
| 90% | 23.5 | 32.6 | 18229.3 | 1353.1 | 767.1 | 1.76 | ||
| 100% | 23.4 | 39.2 | 18701.5 | 1435.1 | 917.7 | 1.56 |
