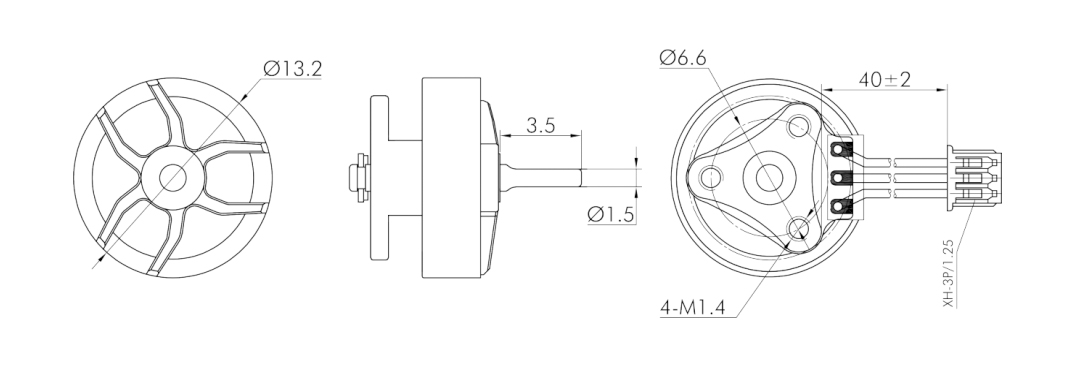

工程图
大陆地区免邮
中文简体
- 中文简体
- English

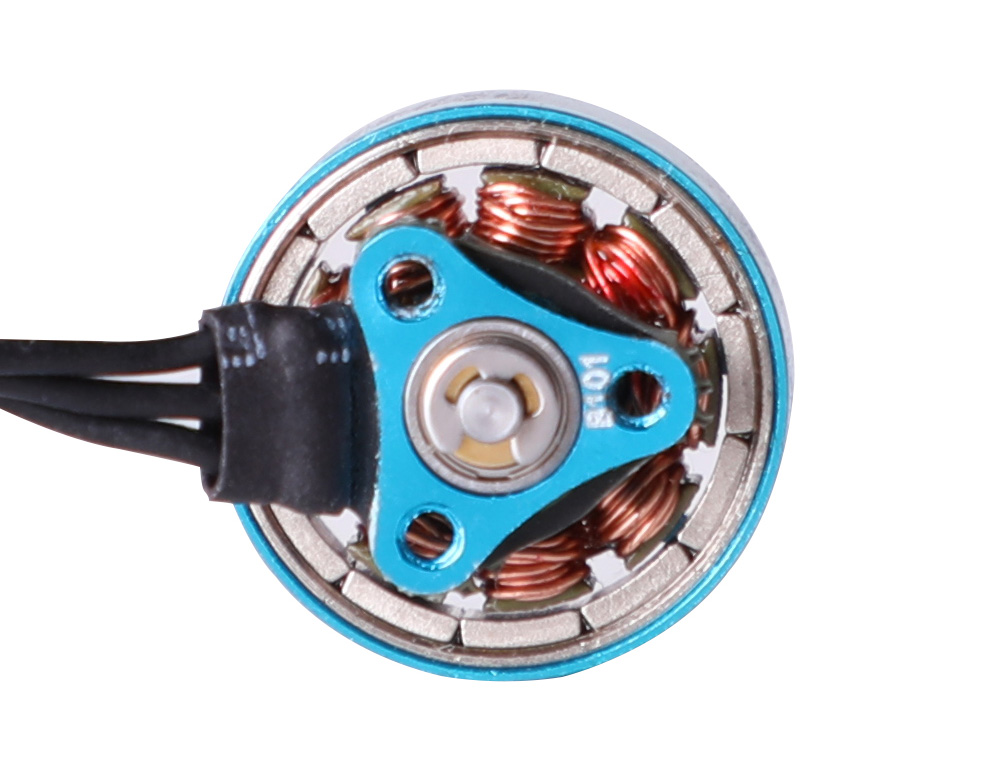

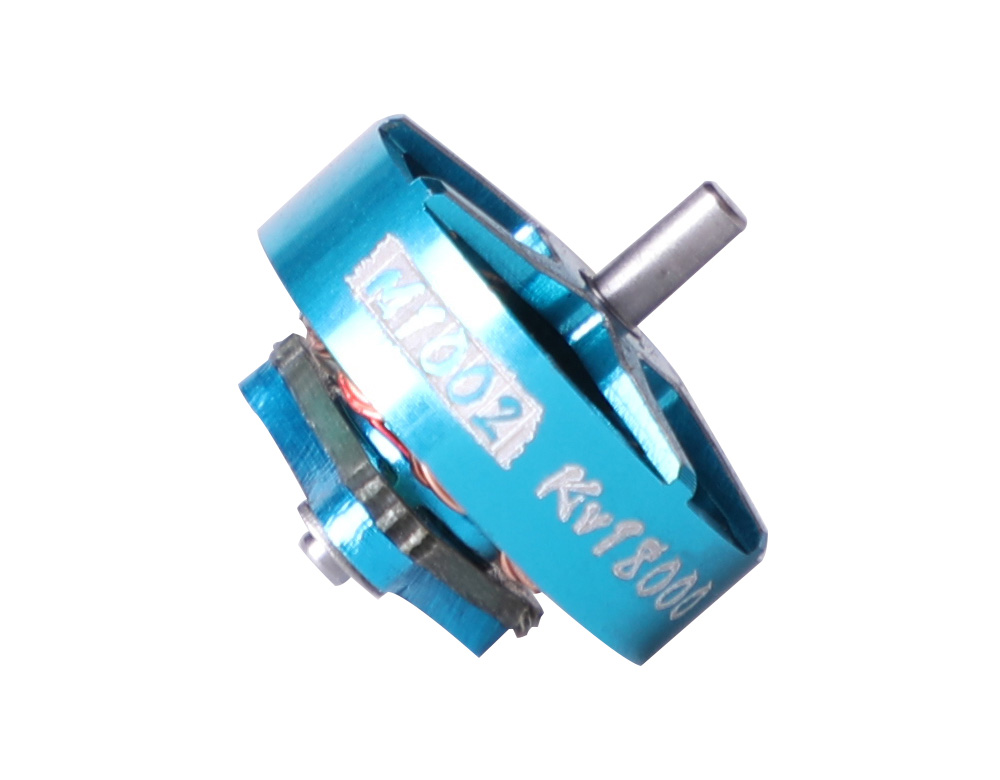

| 型号 | KV18000 | 槽极 | 9N12P |

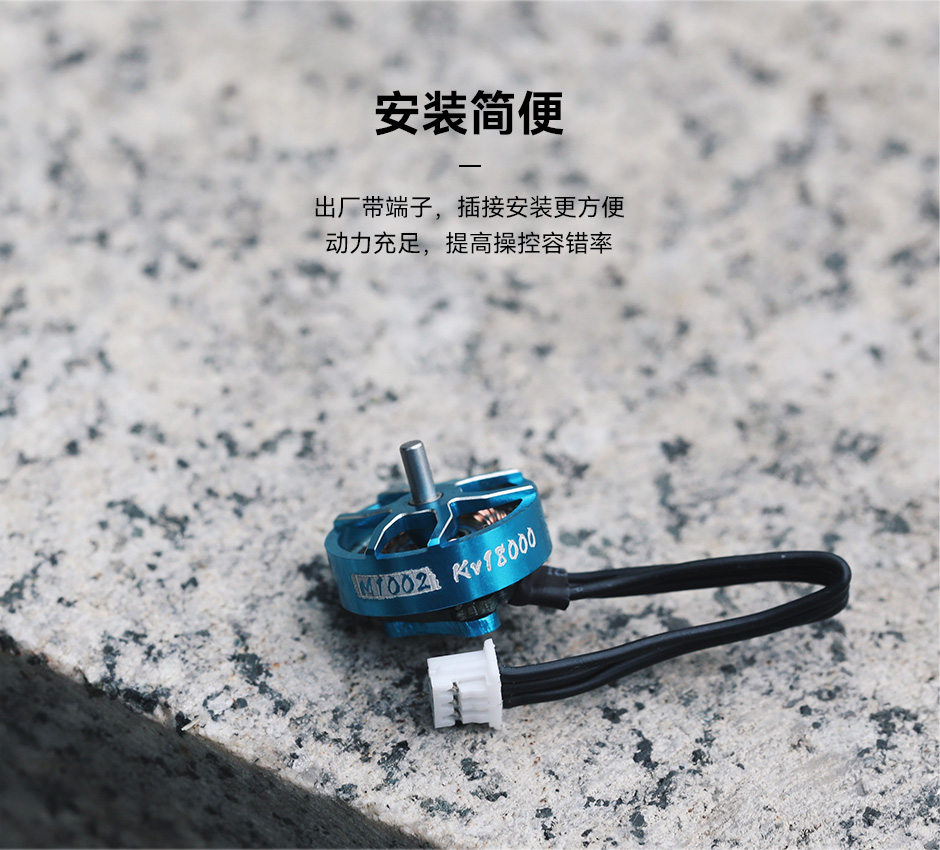

| 轴径 | IN: 1.5mm OUT:1mm | 电机硅胶线规格 | JST-1.25 40mm |

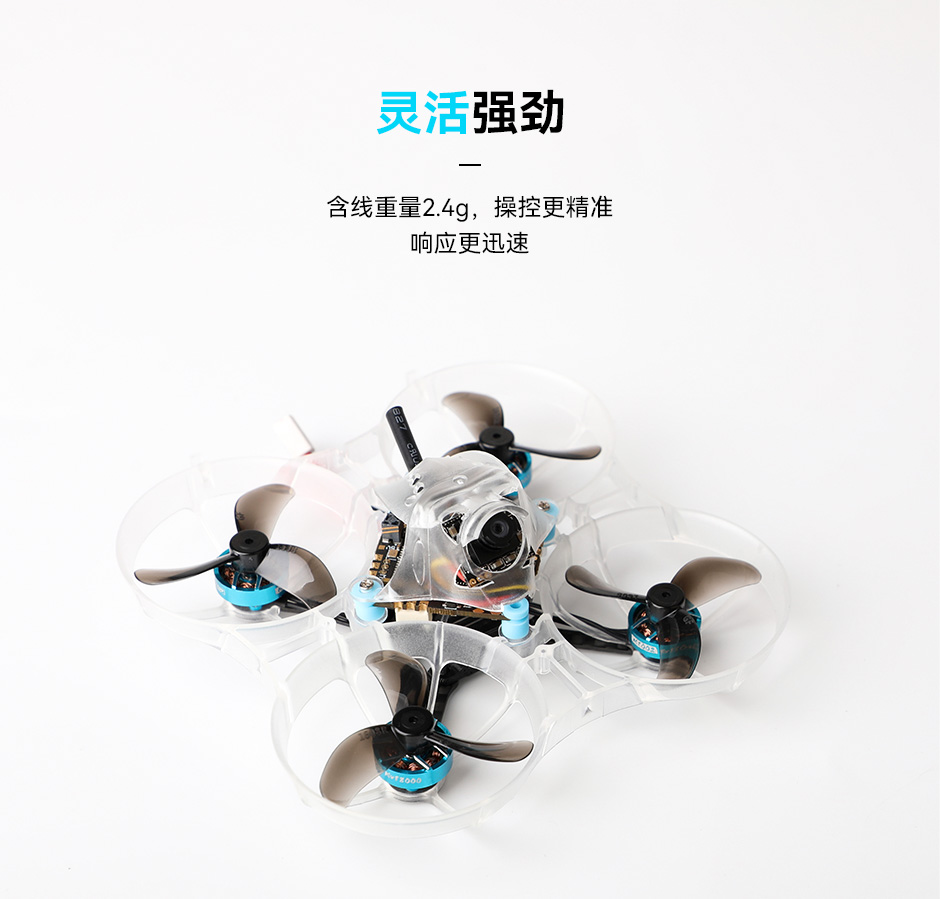

| 电机重量（含线) | 2.4g | 测试电压 | 1S |
| 空载电流（10V） | 0.6A | 最大功率（10s） | 18.7W |
| 最大电流（10s） | 5.16A |

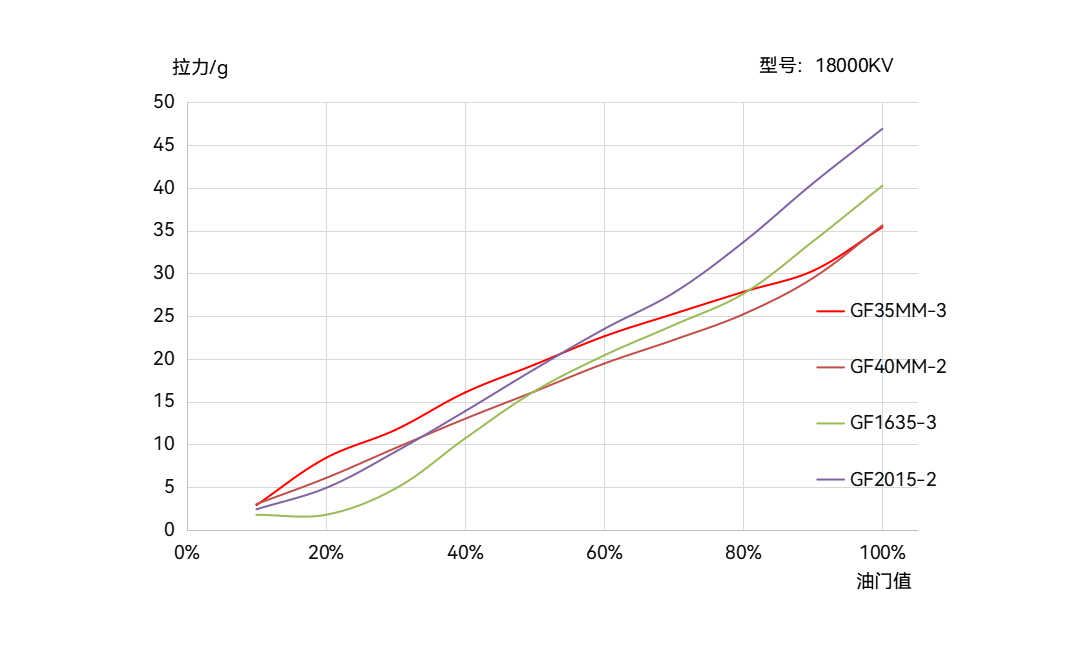

| 螺旋桨 | 测试型号 | 油门值 | 电压 | 电流 （A） | 转速 （RPM） | 拉力 (g) | 功率 (W) | 力效 (g/W) | |
| GF 35MM-3 | KV18000 | 20% | 3.7 | 0.4 | 17725.5 | 8.4 | 1.5 | 5.60 | |
| 40% | 3.7 | 1.1 | 28033.2 | 16.1 | 3.9 | 4.12 | |||
| 60% | 3.7 | 1.6 | 34983.1 | 22.6 | 6.1 | 3.71 | |||
| 80% | 3.7 | 2.2 | 38656.8 | 27.8 | 8.0 | 3.48 | |||
| 100% | 3.7 | 3.1 | 46259.2 | 35.4 | 11.4 | 3.11 | |||
| GF 40MM-2 | KV18000 | 20% | 3.7 | 0.4 | 15850 | 6.1 | 1.6 | 3.78 | |
| 40% | 3.7 | 1.1 | 24724.8 | 13.0 | 4.2 | 3.09 | |||
| 60% | 3.7 | 1.8 | 30870.8 | 19.4 | 6.7 | 2.90 | |||
| 80% | 3.7 | 2.5 | 35523.9 | 25.2 | 9.0 | 2.80 | |||
| 100% | 3.6 | 3.7 | 41649 | 35.6 | 13.5 | 2.64 | |||
| GF 1635-3 | KV18000 | 20% | 3.7 | 0.4 | 13475.4 | 1.8 | 1.6 | 1.09 | |
| 40% | 3.7 | 1.2 | 21362.6 | 10.7 | 4.5 | 2.37 | |||
| 60% | 3.7 | 2.0 | 27035.3 | 20.4 | 7.5 | 2.72 | |||
| 80% | 3.7 | 2.8 | 31274.4 | 27.6 | 10.3 | 2.68 | |||
| 100% | 3.6 | 4.4 | 37158.8 | 40.3 | 16.1 | 2.50 | |||
| GF 2015-2 | KV18000 | 20% | 3.7 | 0.4 | 12202.9 | 4.9 | 1.6 | 3.06 | |
| 40% | 3.7 | 1.2 | 19047 | 13.9 | 4.5 | 3.08 | |||
| 60% | 3.7 | 2.1 | 23852.2 | 23.5 | 7.8 | 3.01 | |||
| 80% | 3.7 | 3.2 | 28081.5 | 33.6 | 11.7 | 2.88 | |||
| 100% | 3.6 | 5.2 | 33388.6 | 46.9 | 18.7 | 2.51 | |||
