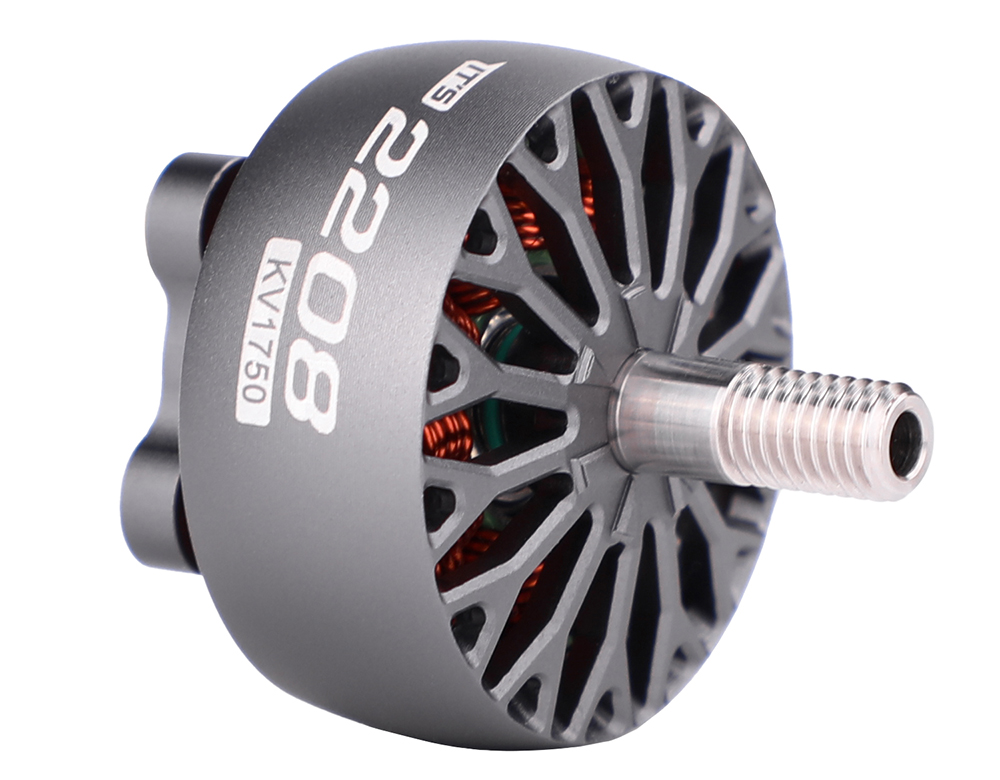

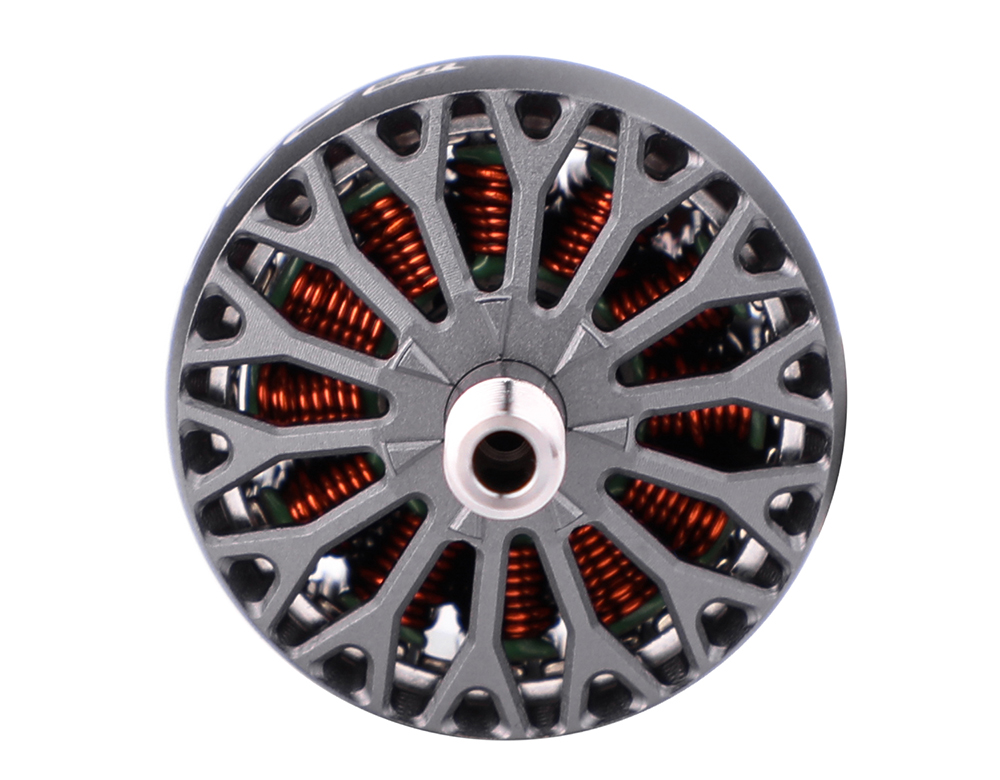

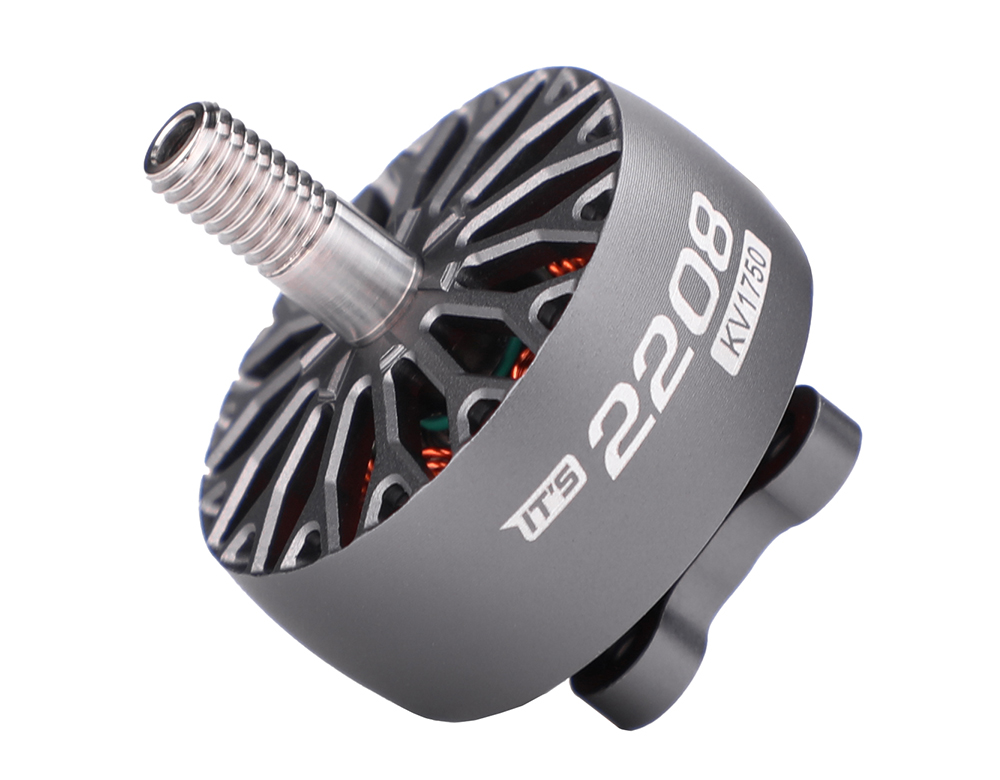

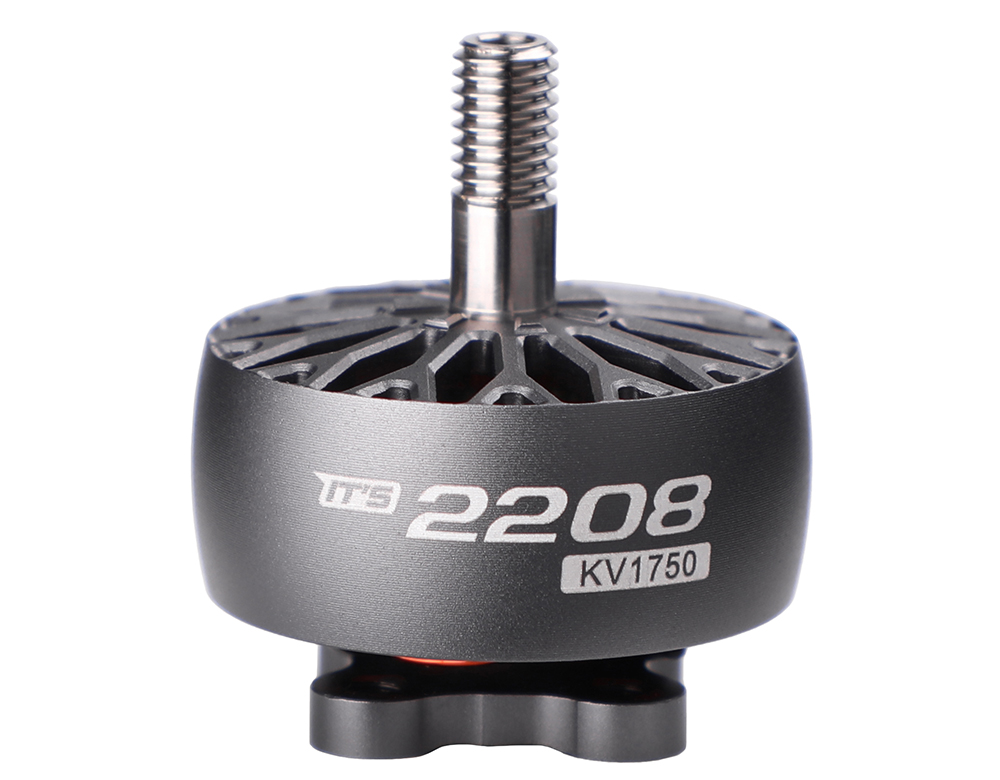

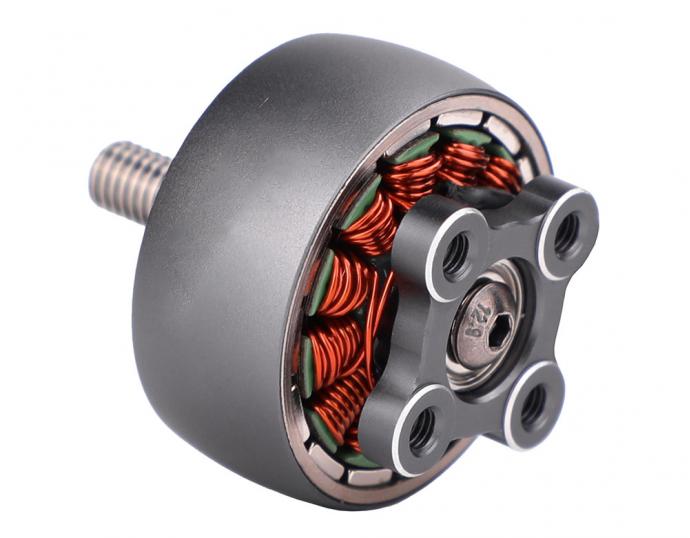

| 型号 | KV1750 | 槽极 | 12N14P |
| 轴径 | 4mm | 电机硅胶线规格 | 20#150mm |
| 电机重量（含线) | 34.4g | 测试电压 | 6S |
| 空载电流（10V） | 1.34A | 最大功率（10s） | 1144W |
| 最大电流（10s） | 46.7A |

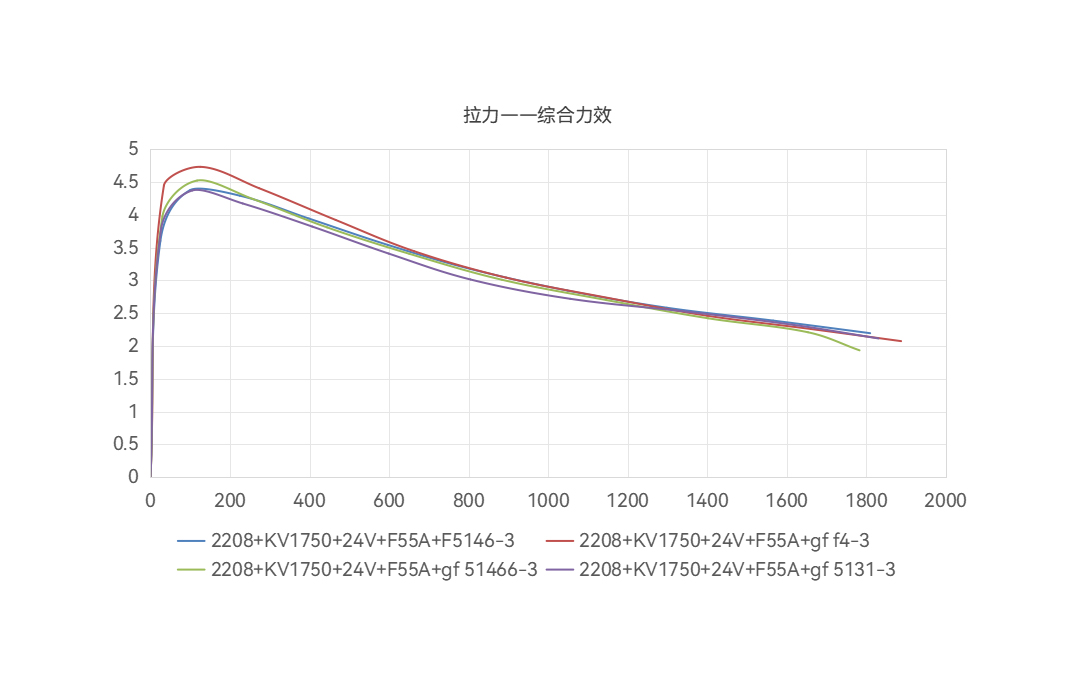

| 螺旋桨 | 测试型号 | 油门值 | 电压 | 电流 （A） | 转速 （RPM） | 拉力 (g) | 功率 (W) | 力效 (g/W) | |
| F5146-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 | |
| 10% | 24.0 | 0.3 | 4640.93 | 24.8 | 6.9 | 3.60 | |||
| 20% | 24.0 | 0.9 | 8680.86 | 99.2 | 22.7 | 4.38 | |||
| 30% | 24.0 | 2.2 | 12507.35 | 224.5 | 52.3 | 4.29 | |||
| 40% | 24.0 | 4.2 | 16152.18 | 398.4 | 101.0 | 3.94 | |||
| 50% | 23.9 | 7.0 | 19376.17 | 596.5 | 168.4 | 3.54 | |||
| 60% | 23.9 | 10.6 | 22245.97 | 804.0 | 253.2 | 3.18 | |||
| 70% | 23.8 | 15.5 | 25126.84 | 1048.4 | 368.3 | 2.85 | |||
| 80% | 23.7 | 21.2 | 27718.41 | 1298.6 | 502.5 | 2.58 | |||
| 90% | 23.6 | 27.7 | 30126.43 | 1565.8 | 655.8 | 2.39 | |||
| 100% | 23.5 | 35.0 | 32135.66 | 1809.7 | 824.3 | 2.20 | |||
| GF 51466-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 | |
| 10% | 24.0 | 0.3 | 4592.18 | 30.0 | 7.6 | 3.98 | |||
| 20% | 24.0 | 1.1 | 8553.46 | 117.2 | 25.9 | 4.52 | |||
| 30% | 24.0 | 2.5 | 12240.13 | 256.7 | 60.5 | 4.24 | |||
| 40% | 24.0 | 4.9 | 15757.11 | 444.4 | 116.7 | 3.81 | |||
| 50% | 23.9 | 8.0 | 18640.96 | 650.8 | 191.1 | 3.41 | |||
| 60% | 23.9 | 12.3 | 21512.57 | 884.1 | 293.7 | 3.01 | |||
| 70% | 23.8 | 17.8 | 24243.51 | 1146.3 | 424.4 | 2.70 | |||
| 80% | 23.7 | 24.4 | 26592.52 | 1402.5 | 578.9 | 2.42 | |||
| 90% | 23.6 | 31.7 | 28767.16 | 1653.4 | 748.2 | 2.21 | |||
| 100% | 23.5 | 39.3 | 30665.14 | 1783.0 | 921.6 | 1.94 | |||
| GF F4-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 | |
| 10% | 24.0 | 0.3 | 4595.97 | 33.8 | 7.6 | 4.45 | |||
| 20% | 24.0 | 1.1 | 8532.83 | 125.2 | 26.5 | 4.73 | |||
| 30% | 24.0 | 2.6 | 12110.69 | 272.9 | 61.9 | 4.41 | |||
| 40% | 24.0 | 5.0 | 15696.32 | 465.6 | 118.7 | 3.92 | |||
| 50% | 23.9 | 8.0 | 18605.53 | 663.2 | 192.5 | 3.45 | |||
| 60% | 23.9 | 12.3 | 21520.54 | 894.3 | 293.9 | 3.04 | |||
| 70% | 23.8 | 17.7 | 24289.98 | 1151.1 | 421.1 | 2.73 | |||
| 80% | 23.7 | 24.0 | 26697.98 | 1399.9 | 568.6 | 2.46 | |||
| 90% | 23.6 | 31.2 | 28916.67 | 1660.6 | 734.8 | 2.26 | |||
| 100% | 23.5 | 38.7 | 30778.89 | 1887.5 | 909.7 | 2.08 | |||
| GF 5131-3 | KV1750 | 0% | 24.0 | 0.0 | 0.00 | 0.0 | 0.0 | 0.00 | |
| 10% | 24.0 | 0.3 | 4578.46 | 26.9 | 7.1 | 3.79 | |||
| 20% | 24.0 | 1.0 | 8568.89 | 105.1 | 24.1 | 4.37 | |||
| 30% | 24.0 | 2.3 | 12355.07 | 231.9 | 55.6 | 4.17 | |||
| 40% | 24.0 | 4.4 | 15955.03 | 406.8 | 106.5 | 3.82 | |||
| 50% | 23.9 | 7.3 | 19089.00 | 598.7 | 175.6 | 3.41 | |||
| 60% | 23.9 | 11.2 | 21930.38 | 804.2 | 266.7 | 3.02 | |||
| 70% | 23.8 | 16.3 | 24774.60 | 1055.6 | 388.0 | 2.72 | |||
| 80% | 23.7 | 22.5 | 27254.09 | 1347.4 | 533.7 | 2.53 | |||
| 90% | 23.6 | 29.5 | 29561.59 | 1616.9 | 696.1 | 2.32 | |||
| 100% | 23.5 | 36.8 | 31591.17 | 1830.7 | 865.1 | 2.12 | |||
