X-A12XL-24S
MOTOR
24S FOC 120A
ESC
PFZ4918P
PROPELLER
X-A12XL-24S
MOTOR
PFZ4918P
PROPELLER
24S FOC 120A
ESC
X-A12XL-24S RECOMMENDATIONS
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter
| Model No. | X-A12XL KV48 | Tube size | 50mm |

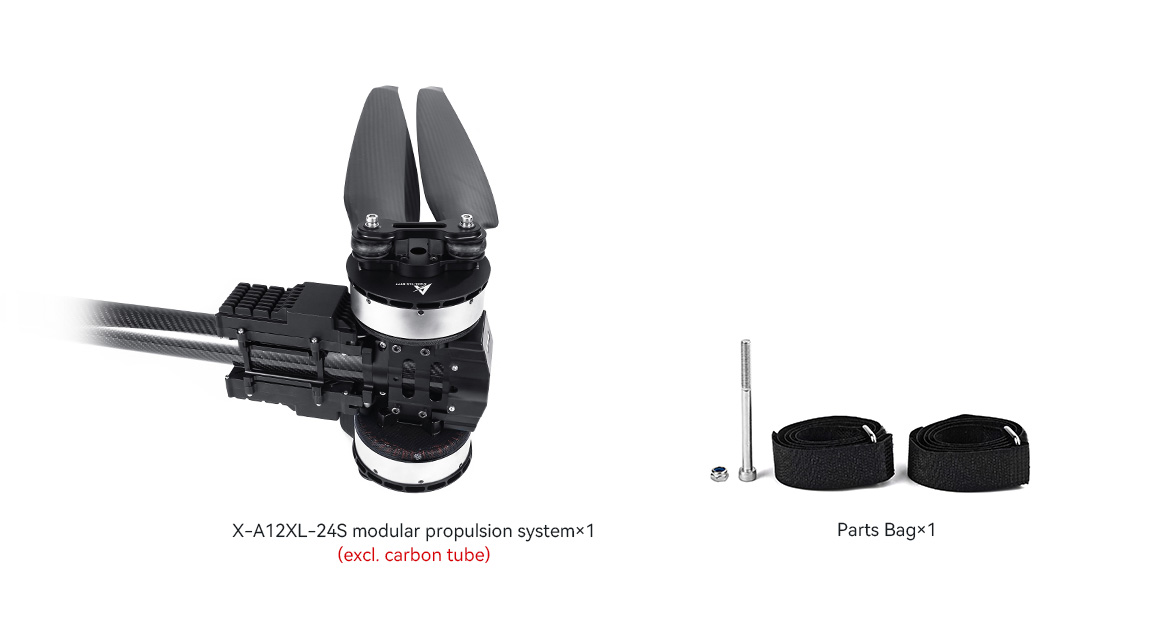

| Setup | X-A12XL-24S (Motor)+24S FOC 120A (ESC)+PFZ4918P (Prop) | Wire material,wire gauge, color | Power wires: 10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 20~24S (LiPo) | Wire length | 1700±5mm |
| Rated thrust | 30~35kg | Weight | 5170g±2%(incl. Wires+prop) |
| Efficiency at rated thrust | 7.4g/W (33kg) | IP | IPX6 |
| Max. thrust | 75.8kg | Recommended ambienttemperature | -30℃～50℃ |
| Motor specs. | |||
| Stator size | 111*22mm | KV | 48 |
| ESC specs. | |||
| Throttle range | 1100~1800us | Max. voltage | 100V |
| Protocol | DRONE CAN、UAV CAN、CUBE CAN | Peak current (for a short time) | 120A(Openenvironment andtemperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | PFZ4918P (Carbon Fiber Folding) | Length | 49 inch(1244.6mm) |
| Type | Voltage (V) | Throttle (%) | Current (A) | Thrust (g) | Motor efficiency (%) | Overall efficiency (gf/W) | Operating temperature (℃) | |
| X-A12XL KV48 + 24S FOC 120A + PFZ4918P | 79.87 | 30 | 3.70 | 4730 | 73.9 | 16.0 | 91 (Ambient temperature: 25℃) | |
| 79.75 | 35 | 8.40 | 8840 | 83.2 | 13.2 | |||
| 79.57 | 40 | 15.87 | 14050 | 87.9 | 11.1 | |||
| 79.32 | 45 | 26.48 | 20860 | 89.4 | 9.9 | |||
| 78.99 | 50 | 40.12 | 26410 | 91.5 | 8.3 | |||
| 78.60 | 55 | 56.84 | 34060 | 90.2 | 7.6 | |||
| 78.01 | 60 | 77.02 | 41050 | 90.8 | 6.8 | |||
| 77.44 | 65 | 99.52 | 48430 | 90.6 | 6.3 | |||
| 77.02 | 70 | 125.21 | 55990 | 89.1 | 5.8 | |||
| 76.31 | 75 | 154.36 | 62550 | 87.7 | 5.3 | |||
| 75.08 | 80 | 184.26 | 68920 | 86.2 | 5.0 | |||
| 74.65 | 85 | 197.91 | 71210 | 85.3 | 4.8 | |||
| 74.73 | 90 | 197.64 | 70920 | 84.1 | 4.8 | |||
| 75.09 | 95 | 197.78 | 71240 | 83.4 | 4.8 | |||
| 75.11 | 100 | 197.47 | 70590 | 83.5 | 4.8 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
| X-A12XL KV48 + 24S FOC 120A + PFZ4918P | 100.12 | 30 | 2.57 | 4120 | 74.8 | 16.0 | 93 (Ambient temperature: 25℃) | |
| 100.00 | 35 | 6.83 | 8860 | 96.5 | 13.0 | |||
| 99.84 | 40 | 12.91 | 13960 | 95.3 | 10.8 | |||
| 99.64 | 45 | 21.13 | 19660 | 91.5 | 9.3 | |||
| 99.38 | 50 | 32.18 | 26370 | 91.4 | 8.2 | |||
| 99.03 | 55 | 45.85 | 33740 | 89.9 | 7.4 | |||
| 98.67 | 60 | 61.25 | 41230 | 90.4 | 6.8 | |||
| 98.28 | 65 | 80.01 | 48130 | 89.3 | 6.1 | |||
| 97.80 | 70 | 99.78 | 56120 | 88.7 | 5.8 | |||
| 97.19 | 75 | 120.68 | 62520 | 87.9 | 5.3 | |||
| 96.28 | 80 | 145.37 | 69150 | 86.7 | 4.9 | |||
| 95.49 | 85 | 170.82 | 75290 | 84.2 | 4.6 | |||
| 96.11 | 90 | 173.59 | 75710 | 83.1 | 4.5 | |||
| 95.90 | 95 | 173.27 | 75860 | 83.4 | 4.6 | |||
| 95.86 | 100 | 175.99 | 75860 | 82.2 | 4.5 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
