X-A12XL-18S
MOTOR
18S FOC 150A
ESC
PFZ4918P
PROPELLER

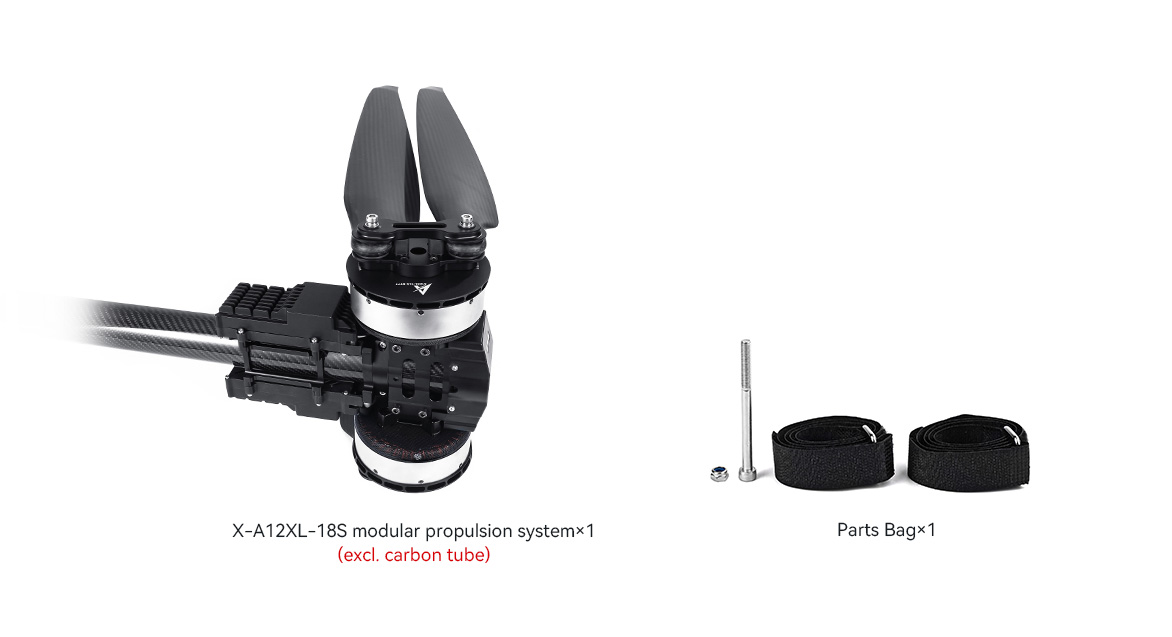

X-A12XL-18S
MOTOR
PFZ4918P
PROPELLER
18S FOC 150A
ESC
X-A12XL-18S RECOMMENDATIONS
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter
| Model No. | X-A12XL KV64 | Tube size | 50mm |
| Setup | X-A12XL-18S (Motor)+18S FOC 150A (ESC)+PFZ4918P (Prop) | Wire material, wire gauge, color | Power wires: 10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 14~18S (LiPo) | Wire length | 1700±5mm |
| Rated thrust | 30~35kg | Weight | 5170g±2%(incl. Wires+prop) |
| Efficiency at rated thrust | 8.0g/W (30kg) | IP | IPX6 |
| Max. thrust | 78.7kg | Recommended ambienttemperature | -30℃～50℃ |
| Motor specs. | |||
| Stator size | 111*22mm | KV | 64 |
| ESC specs. | |||
| Throttle range | 1060~1840us | Max. voltage | 76V |
| Protocol | DRONE CAN、UAV CAN、CUBE CAN | Peak current (for a short time) | 150A(Openenvironment andtemperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | PFZ4918P (Carbon Fiber Folding) | Length | 49 inch(1244.6mm) |
| Type | Voltage (V) | Throttle (%) | Current (A) | Thrust (g) | Motor efficiency (%) | Overall efficiency (gf/W) | Operating temperature (℃) | |
| X-A12XL KV64 + 18S FOC 150A + PFZ4918P | 60.00 | 30 | 6.98 | 6420 | 90.0 | 15.3 | 78 (Ambient temperature: 25℃) | |
| 59.83 | 35 | 13.65 | 10830 | 87.7 | 13.3 | |||
| 59.70 | 40 | 21.99 | 15010 | 89.3 | 11.4 | |||
| 59.55 | 45 | 33.11 | 20210 | 91.2 | 10.3 | |||
| 59.38 | 50 | 48.13 | 25270 | 90.6 | 8.8 | |||
| 59.11 | 55 | 65.09 | 31150 | 91.0 | 8.1 | |||
| 58.79 | 60 | 86.69 | 37410 | 90.2 | 7.3 | |||
| 58.53 | 65 | 110.95 | 43330 | 89.4 | 6.7 | |||
| 58.07 | 70 | 137.85 | 50830 | 89.8 | 6.3 | |||
| 58.05 | 75 | 174.22 | 56630 | 85.7 | 5.6 | |||
| 57.43 | 80 | 214.13 | 64680 | 83.1 | 5.3 | |||
| 56.68 | 85 | 262.50 | 70360 | 79.5 | 4.7 | |||
| 56.46 | 90 | 282.02 | 72880 | 77.8 | 4.6 | |||
| 56.51 | 95 | 280.11 | 72580 | 78.0 | 4.6 | |||
| 55.90 | 100 | 279.83 | 72150 | 78.6 | 4.6 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
| X-A12XL KV64 + 18S FOC 150A + PFZ4918P | 75.52 | 30 | 6.06 | 7150 | 83.6 | 15.6 | 75 (Ambient temperature: 25℃) | |
| 75.52 | 35 | 10.80 | 10650 | 88.0 | 13.1 | |||
| 75.25 | 40 | 14.20 | 13020 | 90.6 | 12.2 | |||
| 75.15 | 45 | 23.38 | 18940 | 90.0 | 10.8 | |||
| 75.02 | 50 | 38.24 | 25510 | 88.9 | 8.9 | |||
| 75.04 | 55 | 51.74 | 30990 | 89.8 | 8.0 | |||
| 74.93 | 60 | 68.81 | 37340 | 89.3 | 7.2 | |||
| 74.61 | 65 | 87.61 | 43210 | 88.5 | 6.6 | |||
| 74.52 | 70 | 110.45 | 50450 | 87.2 | 6.1 | |||
| 73.98 | 75 | 137.22 | 57280 | 85.8 | 5.6 | |||
| 73.92 | 80 | 165.99 | 63910 | 83.8 | 5.2 | |||
| 73.04 | 85 | 199.76 | 70860 | 83.0 | 4.9 | |||
| 72.73 | 90 | 240.80 | 77420 | 78.5 | 4.4 | |||
| 72.18 | 95 | 244.69 | 78710 | 79.9 | 4.5 | |||
| 72.14 | 100 | 248.75 | 78620 | 78.7 | 4.4 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
