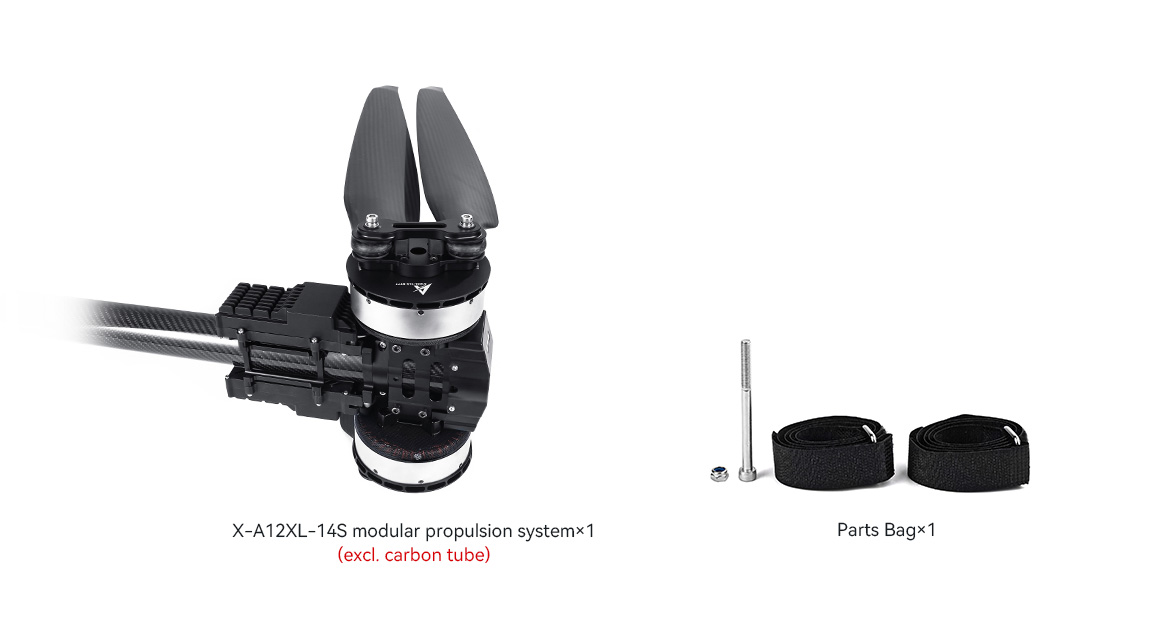

X-A12XL-14S
MOTOR
14S FOC 200A
ESC
PFZ4918P
PROPELLER
X-A12XL-14S
MOTOR
PFZ4918P
PROPELLER
14S FOC 200A
ESC
X-A12XL-14S RECOMMENDATIONS
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter
Take-off weight
120kg
Quadcopter
Take-off weight
180kg
Hexacopter
| Model No. | X-A12XL KV77 | Tube size | 50mm |
| Setup | X-A12XL-14S (Motor)+14S FOC 200A (ESC)+PFZ4918P (Prop) | Wire material, wire gauge, color | Power wires: 10#AWG red & black Signal wires: 5P Teflon |
| Recommended battery | 12~14S (LiPo) | Wire length | 1700±5mm |
| Rated thrust | 30~35kg | Weight | 5170g±2%(incl. Wires+prop) |
| Efficiency at rated thrust | 7.7g/W (32kg) | IP | IPX6 |
| Max. thrust | 74.9kg | Recommended ambient temperature | |
| Motor specs. | |||
| Stator size | 111*22mm | KV | 77 |
| ESC specs. | |||
| Throttle range | 1060~1840us | Max. voltage | 61V |
| Protocol | DRONE CAN、UAV CAN、CUBE CAN | Peak current(for a short time) | 200A(Openenvironment andtemperature≤60℃) |
| Control method | PWM/CAN | BEC | NO |
| Prop specs | |||
| Model No. | PFZ4918P (Carbon Fiber Folding) | Length | 49 inch(1244.6mm) |
| Type | Voltage (V) | Throttle (%) | Current (A) | Thrust (g) | Motor efficiency (%) | Overall efficiency (gf/W) | Operating temperature (℃) | |
| X-A12XL KV77 + 14S FOC 200A + PFZ4918P | 47.93 | 30 | 8.33 | 6240 | 82.1 | 15.6 | 80 (Ambient temperature: 25℃) | |
| 47.82 | 35 | 16.32 | 10240 | 87.3 | 13.1 | |||
| 47.63 | 40 | 28.72 | 14980 | 88.3 | 11.0 | |||
| 47.41 | 45 | 44.36 | 18870 | 90.6 | 9.0 | |||
| 47.13 | 50 | 66.77 | 26110 | 87.5 | 8.3 | |||
| 46.86 | 55 | 90.17 | 32230 | 90.8 | 7.6 | |||
| 46.47 | 60 | 120.20 | 38390 | 90.1 | 6.9 | |||
| 45.94 | 65 | 155.36 | 45400 | 89.0 | 6.4 | |||
| 45.31 | 70 | 195.12 | 51450 | 87.3 | 5.8 | |||
| 44.64 | 75 | 244.41 | 57810 | 84.3 | 5.3 | |||
| 44.38 | 80 | 280.52 | 61600 | 81.1 | 4.9 | |||
| 44.22 | 85 | 285.86 | 61950 | 82.0 | 4.9 | |||
| 44.26 | 90 | 285.67 | 61940 | 81.6 | 4.9 | |||
| 44.36 | 95 | 287.32 | 61370 | 80.7 | 4.8 | |||
| 44.30 | 100 | 286.47 | 61100 | 80.7 | 4.8 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
| X-A12XL KV77 + 14S FOC 200A + PFZ4918P | 60.15 | 30 | 6.55 | 6440 | 87.9 | 16.3 | 90 (Ambient temperature: 25℃) | |
| 60.02 | 35 | 12.38 | 10180 | 87.1 | 13.7 | |||
| 59.93 | 40 | 22.83 | 15320 | 88.6 | 11.2 | |||
| 59.79 | 45 | 35.50 | 20720 | 90.5 | 9.8 | |||
| 59.54 | 50 | 51.76 | 26500 | 90.9 | 8.6 | |||
| 59.26 | 55 | 71.50 | 32710 | 91.0 | 7.7 | |||
| 58.95 | 60 | 94.75 | 38910 | 89.8 | 7.0 | |||
| 58.56 | 65 | 121.75 | 46160 | 88.3 | 6.5 | |||
| 58.10 | 70 | 152.72 | 52200 | 87.2 | 5.9 | |||
| 57.62 | 75 | 186.62 | 58830 | 85.6 | 5.5 | |||
| 57.05 | 80 | 225.97 | 65160 | 83.5 | 5.1 | |||
| 56.40 | 85 | 269.23 | 71010 | 81.0 | 4.7 | |||
| 55.50 | 90 | 310.22 | 74910 | 77.0 | 4.4 | |||
| 55.69 | 95 | 309.85 | 74240 | 76.4 | 4.3 | |||
| 55.67 | 100 | 311.98 | 73720 | 75.4 | 4.2 | |||
Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins. (Data above based on benchtest at LIGPOWER lab are for reference only.) | ||||||||
