Name: V804 KV170 12S Brushless Motor for Vtol Drone
Brand: LIGPOWER
SKU: AWD100100081
Price: 289.90 USD
Availability: InStock

V804 KV170 12S Brushless Motor for Vtol Drone

289.90

Available points: 14000 Points Points reward: 289 Points

KV：

KV170

Quantity：

289.90

Free Shipping by DHL/UPS Express

Detail information
Specifications

big pull-to-weight ratio,strong overload ability & environment adaptiveveness features

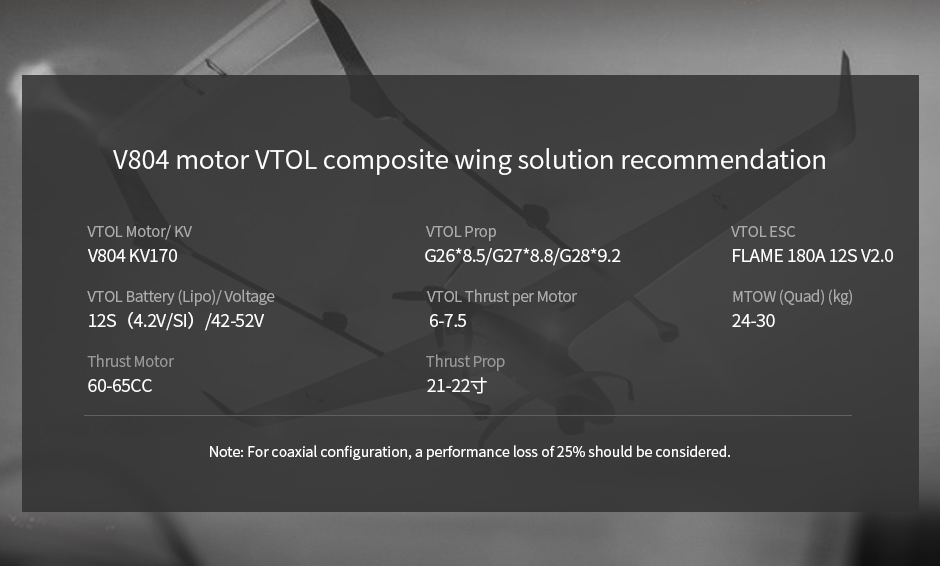

recommendation

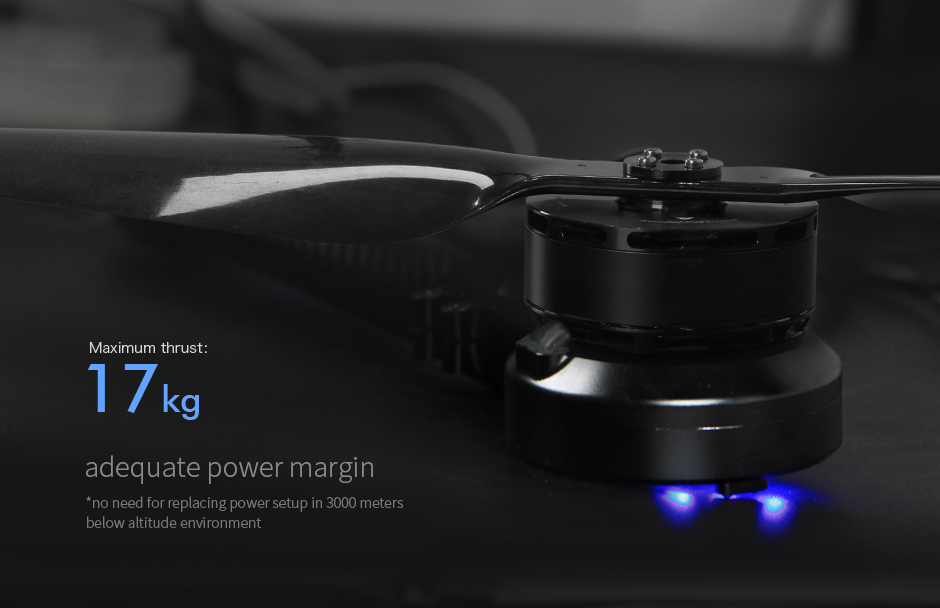

maximum thrust 17kg

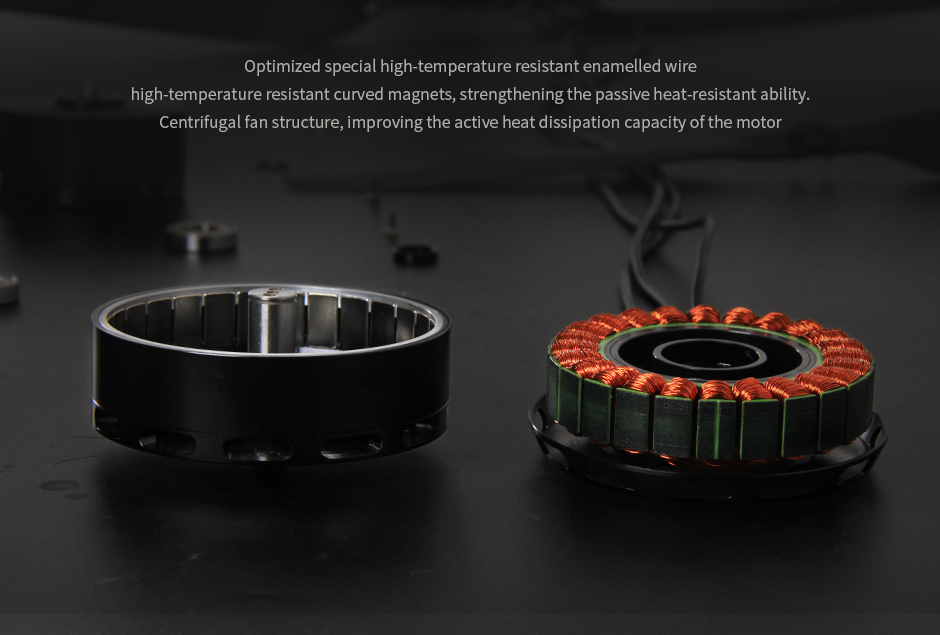

High heat dissipation capacity

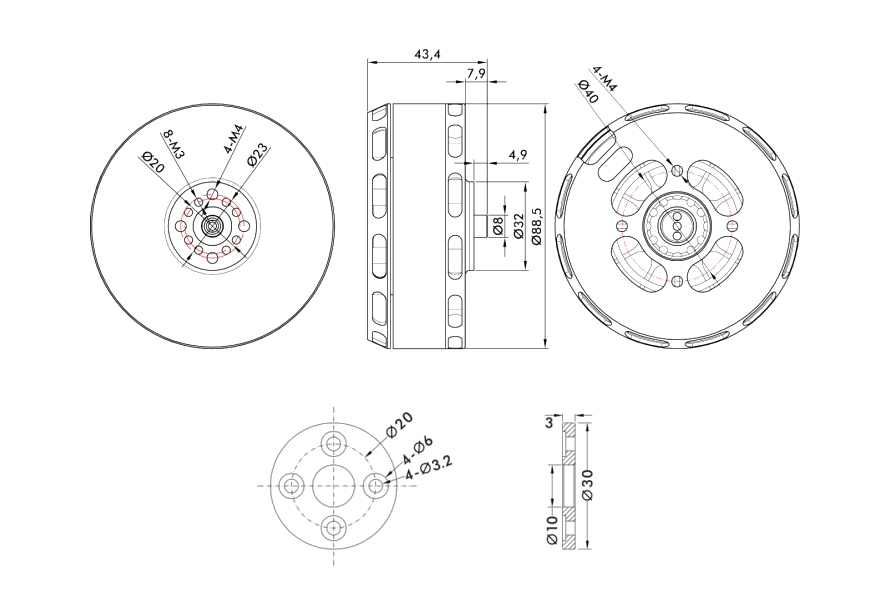

Technical Drawing


Specification

Model No./ Kv	V804 KV170	Magnet Temperature Resistance Grade	Class E 150℃
Motor Size（mm）	Φ88.5*43.4	Lead（mm）	12AWG*1000
Stator Technology	Anti-rust treatment; 180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	24N28P	Coil Withdraw Voltage	500V/5s
Shaft Diameter（mm）	IN:12 OUT:8	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 6901ZZ	IP	IP35

KV Value	KV170	Battery (lipo)/Voltage Recommendation	12S（4.2V/Sl）/42-52V
Idle Current（18V）	2.7A	ESC Recommendation	FLAME 180A 12S V2.0
Peak Current（A）	115A/Continuous 180s	Configuration	G268.5/G278.8/G28*9.2
Max. Power（W）	5200W/Continuous 180s	Motor Weight（g）	560g （710g Weight (incl. cables）
Internal Resistance（mΩ）	33	Package Weight（g）	890g

Test Data

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature ℃)
V804 KV170	G26*8.5	40%	47.65	3369.87	1.01	8.39	2781	399.54	8.43	107℃ (Ambient Temperature: 35℃)
		45%	47.58	4165.79	1.24	11.18	3082	531.83	7.83
		50%	47.49	5211.17	1.55	15.58	3441	739.95	7.04
		55%	47.38	6252.56	1.85	20.45	3773	968.79	6.45
		60%	47.29	7303.10	2.16	25.66	4066	1213.43	6.02
		65%	47.12	8648.58	2.57	33.94	4439	1599.33	5.41
		70%	47.00	9816.86	2.90	40.59	4699	1907.78	5.15
		75%	46.82	10991.48	3.26	48.58	4957	2274.76	4.83
		80%	46.69	11987.70	3.57	55.69	5188	2600.20	4.61
		90%	46.37	14023.32	4.18	72.01	5583	3338.89	4.20
		100%	46.00	16015.50	4.80	90.16	5928	4147.46	3.86
	G27*8.8	40%	47.63	3853.06	1.21	9.76	2733	464.80	8.29	112℃ (Ambient Temperature: 35℃)
		45%	47.55	4773.38	1.49	12.97	3023	616.58	7.74
		50%	47.46	5951.92	1.85	18.39	3366	872.92	6.82
		55%	47.30	7193.36	2.23	24.39	3683	1153.88	6.23
		60%	47.19	8385.79	2.59	30.39	3964	1434.03	5.85
		65%	47.07	9515.57	2.95	37.07	4213	1744.98	5.45
		70%	46.86	11051.81	3.43	47.89	4532	2244.26	4.92
		75%	46.70	12222.21	3.79	56.23	4753	2625.68	4.66
		80%	46.51	13294.33	4.13	64.97	4948	3022.21	4.40
		90%	46.11	15476.38	4.80	84.33	5261	3888.62	3.98
		100%	45.68	17271.50	5.39	105.89	5546	4837.44	3.57
	G28*9.2	40%	47.62	4152.97	1.29	10.63	2675	506.07	8.21	HOT
		45%	47.54	5118.47	1.58	14.14	2961	672.04	7.62
		50%	47.39	6342.50	1.96	20.07	3298	951.19	6.67
		55%	47.28	7635.81	2.35	26.64	3610	1259.78	6.06
		60%	47.14	8907.64	2.73	33.45	3881	1576.89	5.65
		65%	47.02	10052.39	3.09	39.85	4104	1873.54	5.37
		70%	46.74	11746.82	3.59	52.73	4418	2464.81	4.77
		75%	46.59	12851.29	3.93	61.57	4624	2868.36	4.48
		80%	46.41	13819.99	4.25	70.19	4811	3257.09	4.24
		90%	46.01	15862.38	4.85	90.55	5122	4166.17	3.81
		100%	45.53	17357.91	5.35	113.72	5380	5177.43	3.35
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on LIGPOWER test bench(es), all data are for reference only. LIGPOWER reserves the right of final interpretation. )

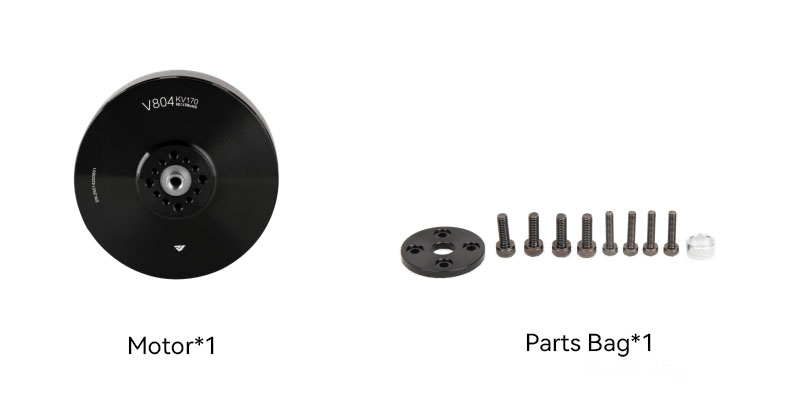

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
