V60A 14S

129.90

Available points: 0 Points Points reward: 129 Points

Quantity：

129.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications
V60A 14S

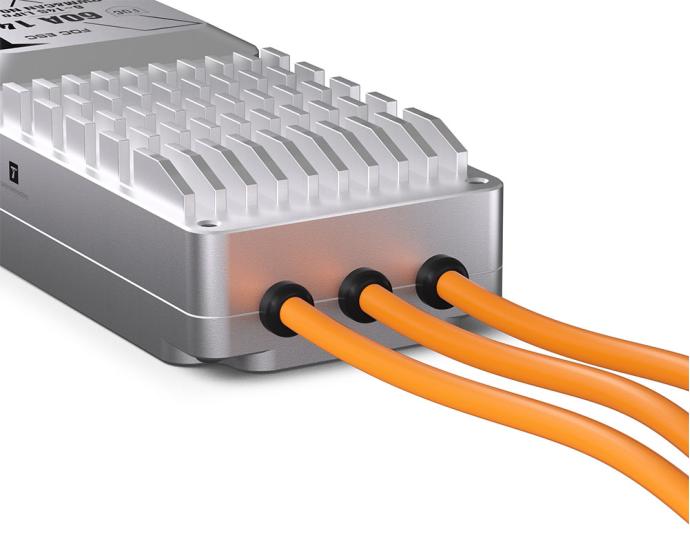

V60A 14SThe advanced edition of FOC ESCsFast response Efficient driving
Accurate control Low-noise operation
VL5009/6011
MOTOR
V60A
ESC
DZ17/P22
PROPELLER

Specification

6~14S

Support Voltage

30A

Con.Current

60A(10S)

Peak Current

63g(excl.cable)/85g

ESC Weight

77*33*19mm

ESC Size

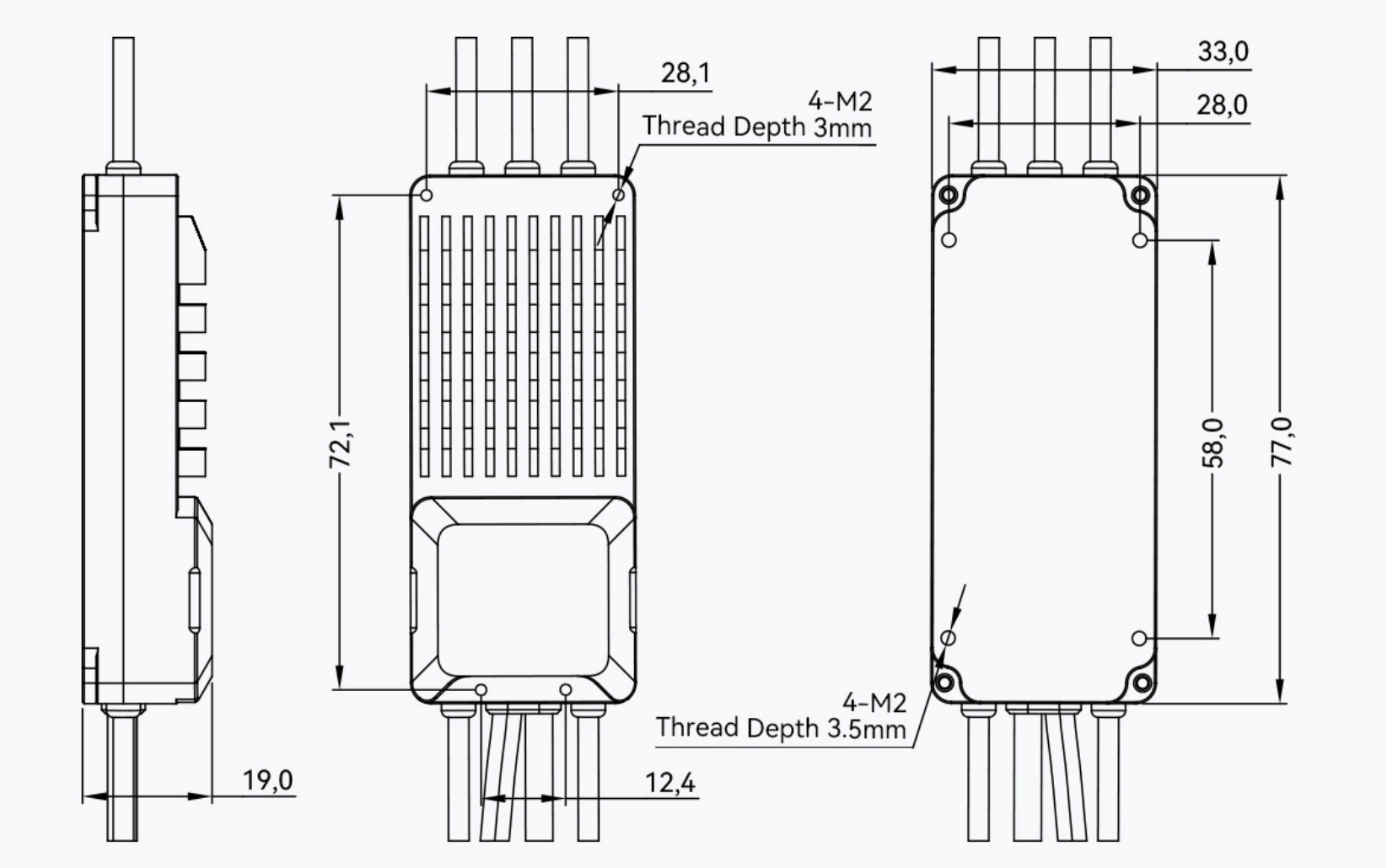

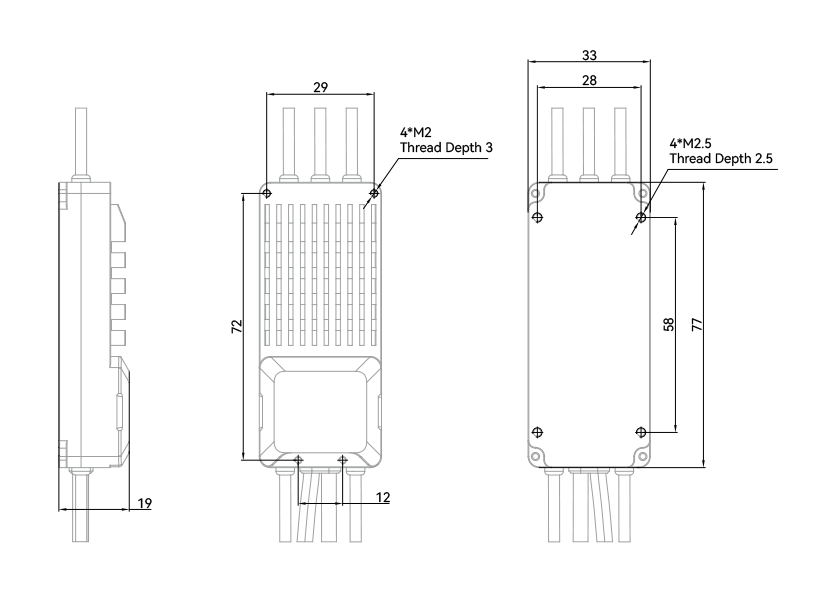

Technical Drawing

工程图 英.png

Specification
Model No.V60A 14SPower CableSilicone wire-red/black
-14AWG-160mm
Size77*33*19mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
-300mm-JP-3P*2-Black blank
white-green yellow gray
Weight(Incl. cables)85gEncoder cablesShielded cables-Black-24AWG-5C
-300mm-M6 aviation connector
Motor CableSilicone wire-orange-16AWG-60mmProtocolPWM/CAN
Support Voltage18~60V (6~14S)BECNO
Continuous Current30AThrottle Pos. Range1040-1940
Peak Current(<10s)60AThrottle Refresh Frequency50-500HZ
Standby Consumption≤50mA@48VThrottle Response Speed300ms

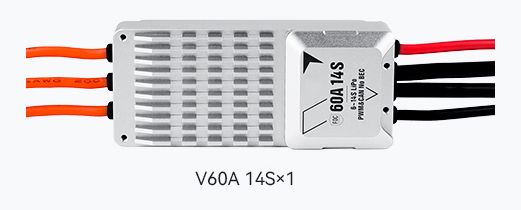

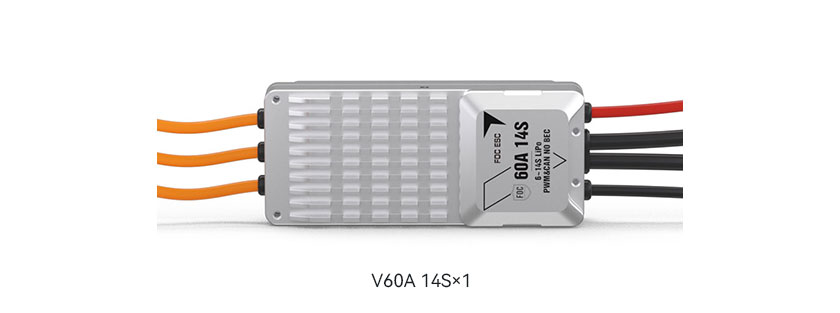

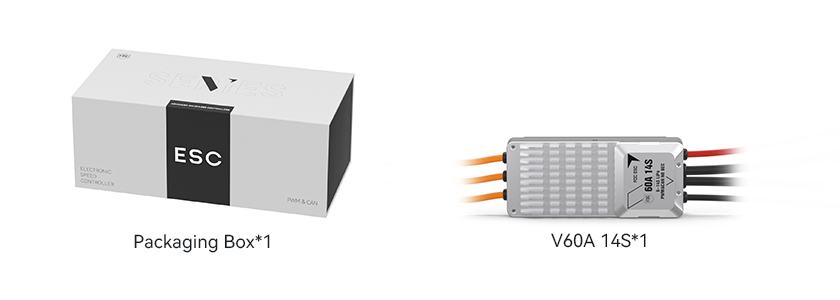

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
