Name: V505 KV260 12S Vtol Drone Power
Brand: LIGPOWER
SKU: AWD100100012
Price: 119.99 USD
Availability: InStock

V505 KV260 12S Vtol Drone Power

119.99

Available points: 5000 Points Points reward: 119 Points

KV：

KV260

Quantity：

119.99

Free Shipping by DHL/UPS Express

Detail information
Specifications

big pull-to-weight ratio,strong overload ability & environment adaptiveveness features

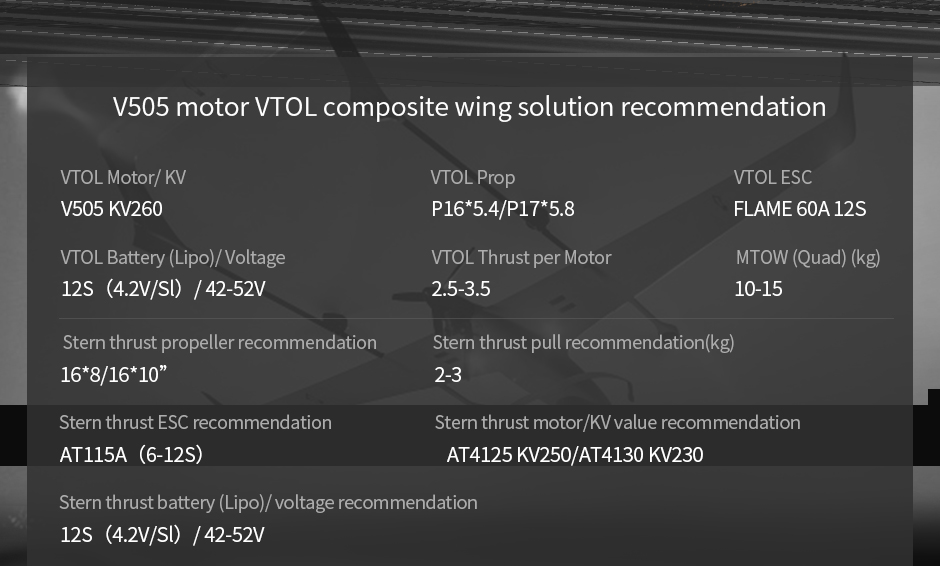

recommendation

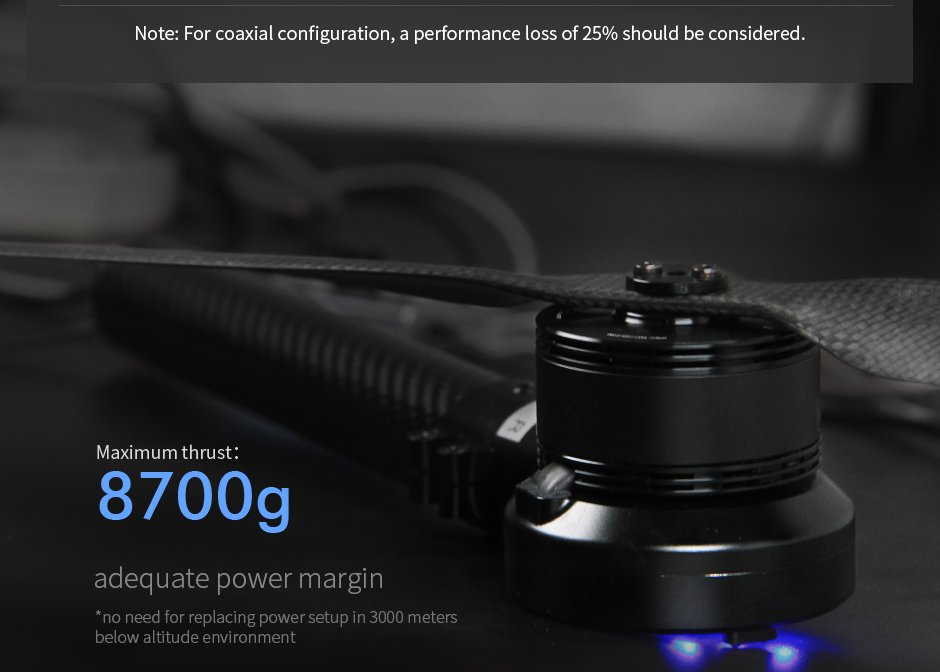

maximum thrust 8700g

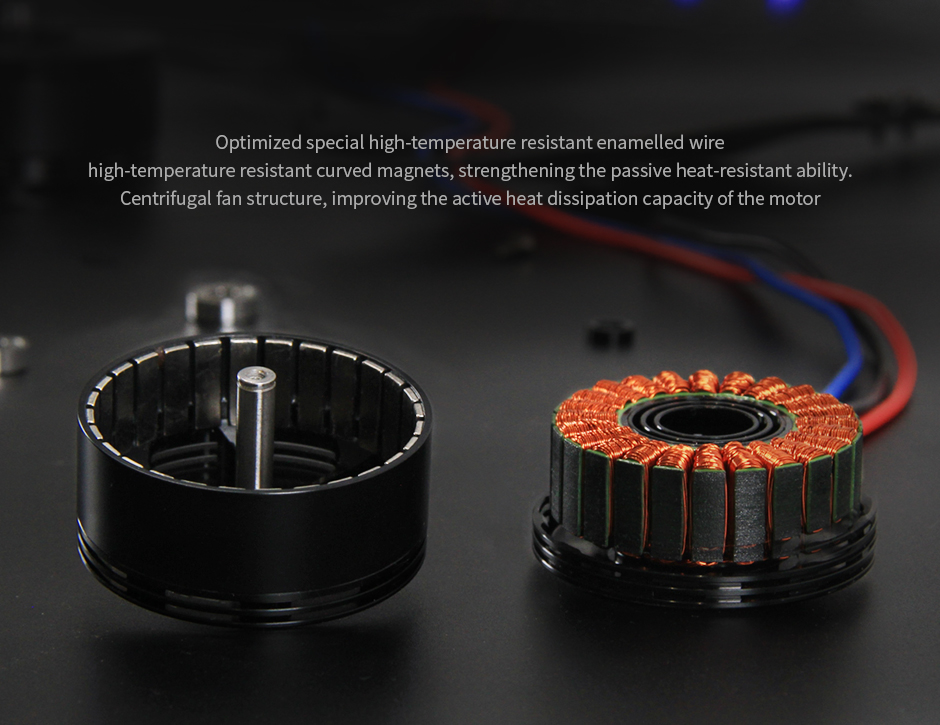

High heat dissipation capacity

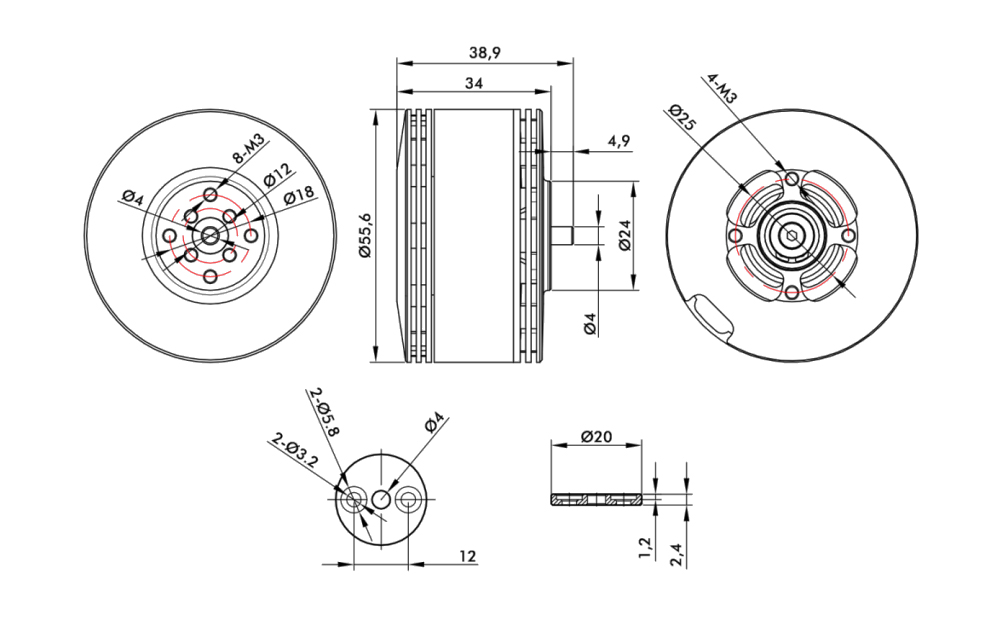

Technical Drawing


Specification

Model No./ Kv	V505 KV260	Magnet Temperature Resistance Grade	Class E 150℃
Motor Size（mm）	Φ55.6*38.9	Lead（mm）	16AWG*600
Stator Technology	Anti-rust treatment; 180°C high temperature-resisting coatings	Enamelled Wires Temperature Resistance Grade	Class C 220℃
Configuration	24N28P	Coil Withdraw Voltage	500V/5s
Shaft Diameter（mm）	IN:6 OUT:4	Rotor Dynamic Balance Standard	≤5mg
Bearing	Imported 696ZZ	IP	IP45

KV Value	KV260	Battery (lipo)/Voltage Recommendation	12S（4.2V/Sl）/42-52V
Idle Current（18V）	1.5A	ESC Recommendation	FLAME 60A 12S
Peak Current（A）	52A/Continuous 180s	Propeller Recommendation	P165.4/P175.8
Max. Power（W）	2500W/Continuous 180s	Motor Weight（g）	215g （255g Weight (incl.cables)）
Internal Resistance（mΩ）	58	Package Weight（g）	600g

Test Data

Item No.	Prop	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Inputpower (W)	Efficiency (g/W)	Operating Temperature (℃)
V505 KV260	LIGPOWER P16*5.4	40%	47.92	1892	0.31	6.13	5509	293.65	6.44	85℃ (Ambient Temperature: 22℃)
		42%	47.92	2052	0.32	6.62	5698	317.36	6.47
		44%	47.90	2172	0.34	7.18	5852	344.03	6.31
		46%	47.88	2350	0.37	7.92	6051	379.12	6.20
		48%	47.88	2494	0.41	8.53	6221	408.61	6.10
		50%	47.87	2660	0.44	9.16	6397	438.36	6.07
		52%	47.85	2774	0.46	9.78	6524	468.08	5.93
		54%	47.83	2893	0.49	10.37	6694	496.26	5.83
		56%	47.82	3039	0.52	11.10	6872	530.63	5.73
		58%	47.80	3180	0.54	11.89	7050	568.12	5.60
		60%	47.78	3372	0.57	12.83	7225	613.04	5.50
		62%	47.75	3574	0.60	13.86	7409	661.86	5.40
		64%	47.73	3779	0.64	14.87	7598	709.85	5.32
		66%	47.71	3926	0.71	15.83	7769	755.24	5.20
		68%	47.69	4028	0.88	16.80	7937	801.30	5.03
		70%	47.67	4246	0.87	17.91	8114	853.77	4.97
		80%	47.54	5301	0.85	24.09	8953	1145.40	4.63
		90%	47.38	6299	1.11	31.57	9737	1496.04	4.21
		100%	47.16	7500	1.55	42.21	10606	1990.36	3.77
	LIGPOWER P17*5.8	40%	47.89	2329	0.47	7.51	5293	359.81	6.47	107℃ (Ambient Temperature: 22℃)
		42%	47.88	2513	0.50	8.25	5463	395.07	6.36
		44%	47.86	2663	0.52	8.93	5644	427.23	6.23
		46%	47.84	2806	0.55	9.76	5830	466.88	6.01
		48%	47.82	2979	0.59	10.64	6023	508.63	5.86
		50%	47.80	3203	0.63	11.68	6202	558.10	5.74
		52%	47.78	3379	0.67	12.61	6367	602.67	5.61
		54%	47.77	3476	0.69	12.99	6442	620.46	5.60
		56%	47.75	3677	0.74	14.12	6629	674.11	5.45
		58%	47.72	3900	0.78	15.30	6816	730.18	5.34
		60%	47.70	4093	0.82	16.37	6993	780.69	5.24
		62%	47.67	4288	0.86	17.54	7165	836.19	5.13
		64%	47.65	4502	0.90	18.81	7332	896.11	5.02
		66%	47.62	4721	0.94	20.07	7500	955.79	4.94
		68%	47.60	4927	0.98	21.42	7669	1019.57	4.83
		70%	47.56	5149	1.02	22.88	7817	1087.99	4.73
		80%	47.40	6292	1.25	30.61	8580	1451.23	4.34
		90%	47.20	7349	1.47	39.85	9291	1881.00	3.91
		100%	46.93	8741	1.76	52.93	10075	2483.87	3.52
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins. (Based on LIGPOWER test bench(es), all data are for reference only. LIGPOWER reserves the right of final interpretation. )

Packing List

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
