V40A 14S

99.90

Available points: 0 Points Points reward: 99 Points

Quantity：

99.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

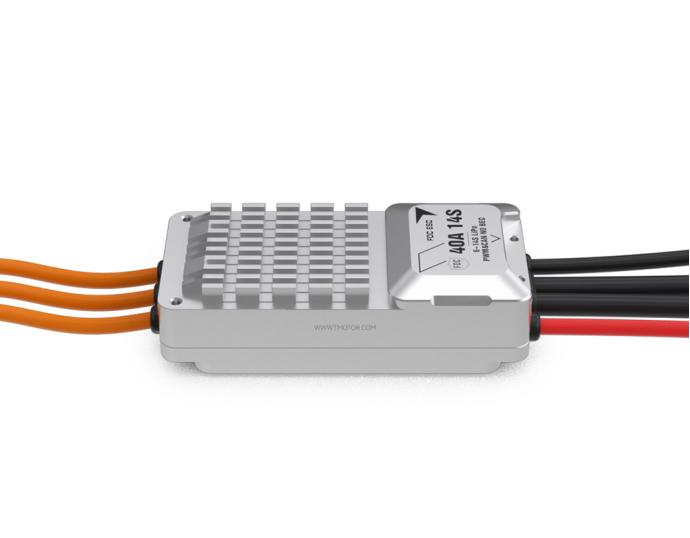

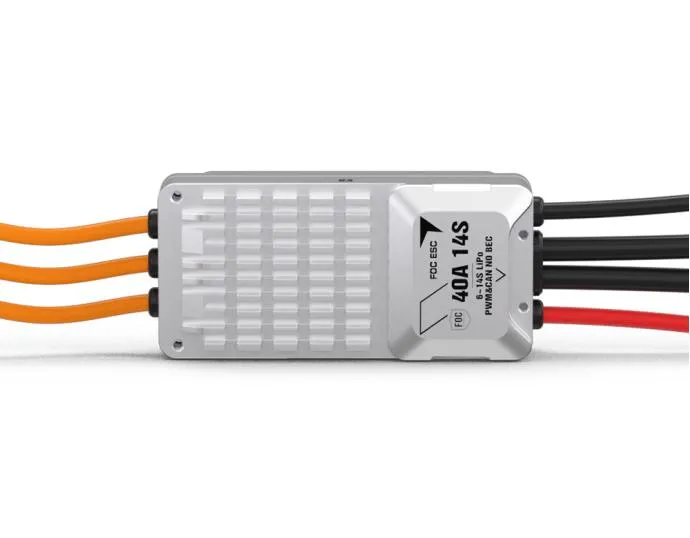

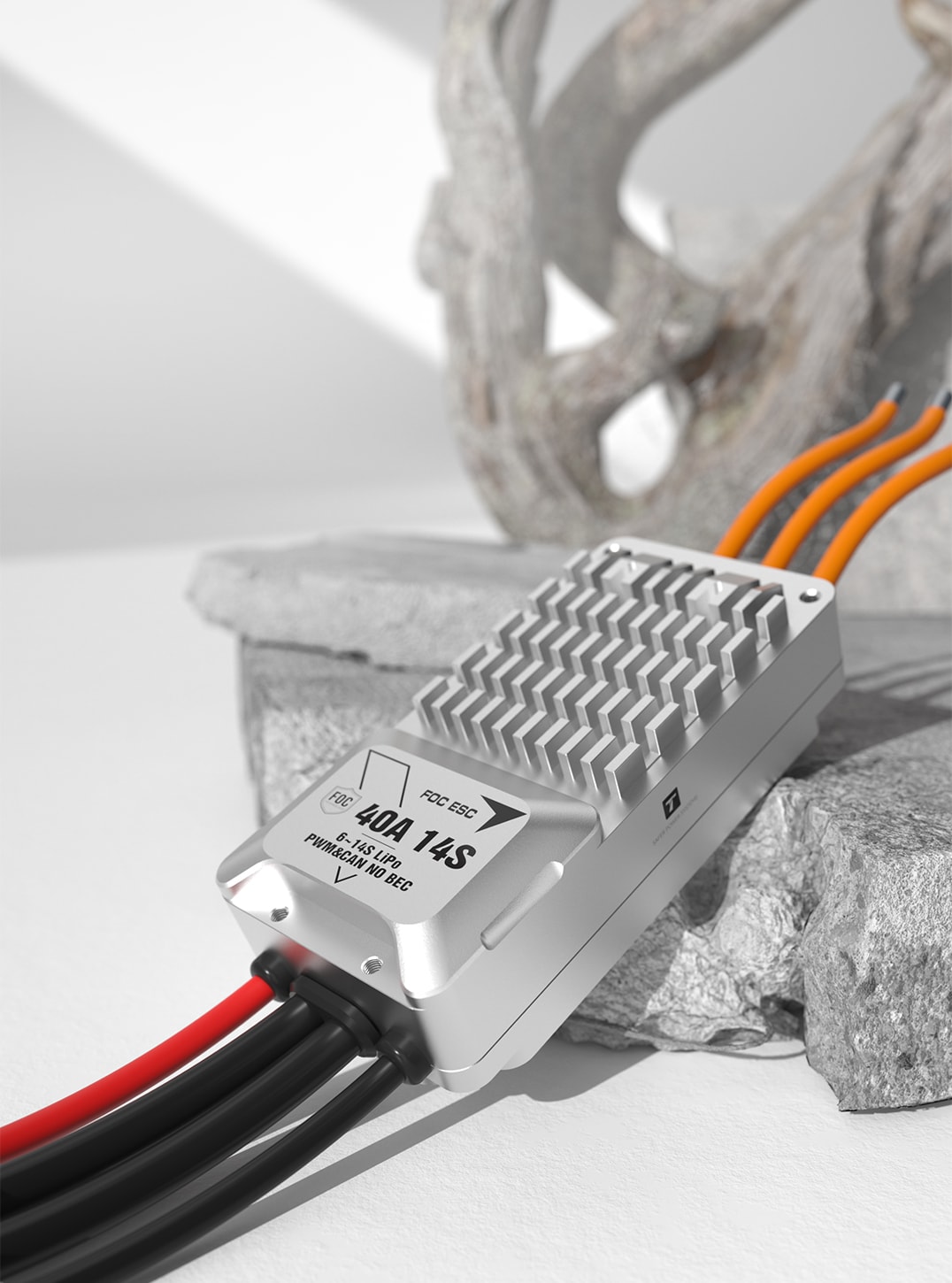

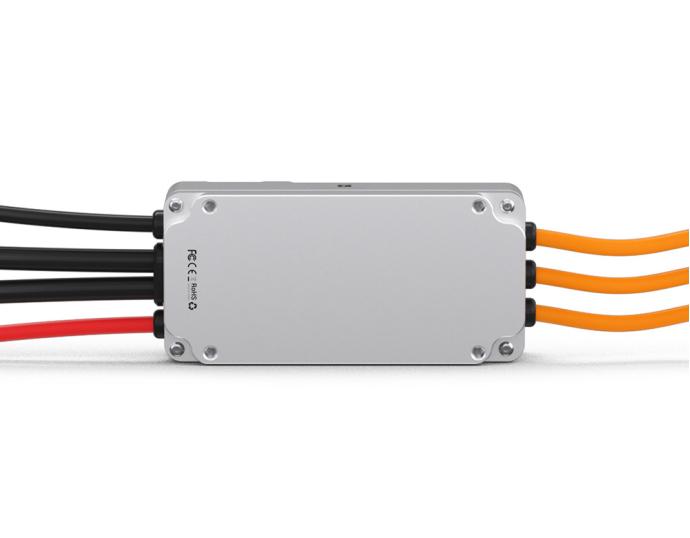

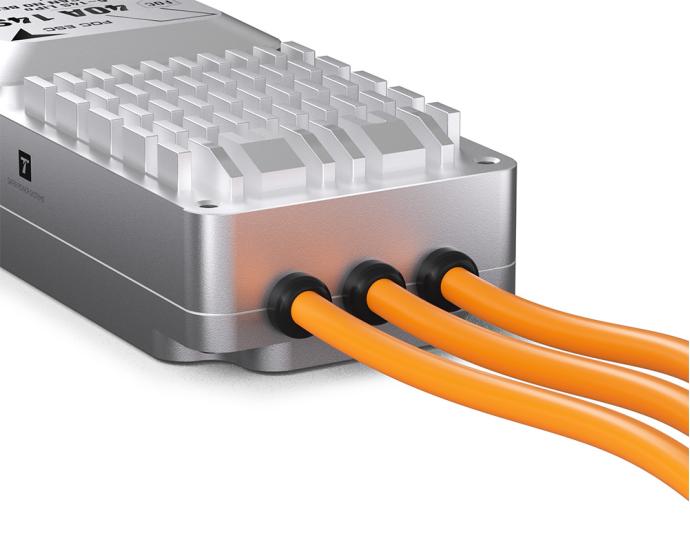

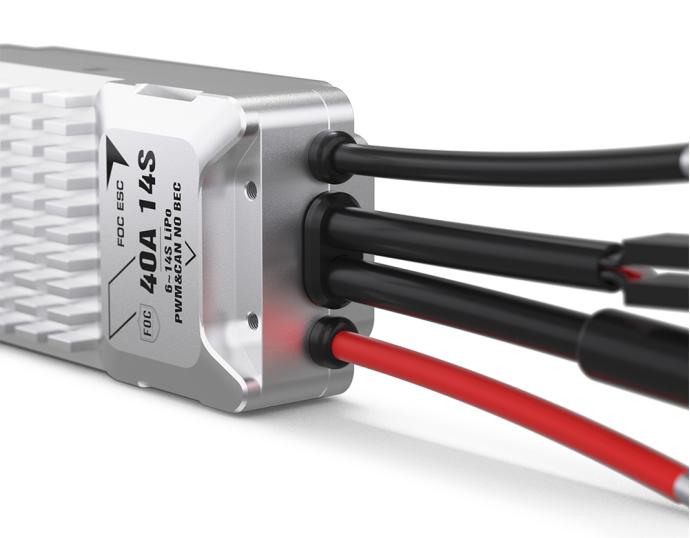

V40A 14S
V40A 14SThe advanced edition of FOC ESCsFast response Efficient driving
Accurate control Low-noise operation
U5
MOTOR
V40A
ESC
P17
PROPELLER

Specification

6~14S

Support Voltage

20A

Con.Current

40A(10S)

Peak Current

50g(excl.cable)/68g

ESC Weight

62*30*18mm

ESC Size

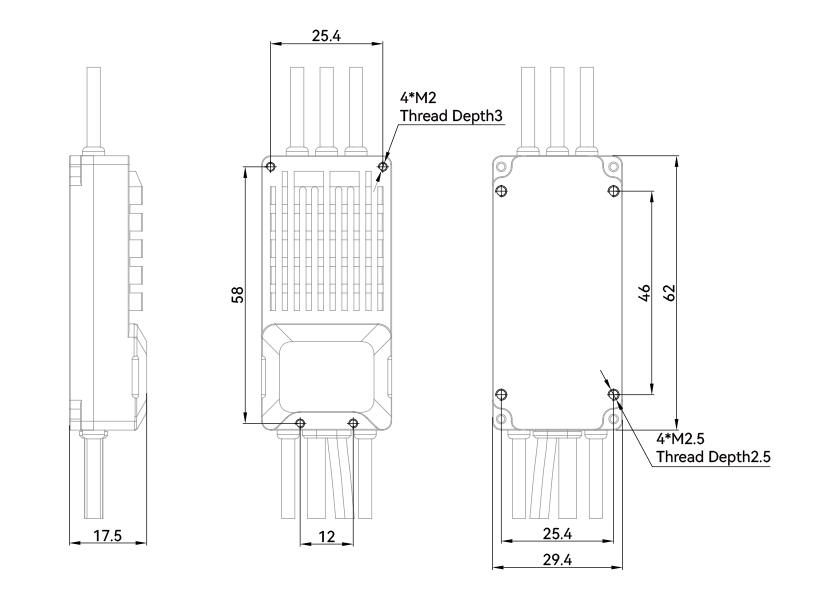

Technical Drawing

工程图 英.png

Specification
Model No.V40A 14SPower CableSilicone wire-red/black-14AWG-150mm
Size62*30*18mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
-300mm-JP-3P*2-Black blank white
-green yellow gray
Weight(Incl. cables)69gEncoder cables/
Motor CableSilicone wire-orange-16AWG-65mmProtocolPWM/CAN
Support Voltage18~60V (6~14S)BECNO
Continuous Current20AThrottle Pos. Range1040-1940μs
Peak Current(<10s)40AThrottle Refresh Frequency50-500HZ
Standby Consumption≤50mA@48VThrottle Response Speed300ms

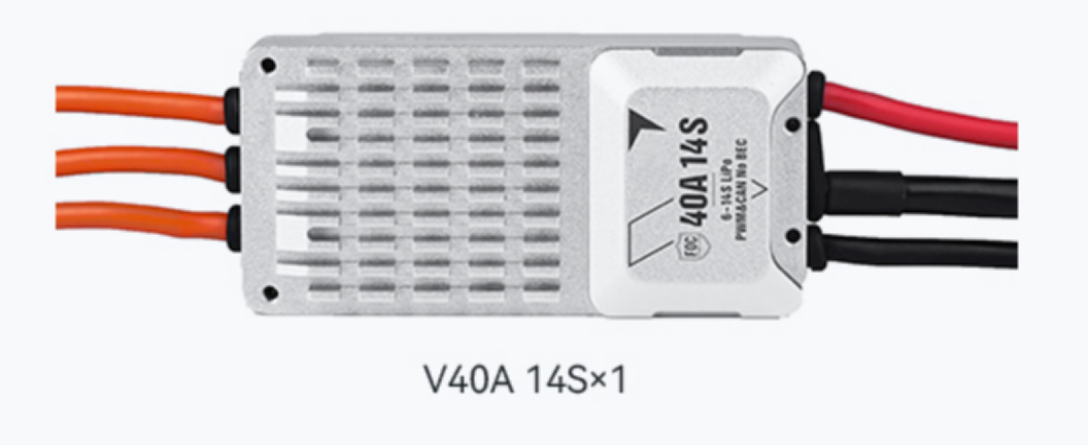

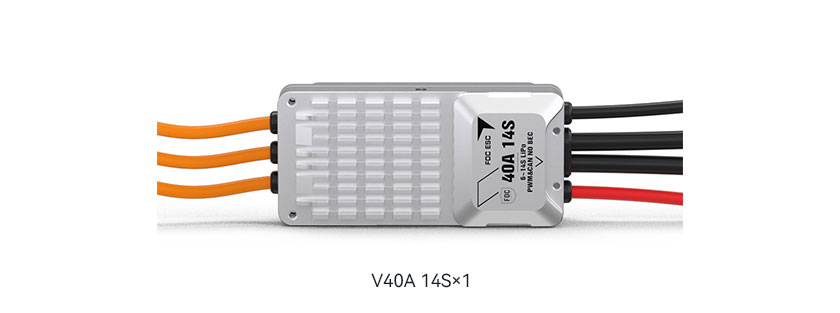

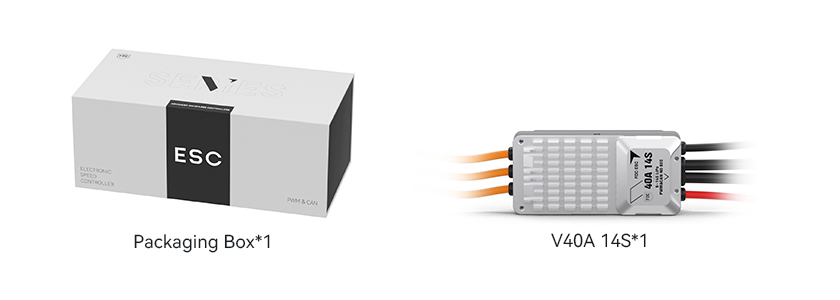

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
