V34*13.6-Prop-2PCS/PAIR

319.90

Available points: 15000 Points Points reward: 319 Points

• Attention：V series propeller is incompatible and can’t be used with LIGPOWER Quick-Attach-Detach propeller adapter now. Pls be free to talk us for customization solution if you need them on V propeller.
Parameter：
Quantity：

319.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

trigger the power for vtol

enlarged pitch optimized blade design

speedy response for explosive thrust

less air drag during cruise,enhanced blade root for safe flight

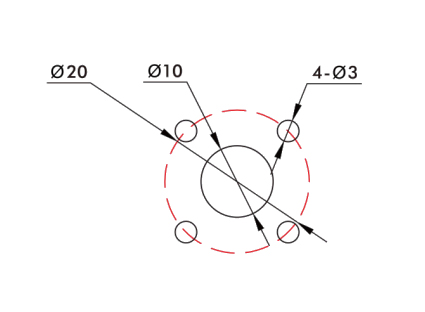

Technical Drawing


Specification
Model NO.V34*13.6LIGPOWER Series2blades-intergrated
Weight
(Single Blade)		138gPackage Weight322g
Diameter34inchPackage Size936*140*30 mm
Pitch13.6inchMaterialPolymer+CF
Recommended
Thrust/RPM		8～16Kg/2200～3050RPMRecommended
Max Thrust/RPM		25Kg/3800RPM
Ambient Temp-40℃～65℃Storage
Temp/Humidity		-10℃～50℃/＜85%

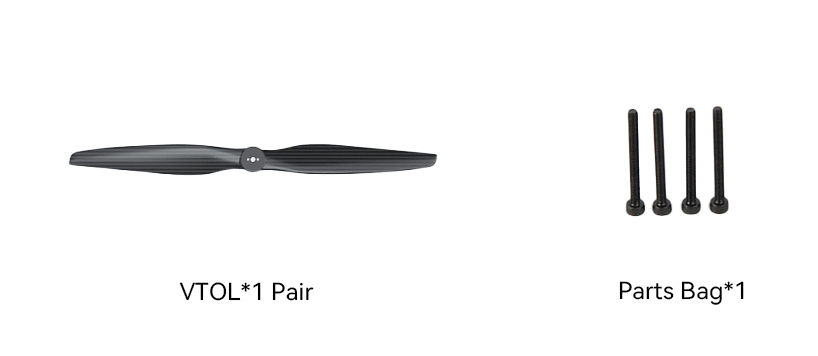

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers.

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need to replace them with good ones."

4.NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in hostile environments containing H2O,SO2,NO2,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4).

6.For long time storage of over 6 months, please keep it in sealed preservation.
