V200A 14S
V200A 14SThe advanced edition of FOC ESCsFast response Efficient driving
Accurate control Low-noise operation
VL1028/1032/1035
MOTOR
V200A
ESC
G29/30/PL32
PROPELLER

Specification

6~14S

Support Voltage

100A

Con.Current

200A(3S)

Peak Current

243g(excl.cable)/470g

ESC Weight

127*56*33mm

ESC Size

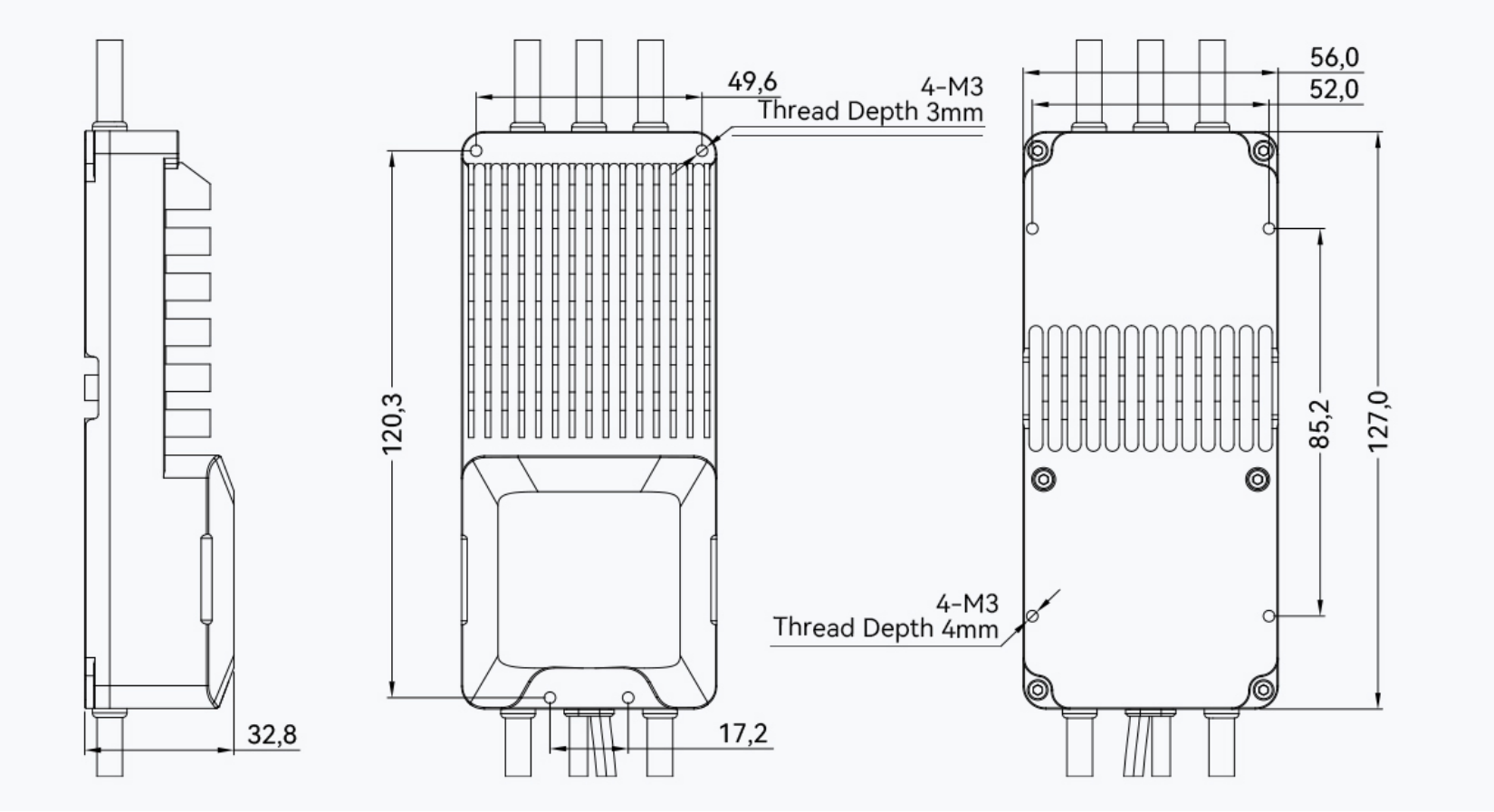

Technical Drawing

工程图 英.png

Specification
Model No.V200A 14SPower CableSilicone wire-red/black
-10AWG-1120mm
Size127*56*33mm (L*W*H)Signal CableShielded cables-Black-OD4.2-5C
-770mm-JP-3P*2-Black blank
white-green yellow gray
Weight(Incl. cables)470gEncoder cablesShielded cables-Black-24AWG-5C
-395mm-M6 aviation connector
Motor CableSilicone wire-orange-10AWG-205mmProtocolPWM/CAN
Support Voltage18~60V (6~14S)BECNO
Continuous Current100AThrottle Pos. Range1040-1940
Peak Current(<10s)200AThrottle Refresh Frequency50-500HZ
Standby Consumption≤50mA@48VThrottle Response Speed300ms

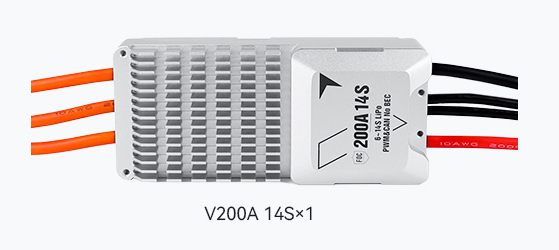

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
