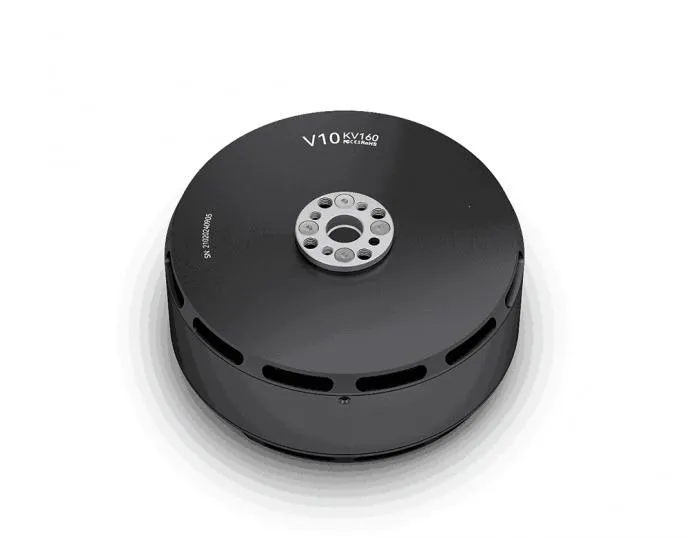

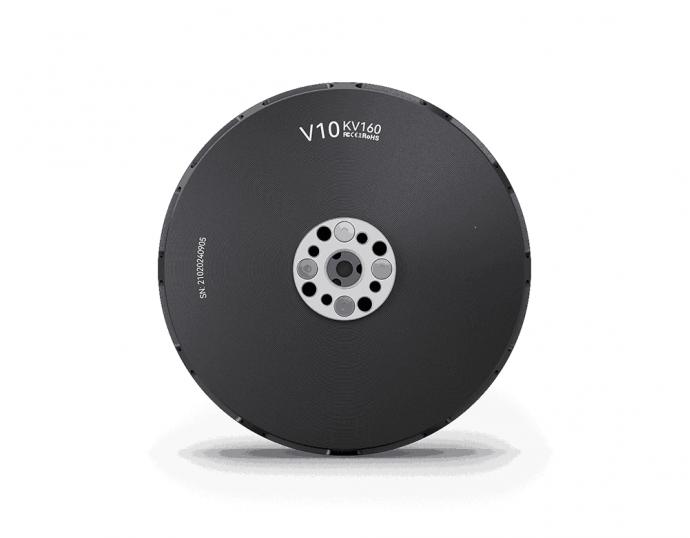

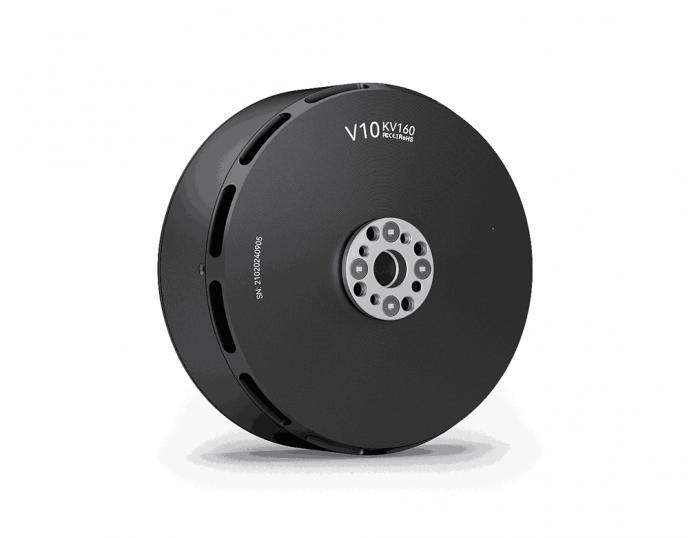

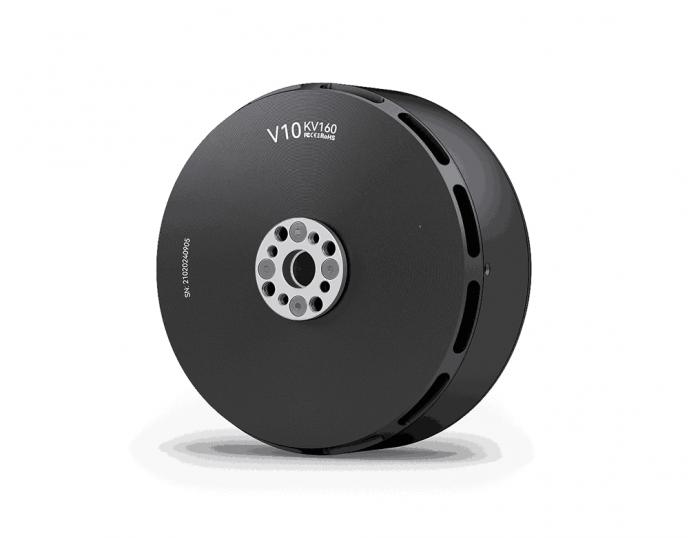

V10 KV160 12S Brushless Motor for Large Vtol

369.90

Available points: 18000 Points Points reward: 369 Points

KV：
  • KV160
Quantity：

369.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

big pull-to-weight ratio,strong overload ability & environment adaptiveveness features

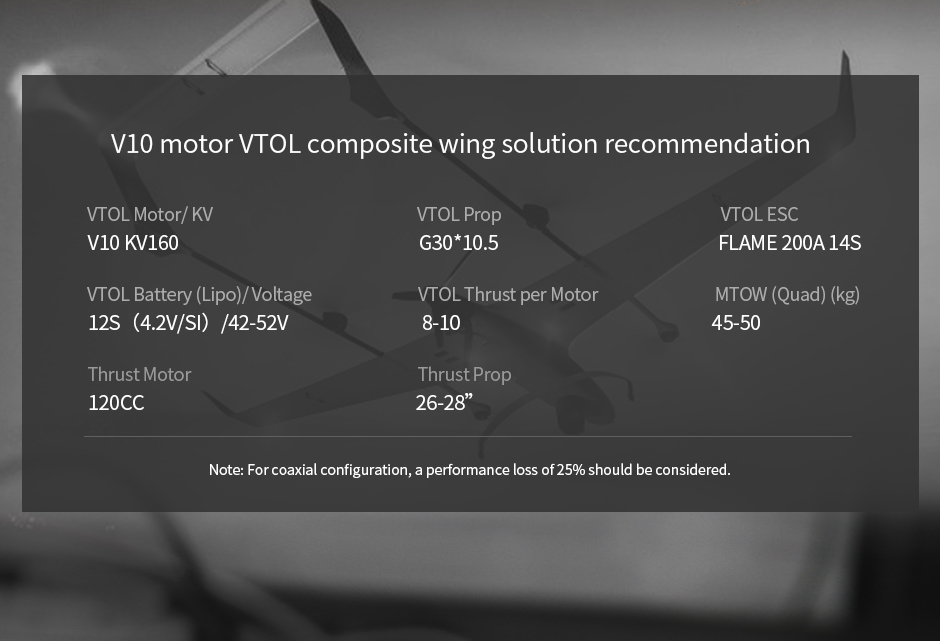

recommendation

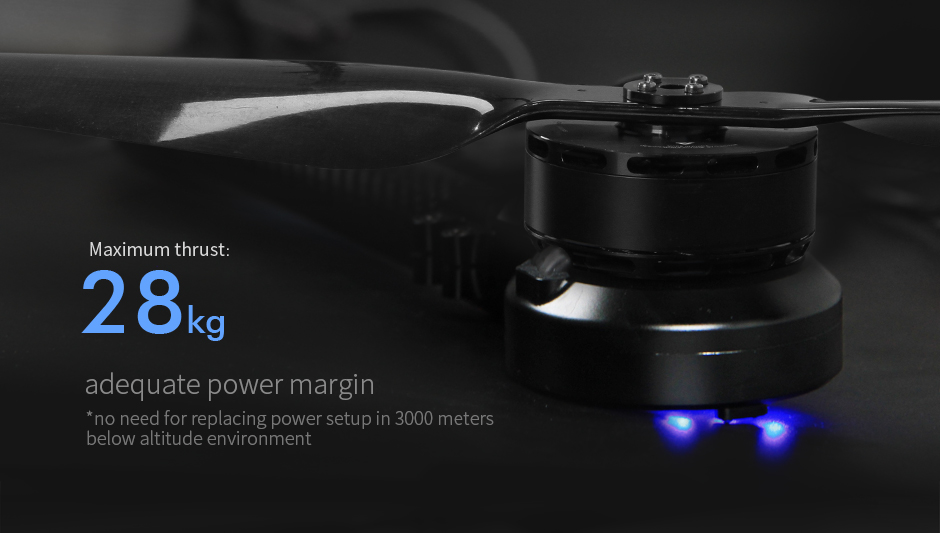

maximum thrust 28kg

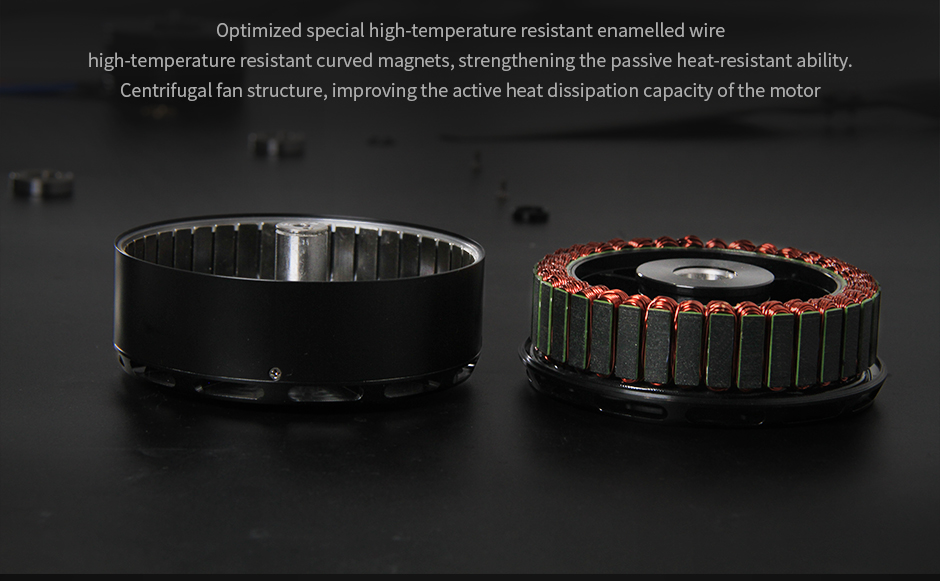

High heat dissipation capacity

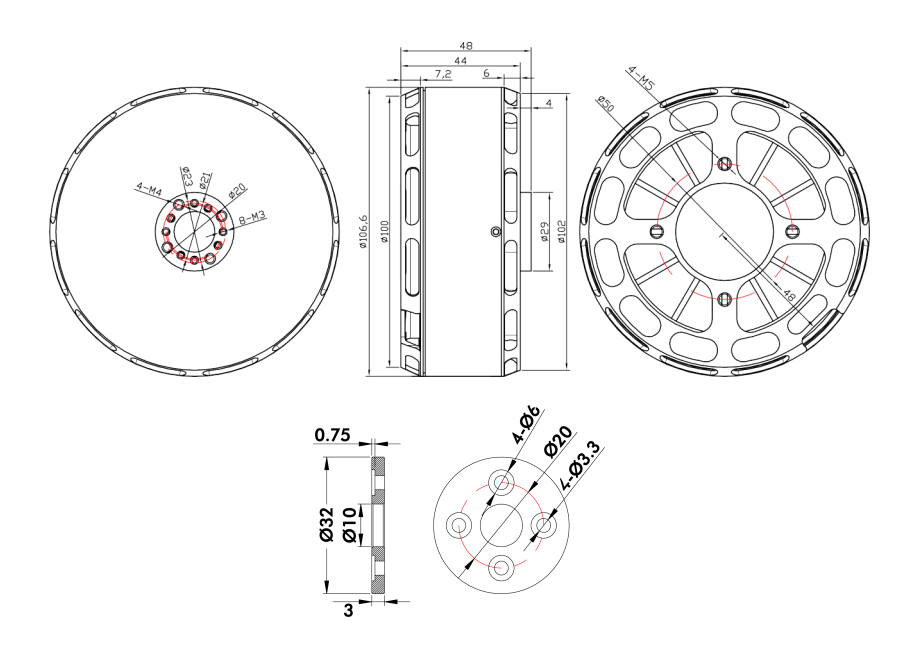

Technical Drawing


Specification
Model No./ KvV10 KV160

Magnet Temperature
Resistance Grade

Class C 150℃
Motor Size（mm）Φ106.6*48Lead（mm）Enameled Wire 150mm
Stator Technology

Anti-rust treatment
;180°C high temperature-resisting coatings

Enamelled Wires Temperature
Resistance Grade

Class C 220℃
Configuration36N42PCoil Withdraw Voltage1000V/5s
Shaft Diameter（mm）IN:15

Rotor Dynamic
Balance Standard

≤5mg
BearingImported 6202ZZIPIP35
KV ValueKV160Battery (lipo)/Voltage
Recommendation		12S(4.2V/Sl)/42-52V
Idle Current（18V）4.4AESC RecommendationFLAME 200A 14S
Peak Current（A）155A/Continuous 180sPropeller RecommendationG30*10.5
Max. Power（W）7000W/Continuous 180sMotor Weight（g）865g Weight (incl.cables)
Internal Resistance（mΩ）12Package Weight（g）1230g
Test Data
Item No.PropThrottleVoltage
(V)		Thrust
(g)		Torque
(N*m)		Current
(A)		RPMInputpower
(W)		Efficiency
(g/W)		Operating
Temperature
℃)
V10
KV160

LIGPOWER
G29*9.5

40%47.5550601.6713.072562621.358.15127℃
45%47.4366542.1918.842929893.777.45
50%47.3380002.6224.1731991143.896.99
55%47.2094653.1030.7834701452.916.51
60%47.06109853.6037.9737241787.016.15
65%46.71124204.0646.1339432154.985.76
70%46.60139124.5553.5841552496.495.57
75%46.42155755.1063.4543862945.135.29
80%46.21173775.6874.6046213447.205.04
90%45.81210046.91100.1950744589.404.58
100%45.23251718.35134.5355396084.924.14
LIGPOWER
G30*10.5		40%47.4858161.9915.292512726.028.01HOT
45%47.4272762.4820.262797960.917.57
50%47.2491863.1528.4631381344.326.83
55%47.08108653.7336.1433971701.426.39
60%46.79125234.3044.4436282079.356.02
65%46.64143394.9354.2738642531.145.67
70%46.49158245.4563.1640572936.515.39
75%46.25175656.0974.5642633448.385.09
80%46.03194456.7487.0544854006.834.85
90%45.52235718.17117.0049015325.584.43
100%44.82279769.75155.9253186988.974.00
Notes：Motor temperature is the motor surface temperature aftering running at 80% for 10 mins.
(Based on LIGPOWER test bench(es), all data are for reference only. LIGPOWER reserves the right of final interpretation. )

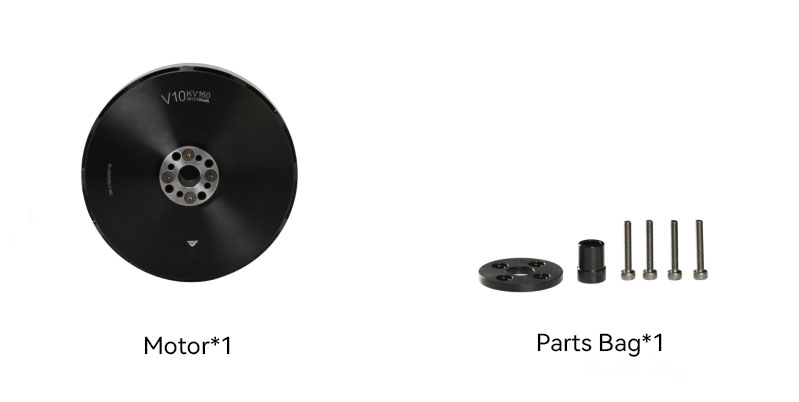

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
