U8Ⅱ-X 6S/12S Plug-and-Play drone Arm Kits for Industrial UAVs

400.00

Available points: 20000 Points Points reward: 400 Points

• Fast and convenient
• Free of complicated mounting process
• Turn-key system, perfect compatibility, superb cost performance
• Modularized propulsion system
Parameter：
  • U8II-X KV150+Alpha 60A LV
  • U8II-X KV190+Alpha 60A LV
  • U8II-X KV150+Alpha 60A LV+MF2815
  • U8II-X KV190+Alpha 60A LV+MF2815
  • U8II-X KV85+Alpha 60A HV
  • U8II-X KV100+Alpha 60A HV
  • U8II-X KV85+Alpha 60A HV+MF2815
  • U8II-X KV100+Alpha 60A HV+MF2815
Quantity：

400.00

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

U8Ⅱ-X Plug-and-Play drone Arm Kits Core Benefits

✅ Turnkey Drone Propulsion Solution

  • 8 pre-installed solutions:

✅ High-Efficiency Power Systems

  • 4 motor-ESC configurations for 6S/12S batteries:

    • 6S LV Models: KV150/KV190 (22.2V)

    • 12S HV Models: KV85/KV100 (44.4V)

✅ Patented Performance Tech

  • X-Carbon™ Props: The MF2815 propeller offers a popular speed range of 2200-3000 RPM, which is 15% more efficient than standard propellers.

  • FOC Sine Wave ESC:<5% current ripple, supports PWM/DShot600 protocols.

Technical Specs

Motor & ESC

  • Motor Models: U8Ⅱ-X KV85, KV100, KV150, KV190

  • Max Thrust: 8.7kg (KV100 + G28×9.2 props)

  • Efficiency: 92% (peak) at 25°C

  • ESC: Flame 60A 6S/Flame 60A 12S V1.2 compatible, OneShot125/DShot600 support)

Propellers

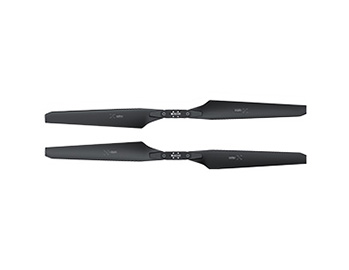

  • Default: X-Carbon™ 28.4-inch diameter, 10.1-inch pitch MF2815 folding carbon fiber paddles (2 blades/pair)

Use Cases

  • Large-Area Mapping: 1:500 topographic surveys with 45km+ range.
  • Infrastructure Inspections: 60-min flight time for pipelines/solar farms.
  • Precision Agriculture: MF2815 props reduce chemical drift by 30%.
  • Heavy Payload Delivery: 8.7kg lift capacity for emergency logistics.

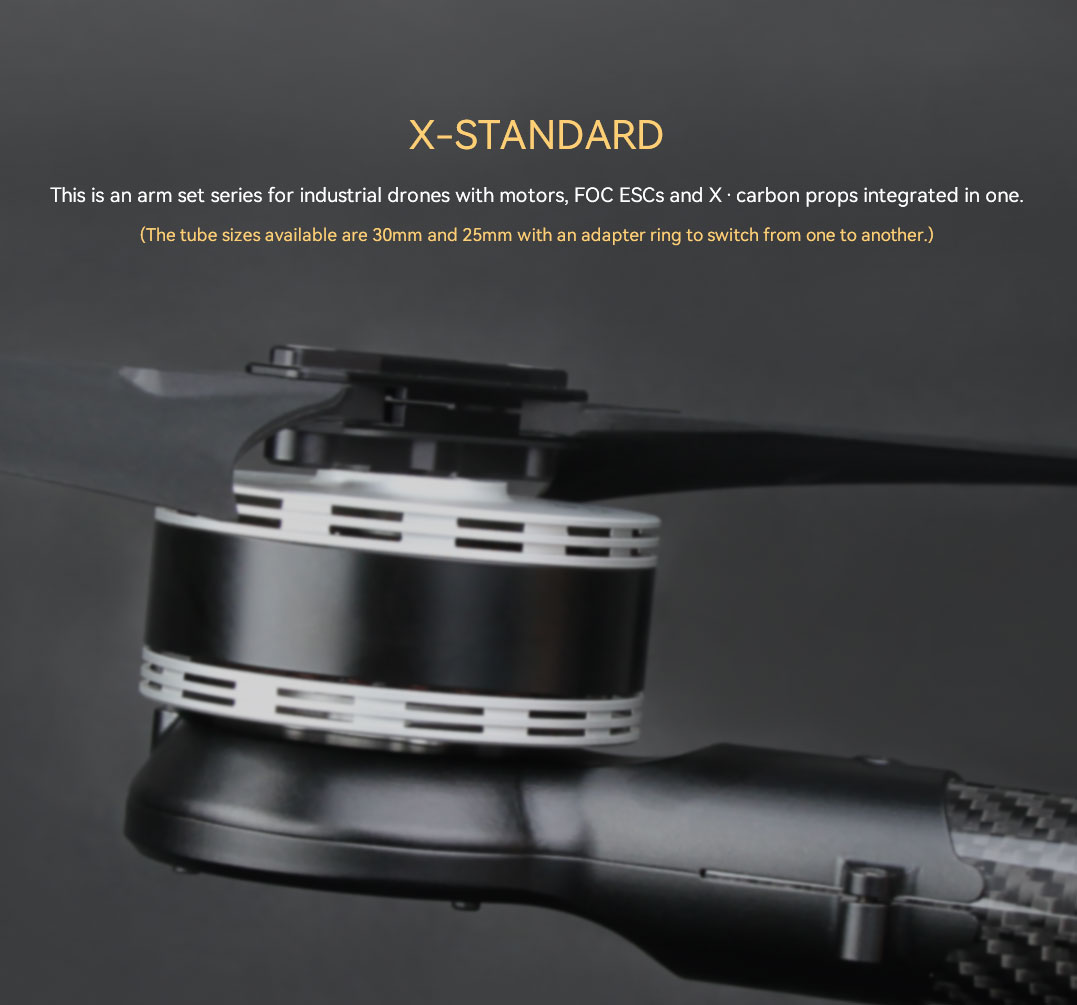

U8Ⅱ-X with motors,FOC ESCs and carbon props integrated in one.

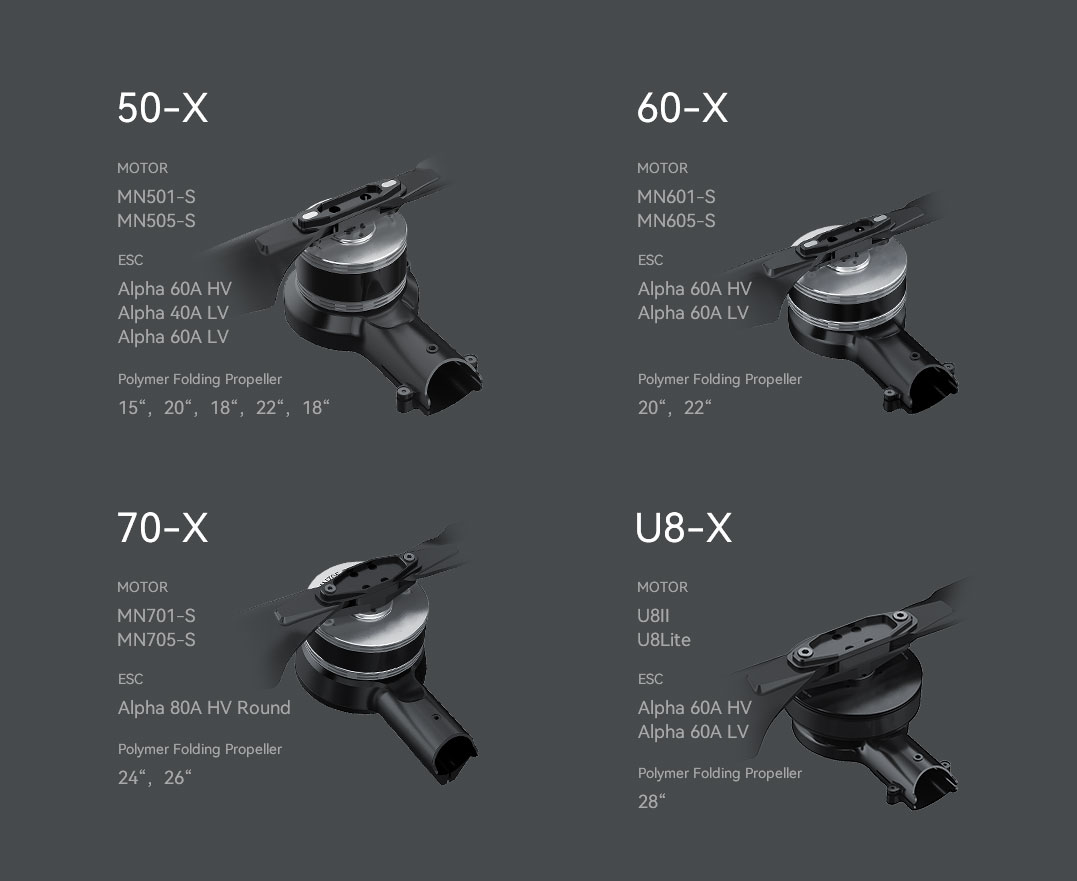

U8Ⅱ-X Recommended

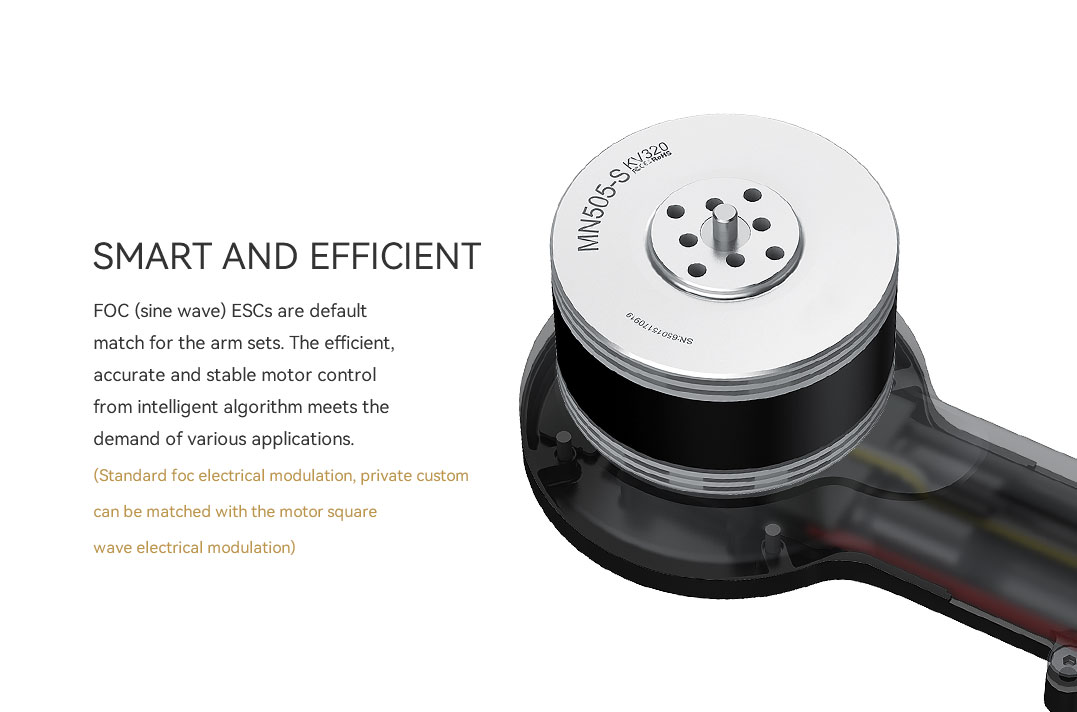

U8Ⅱ-X smart and efficient

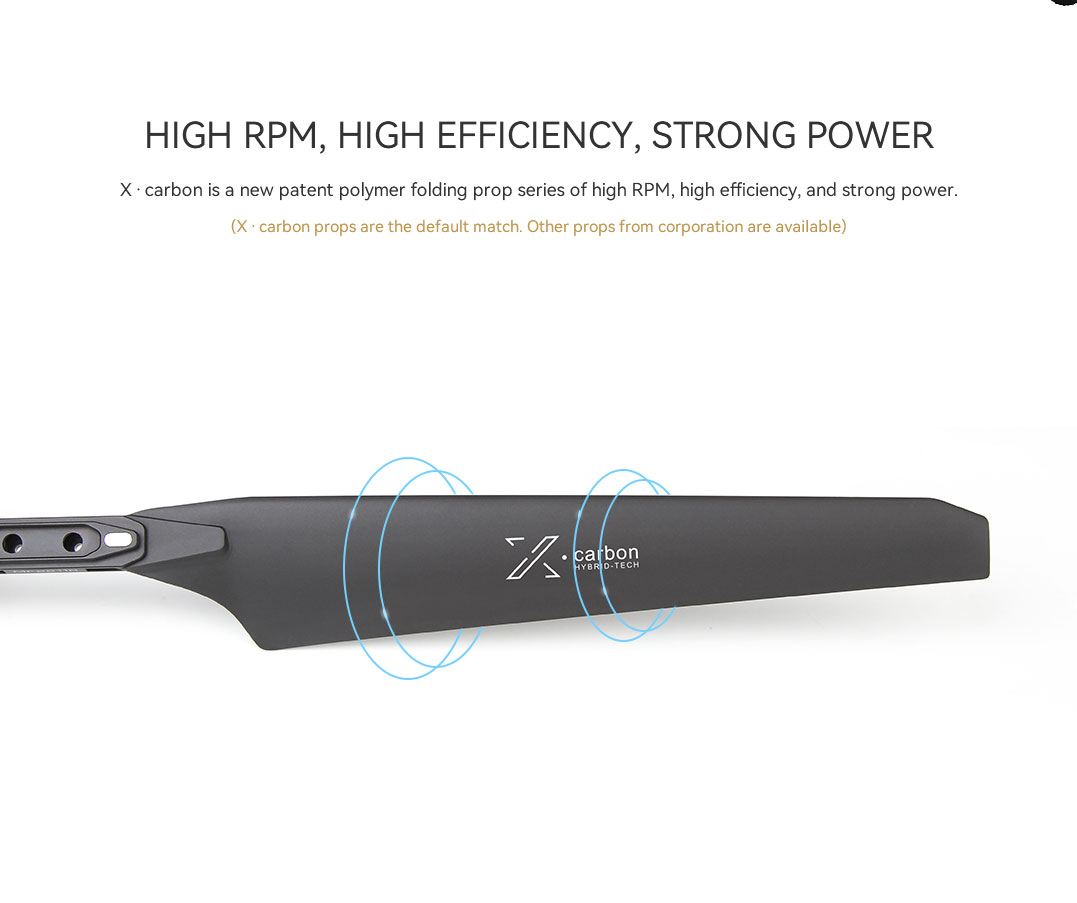

U8Ⅱ-X high rpm,high efficiency, strong power

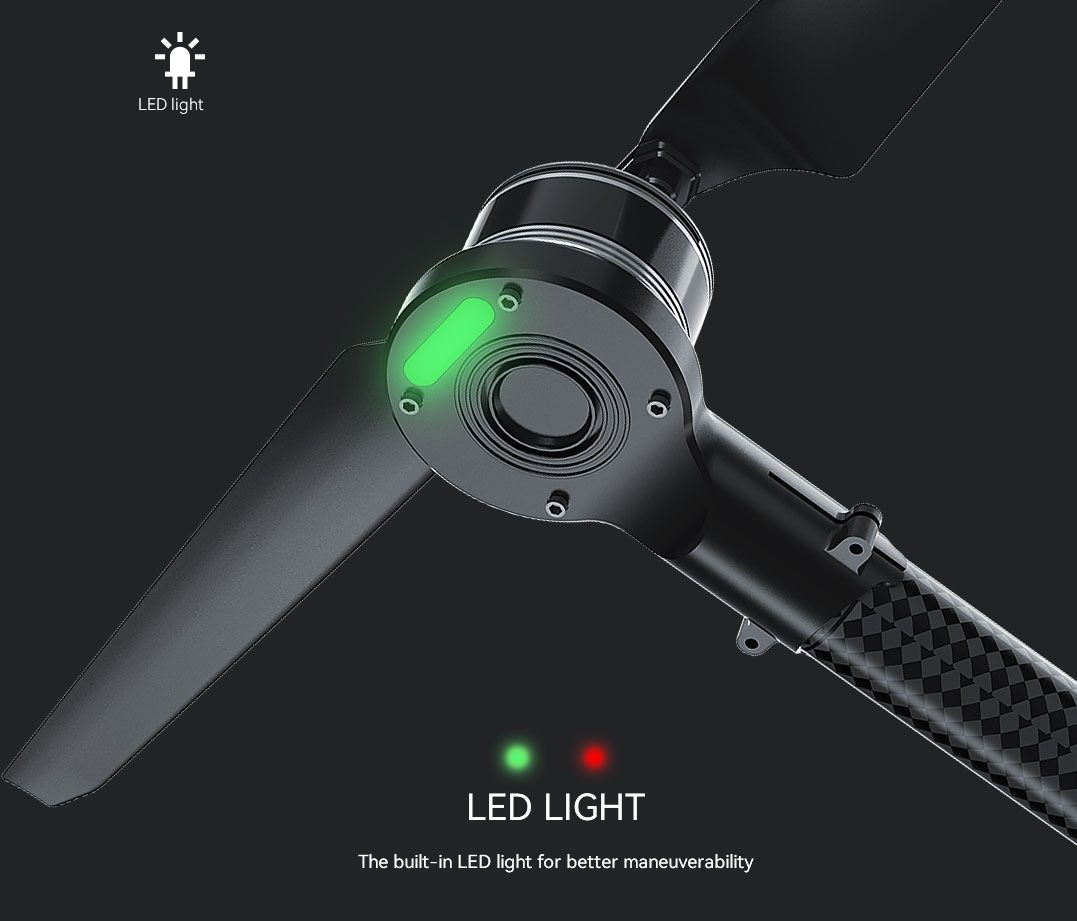

U8Ⅱ-X LED light

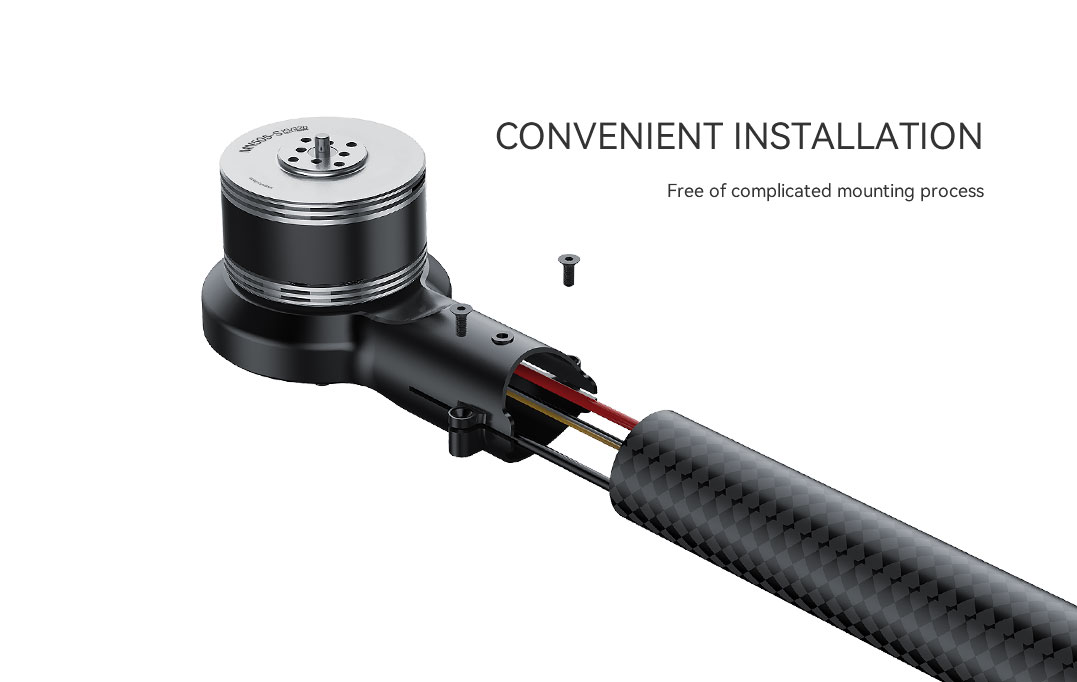

U8Ⅱ-X free of complicated mounting process

Matching Table
Arm SetCompatible
Tube Size		MotorKVDefault ESCDefault
Propeller		Propeller OptionsCustom ESC
501-X25mm/30mm
(25mm=30mm+
adapter)		MN501-SKV240ALPHA 60A 12S V1.2MF1503P15*5, FA15.2*5FLAME 60A 12S
KV300ALPHA 40A 6SMF2009P20*6, FA20.2*6.6ALPHA 60A 12S V1.2,
AIR 40A
KV360MF1806P18*6.1, FA18.2*5.9
505-XMN505-SKV320ALPHA 60A 6SMF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
KV380MF1806P18*6.1, FA18.2*5.9
601-XMN601-SKV170ALPHA 60A 12S V1.2MF2009P20*6, FA20.2*6.6FLAME 60A 12S
KV320ALPHA 60A 6SP20*6, FA20.2*6.6
605-XMN605-SKV170ALPHA 60A 12S V1.2MF2211P22*6.6, FA22.2*7.2FLAME 60A 12S
KV320ALPHA 60A 6S
701-XMN701-SKV135ALPHA 80A 12S
Round		MF2614P24*7.2-10mm Hole,
G24*7.8, FA24.2*7.9		/
705-XMN705-SKV125ALPHA 80A 12S
Round		MF2614G26*8.5, FA26.2*8.5/
U8Ⅱ-X
U8 Lite-X
XU8-X		U8Ⅱ
U8 Lite
XU8		KV85ALPHA 60A 12S V1.2MF2815G28*9.2, FA28.2*9.2FLAME 60A 12S
KV100
KV150ALPHA 60A 6S
KV190
6007Ⅱ-X25mm/28mm6007ⅡKV160ALPHA 60A 12S V1.2MF2211FA22.2*7.2,
NS22*6.6, P22*6.6		FLAME 60A 12S
KV320ALPHA 60A 6S
P60-X25mm/30mm
(25mm=30mm+
adapter)		P60KV170FLAME 60A 12SMF2211P22*6.6, G22*7.2/
P80-X30mm/35mm
or 40mm
(Notify us your tube size)		P80KV100/KV120ALPHA 80A 12SMF3016P30*10, G30*10.5FLAME 80A 12S,
FLAME 100A 14S
X-50125mm/30mm
(25mm=30mm+
adapter)		MN501-SKV240ALPHA 60A 12S V1.2P15*5/FLAME 60A 12S
KV300ALPHA 40A 6SP20*6/ALPHA 60A 6S,
AIR 40A
KV360P18*6.1/
X-505MN505-SKV320ALPHA 60A 6SP22*6.6/FLAME 60A 12S
KV380P18*6.1/
X-601MN601-SKV170ALPHA 60A 12S V1.2P20*6/FLAME 60A 12S
KV320ALPHA 60A 6S/
X-605MN605-SKV170ALPHA 60A 12S V1.2P22*6.6/FLAME 60A 12S
KV320ALPHA 60A 6S/
X-U8Ⅱ
X-U8 Lite		U8Ⅱ
U8 Lite		KV85ALPHA 60A 12S V1.2G28*9.2/FLAME 60A 12S
KV100/
KV150ALPHA 60A 6S/
KV190/
X-70130mm/35mm
(30mm=35mm+
adapter)		MN701-SKV135ALPHA 80A 12S
Round		P24*7.2
-10mmHole		G24*7.8/
X-705MN705-SKV125ALPHA 80A 12S
Round		G26*8.5//
* NOTE : order qty should be an EVEN number.
