U15L Kits with 63kg Thrust for Manned Aircraft & Delivery Drones

1099.00

Available points: 50000 Points Points reward: 1099 Points

• Big Power
• Matched Propulsion solution
• Stable & Reliable & Safe
Parameter：
ESC：
  • Thunder 300A 24S
Propellers：
  • NS47*18
Quantity：

1099.00

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

Overview

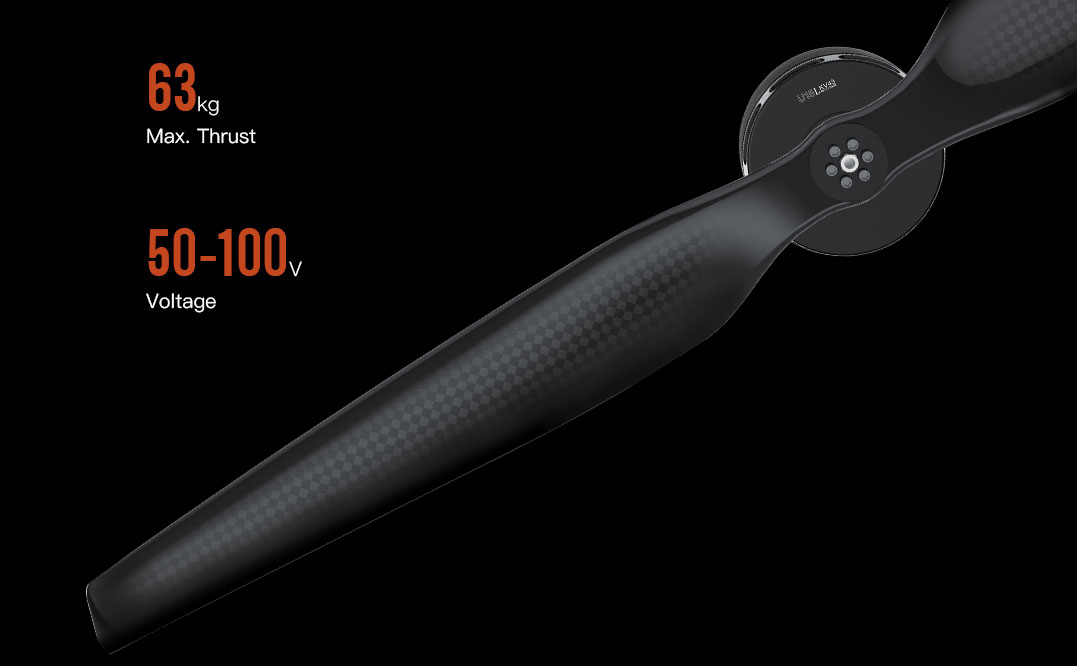

The LIGPOWER U15L Kits redefines high-performance electric propulsion systems, combining a high thrust motor, precision-engineered NS47*18 propeller, and a 300A 24S ESC (Electronic Speed Controller). Designed for heavy-duty applications like manned aircraft and heavy cargo drones, this kit delivers unparalleled 63kg maximum thrust while operating at 50-100V, making it a top choice for professionals seeking reliability and power.

Key Features

1. 63kg Maximum Thrust for Heavy Loads

Engineered to handle extreme demands, the U15L supports payloads up to 63kg, perfect for:

  • Manned eVTOLs (electric Vertical Take-Off and Landing)
  • Cargo drones requiring extended flight times

  • Industrial UAVs in logistics and emergency delivery

2. Wide Voltage Compatibility (50-100V)

Optimized for flexibility, the motor operates efficiently across 50-100V voltage, allowing integration with diverse battery configurations. This ensures:

  • Stable performance in low/high-voltage scenarios

  • Extended operational range for long-haul missions

3. Seamless Integration with LIGPOWER Ecosystem

The U15L is pre-tuned for compatibility with:

4. Durability in Extreme Conditions

Built with aerospace-grade materials, the kit withstands:

  • High-vibration environments
  • Temperature extremes (-20°C to 60°C)

  • Moisture and dust exposure

Why Choose the U15L Kits?

  • Scalability: Adaptable to hybrid configurations for multi-motor setups.
  • Energy Efficiency: Reduces power consumption by 15% compared to similar models.
  • Certification-Ready: Meets safety standards for commercial UAV applications.


Technical Drawing


Specification

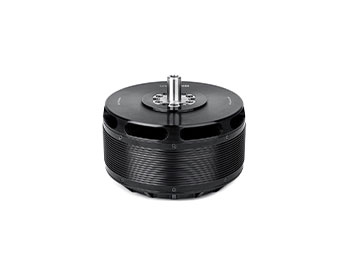

Motor ItemU15L KV43Weight (Incl. Cable)3600g
Motor DimensionsΦ151.5*86mmInternal Resistance20mΩ
LeadEnameled Wire200mmConfiguration36N42P
Shaft Diameter25mmRated Voltage(LiPo)24S
Idle Current(10V)4.0APeak Current(120s)135A
Rated Power2800W

ESC Itemthunder 300A 24SWeight(Incl. cables)870g
Size154.9*69.6*48.9mm
No
Programable Item(s)NoSupport Voltage14-24S
Con. Current240APeak Current(10S)300A
Model NO.47*18Weight(Single Blade)320±20g
MaterialCF+EpoxySuface TreatmentGlossy
LIGPOWER Series2blades-intergrated

Test Data
TypePropellerThrottleVoltage
(V)		Thrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)

Operating
Temperature

(℃)

U15L

KV43

47*18"30%9995635.229.43123992910.30155
（Ambient
Temperature：
32）
35%98116686.3012.11141311929.80
40%98149558.0616.72156616469.10
45%982000910.7724.74180924348.20
50%982476713.3333.35201932797.60
55%982843815.3440.56219339847.10
60%983131416.9446.64231345726.80
65%983674719.9558.94246957696.40
70%983896621.2264.97258063596.10
75%984802526.2687.88279985805.60
80%975068327.8495.31291392865.50
85%975322529.28102.47297399765.30
90%975619730.90110.953060107885.20
95%976014633.17123.933156120365.00
100%976338335.04134.643210131094.80
Note: Temperature is motor coiling temperature at 100% throttle running 2mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
