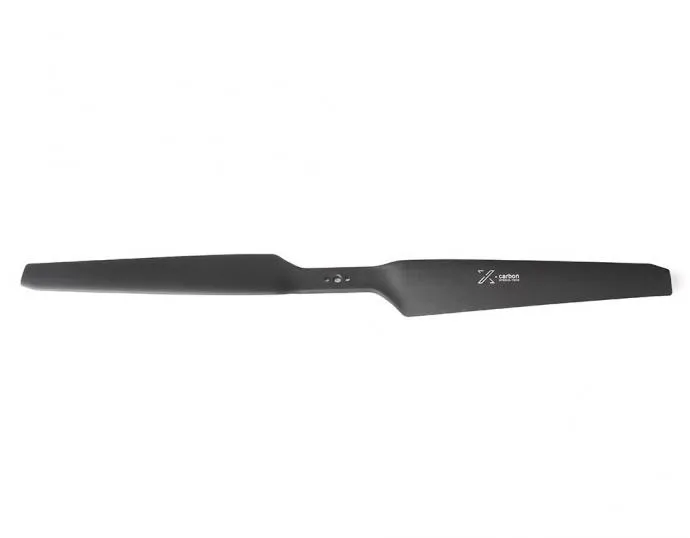

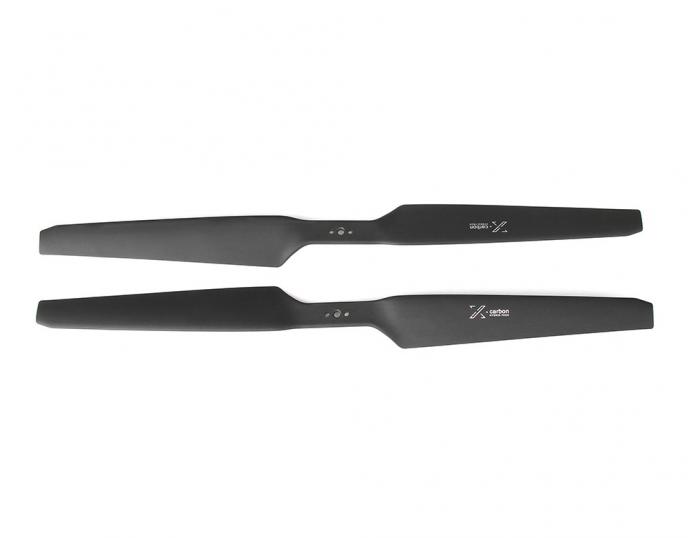

MS1704-2PCS/PAIR

21.99

Available points: 1000 Points Points reward: 21 Points

• Polymer propellers are not recommended for coaxial setups
• Tailored airfoil, Efficient flight
• Small deformation, Stable operation
• Stingent control over dynamic balance
Parameter:
Quantity:

21.99

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

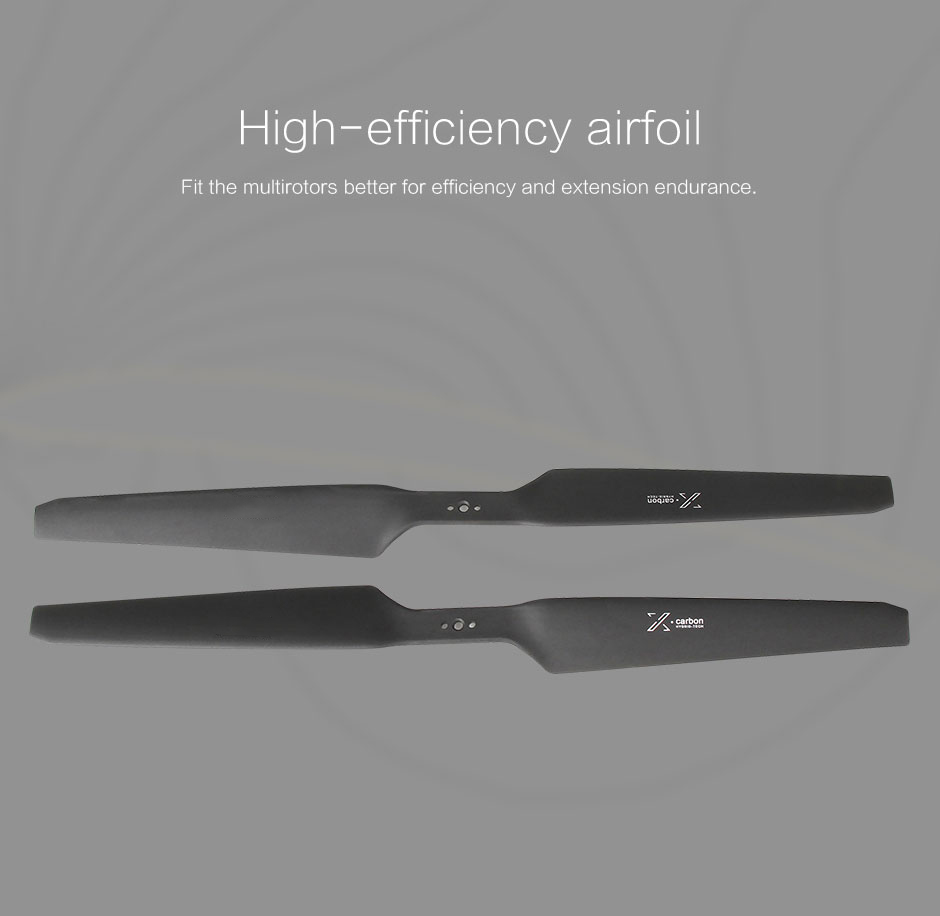

MS1704 fit the multirotors better for efficiency and extension endurance

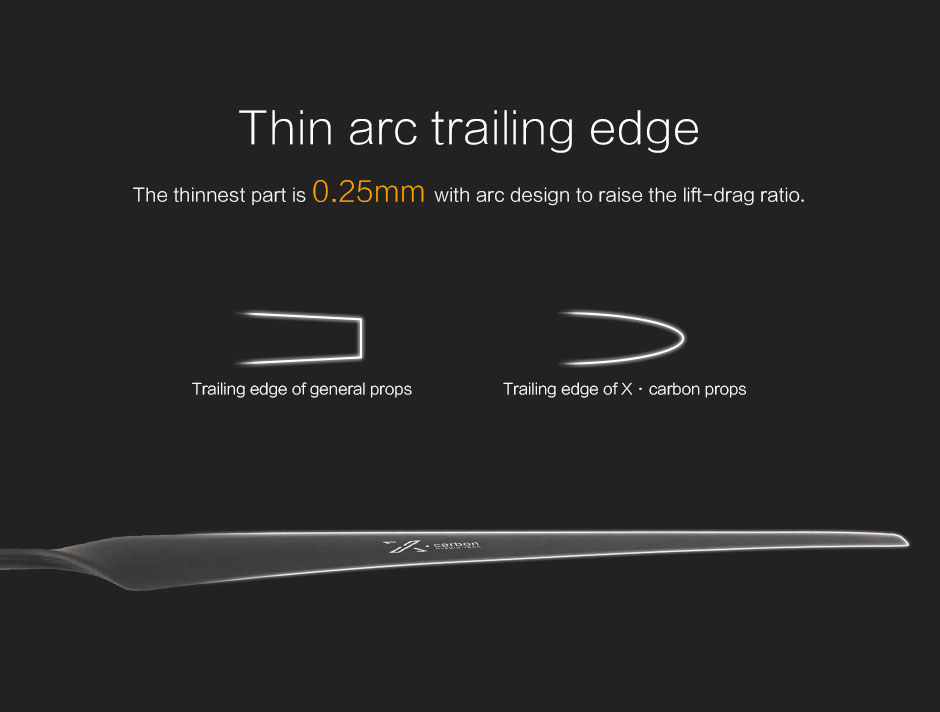

MS1704 thin arc trailing edge

MS1704 heat insulation coating on the surface for steady operation of long time

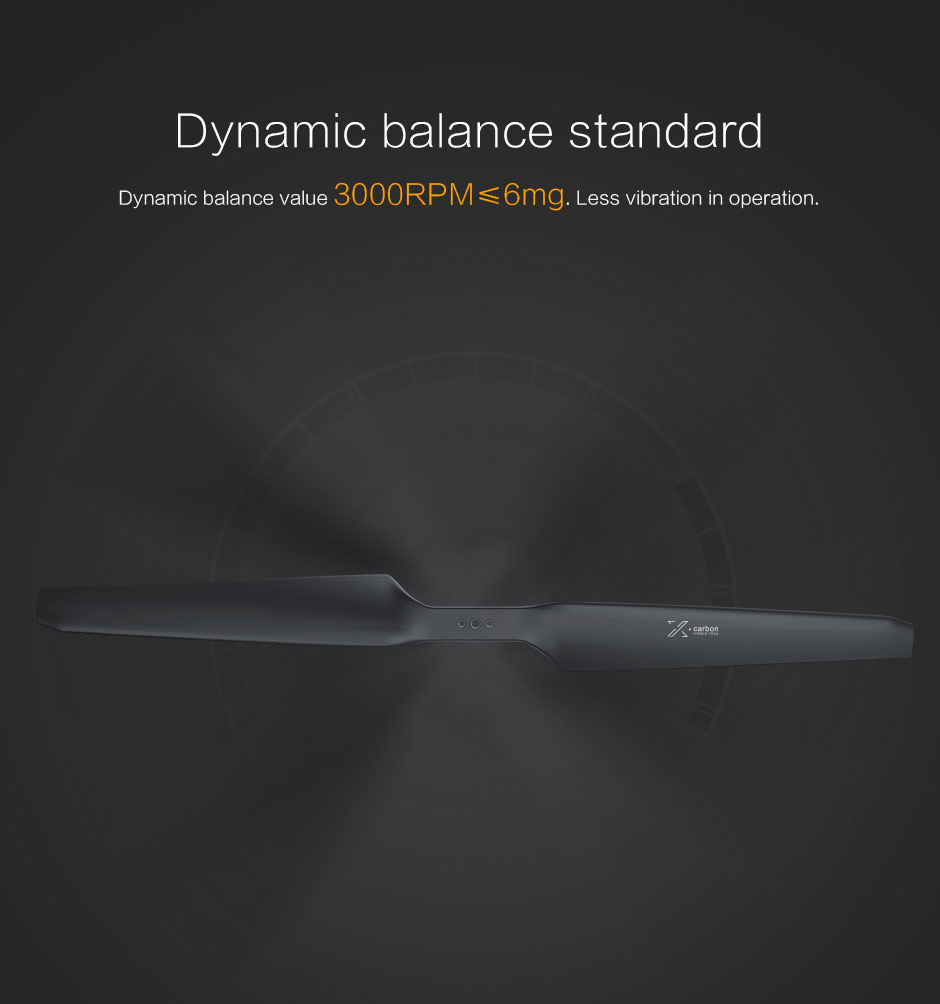

MS1704 dynamic balance value 3000rpm≤6mg

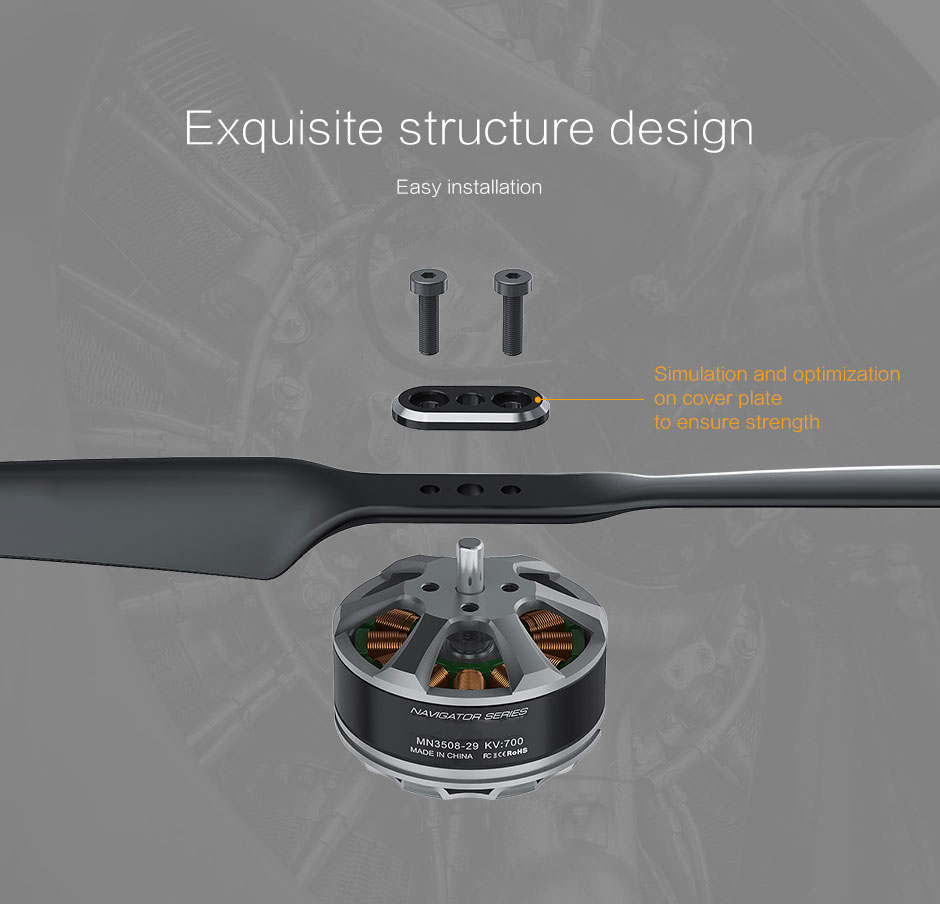

MS1704 exquisite structure design

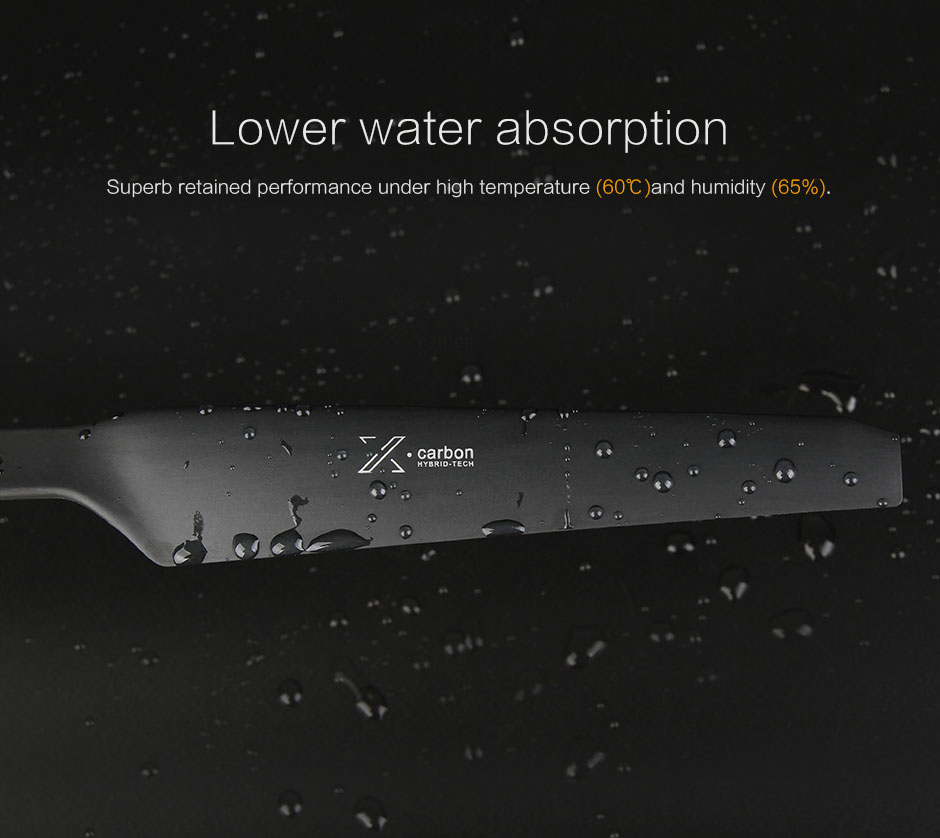

MS1704 superb retained performance under high temperature(60℃) and humidity(65%)

Technical Drawing


Specification
Model NO.MS1704LIGPOWER Series2blades-intergeated
Weight(Single Blade)34gPackage Weight185g
Diameter17inch(Measured Diameter:433cm)Package Size470*57*49mm
Pitch6.5inch(165.1mm)MaterialPolymer+CF
Recommended Thrust/RPM1.2~1.8kg/3400~4100RPMRecommended Max Thrust/RPM6kg/7300RPM
Ambient Temp-40℃~65℃Stoorage Temp/Humidity-10℃~50℃/<85%

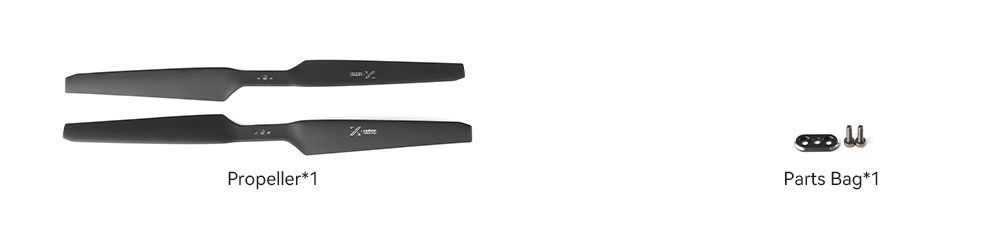

Packing List

包装 英.jpg

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

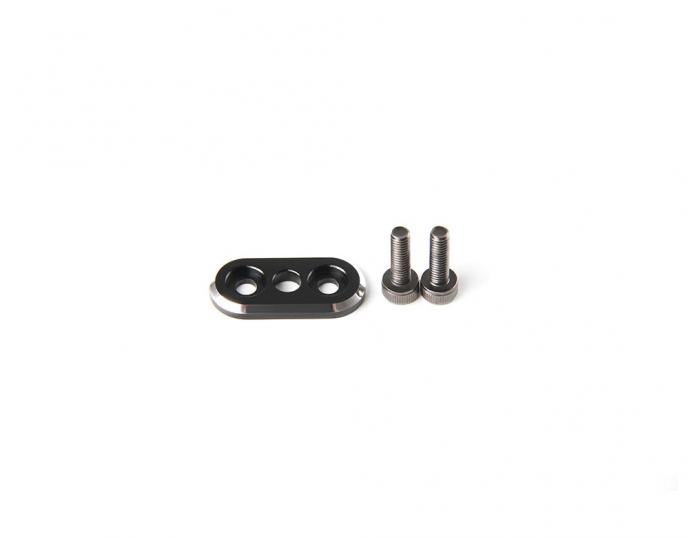

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers,

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. in this case, you will need

to replace them with good ones.

4.NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in

hostile environments containing H20,S02,N02,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4)

6.For long time storage of over 6 months, please keep it in sealed preservation.
