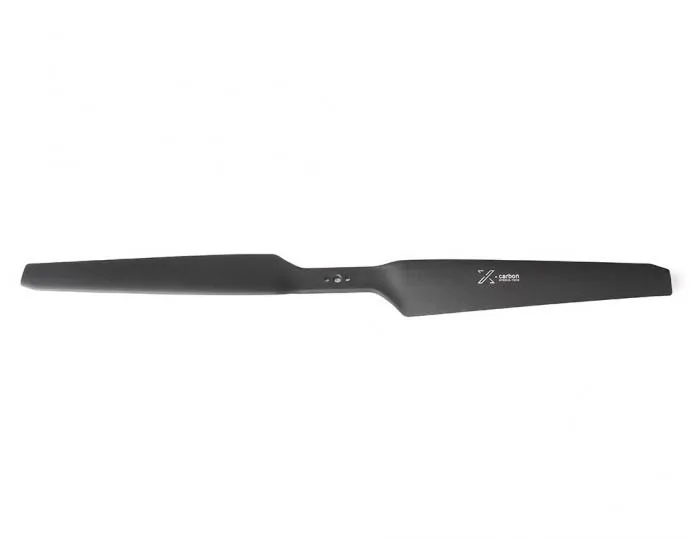

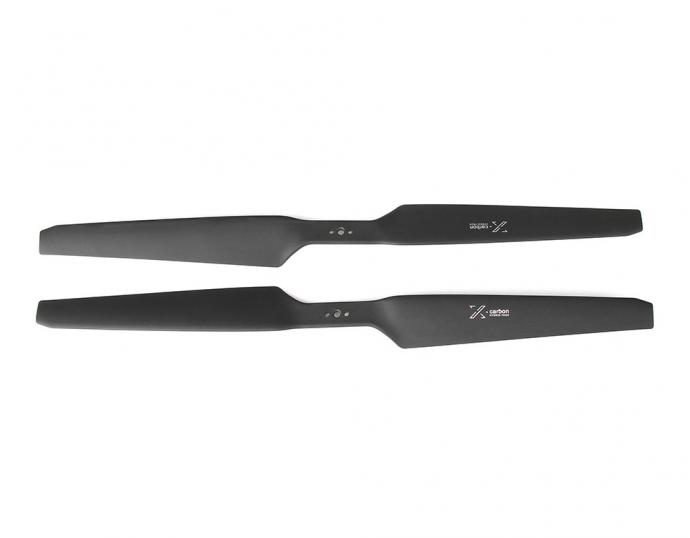

MS1503-2PCS/PAIR

19.99

Available points: 1000 Points Points reward: 19 Points

• Polymer propellers are not recommended for coaxial setups
• Tailored airfoil, Efficient flight
• Small deformation, Stable operation
• Stingent control over dynamic balance
Parameter：
Quantity：

19.99

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

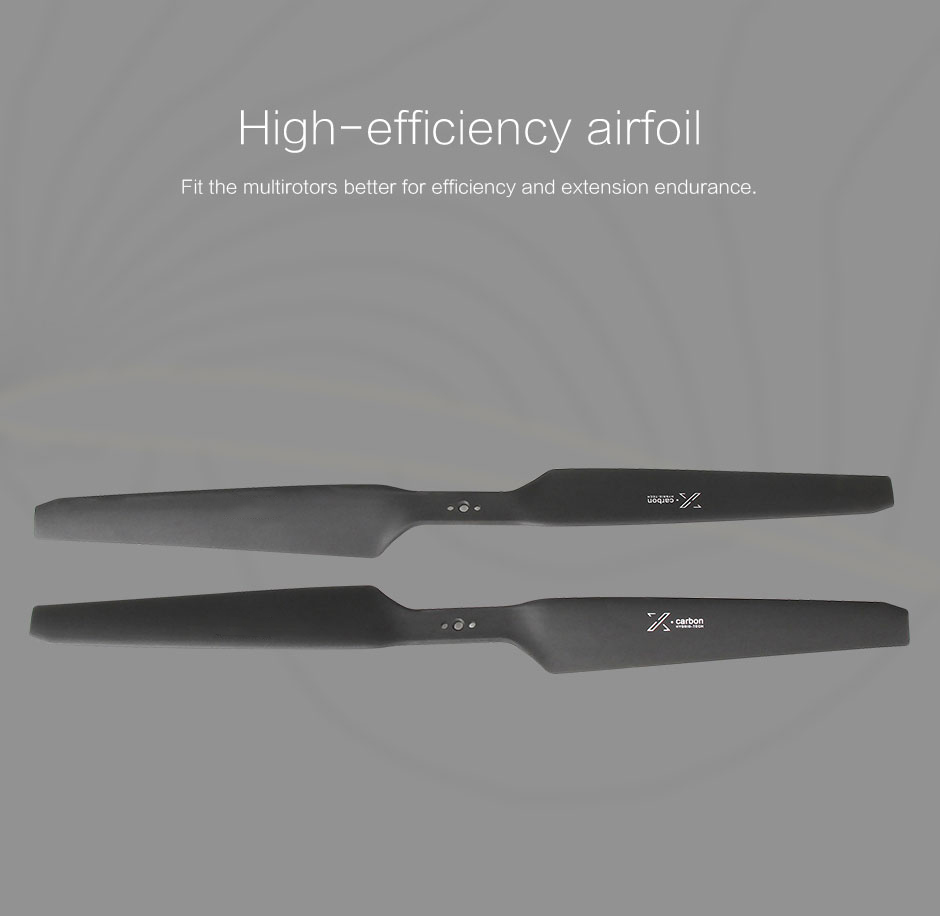

MS1503 fit the multirotors better for efficiency and extension endurance

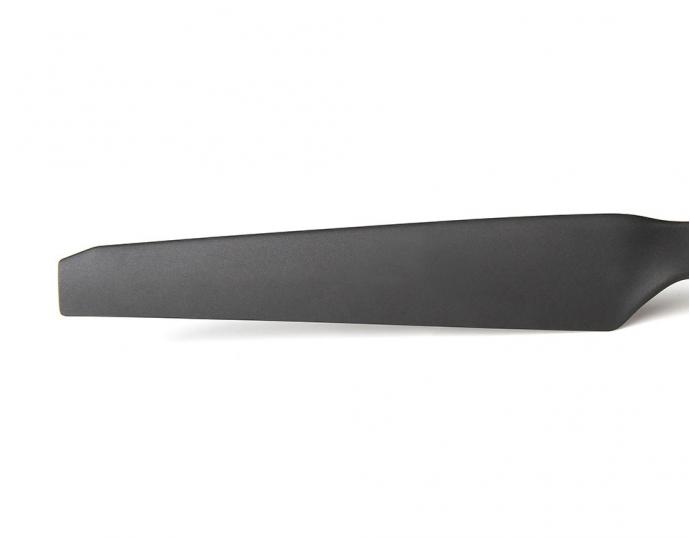

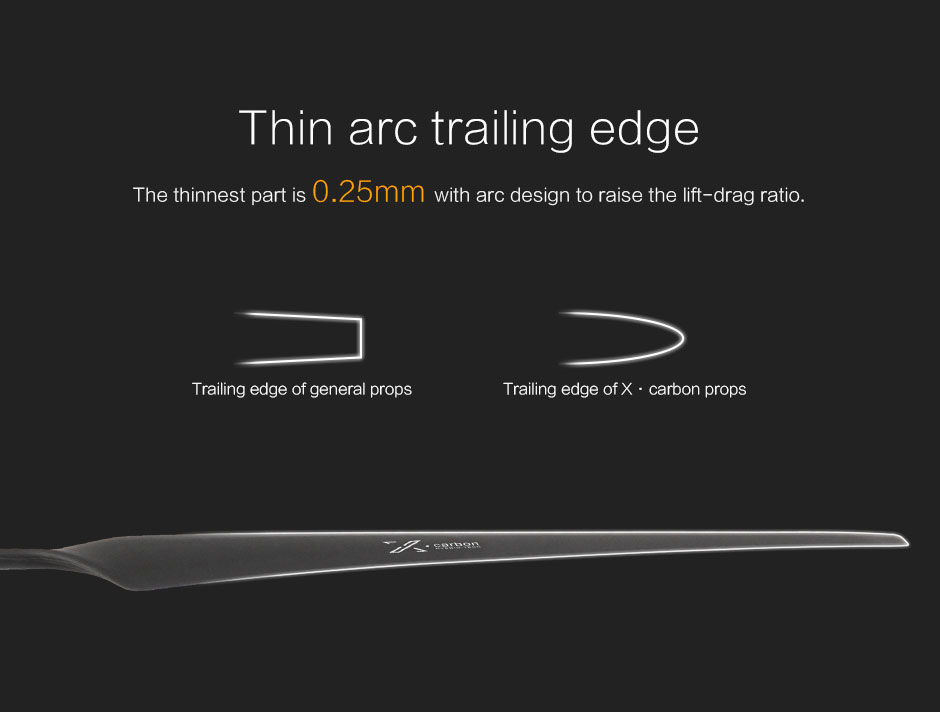

MS1503 thin arc trailing edge

MS1503 heat insulation coating on the surface for steady operation of long time

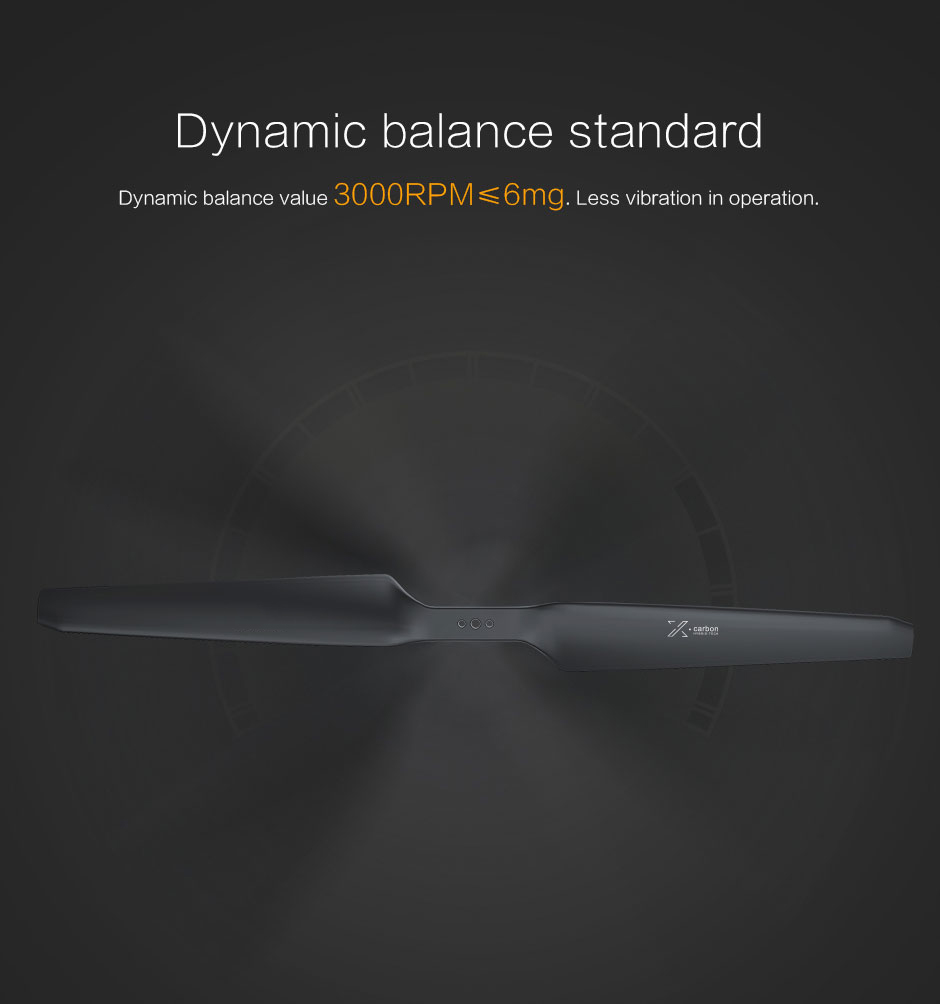

MS1503 dynamic balance value 3000rpm≤6mg

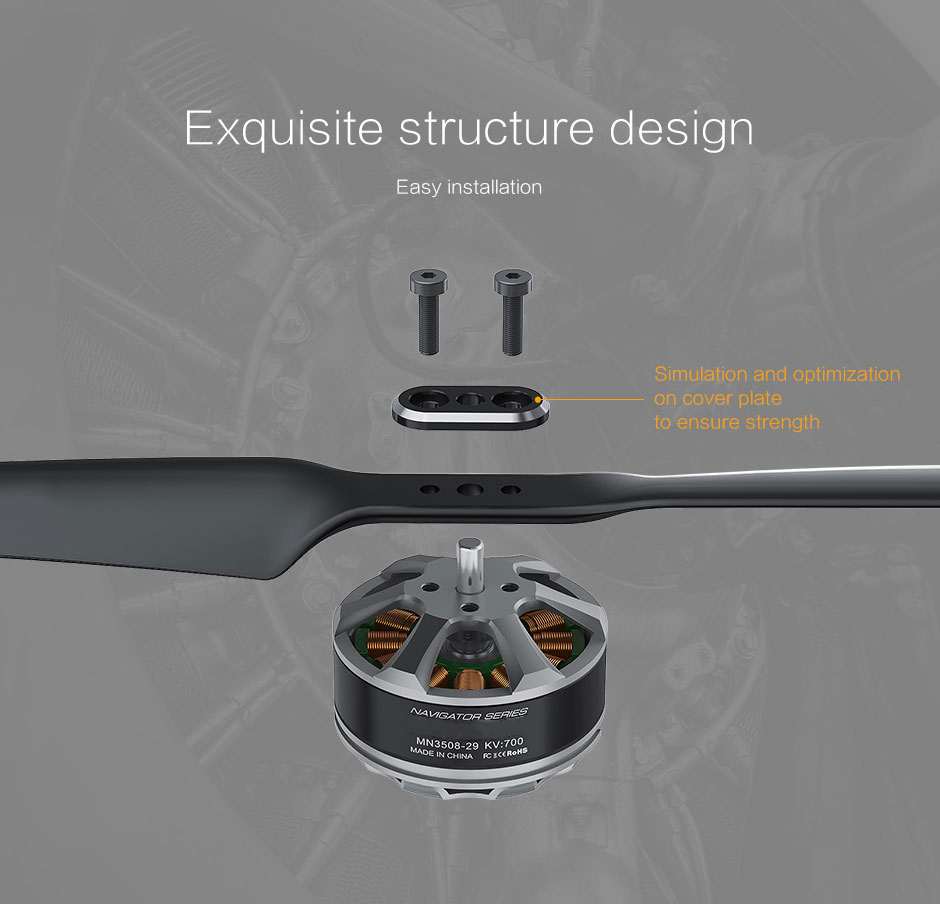

MS1503 exquisite structure design

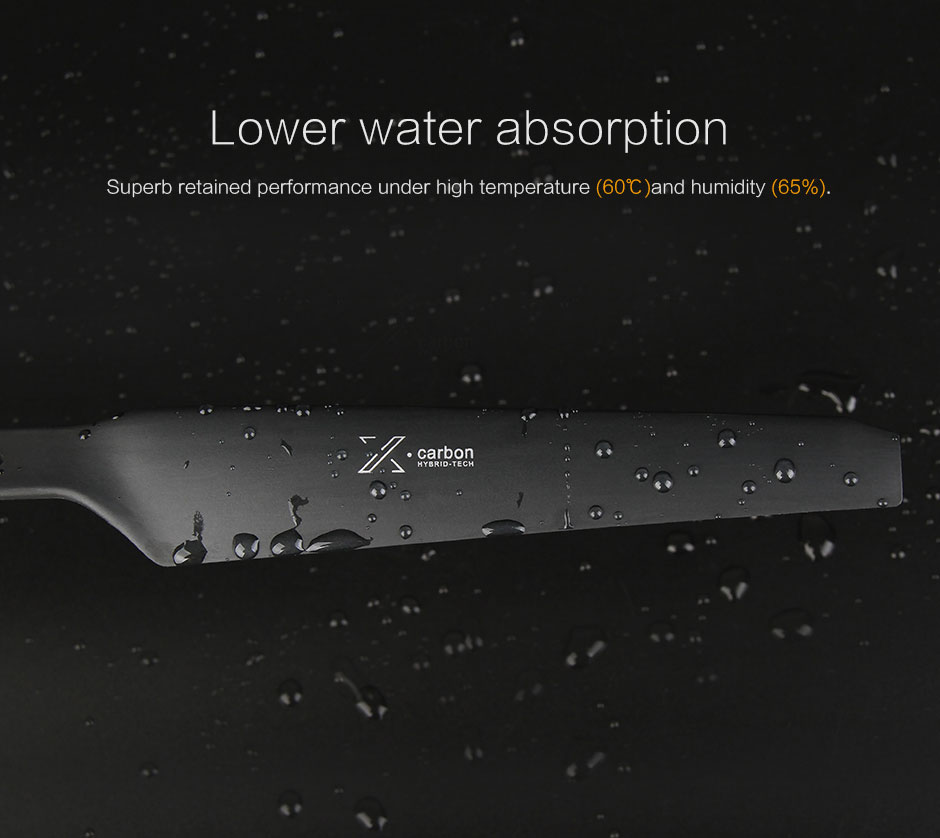

MS1503 superb retained performance under high temperature(60℃) and humidity(65%)

Technical Drawing


Specification
Model NO.MS1503LIGPOWER Series2blades-intergeated
Weight(Single Blade)25gPackage Weight135g
Diameter15inch(Measured Diameter:382m)Package Size419*52*43mm
Pitch5.6inch(142.24mm)MaterialPolymer+CF
Recommended Thrust/RPM1~1.5kg/4100~5000RPMRecommended Max Thrust/RPM4.5kg/8400RPM
Ambient Temp-40℃~65℃Stoorage Temp/Humidity-10℃~50℃/<85%

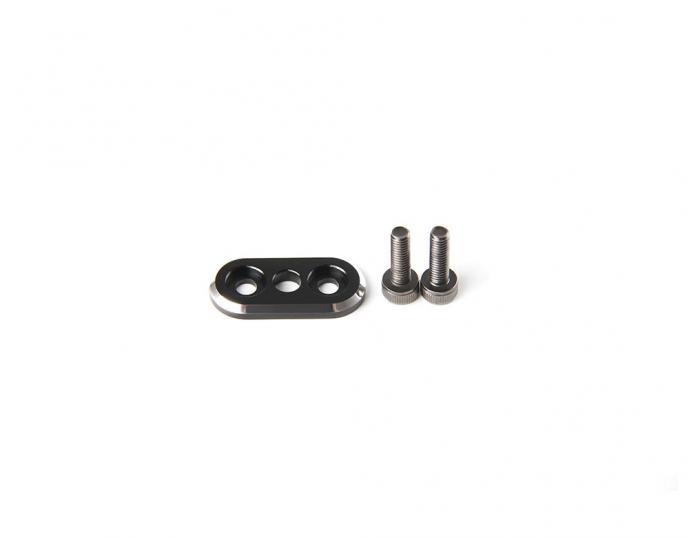

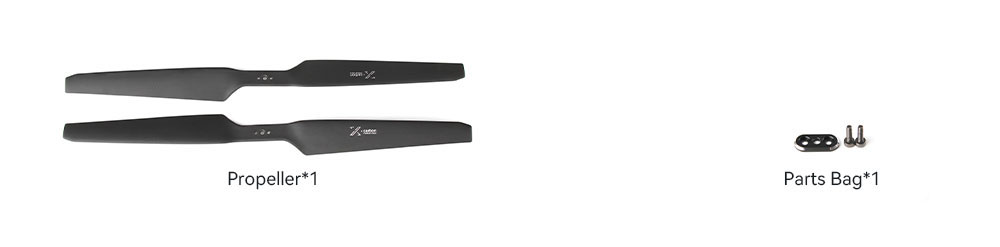

Packing List

包装 英.jpg

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers,

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. in this case, you will need

to replace them with good ones.

4.NEVER decompose the propellers. Decomposition of which will result in safety issues. Do not use the propellers in

hostile environments containing H20,S02,N02,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4)

6.For long time storage of over 6 months, please keep it in sealed preservation.
