MN801-S KV120 Waterproof UAV Motor with 11.6kg Max Thrust

249.99

Available points: 12000 Points Points reward: 249 Points

• Heavy load motor,born for VTOL
• Long service life
• Excellent cooling performance
• Anti-high temperature/Anti-overload
• Dust-resistance/Waterproof/Anti-corrosion
Parameter：
Quantity：

249.99

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About LIGPOWER Navigator MN801-S Multirotor Fixed Wing UAV Motor KV150

LIGPOWER MN801-S "Navigator" Series is a high-performance brushless motor for multi-rotors, VTOL, and fixed-wing UAVs. With 12kg thrust and 1000-hour MTBF, it ensures reliable, long-lasting flight. The motor features superior cooling (15% improvement), dust-resistance, waterproofing, and anti-corrosion. Ideal for aerial photography, it pairs perfectly with LIGPOWER G26*8.5" props. Regular lubrication keeps it running smoothly.


Navigator MN801-S Highlights:


  • Max thrust: 12kg
  • MTBF: About 1000hours

  • Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time

"Navigator" motors are for general uses like aerial photography.For demand of multi-rotors, VTOL and fixed wings.


Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

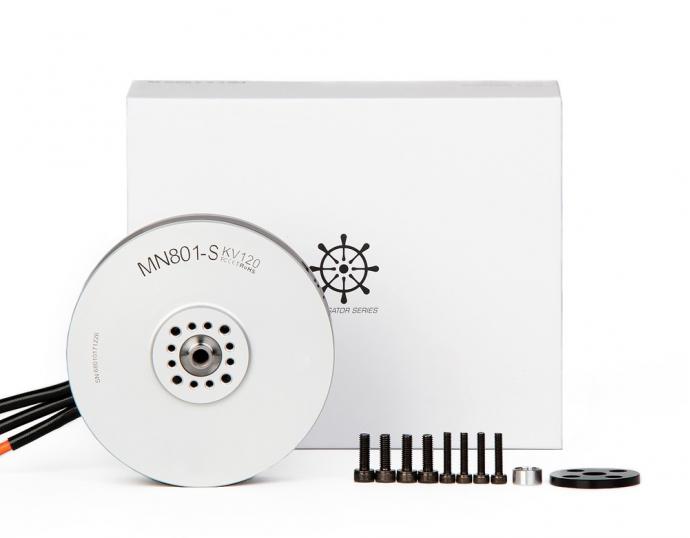

Packing List Includes:

1x LIGPOWER MN801 Motor KV150 ( kv which you choose)

1x Hardware pack


Matching Guide:

LIGPOWER G26*8.5 Prop / Flame 60A 12s v2

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

MN801-S KV120 12kg+ Thrust，IP45

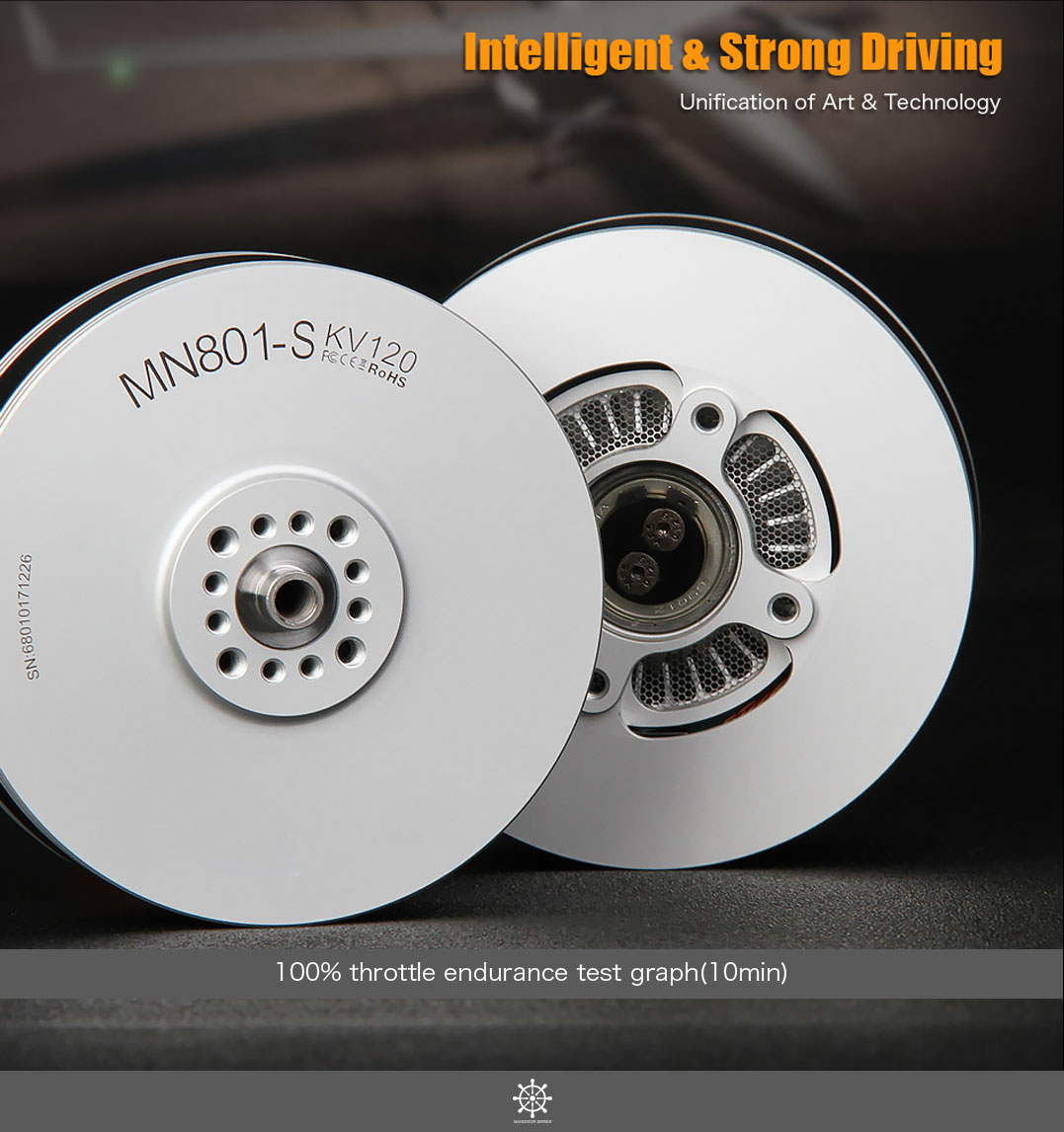

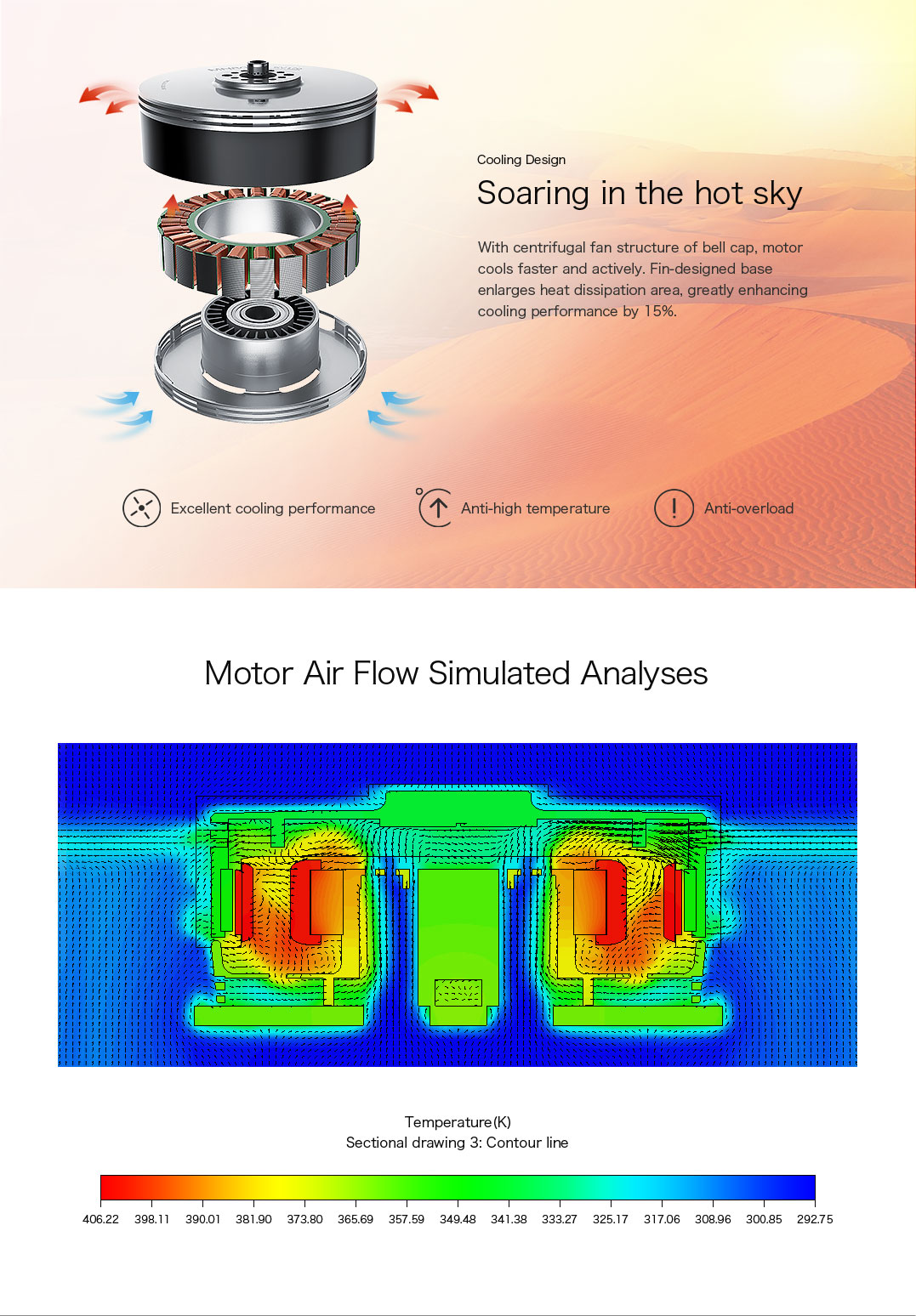

MN801-S KV120 excellent cooling

MN801-S KV120 IP45，Anti-corrosion

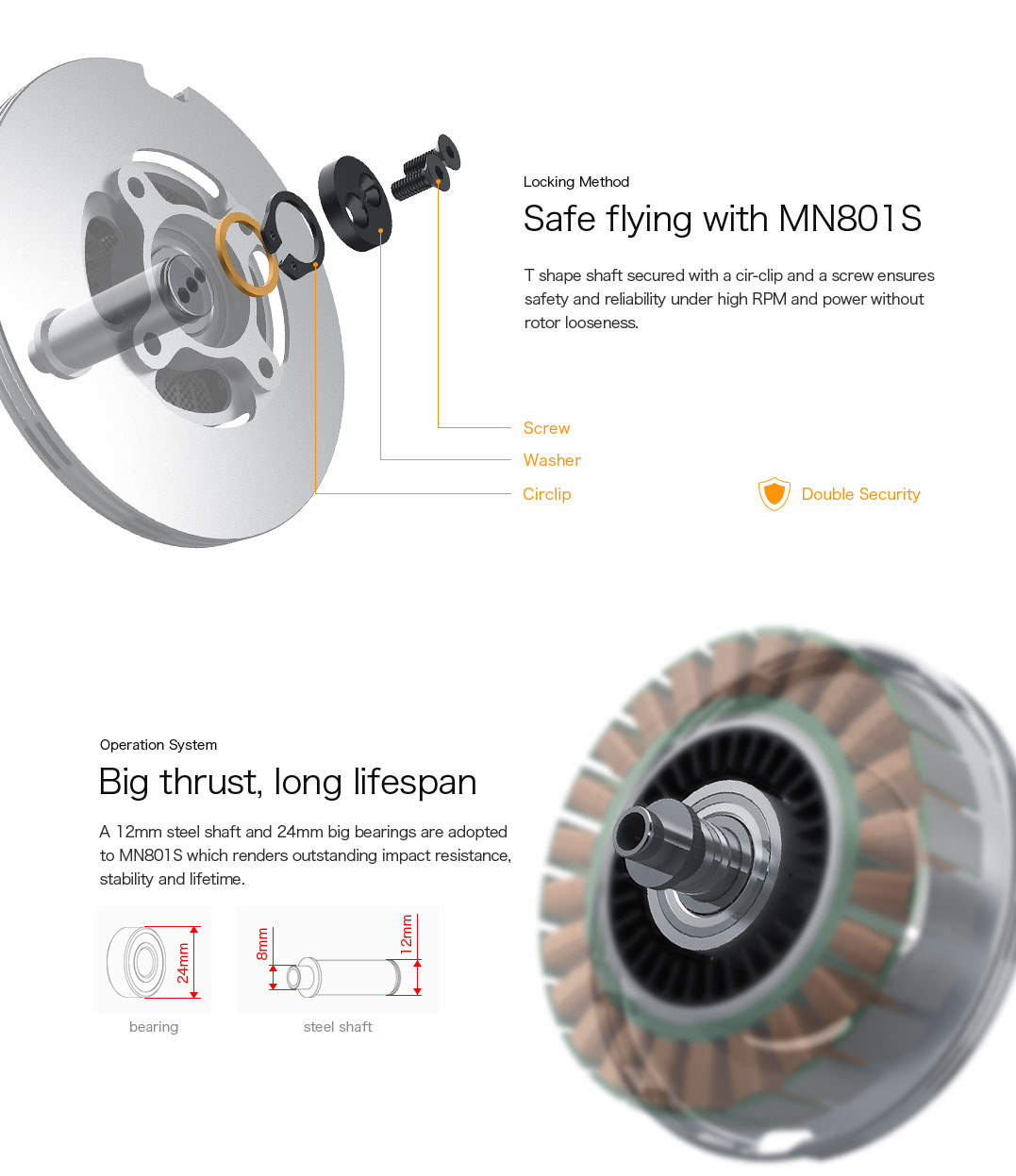

MN801-S KV120 double security，big thrust,long lifespan

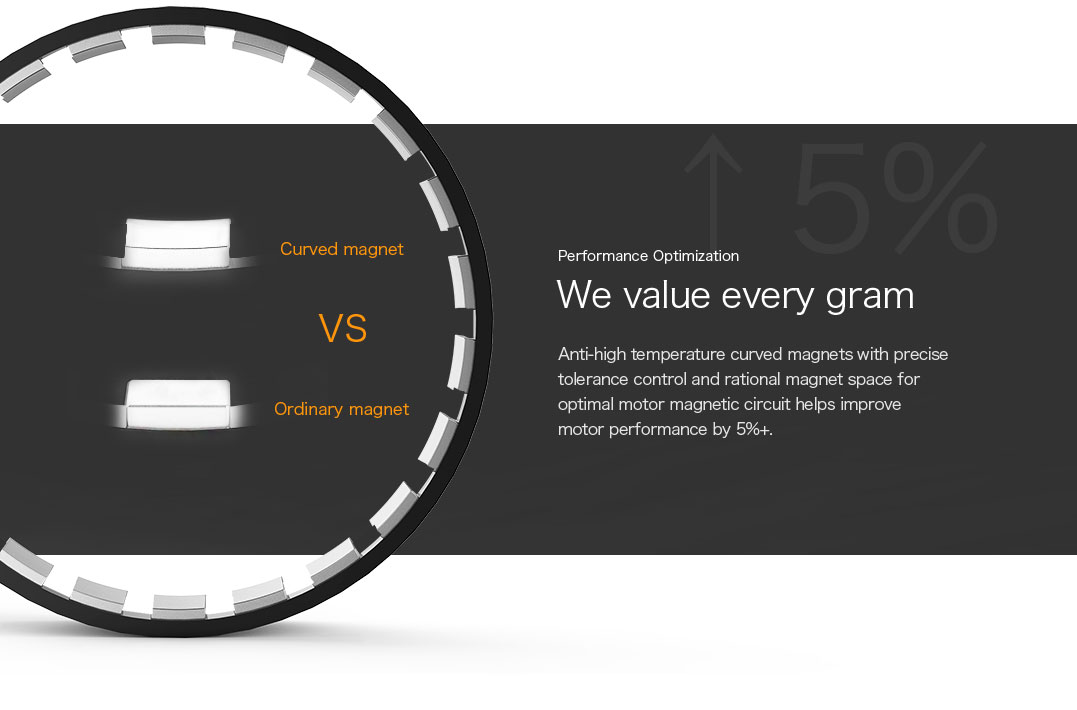

MN801-S KV120 optimal motor magnetic circuit helps improve motor performance by 5%

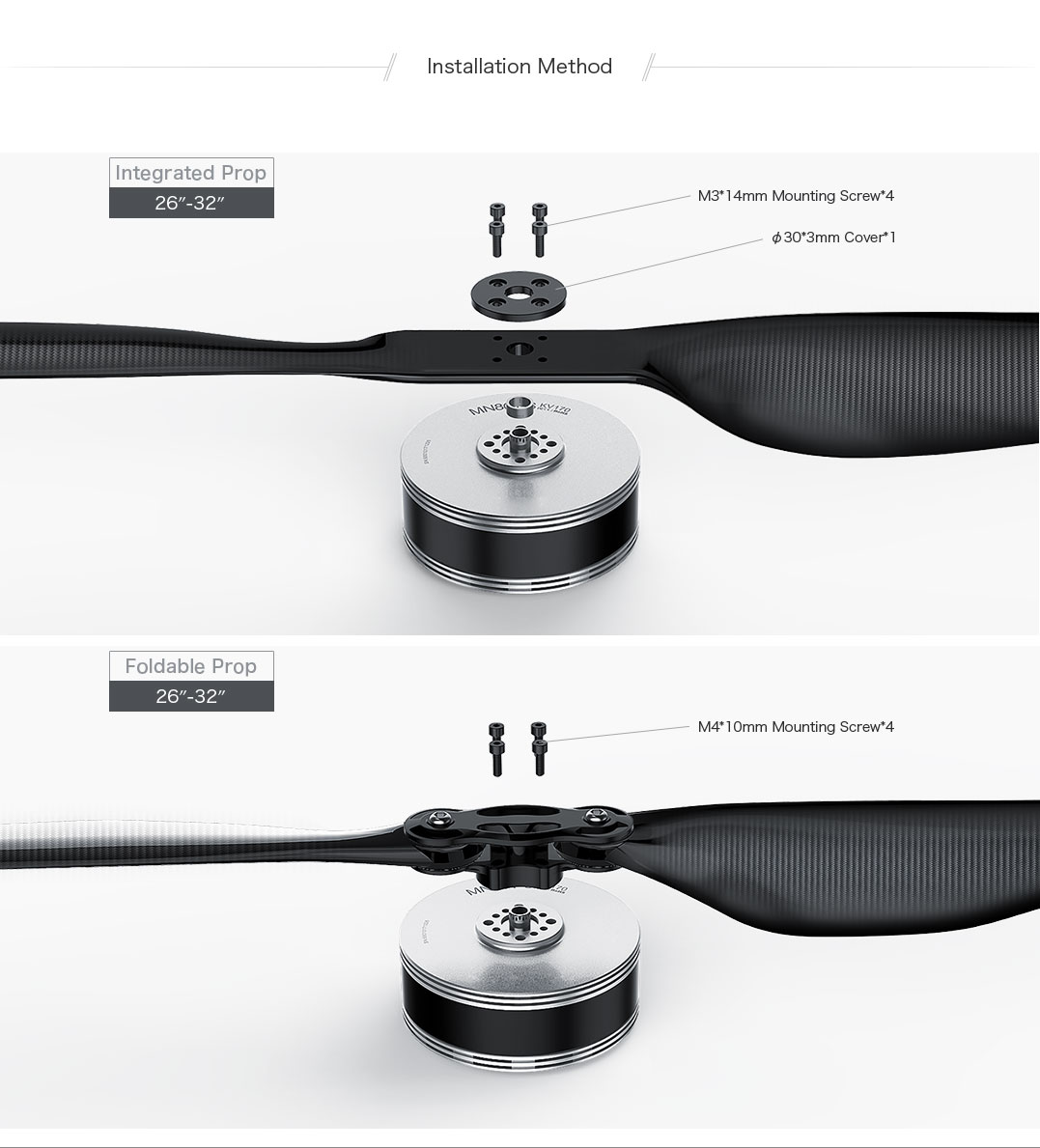

MN801-S KV120 integrated prop,foldable prop installation method

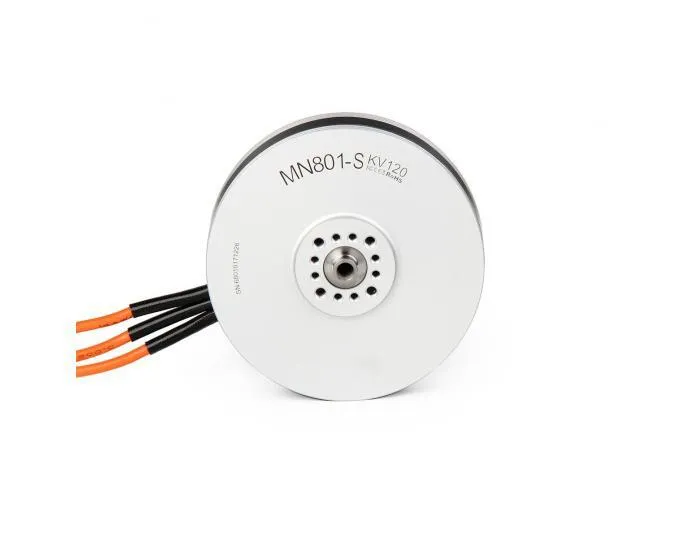

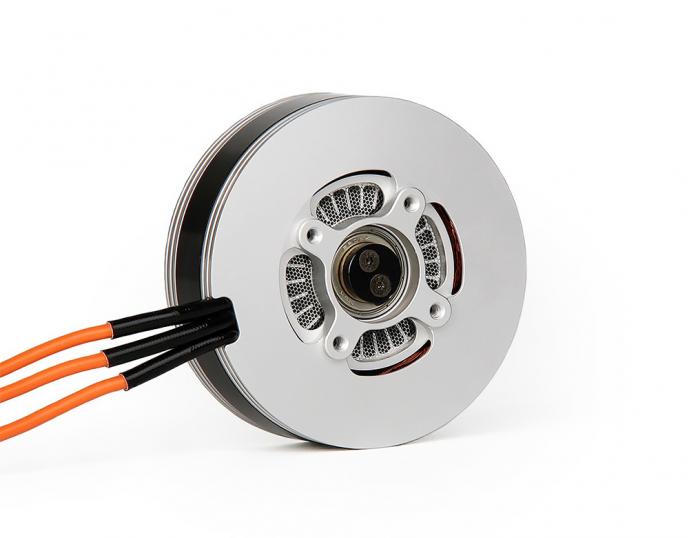

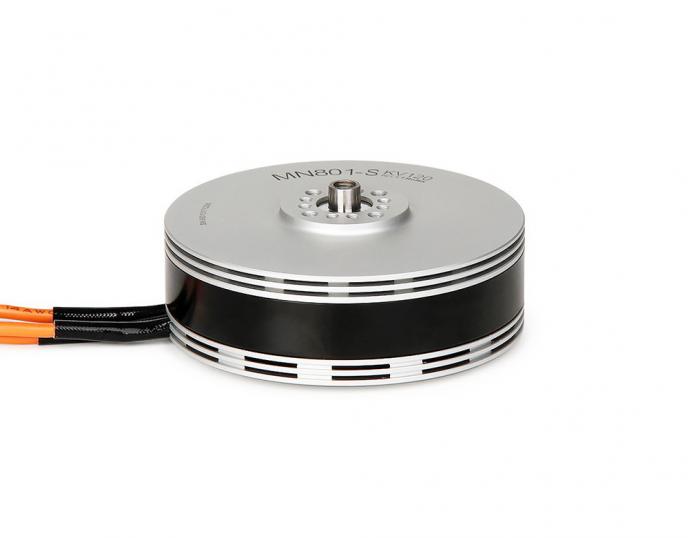

MN801-S KV120 genuine photograph

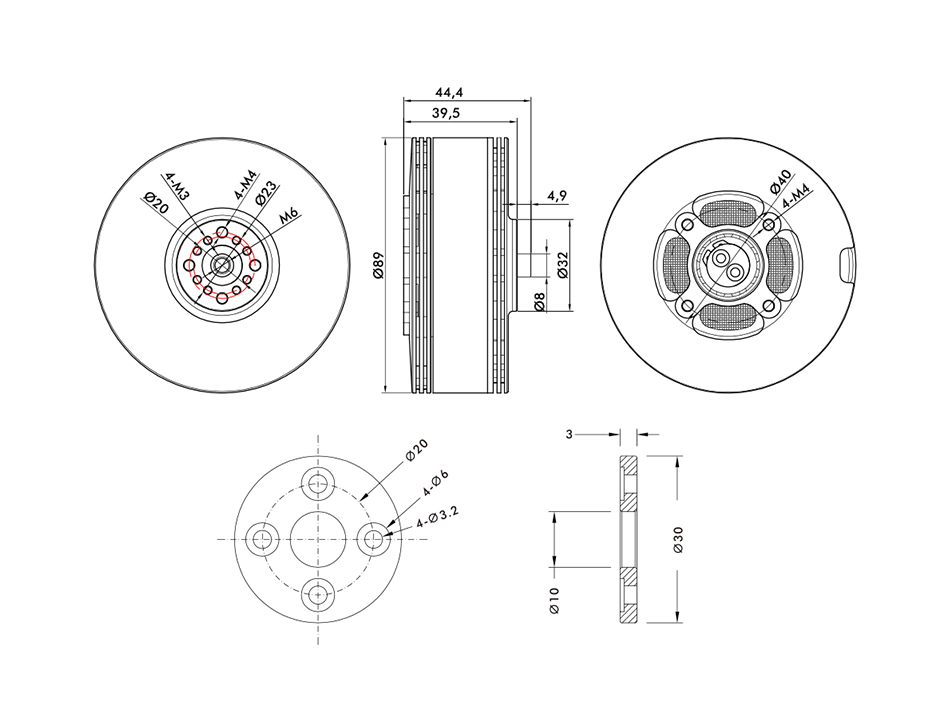

Technical Drawing


Specification
Motor SizeΦ89*39.4mmCopper Wire220℃ high temperature resistance: Level C
StatorImported silicon steel sheet; Anti-rust treatment;
150°Chigh temperature-resisting coatings		Coil Insulation Test500V
Configuration24N28PCentrifugal Cooling DesignYES
Shaft DiameterIN：12mm，OUT：8mmRotor Dynamic Balance Standard≤5Mg
BearingImported 6901ZZMotor Dynamic Balance Standard≤10Mg
Magnet Level180℃ high temperature resistanceIPIP45
Lead Cable14AWG*150mm
KV120Rated Voltage ( Lipo )6-12S
Idle Current（18V）1.1AESC RecommendationFLAME 60A 12S
Peak Current（180s）45APropeller Recommendation28-29"
Max.Power（180s）2200WMotor Weight (indl. Cable)470g
Internal Resistance80mΩPackage Weight600g
KV150Rated Voltage ( Lipo )6-12S
Idle Current（15V）1.4AESC RecommendationFLAME 60A 12S
FLAME 80A 12S V2.0
Peak Current（180s）60APropeller Recommendation26-27"
Max.Power（180s）2800WMotor Weight (indl. Cable)480g
Internal Resistance50mΩPackage Weight600g
Test Data
TypePropellerThrottle

Voltage
(V)

Thrust
(g)		Torque
(N*m)		Current
(A)		RPM

Power
(W)

Effciency
(g/W)		Operating
Temperature
(℃)
MN801S
KV120		LIGPOWER
G28*9.2		40%47.8130830.855.42193025911.9078.5

(Ambient

Temperature

:0℃)
42%47.8132590.915.84198427911.67
44%47.8335060.986.45207630911.36
46%47.8337241.047.05217433711.04
48%47.8439851.117.74226437010.76
50%47.8442471.198.48235640610.47
52%47.8244771.289.12243243610.26
54%47.8247461.359.91251247410.01
56%47.8250101.4310.7425975149.75
58%47.8252991.5111.6226765569.53
60%47.8255661.5812.4727755969.33
62%47.8358161.6613.3628576399.10
64%47.8360851.7414.3029426848.89
66%47.8563291.8115.2430207298.68
68%47.8567691.9416.9031388098.37
70%47.8070592.0317.9232048578.24
75%47.7977212.2420.6333969867.83
80%47.8084022.4523.59356711287.45
90%47.8199242.9030.65390314656.77
100%47.83104723.4440.28427719275.43
MN801S
KV120		LIGPOWER
G29*9.5		40%47.9136621.256.14190029412.44109.5

(Ambient

Temperature:

0℃)

42%47.9138801.316.67195632012.13
44%47.9141541.407.35205435211.79
46%47.9143971.488.05213038611.39
48%47.9146941.578.79220842111.15
50%47.9249761.669.61229346010.81
52%47.9152841.7510.48237650210.52
54%47.9155571.8411.27245154010.30
56%47.9358911.9412.23253058610.04
58%47.9362472.0513.3326106399.78
60%47.9365962.1514.3626846889.58
62%47.9369302.2615.4627777419.35
64%47.9372052.3516.5428547939.09
66%47.9375152.4517.6429308458.89
68%47.9377962.5518.7731088998.67
70%47.9382772.7020.7231789938.33
75%47.9291082.9423.77337211397.99
80%47.9297933.1927.35343713107.47
90%47.92104263.7337.77377418105.76
100%47.92116834.1648.79404523384.99
MN801S
KV150		LIGPOWER
G26*8.5		40%47.9135090.837.03261633710.4186.5

(Ambient

Temperature:

0℃)

42%47.9137350.907.72270237010.10
44%47.9140280.988.5428264099.84
46%47.9143171.059.3929284509.59
48%47.9046041.1310.2830704929.34
50%47.9250571.2711.9131745718.86
52%47.9052751.3312.6433026068.71
54%47.9055741.4213.7634386598.45
56%47.9158781.5114.7935847098.29
58%47.9062191.5915.8836977618.17
60%47.9063831.6917.0737988177.81
62%47.9167701.7818.2939128767.73
64%47.9170331.8619.4040299297.57
66%47.9073601.9520.7641489947.40
68%47.9077102.0422.09427810587.28
70%47.9080052.1323.45436911237.12
75%47.8987542.3527.02449612946.76
80%47.8596042.5930.86452514766.50
90%47.79107243.1040.20480619215.58
100%47.76120763.7557.34524727384.41
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

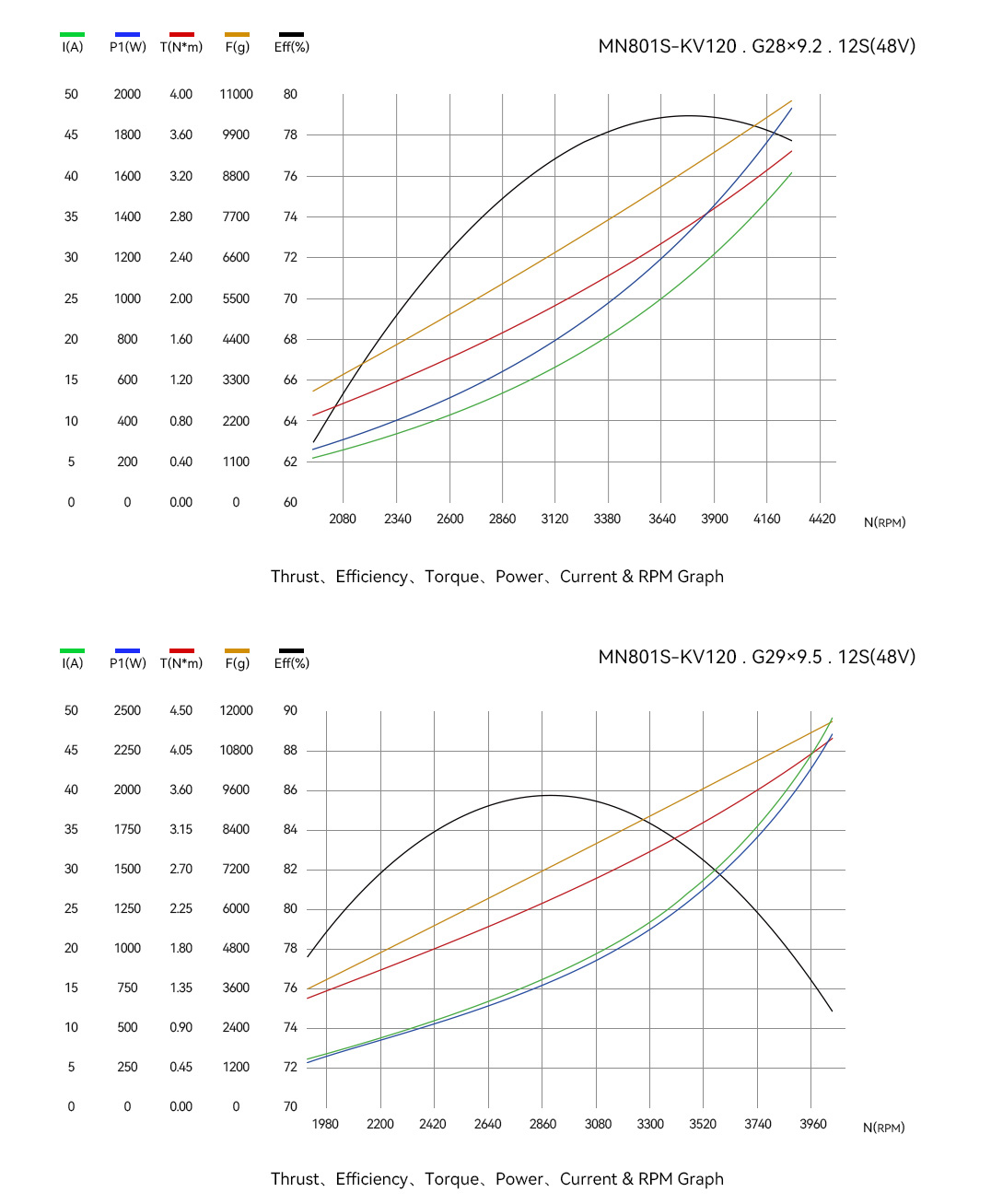

Analysis Chart

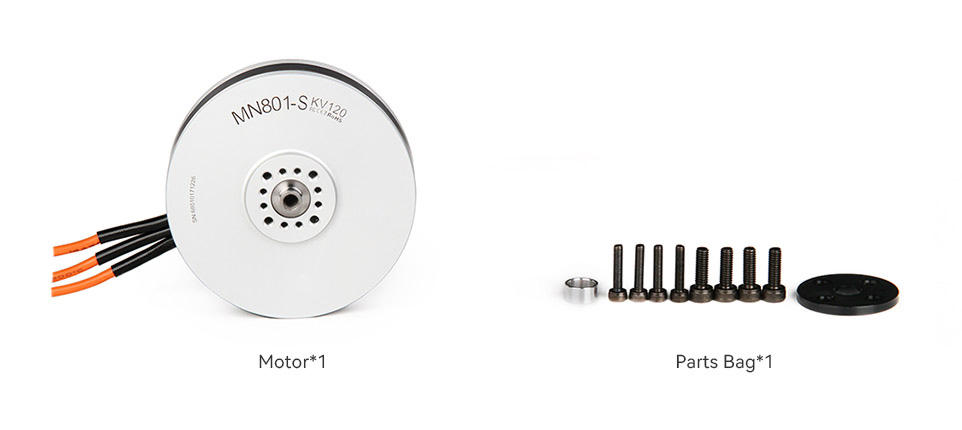

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
