MN7005 KV230 High Efficiency UAV Motor with 4kg Max Thrust

219.99

Available points: 11000 Points Points reward: 219 Points

• Imported German 7075 aviation aluminum
• Ultra Lightweight 188g only

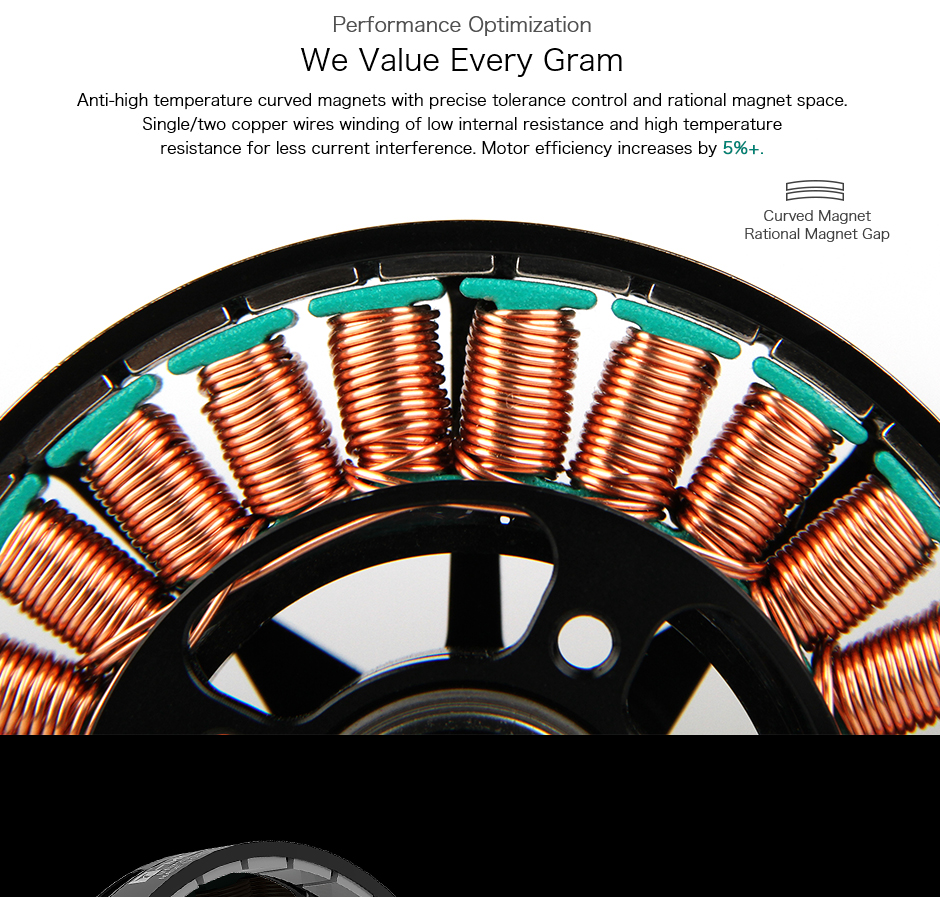

• Anti-high temperature curved magnet with precise
• Motor performance increase by 5%

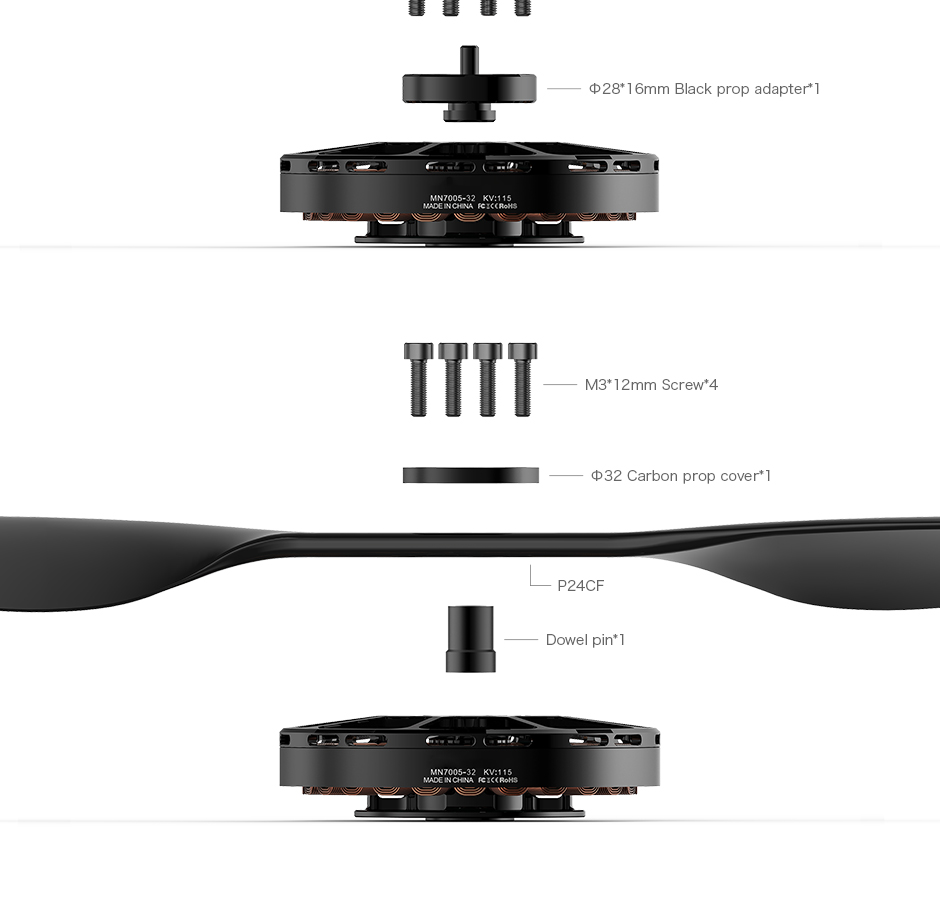

• ATA01123 prop adapter for P22inch prop
• MN7005 is for thrust requireme
Parameter：
Quantity：

219.99

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

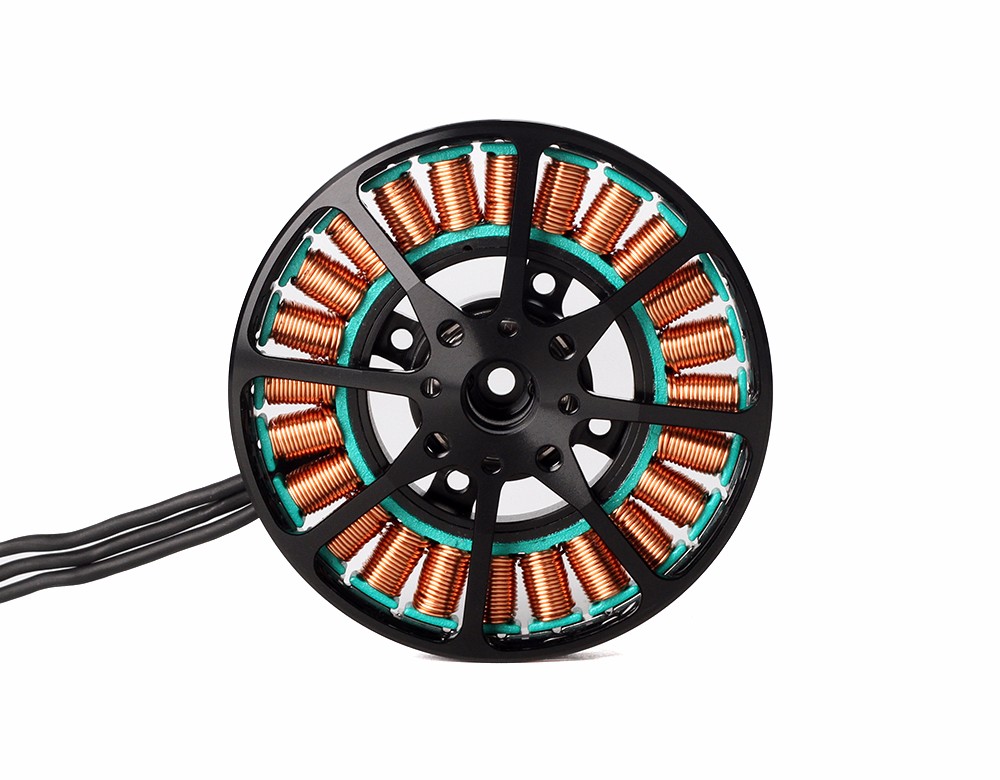

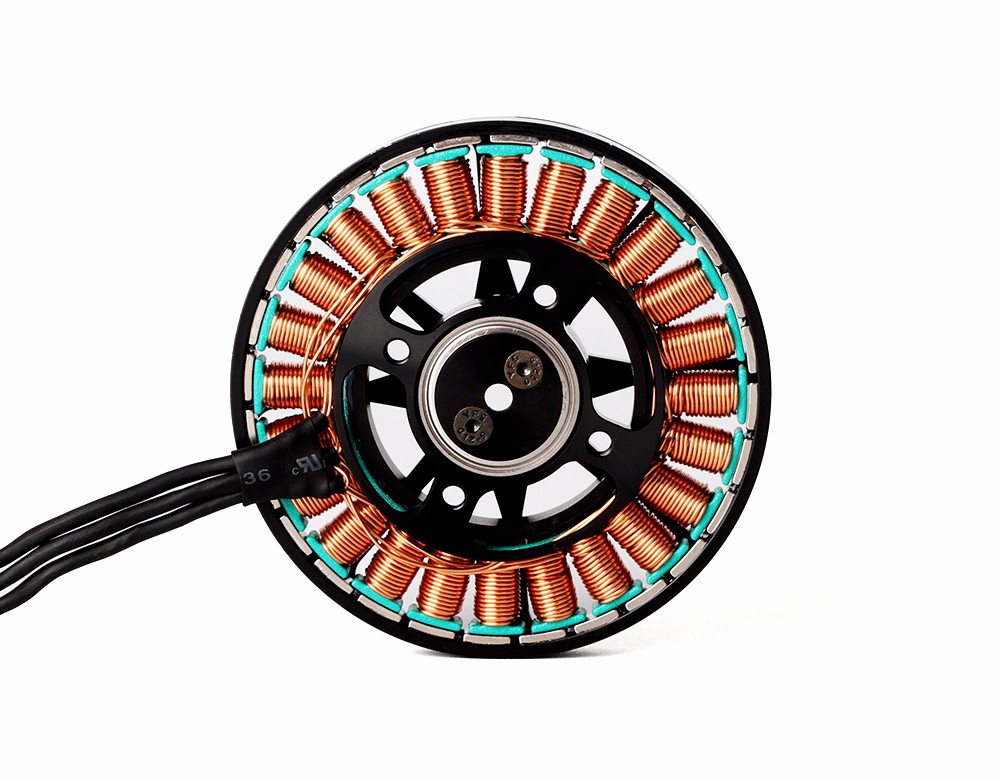

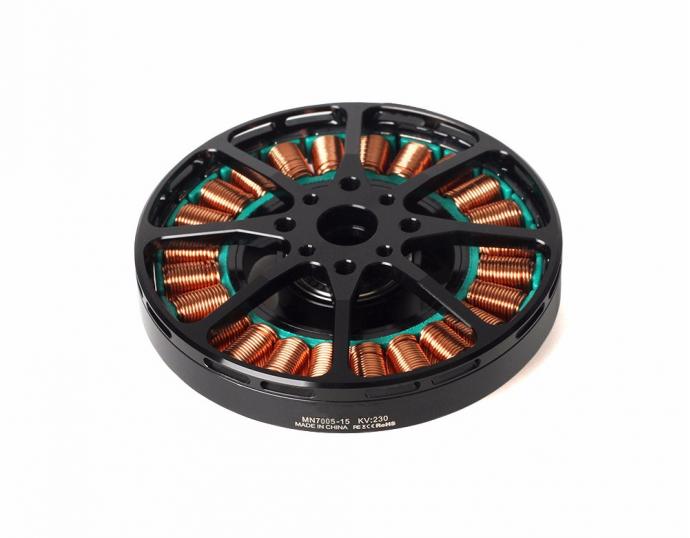

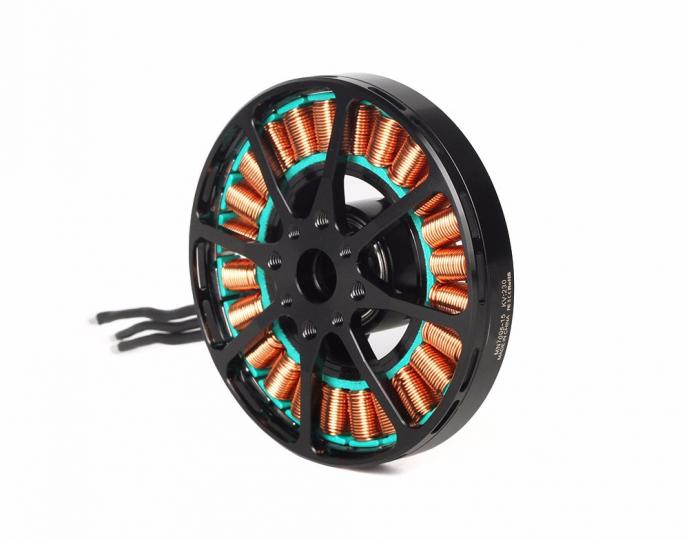

About LIGPOWER MN7005 Multirotor VTOL UAV Motor KV230

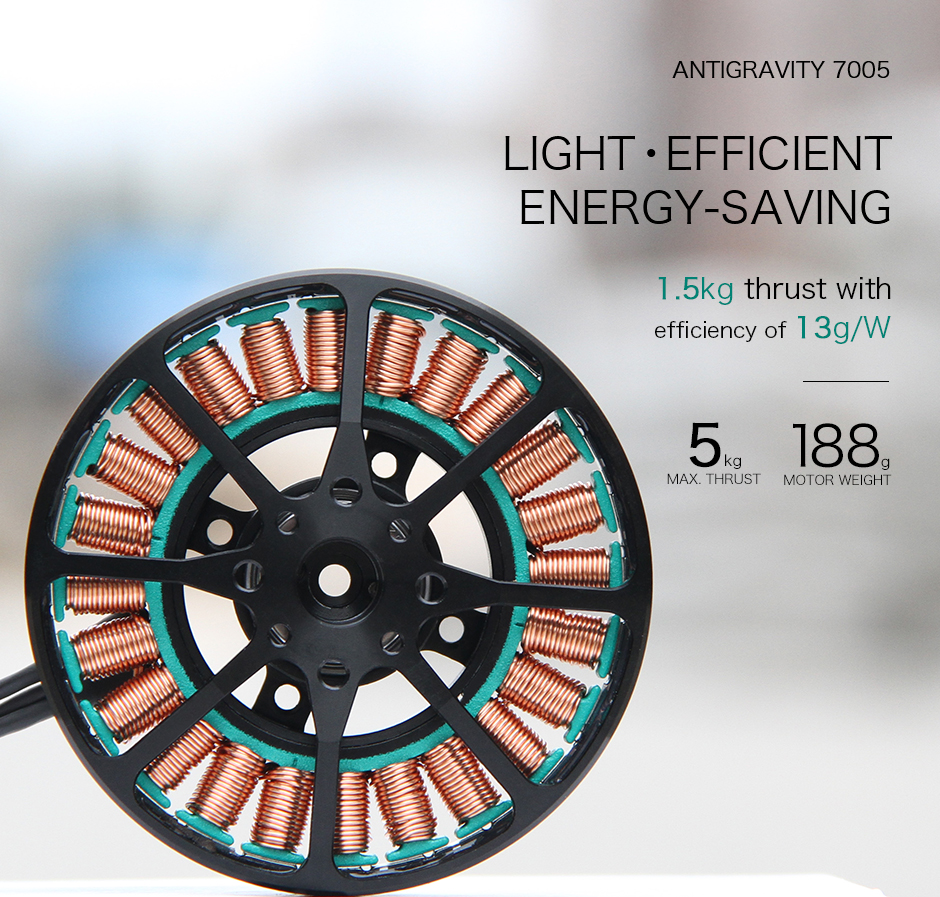

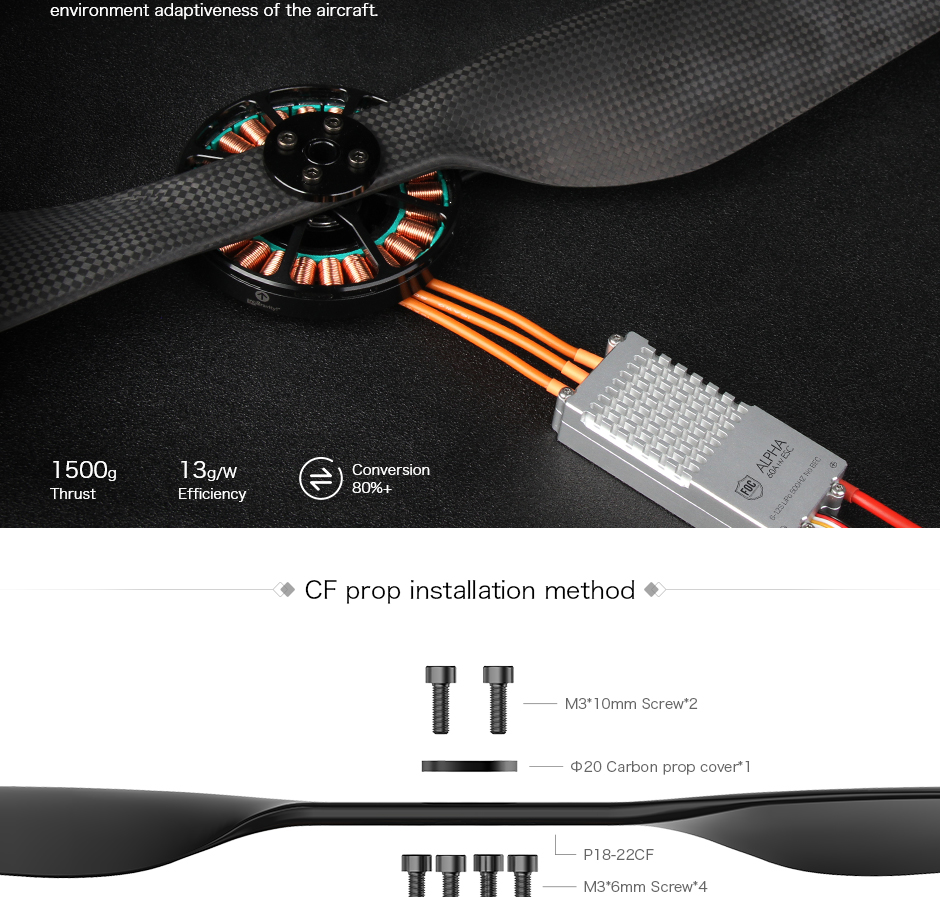

LIGPOWER Antigravity MN7005 KV230 offers an ultra-lightweight and energy-efficient solution for a variety of aerial applications. Whether you're engaged in aerial photography, surveying, or long-duration flights, the MN7005 delivers precision thrust, improved motor efficiency, and enhanced stability.Antigravity 7005 LIGPOWERs are available with an anti-high temperature curved magnet which increases motor performance by 5%. Energy-saving Antigravity-type LIGPOWER have 1.5kg thrust with an efficiency of 13g/W. up to 6kg thrust


Antigravity MN7005 Highlights:

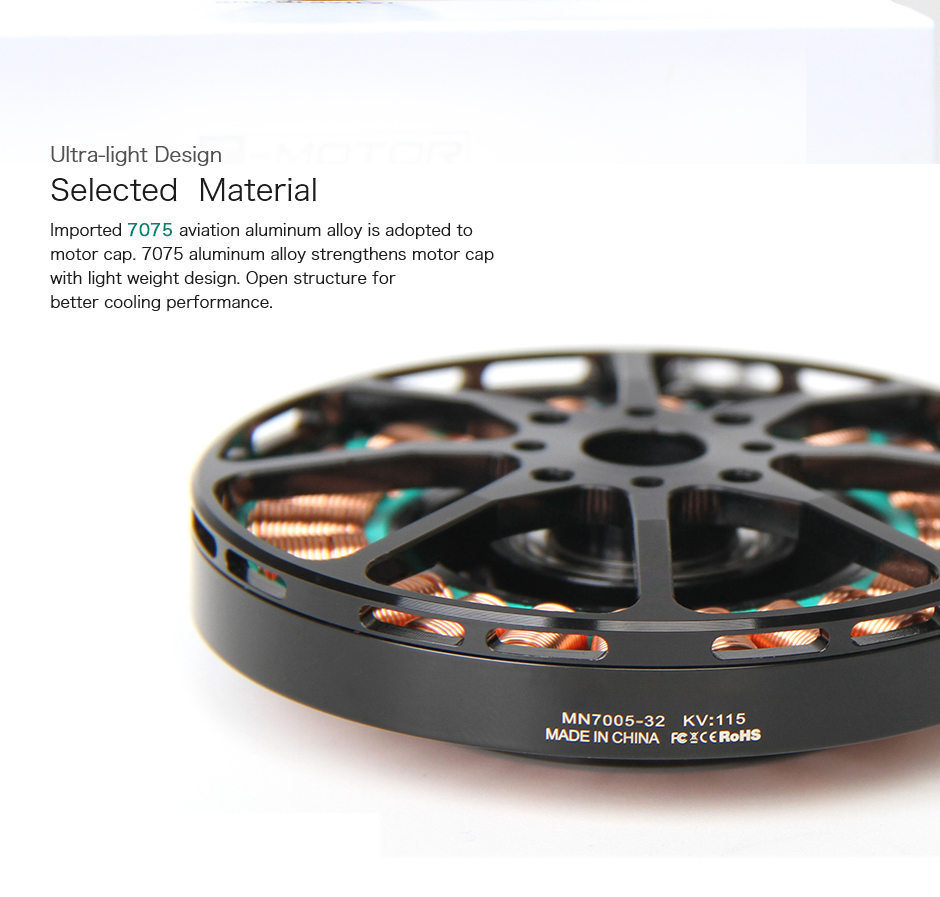

  • Imported German 7075 aviation aluminum

  • Ultra Lightweight 188g only

  • Anti-high temperature curved magnet with precise

  • Motor performance increase by 5%

  • ATA01123 prop adapter for P22inch prop

  • MN7005 is for thrust requireme

  • up to 6kg thrust


" Antigravity Series" motors are an ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.


Application Areas：


  • Aerial Photography

  • Surveying & Mapping

  • Long-Duration Flights

  • Environmental Monitoring

  • Industrial & Commercial UAV Operations


Packing List Includes:

1 x LIGPOWER MN7005 KV230( kv which you choose)

1 x Hardware pack


Matching Guide:

LIGPOWER Propeller P20*6

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

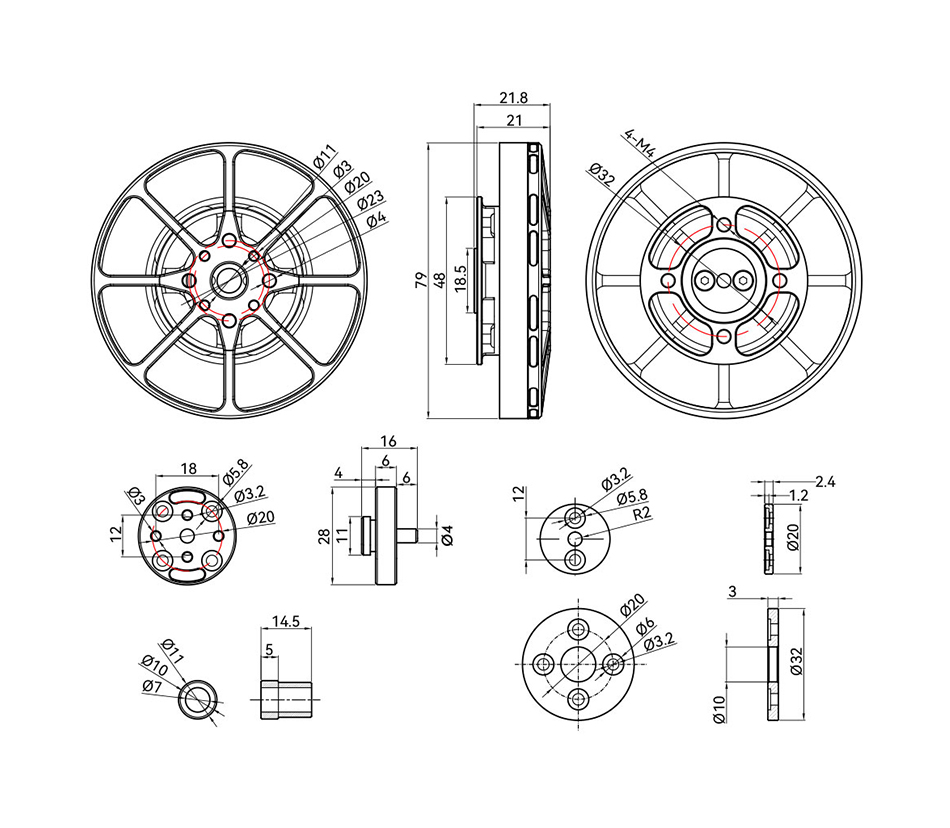

Technical Drawing


Specification
Motor SizeΦ79*21mmCopper Wire180℃high temperature resistance: Level H
StatorImported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatingsCoil Insulation Test500V
Configuration24N28PCentrifugal Cooling DesignYES

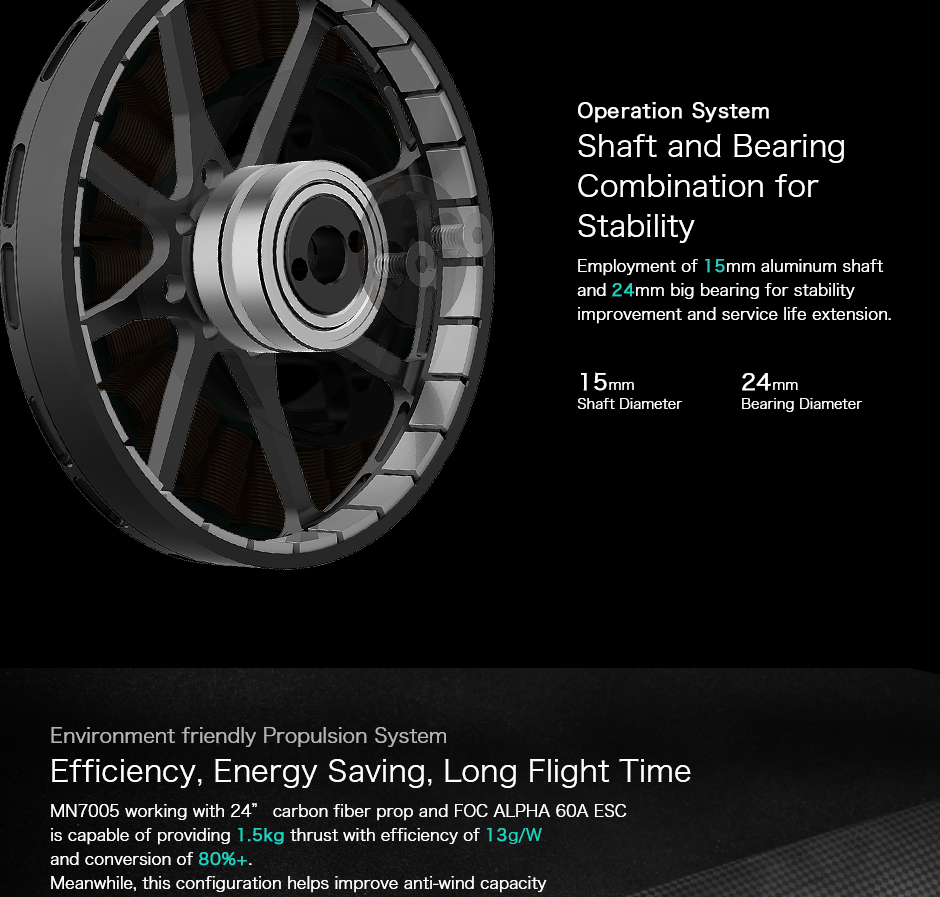

Shaft DiameterIN：15mmRotor Dynamic Balance Standard≤15mg
BearingImported 6802ZZMotor Dynamic Balance Standard≤10mg
Magnet Level150℃high temperature resistance: Level EPacking Size144*114.5*35mm
Lead Cable60mm
KV115Internal Resistance288mΩ
Idle Current（22V）0.4ARated Voltage(Lipo)6-12S
Peak Current（180s）15AMotor Weight
(Incl. Cable)		188g
Max. Power（180s）750WPackage Weight320g
KV230Internal Resistance71mΩ
Idle Current（22V）0.9ARated Voltage(Lipo)6S
Peak Current（180s）28AMotor Weight
(Incl. Cable)		188g
Max. Power（180s）700WPackage Weight320g
Test Data
TypeVoltage
(V)		PropellerThrottleThrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)		Operating
Temperature
(℃)
MN7005
KV115		48LIGPOWER
P24*7.2” CF		40%13220.382.0219729713.6466
(Ambient Temperature:20℃)
42%14080.412.19203210513.4
44%15130.442.45214211712.89
46%16060.462.64220712612.7
48%17070.482.88228413812.4
50%18070.513.13236415012.05
52%19470.553.51246016811.6
54%20680.583.82254218311.3
56%21640.64.05260619411.16
58%22800.644.39269921010.87
60%23980.674.73277822610.6
62%25070.75.07285524310.33
64%26270.735.45292626010.08
66%27560.765.8229992789.91
68%28880.796.2630752999.65
70%30140.836.7131363209.4
75%33460.917.9033433778.87
80%36050.988.8334744218.56
90%42241.1411.2937585377.86
100%47831.3214.0740386697.15
MN7005
KV230		24LIGPOWER
P24*7.2” CF		40%14070.394.40202310513.4464
(Ambient Temperature:21℃)
42%15010.424.79210411413.17
44%15920.435.18216512312.92
46%16980.465.71226613612.51
48%18370.496.43234715212.04
50%19510.527.04245616711.68
52%20630.547.65253118111.39
54%21530.578.18259619411.11
56%22610.68.83268420910.83
58%23780.639.53276222510.56
60%24910.6510.23283524110.31
62%26050.6910.96290625910.07
64%27080.7211.6029672739.9
66%28410.7512.6430502979.55
68%29480.7813.5031203179.29
70%30600.8114.3131823369.1
75%33440.8916.5333353878.64
80%36320.9618.7934794388.28
90%41841.1223.7737635517.59
100%46911.2829.1540166706.99
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

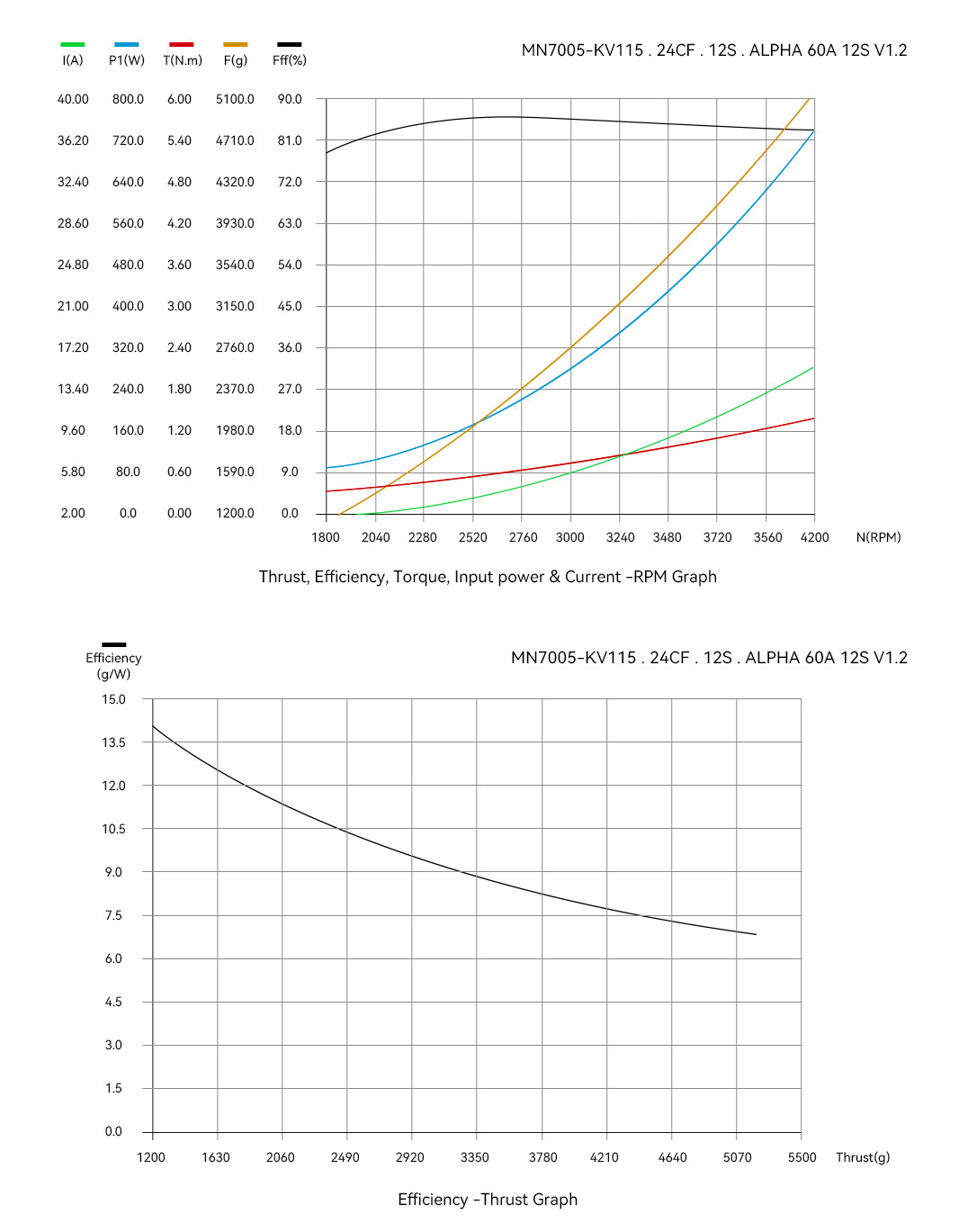

Analysis Chart

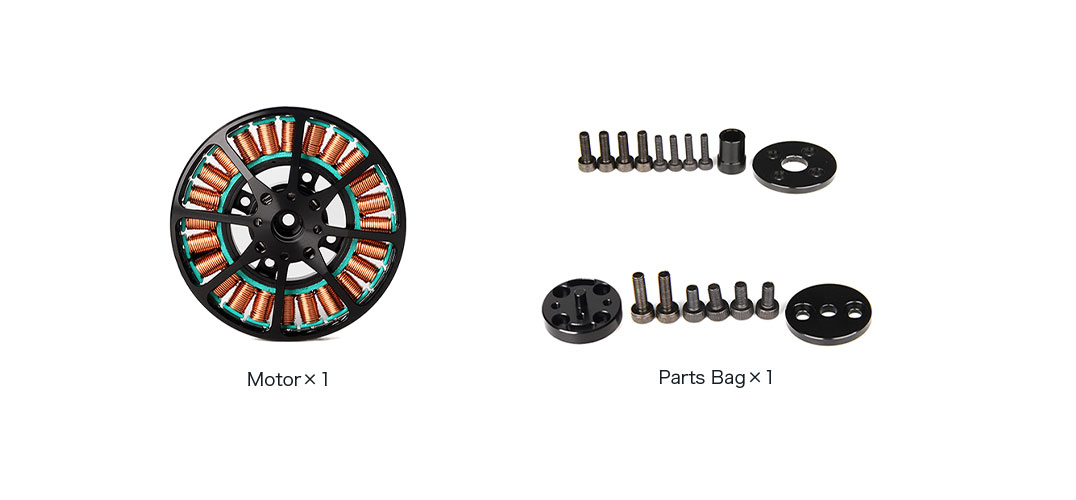

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
