Name: MN5212 KV420 High-Efficiency UAV Motor with 5.9kg Max Thrust
Brand: LIGPOWER
SKU: AWD01010099
Price: 109.90 USD
Availability: InStock

MN5212 KV420 High-Efficiency UAV Motor with 5.9kg Max Thrust

109.90

Available points: 5000 Points Points reward: 109 Points

• Perfect Dynamic Balance
• Precisely Assembling Process
• High Speed of Response

Parameter：

KV340
KV420

Quantity：

109.90

Free Shipping by DHL/UPS Express

Relevant Products

AIR 40A 2-6S ESC for Multirotor UAVs | LIGPOWER®

$39.99
P17*5.8 Prop-2PCS/PAIR

$71.9
P18*6.1 Prop-2PCS/PAIR

$82.9
NS16*5.4 Prop-2PCS/PAIR

$62.99
NS18*6 Prop-2PCS/PAIR

$82.99
NS17*5.8 Prop-2PCS/PAIR

$72.99

Detail information
Specifications

About LIGPOWER MN5212 Multirotor Fixed Wing UAV Motor KV420

LIGPOWER MN5212 Navigator UAV Motor offers 7kg thrust, precise assembly, and excellent dynamic balance. With high-speed response and efficient cooling, it ensures stable performance.

Featuring an MTBF of 1000 hours, it's ideal for multi-rotor applications. Regular lubrication is recommended for maintenance.

Navigator MN5212 Highlights:

Max. thrust ：5.9kg
MTBF：About1000hours
Features：Precisely Assembling Process; High Speed of Response

Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

Packing List Includes:

1x LIGPOWER MN5212 Motor KV420( kv which you choose)

1x Hardware pack

Matching Guide:

LIGPOWER P17*5.8 Prop / Air 60A 2-6S ESC / ALPHA 40A 6S ESC

If you have any questions or inquires, please contact us: onlinesales@ligpower.com

Technical Drawing

Specification

Test Item	MN5212 KV340	Report NO.	MN.00030
Internal Resistance	69mΩ	Configuration	24N22P
Shaft Diameter	4mm	Motor Dimensions	Φ59×33.5mm
Stator Diameter	52mm	Stator Height	12mm
AWG	16#	Cable Length	600mm
Weight Including Cables	249g	Weight Excluding Cables	205g
No.of Cells(Lipo)	4-8S	Idle Current@10v	1.1A
Max Continuous Power 180S	840W	Max Continuous Current 180S	35A

Test Item	MN5212 KV420	Report NO.	MN.00030
Internal Resistance	69mΩ	Configuration	24N22P
Shaft Diameter	4mm	Motor Dimensions	Φ59×33.5mm
Stator Diameter	52mm	Stator Height	12mm
AWG	16#	Cable Length	600mm
Weight Including Cables	249g	Weight Excluding Cables	205g
No.of Cells(Lipo)	4-8S	Idle Current@10v	1.1A
Max Continuous Power 180S	1440W	Max Continuous Current 180S	60A

Test Data

Item No.	Voltage (V)	Prop	Throttle	Current (A)	Power (W)	Thrust (G)	RPM	Efficiency (G/W)	Torque （N*m）	Operating Temperature (℃)
MN5212 KV340	24	LIGPOWER 15*5CF	50%	3.3	79.0	745	3821	9.44	0.142	38
			55%	4.2	99.8	910	4220	9.11	0.172
			60%	5.2	123.6	1075	4576	8.70	0.198
			65%	6.3	150.7	1254	4925	8.32	0.232
			75%	9.1	217.2	1681	5663	7.74	0.31
			85%	12.2	292.1	2115	6315	7.24	0.382
			100%	17.8	426.7	2746	7167	6.44	0.498
		LIGPOWER 16*5.4CF	50%	3.9	93.4	942	3767	10.09	0.187	49
			55%	5.1	121.2	1145	4130	9.45	0.227
			60%	6.2	149.3	1338	4510	8.96	0.261
			65%	7.8	188.2	1560	4862	8.29	0.303
			75%	11.1	266.2	2110	5565	7.93	0.405
			85%	15.2	363.8	2648	6217	7.28	0.509
			100%	21.6	518.2	3445	7063	6.65	0.66
		LIGPOWER 17*5.8CF	50%	4.7	112.3	1095	3651	9.75	0.225	53
			55%	6.0	144.2	1320	4017	9.15	0.27
			60%	7.8	187.4	1625	4432	8.67	0.331
			65%	9.6	230.2	1875	4772	8.15	0.381
			75%	13.7	327.6	2363	5390	7.21	0.49
			85%	18.1	434.6	2871	5960	6.61	0.593
			100%	26.1	626.9	3716	6660	5.93	0.761
		LIGPOWER 18*6.1CF	50%	5.7	137.5	1318	3596	9.58	0.29	74
			55%	7.4	178.1	1612	3958	9.05	0.344
			60%	9.3	222.0	1901	4310	8.56	0.411
			65%	11.6	278.2	2259	4622	8.12	0.472
			75%	16.5	395.5	2835	5226	7.17	0.605
			85%	22.1	531.1	3477	5751	6.55	0.737
			100%	31.0	744.7	4355	6358	5.85	0.918
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
MN5212 KV420	24	LIGPOWER 15*5CF	50%	6.8	162.2	1204	4976	7.42	0.321	53
			55%	8.7	208.1	1478	5487	7.10	0.278
			60%	10.5	521.8	1746	5947	6.94	0.33
			65%	12.6	302.2	1983	6376	6.56	0.374
			75%	18.8	450.0	2589	7287	5.75	0.493
			85%	25.0	599.0	3230	8042	5.39	0.607
			100%	36.7	881.3	4175	9091	4.74	0.784
		LIGPOWER 16*5.4CF	50%	8.4	202.3	1530	4815	7.56	0.301	58
			55%	10.4	250.6	1795	5210	7.16	0.354
			60%	13.0	311.5	2160	5642	6.93	0.417
			65%	15.7	377.3	2433	6032	6.45	0.475
			75%	22.4	536.9	3150	6811	5.87	0.609
			85%	29.8	715.7	3818	7489	5.33	0.743
			100%	44.2	1061.5	4903	8455	4.62	0.965
		LIGPOWER 17*5.8CF	50%	10.5	250.8	1795	4696	7.16	0.376	75
			55%	12.8	306.0	2075	5103	6.78	0.442
			60%	15.9	382.3	2458	5509	6.43	0.514
			65%	18.9	452.6	2745	5849	6.06	0.576
			75%	27.2	651.8	3576	6560	5.49	0.747
			85%	36.4	872.4	4324	7209	4.96	0.892
			100%	51.6	1237.9	5359	7943	4.33	1.117
		LIGPOWER 18*6.1CF	50%	12.4	296.6	2110	4558	7.11	0.45	84
			55%	15.3	366.5	2468	4908	6.73	0.528
			60%	18.6	446.9	2820	5276	6.31	0.608
			65%	22.9	549.1	3215	5612	5.86	0.703
			75%	32.5	779.5	4142	6226	5.31	0.881
			85%	41.9	1006.1	4885	6785	4.86	1.044
			100%	59.9	1436.6	5918	7440	4.12	1.278
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

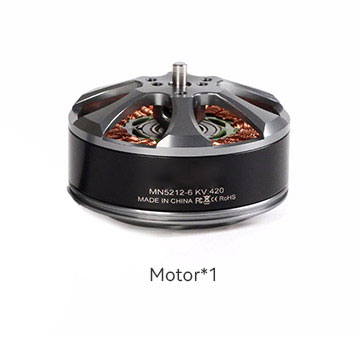

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
