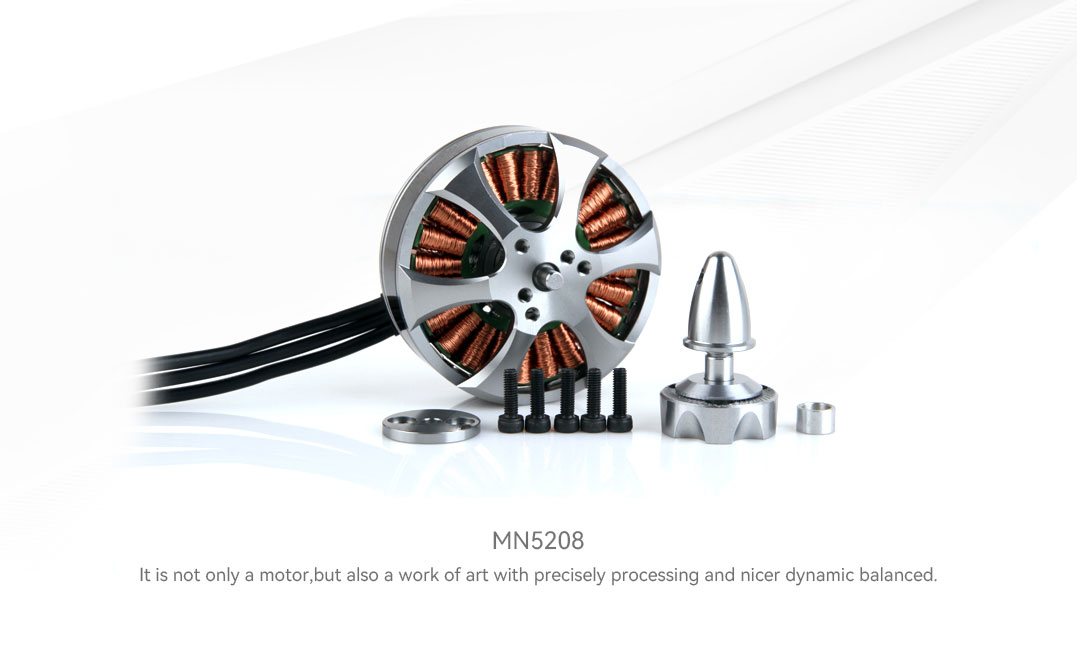

MN5208 KV340 High-Efficiency UAV Motor with 4.1kg Max Thrust

99.90

Available points: 5000 Points Points reward: 99 Points

• Perfect Dynamic Balance
• Precisely Assembling Process
• High Speed of Response
Quantity：

99.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About LIGPOWER MN5208 Multirotor Fixed Wing UAV Motor KV340

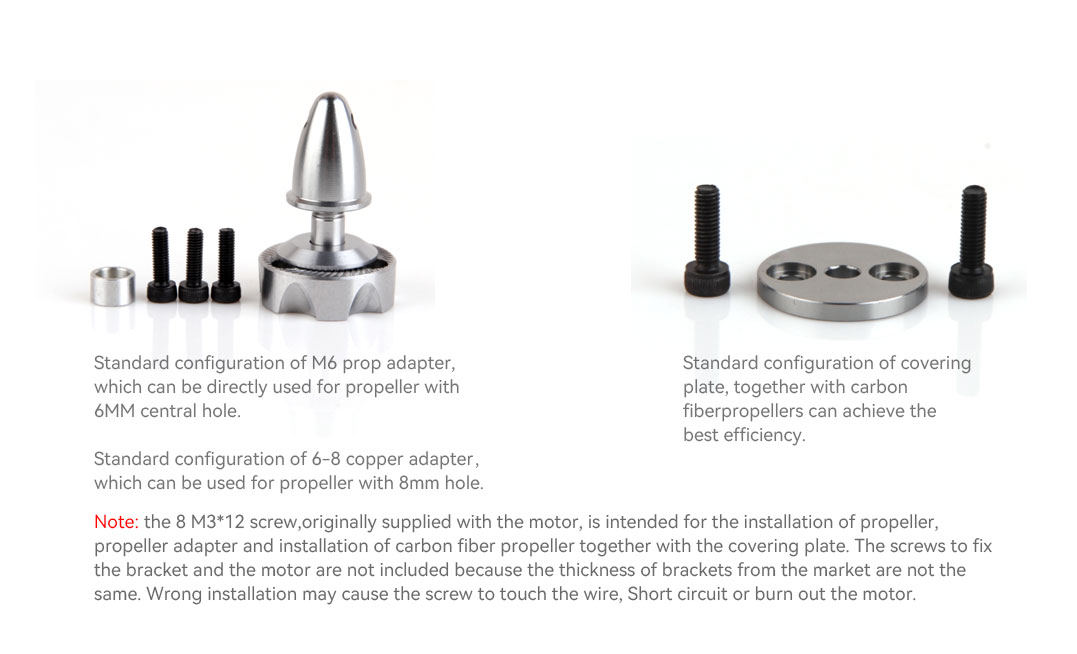

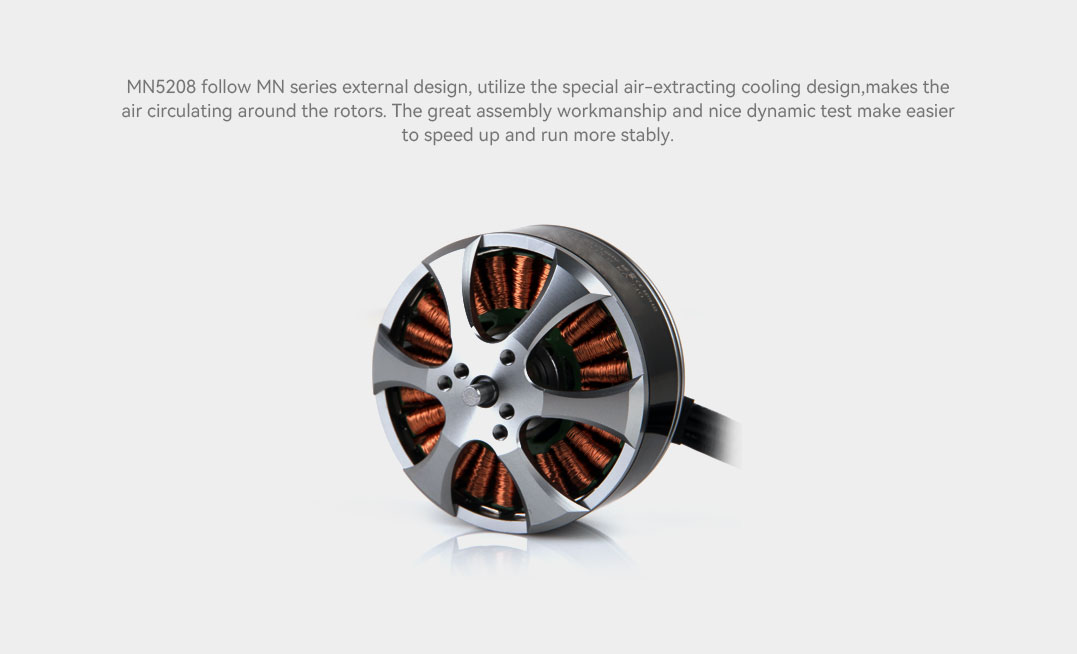

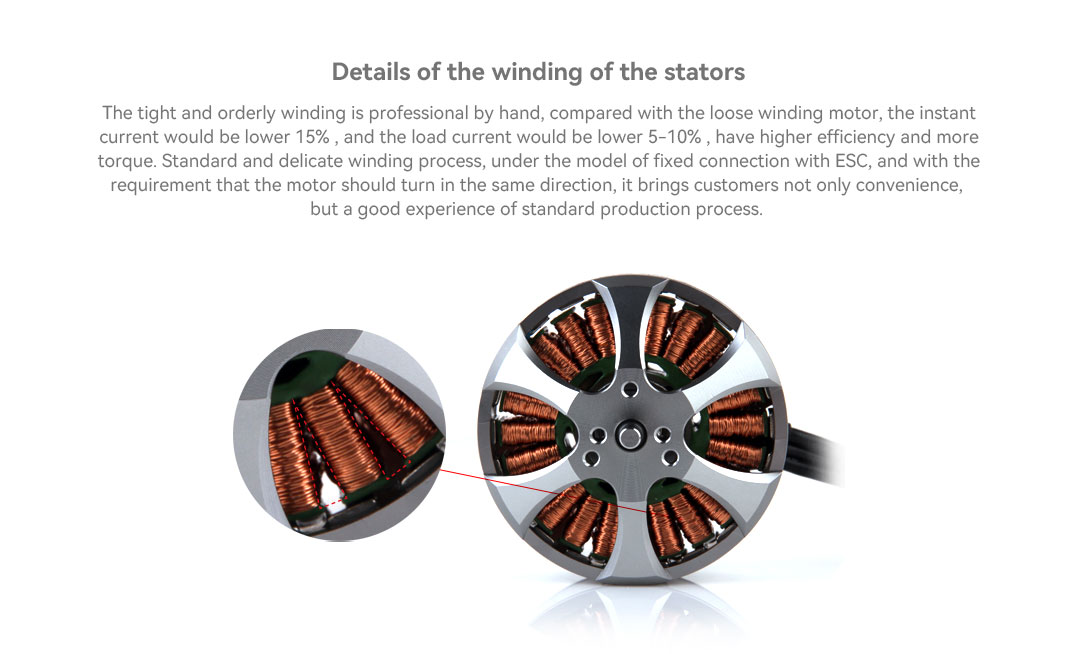

LIGPOWER MN5208 KV340 brushless motor is built for high-performance UAV drones, quadcopters, and multi-rotor applications. With a maximum thrust of 6.1kg, this motor features precise assembly and advanced air-extracting technology for improved stability and faster response. Its tight and orderly winding reduces current by 15% and lowers load current by 5-10%, enhancing efficiency and torque. The motor includes an M6 prop adapter, making it compatible with props that have a 6mm central hole. With an MTBF of about 1000 hours, the MN5208 is a reliable choice for demanding aerial tasks.

Navigator MN5208 Highlights:


  • Max. thrust:4.1kg

  • MTBF：About1000hours

  • Features：Super Balance; High Strength Construction


Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

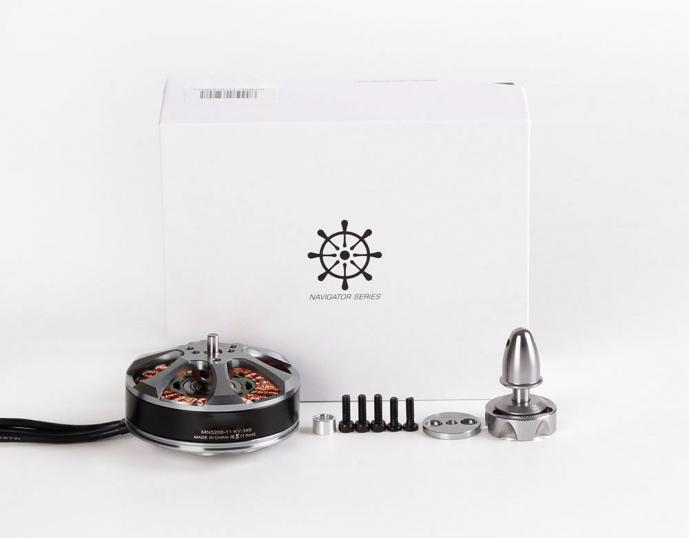

Packing List Includes:

1x LIGPOWER MN5208 Motor KV340( kv which you choose)

1x Hardware pack


Matching Guide:

LIGPOWER NS18*6 Prop / Air 40A 2-6S ESC

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

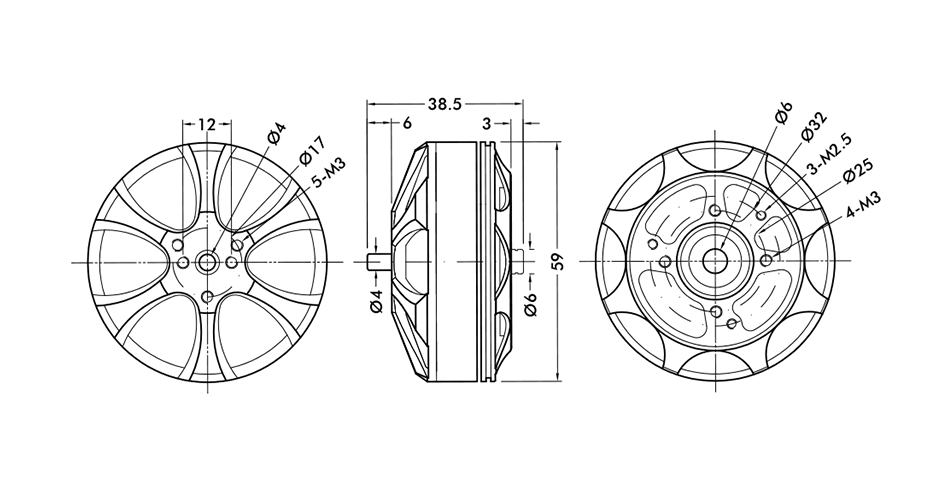

Technical Drawing


Specification
Test ItemMN5208 KV340Report NO.MN.00029
Internal Resistance93mΩConfiguration24N22P
Shaft Diameter4mmMotor DimensionsΦ59×29.5mm
Stator Diameter52mmStator Height8mm
AWG16#Cable Length600mm
Weight Including Cables196gWeight Excluding Cables145g
No.of Cells(Lipo)4-6SIdle Current@10v0.9A
Max Continuous Power 180S850WMax Continuous Current 180S35A
Test Data
Item No.Voltage
(V)		PropThrottleCurrent
(A)		Power
(W)		Thrust
(G)		RPMEfficiency
(G/W)

Torque
（N*m）

Operating
Temperature
(℃)

MN5208

KV340

24

LIGPOWER

15*5CF

50%3.480.676539729.490.14953
55%4.3103.494543839.140.18
60%5.5130.8112347628.590.214
65%6.6157.2129851088.260.243
75%9.5227.5168958627.420.318
85%12.8306.5207564846.770.386
100%18.1433.4266974976.160.493

LIGPOWER

16*5.4CF

50%4.199.495038529.560.18956
55%5.3127.0116542359.180.231
60%6.7160.3138546068.640.274
65%8.4201.4162550208.070.316
75%12.2292.8213756747.300.418
85%16.2387.6259262096.690.5
100%22.7543.8327369286.020.634

LIGPOWER

17*5.8CF

50%5.0120.5113537709.420.24173
55%6.5155.5135841228.730.287
60%8.2196.8161544858.210.337
65%10.4249.4191048567.660.397
75%14.6349.4239654326.860.497
85%19.4465.8286859476.160.599
100%26.5636.2355565785.590.74

LIGPOWER

18*6.1CF

50%5.9140.6131536369.350.287HOT
55%7.8186.2166540158.940.359
60%9.4225.3193543538.590.415
65%11.9285.4223046417.810.478
75%17.1411.1282552116.870.602
85%22.5538.8335056286.220.712
100%31.1747.4412561815.520.871
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

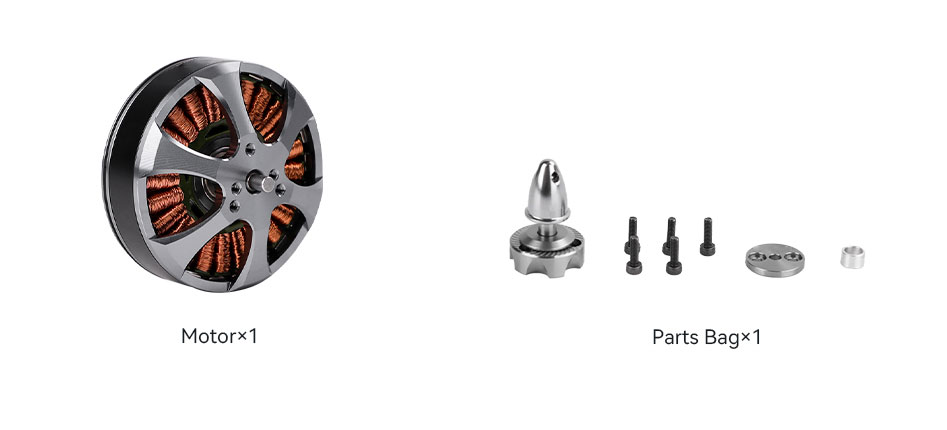

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
