MN4014 KV330 2.6kg Max Thrust UAV Motor for Aerial Photography

96.90

Available points: 4500 Points Points reward: 96 Points

• Long Flight Time
• Best Flying Performance
Parameter：
Quantity：

96.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About LIGPOWER MN4014 Multirotor Fixed Wing UAV Motor KV330

LIGPOWER MN4014 KV400 Navigator Series Brushless Motor is a high-performance, durable motor designed for reliable multi-rotor, VTOL, and fixed-wing applications, particularly aerial photography. Built with the "Navigator" concept, it features upgraded stator bearings to minimize eddy current loss, resulting in enhanced power and efficiency. Key specs include a maximum thrust of 2.6kg, a recommended LIGPOWER P17*5.8'' propeller, and an MTBF of approximately 1000 hours. The MN4014 emphasizes long flight times and optimal flying performance for dependable aerial platforms.

Navigator MN4014 Highlights:


  • Max. thrust:3.3kg

  • MTBF：About1000hours

  • Features：Super Balance; High Strength Construction

"Navigator" motors are for general uses like aerial photography. For demand of multi-rotors, VTOL and fixed wings.


Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

Packing List Includes:

1x LIGPOWER MN4014 Motor KV330( kv which you choose)

1x Hardware pack


Matching Guide:

LIGPOWER P17*5.8 Prop / Air 40A 2-6S ESC

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com


Technical Drawing


Specification
Test ItemMN4014 KV330Report NO.MN.00026
Internal Resistance85mΩConfiguration18N24P
Shaft Diameter4mmMotor DimensionsΦ44.7×34.5mm
Stator Diameter40mmStator Height14mm
AWG18#Cable Length600mm
Weight Including Cables171gWeight Excluding Cables150g
No.of Cells(Lipo)4-8SIdle Current@10v1.1A
Max Continuous Power 180S750WMax Continuous Current 180S25A
Test ItemMN4014 KV400Report NO.MN.00025
Internal Resistance67mΩConfiguration18N24P
Shaft Diameter4mmMotor DimensionsΦ44.7×34.5mm
Stator Diameter40mmStator Height14mm
AWG18#Cable Length600mm
Weight Including Cables171gWeight Excluding Cables150g
No.of Cells(Lipo)4-8SIdle Current@10v1.3A
Max Continuous Power 180S900WMax Continuous Current 180S30A
Test Data
Item No.Voltage
(V)		PropThrottleCurrent
(A)		Power
(W)		Thrust
(G)		RPMEfficiency
(G/W)		Operating
Temperature
(℃)

MN4014

KV330

22.2

LIGPOWER

15*5CF

50%3.679.92830390010.3945
65%5.9130.98115046008.78
75%7.8173.16143051008.26
85%10.1224.22169056007.54
100%11.9264.18192060007.27

LIGPOWER

16*5.4CF

50%4.395.4695037009.9550
65%7155.40142044009.14
75%9.6213.12175049008.21
85%12.5277.50206054007.42
100%14.7326.34239056007.32

LIGPOWER

17*5.8CF

50%4.7104.341050340010.0655
65%8177.60158041008.90
75%10.7237.54197046008.29
85%14.4319.68230051007.19
100%17377.40260054006.89
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

MN4014

KV400

22.2

LIGPOWER

15*5CF

50%5.7126.54125045009.8846
65%9.1202.02163052008.07
75%12266.40195058007.32
85%15.8350.76237064006.76
100%18.7415.14262067006.31

LIGPOWER

16*5.4CF

50%6.4142.08141042009.9253
65%11244.20192050007.86
75%14.6324.12238055007.34
85%19.1424.02279061006.58
100%22.5499.50302063006.05

LIGPOWER

17*5.8CF

50%7.6168.72153040009.0767
65%12.8284.16218048007.67
75%16.7370.74255052506.88
85%2.1748.173110570064.56
100%25.7570.54336060005.89
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

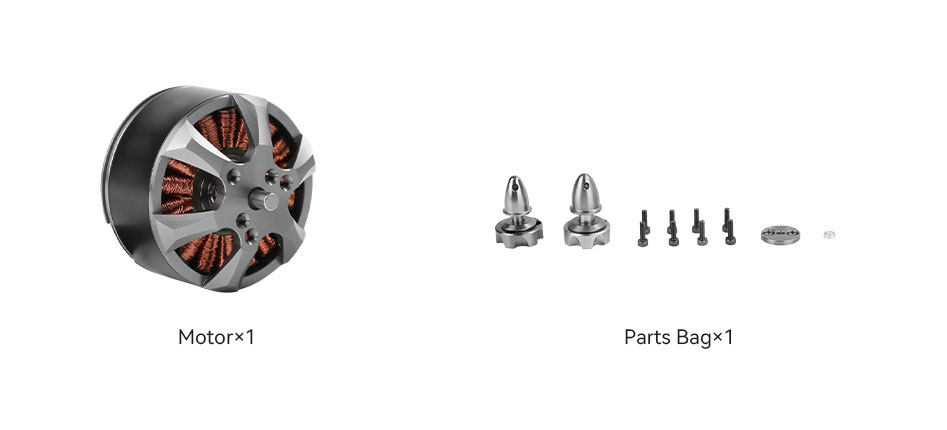

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
