MN4006 KV380 Antigravity Ultralight & Efficient UAV Motor 2PCS/SET

149.90

Available points: 7000 Points Points reward: 149 Points

• Ultrathin Design Lightest Weight
• Unique Ventilation and Cooling System
KV：
  • KV380
Quantity：

149.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

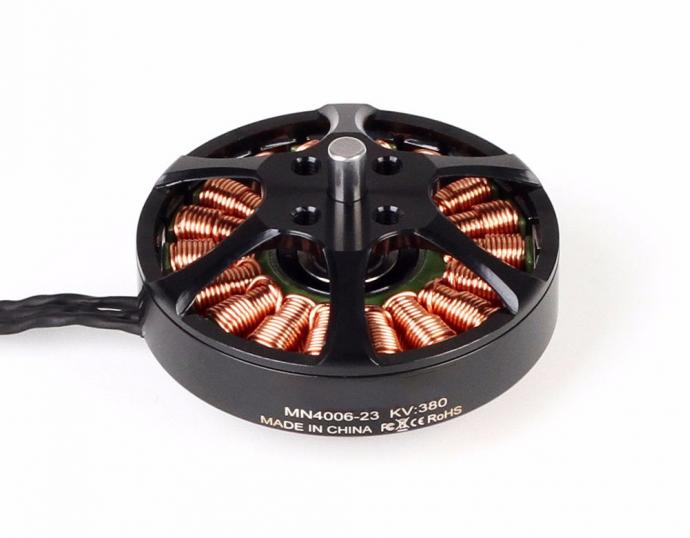

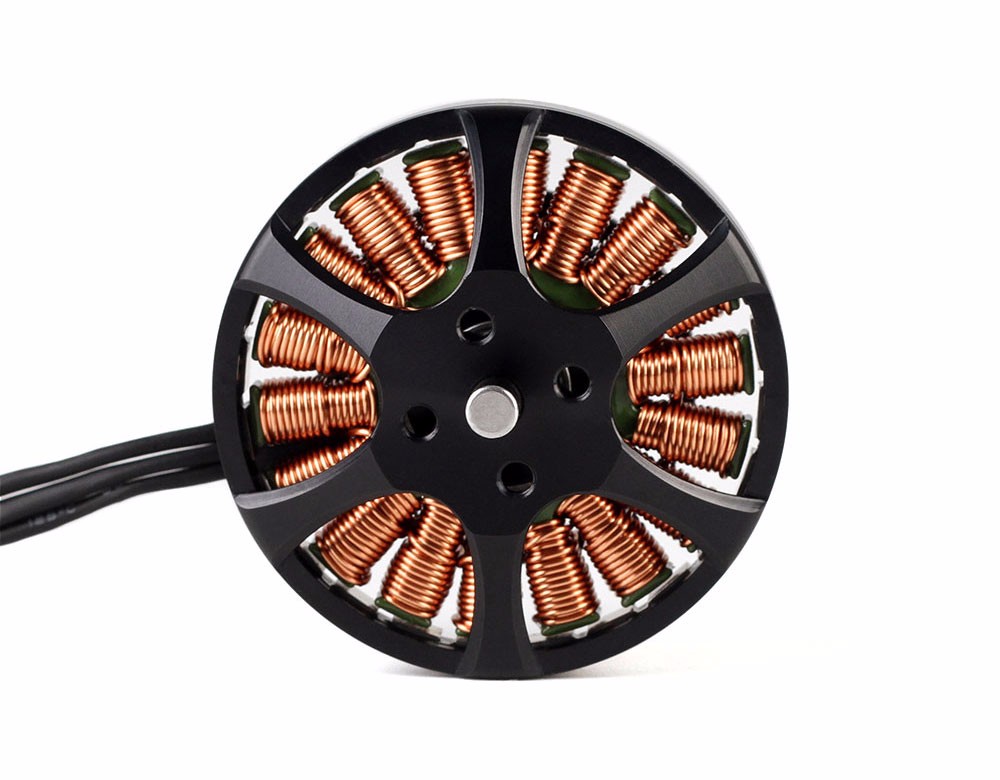

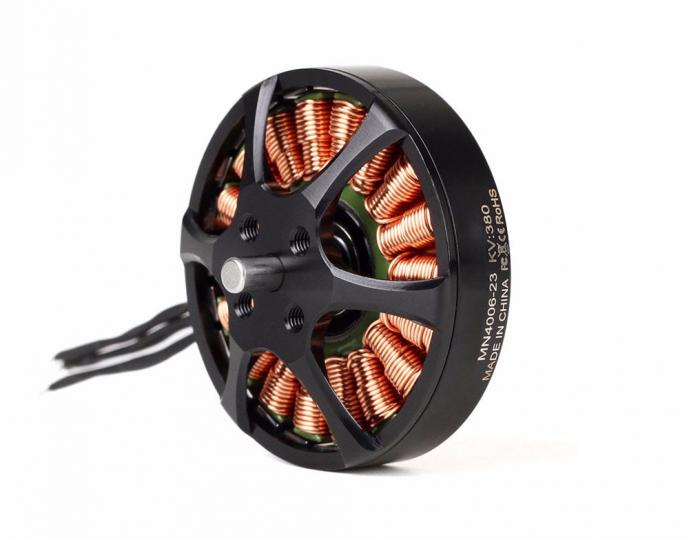

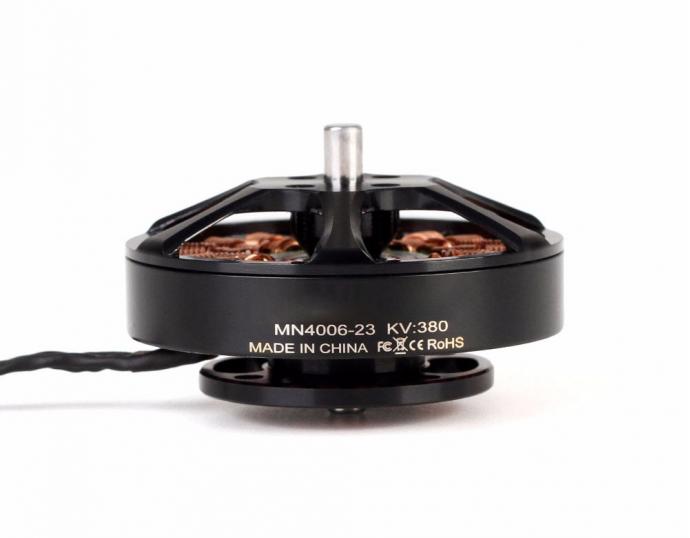

About LIGPOWER MN4006 Multirotor UAV Motor KV380


LIGPOWER MN4006 Antigravity KV380 is a revolutionary brushless motor designed for top-tier UAV performance. Weighing only 57g, it’s one of the lightest motors in its class, offering exceptional power without compromising on durability. Crafted with precision, this motor delivers unparalleled efficiency, making it the ideal choice for builders who demand both high performance and reliability.Up to 1.6kg thrust

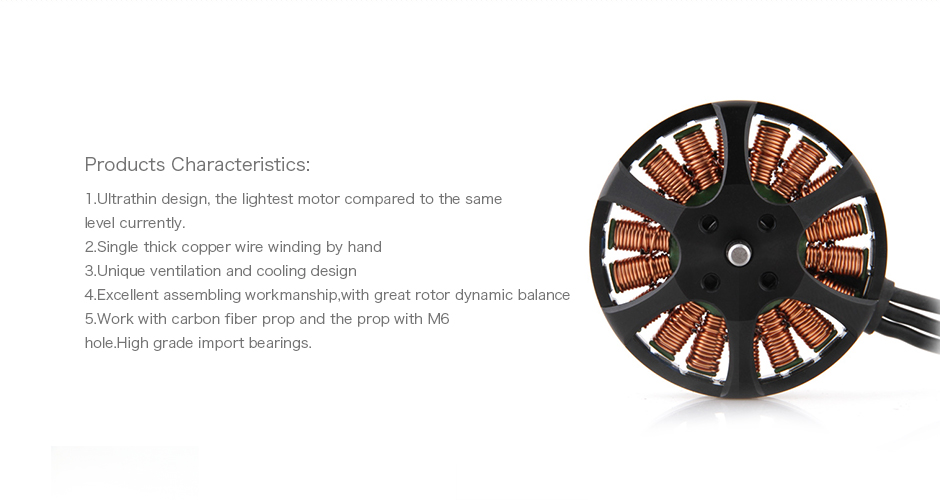

Antigravity MN4006 Highlights:

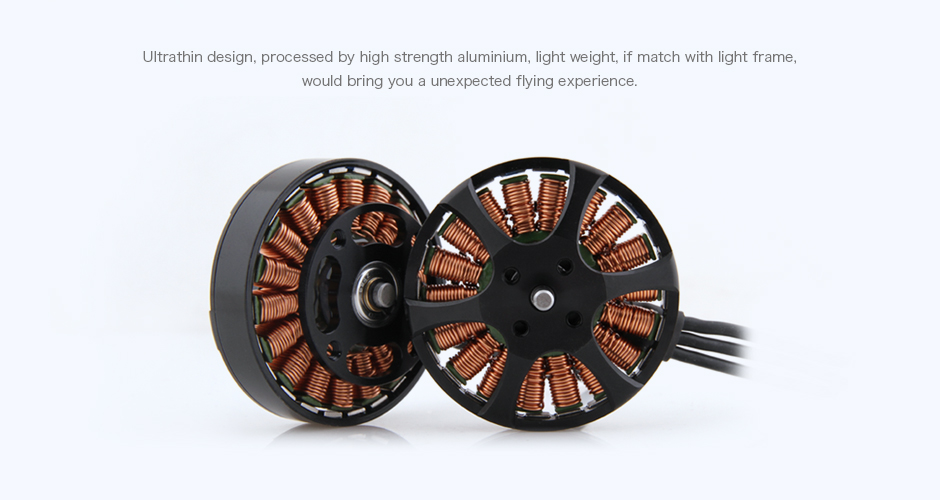

  • Ultrathin design , lightest weight compare the same size motor in market

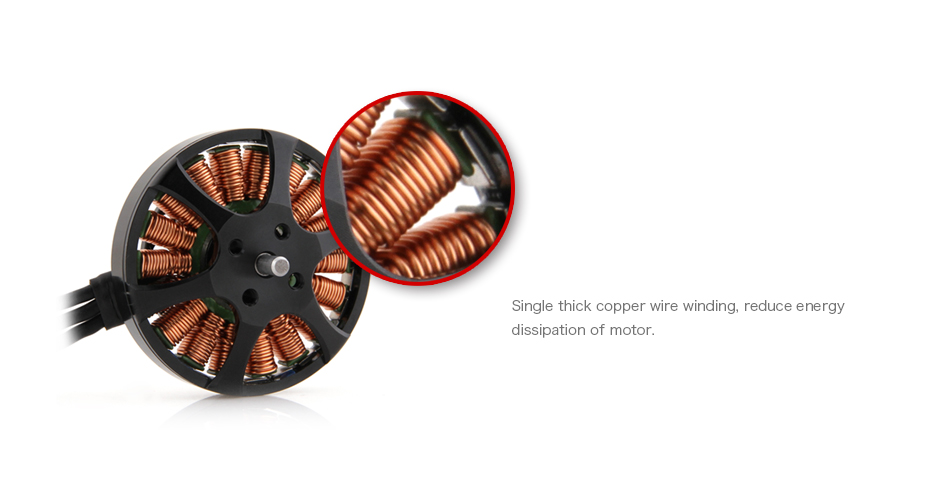

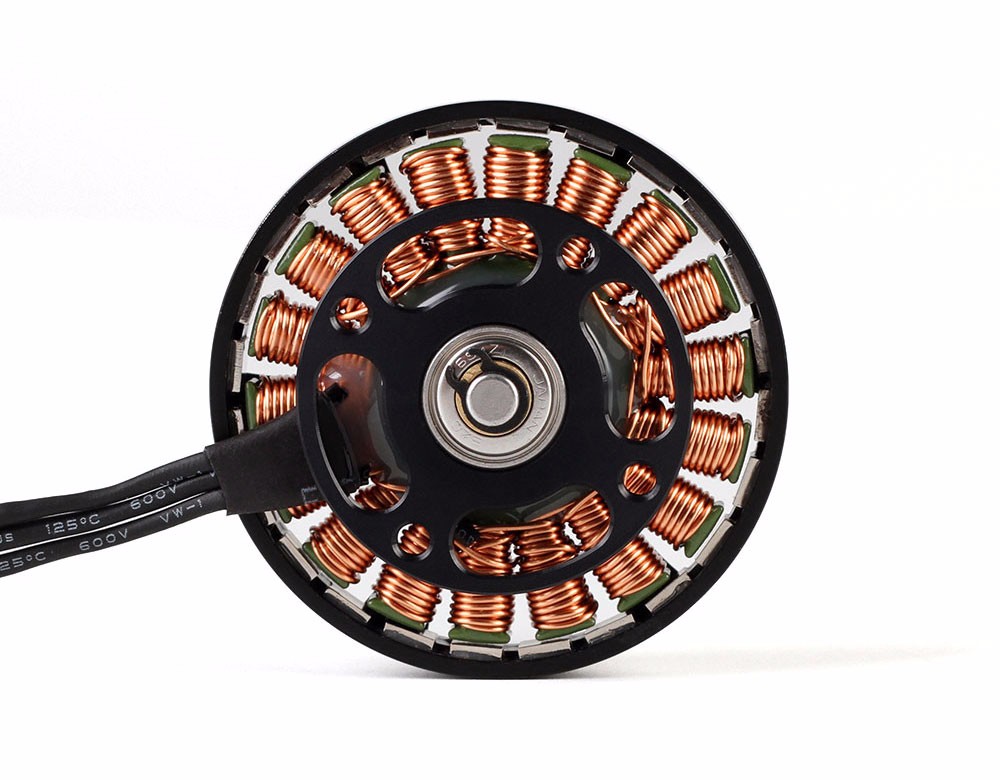

  • Single thick copper wire winding by hand

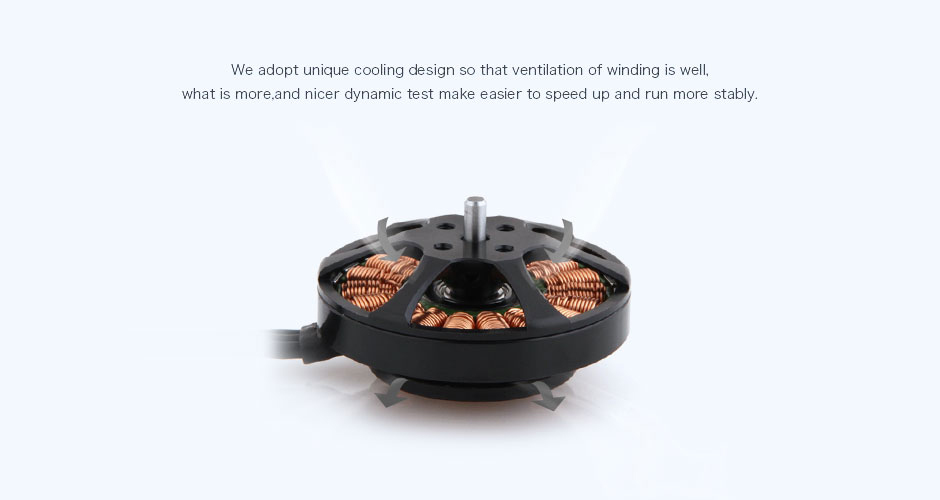

  • Unique ventilation and cooling design

  • Excellent assembling workmanship

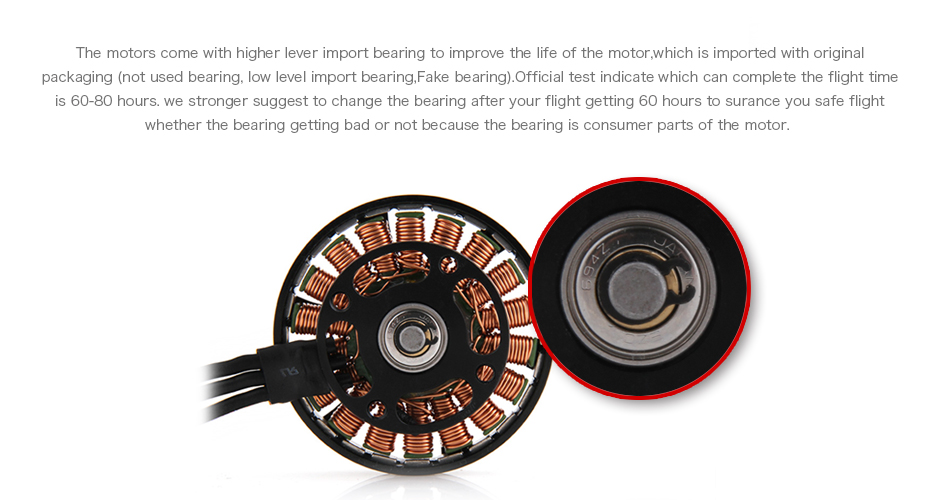

  • High grade EZO bearing

  • 92% Max Efficiency (4-6A)

  • Up to 1.6kg thrust


Application Areas：

Multi-rotors, VTOL, UAV

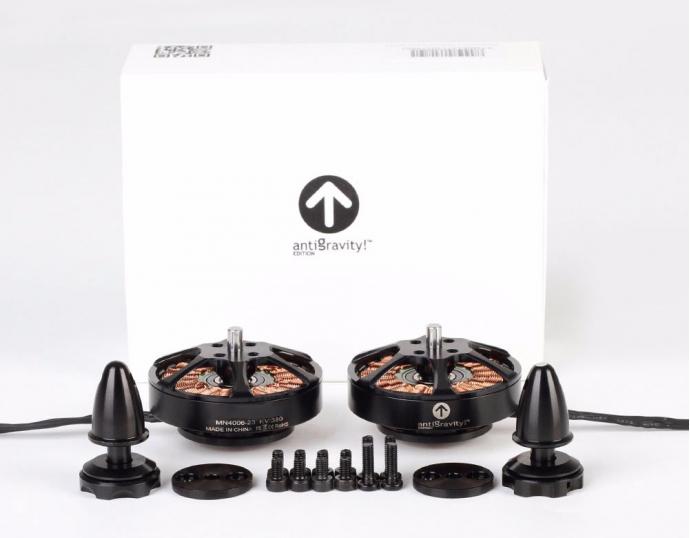

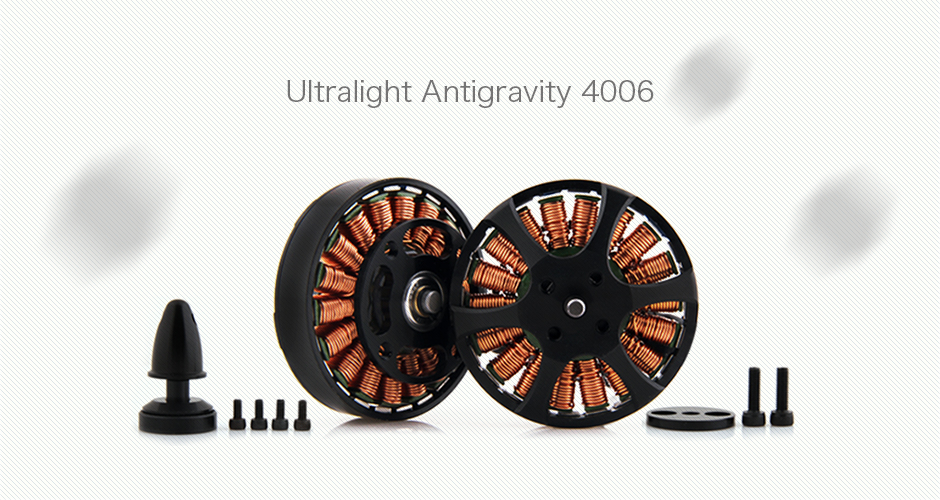

Packing List Includes:

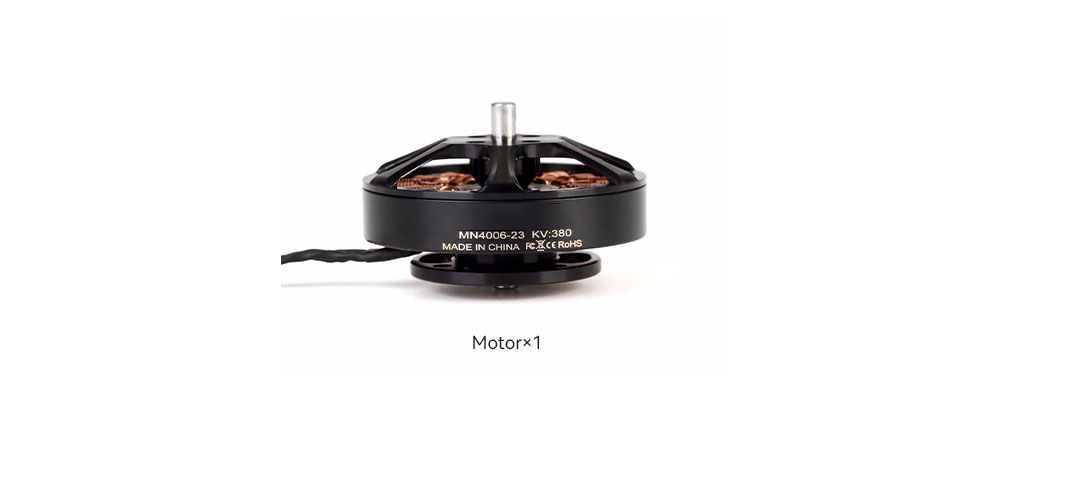

2x LIGPOWER MN4006 Motor KV380

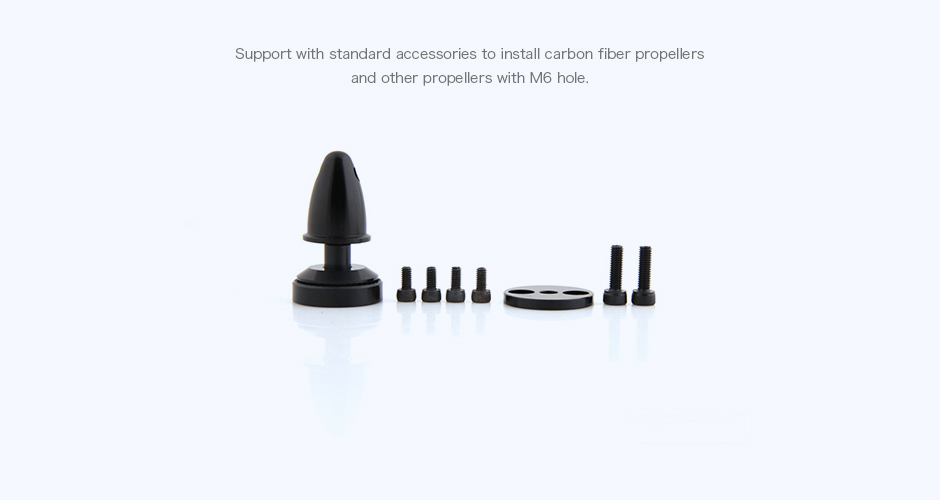

1x CW prop adapter

1x CCWprop adapter

Matching Guide:

LIGPOWER T16*5.4 Prop / AIR 40A 2-6S MultiRotor UAV Drone ESC

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

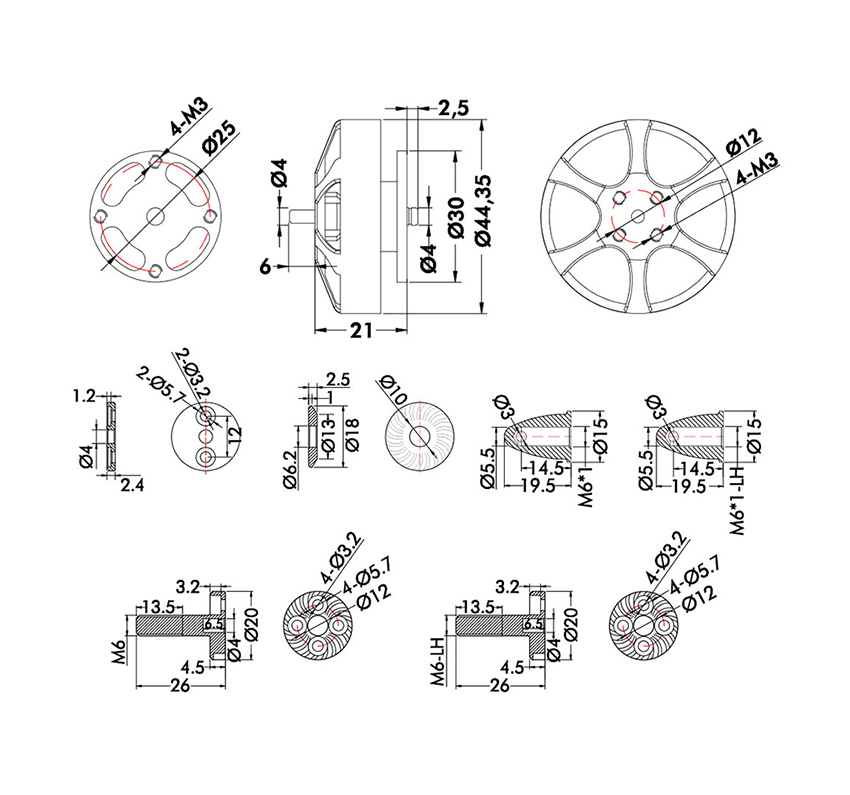

Technical Drawing


Specification
Test ItemKV380Weight (Incl. Cable)68g
Motor DimensionsΦ44.35×21mmInternal Resistance194mΩ
Lead50mmConfiguration18N24P
Shaft Diameter40mmRated Voltage(Lipo)4-6S
Idle Current(22V)0.3APeak Current(180s)16A
Max. Power(180s)380W

Test Data
TypeVoltage
(V)		PropellerThrottleCurrent
(A)		Power
(W)		RPM

Torque

（N*m）

Thrust
(g)		Efficiency
(g/W)

Operating

Temperature

(℃)

MN4006

KV380

24

LIGPOWER

13*4.4”

CF

50%2.004837190.1054411.3330
55%2.506045280.1165610.93
60%3.107448400.1275310.12
65%3.708951550.148539.61
75%5.1012254510.1710628.68
85%6.8016363270.2112867.88
100%9.7023365150.2716337.01

LIGPOWER

14*4.8”

CF

50%2.405839610.1267511.7237
55%3.207743290.1479810.39
60%3.809146190.169089.96
65%4.7011349250.1810339.16
75%6.5015654850.2212868.24
85%8.5020460040.2715767.73
100%12.2029367310.3419756.75

LIGPOWER

15*5”

CF

50%3.107437460.1580510.8246
55%4.109840890.189599.75
60%4.8011543580.2010939.49
65%5.8013946340.2312368.88
75%8.3019952150.2915617.84
85%10.7025756270.3318237.10
100%15.0036061770.4022286.19

LIGPOWER

16*5.4”

CF

50%3.708934950.1992810.45HOT
55%4.8011538170.2210969.51
60%5.9014240790.2512588.88
65%7.2017343260.2914278.26
75%10.0024048030.3417407.25
85%12.9031051190.3919706.36
100%17.5042054450.4523095.50
Note: The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
