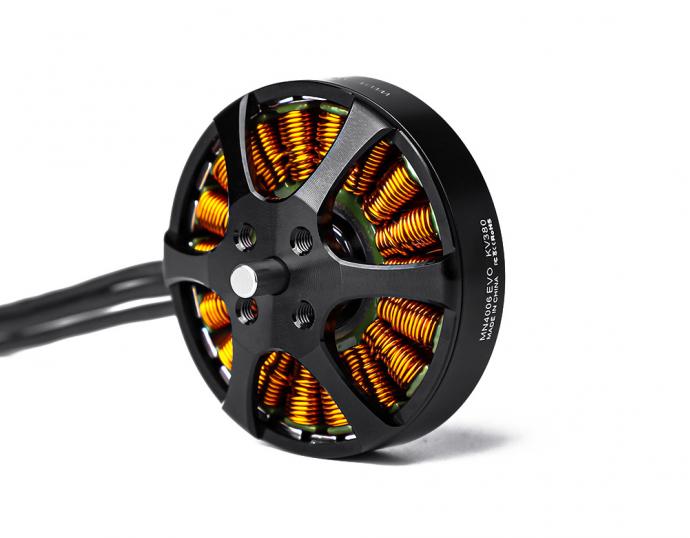

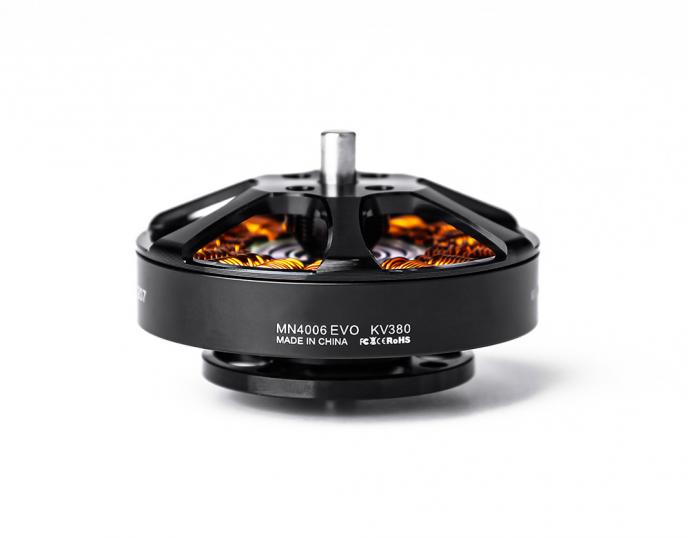

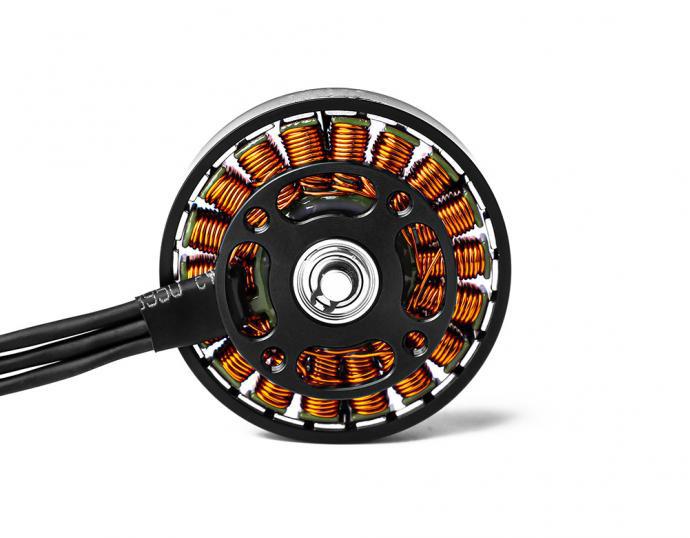

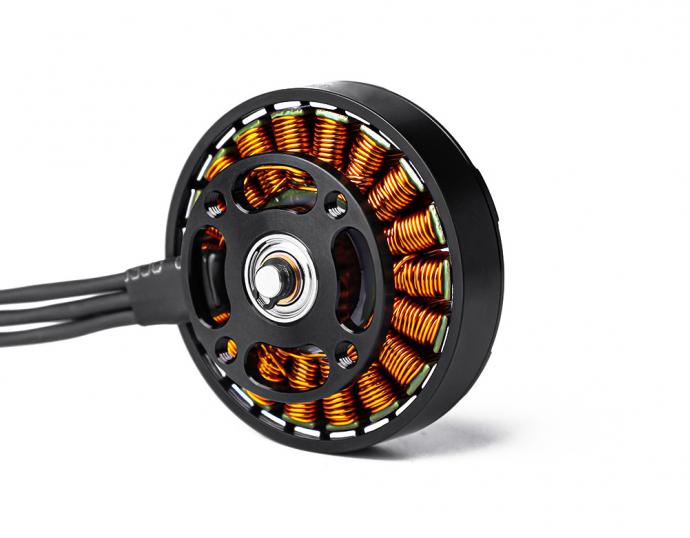

MN4006 EVO KV380 High-Efficiency UAV Motor with 2.5kg Max Thrust 2PCS/SET

159.90

Available points: 0 Points Points reward: 159 Points

• Higher force efficiency, higher force under the same pulling force 0.3g/W
• Greater pulling force, increased maximum pulling force 8%
• Under load, the maximum temperature on the motor surface decreases 11%
KV：
  • KV380
Quantity：

159.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About LIGPOWER MN4006 EVO Multirotor UAV Motor KV380

LIGPOWER Antigravity MN4006 EVO 380KV is engineered to elevate your UAV performance with its superior build quality, innovative design, and cutting-edge technology. With a higher efficiency EZO bearing, this motor is built to last, offering exceptional durability and a flight time of 60-80 hours, as confirmed by official testing.Up to 1.6kg thrust

Antigravity MN4006 EVO Highlights:

1.Unique Ventilation and Cooling System

2.Ultrathin Design Lightest Weight

3.MN4006 EVO THENEWUPGRADE Higher force efficiency greater pulling force

4.Higher force efficiency higher force under the same pulling force

5.11% under load the maximum temperatureon the motor surface decreases

6.Up to 1.6kg thrust


Application Areas：

Multi-rotors, VTOL

Packing List Includes:

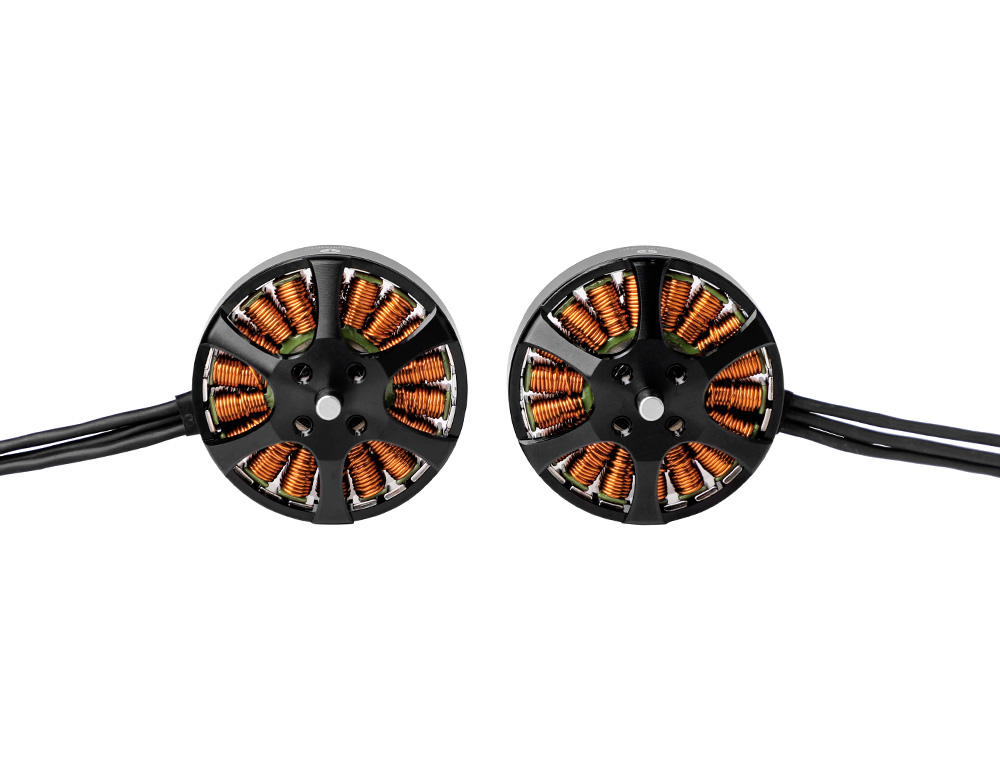

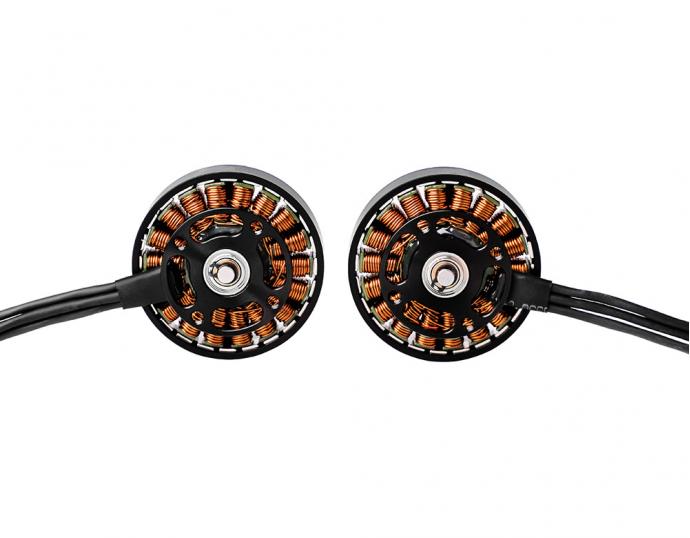

2 x LIGPOWER MN4006 EVO Motor KV380( kv which you choose)

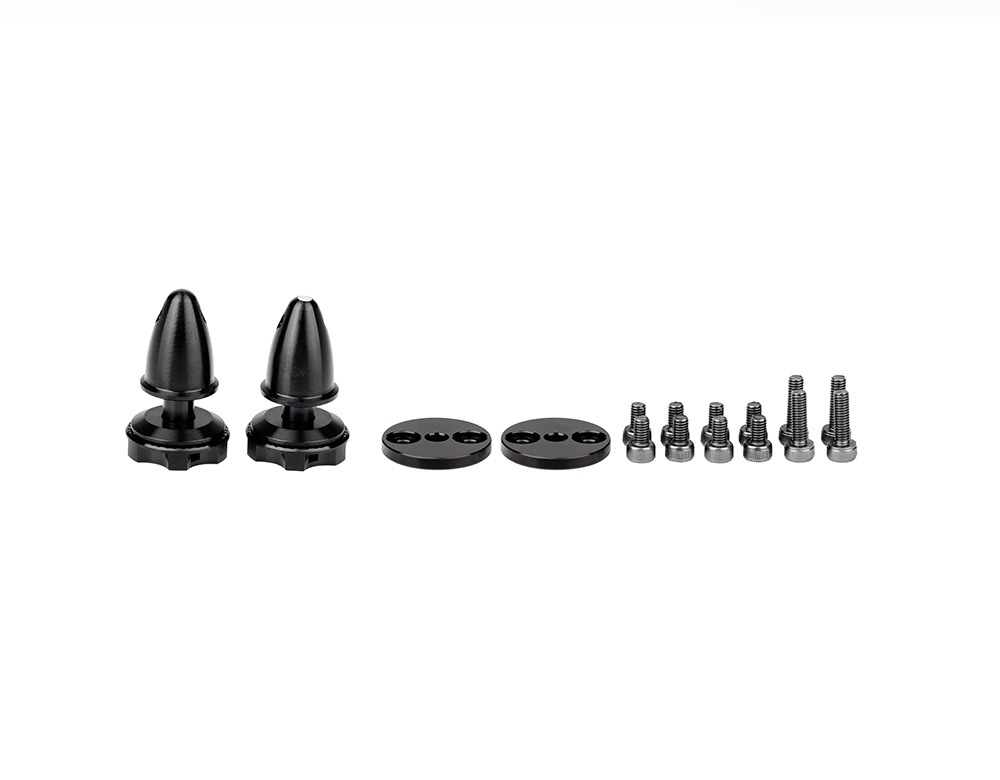

2 x Hardware pack


Matching Guide:

LIGPOWER T16*5.4 Prop / AIR 40A 2-6S MultiRotor UAV Drone ESC

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

MN4006 EVO thenew upgrade

THENEW
UPGRADE

Higher force efficiency greater pulling force

force diagram
0.3g/WHigher force efficiency

higher force under the same pulling force

8%Greater pulling force

increased maximum pulling force

the maximum temperature on the motor surface decreases 11%
11%Under load

the maximum temperature
on the motor surface decreases

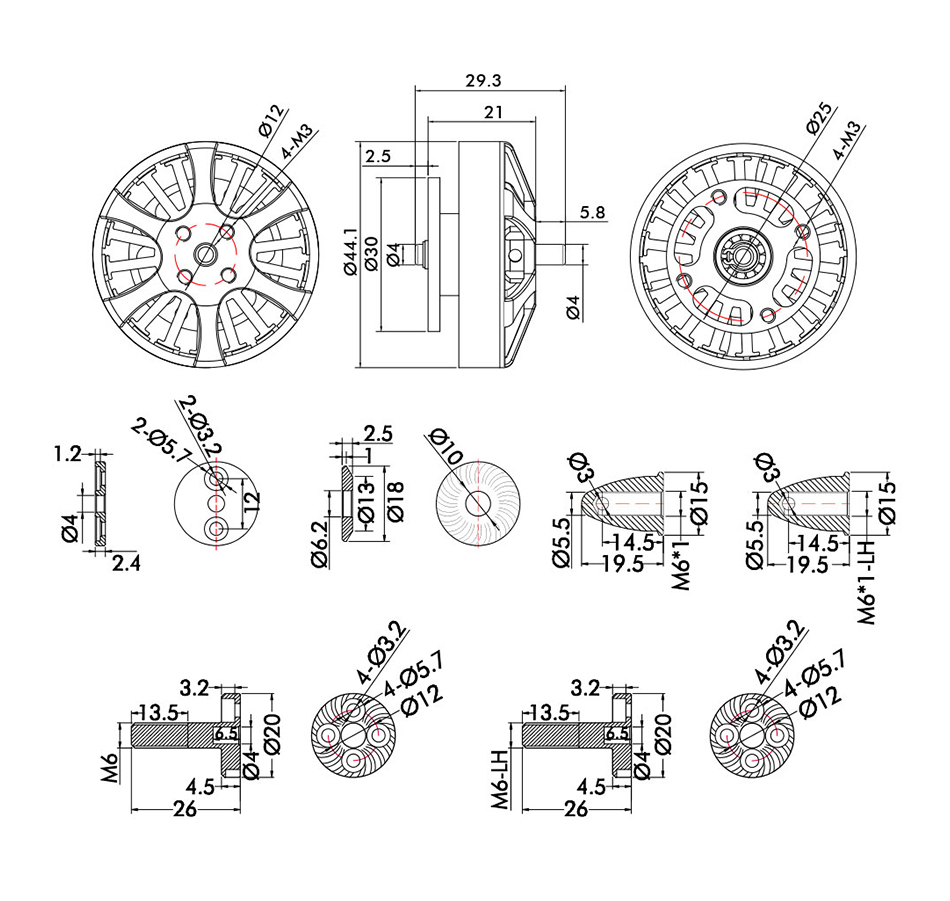

Technical Drawing


Specification
Motor SizeΦ44.1*29.3mmMagnet Level150℃ high temperature resistance
StatorAnti-rust treatment;
180℃ high temperature-resisting coatings		LeadEnameled Wire 50mm
Configuration18N24PCopper Wire240℃ high temperature resistance
Shaft DiameterIN：4mm，OUT：4mmCoil Insulation Test500V
BearingImported 694ZZPackage Size113*89*40mm
KV380Rated Voltage (LiPo)6S
Idle Current（10V）0.7AInternal Resistance159mΩ
Peak Current（180s）18AWeight (Incl. Cable)73g
Max. Power（180s）300WPackage Weight235g
Test Data
TypePropellerThrottleVoltage
(V)		Thrust
(g)		Torque
(N*m)		Current
(A)		RPMPower
(W)		Efficiency
(g/W)

Operating

Temperature

(℃)
MN4006
EVO		P1540%24.004650.091.5830193812.24/
45%23.995860.112.1533585211.36
50%23.987170.132.8136896710.64
55%23.968580.163.5640098510.05
60%23.9410090.184.4743261079.43
65%23.9211570.215.4046111298.95
70%23.9013040.246.4048831538.52
75%23.8814640.277.5851581818.09
80%23.8516300.308.8854312127.69
90%23.8019680.3611.7859452807.02
100%23.7422730.4114.7463703506.49
P1640%24.005470.111.8729004512.17/
45%23.986980.142.6232426311.15
50%23.968460.173.4135618210.36
55%23.9410040.204.3238581039.70
60%23.9211720.235.3941461299.09
65%23.9013470.266.5844241578.58
70%23.8815070.297.7446581858.16
75%23.8516850.329.1849142197.69
80%23.8218670.3610.7351552567.30
90%23.7522310.4314.2356093386.60
100%23.6825430.4917.6659644186.08
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

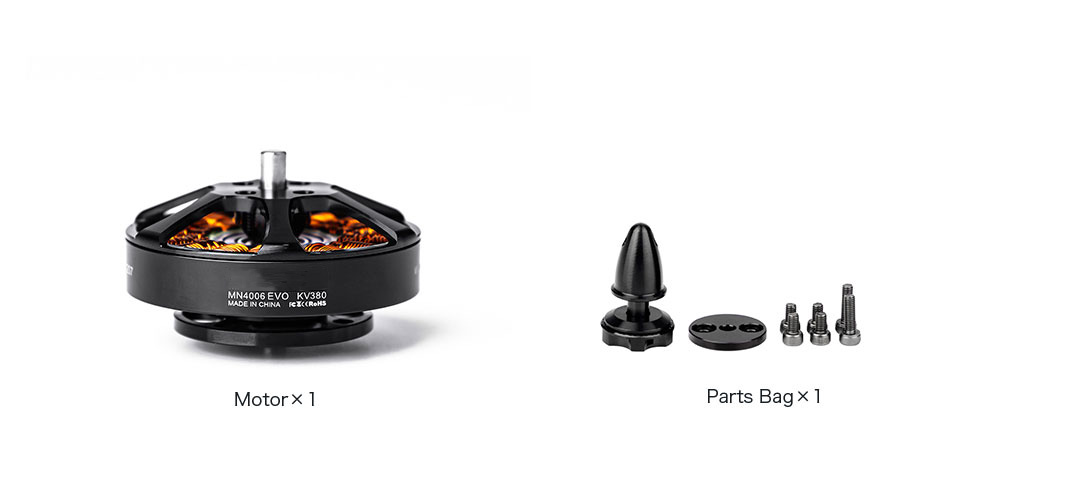

Packing List

4006 EVO en pack.jpg

Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
