MN2212 V2.0 High-Performance UAV Motor for Aerial Photography KV780/KV920

46.90

Available points: 2000 Points Points reward: 46 Points

• High Strength Construction
• Super Balance
KV：
  • KV780
  • KV920
Quantity：

46.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About LIGPOWER MN4112 Multirotor Fixed Wing UAV Motor KV780/KV920

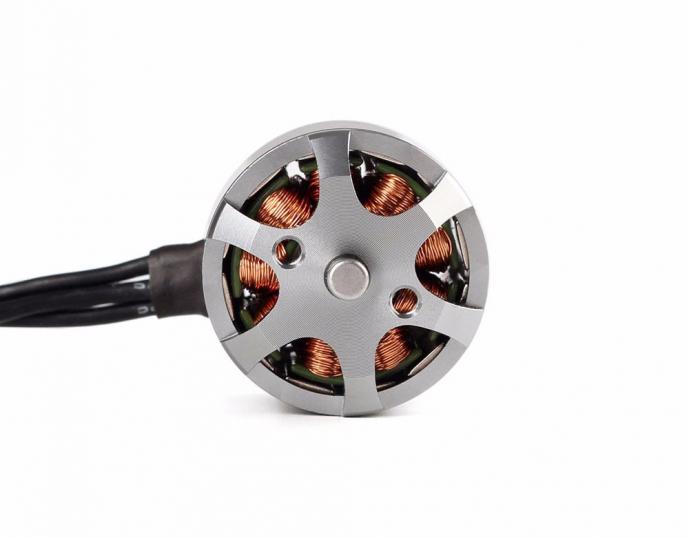

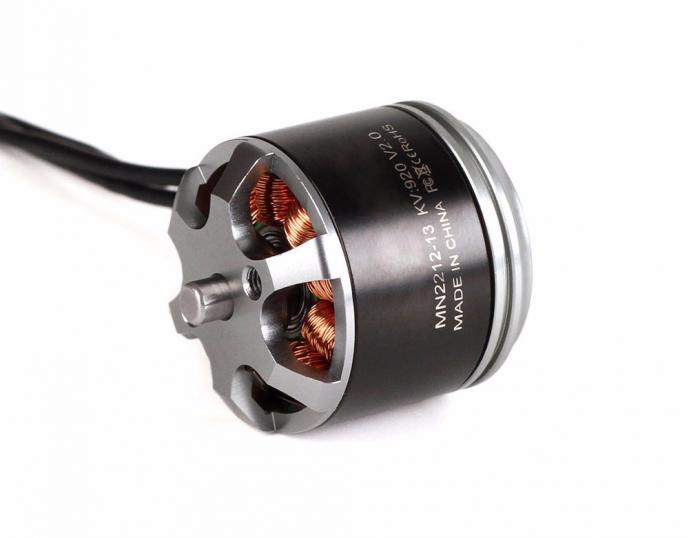

LIGPOWER MN2212 V2.0 Navigator KV780 KV920 Brushless Motor is designed for aerial photography with multi-rotor UAVs, offering smooth, reliable, and durable performance.

Ideal for 450mm long endurance multicopters, it features a self-cooling design for enhanced efficiency and longer flight times. With a max thrust of 1.8kg and MTBF of 1000 hours, this motor is built for high strength and balance. Recommended with LIGPOWER P15*5 props, it ensures optimal performance for multi-rotors, VTOL, and fixed-wing applications.

Navigator MN4112 Highlights:


  • Max. thrust ：1.8kg

  • MTBF：About1000hours

  • Features：Super Balance; High Strength Construction


Application Areas：

Multi-rotors, VTOL, and Fixed-wing UAVs.

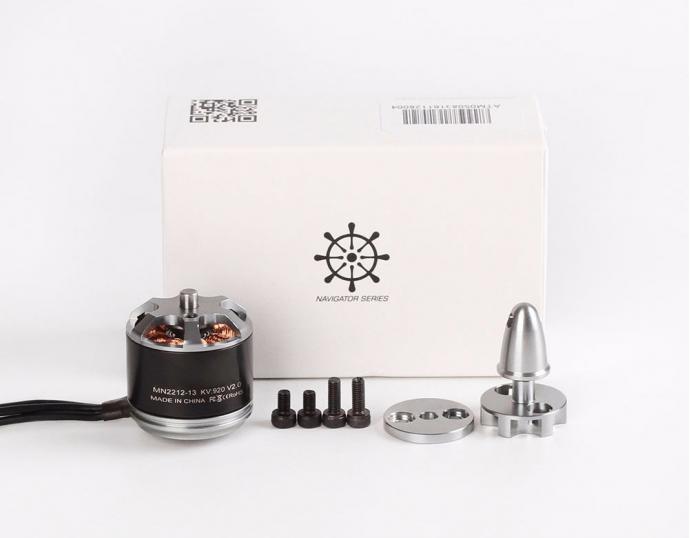

Packing List Includes:

1x LIGPOWER MN4112 Motor KV780 KV92( kv which you choose)

1x Hardware pack


Matching Guide:

LIGPOWER P15*5 Prop / Air 20A 3-4S ESC

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

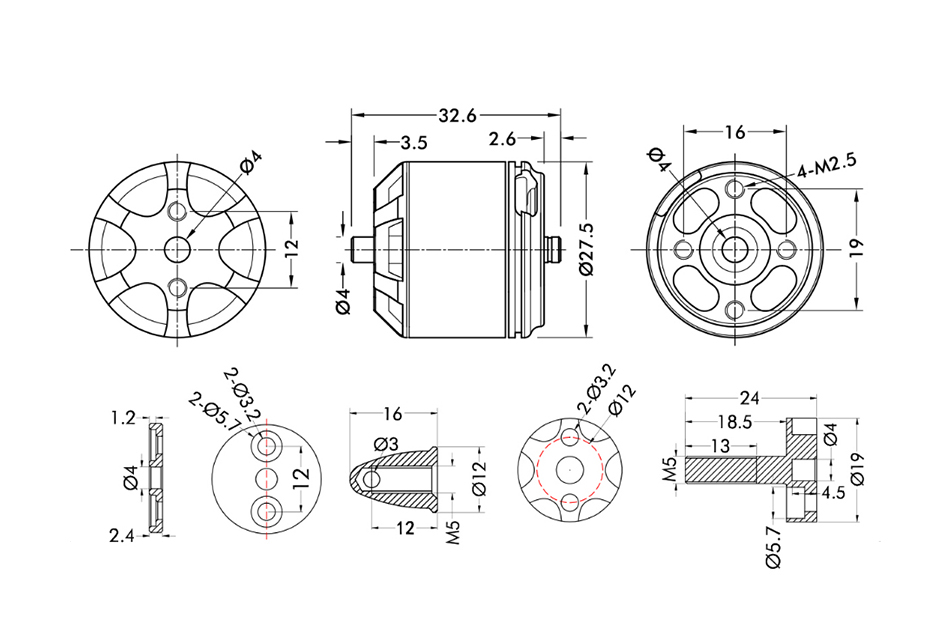

Technical Drawing


Specification
Test ItemMN2212 KV780 V2.0Configuration9N12P
Internal Resistance173mΩMotor DimensionsΦ27.5×26.5mm
Shaft Diameter4mmStator Height13mm
Stator Diameter22mmCable Length400mm
AWG20#Weight Excluding Cables55g
Weight Including Cables65gIdle Current@10v0.4A
No.of Cells(Lipo)2-4SMax Continuous Current 180S13A
Max Continuous Power 180S200W

Test ItemMN2212 V2.0 KV920Configuration9N12P
Internal Resistance142mΩMotor DimensionsΦ27.5×26.5mm
Shaft Diameter4mmStator Height13mm
Stator Diameter22mmCable Length400mm
AWG20#Weight Excluding Cables54g
Weight Including Cables65gIdle Current@10v0.5A
No.of Cells(Lipo)2-4SMax Continuous Current 180S15A
Max Continuous Power 180S220W

Test Data
Item No.Voltage
(V)		PropThrottleCurrent
(A)		Power
(W)		Thrust
(G)		RPMEfficiency
(G/W)		Operating
Temperature
(℃)

MN2212 V2.0

KV780

14.8

LIGPOWER
9545B

50%2.131.0829342609.43/
65%459.247653008.04
75%5.682.8860559607.30
85%7.4109.5274260006.78
100%10.3152.4491873506.02
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

MN2212 V2.0

KV920

11.1

LIGPOWER
9545B

50%1.617.7617644009.91/
65%333.328955008.68
75%4.347.7338564008.07
85%5.864.3847570007.38
100%8.189.9161778006.86
Notes:The test condition of temperature is motor surface temperature at 100% throttle while the motor run 10min.

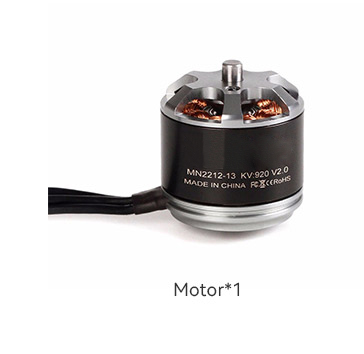

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
