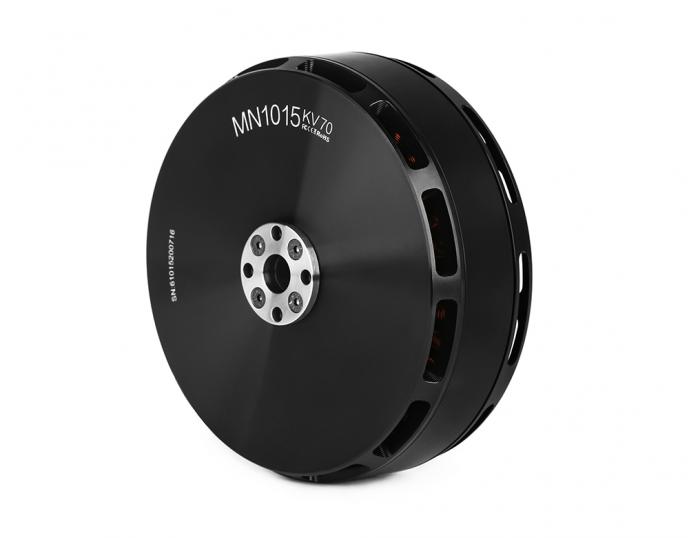

MN1015 KV70 All-Round Heavy Lift UAV Motor with 27.4kg Max Thrust

359.90

Available points: 16000 Points Points reward: 359 Points

• Efficient Disc Motor
• Heavy Payload Long Flight Time
• Excellance in Heat Dissipation
Quantity：

359.90

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

About LIGPOWER Navigator MN1015 Multirotor Fixed Wing UAV Motor KV70

LIGPOWER Navigator MN1015: Industrial-grade motor designed for cargo drones, mapping, and inspection. With a maximum thrust of 27.4kg, it excels in demanding conditions, offering outstanding cooling performance and resistance to dust, water, and corrosion. Ideal for long flights with heavy payloads, it features a durable design with a 1000-hour lifespan. The integrated fan array ensures reliable operation in hot temperatures, while the recommended LIGPOWER G36*11.5" prop delivers optimal performance. Perfect for a wide range of applications, from mapping and inspection to small cargo delivery.


Navigator MN1015 Highlights:

  • Max thrust: 27.4kg
  • MTBF: About 1000hours
  • Features: Excellent cooling performance; Dust-resistance/Waterproof/Anti-corrosion; Heavy Payload Long Flight Time

Application Areas：

Cargo Drones, Tethered, Mapping and Inspection.

Packing List Includes:

1x LIGPOWER MN1015 Motor KV70 ( kv which you choose)

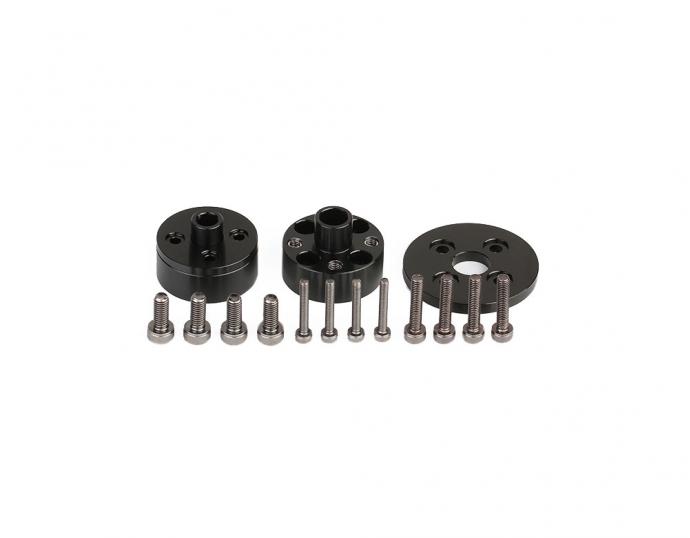

1x Hardware pack


Matching Guide:

LIGPOWER G36*11.5 Prop

If you have any questions or inquires, please contact us:  onlinesales@ligpower.com

MN1015 Multi-disciplinary application

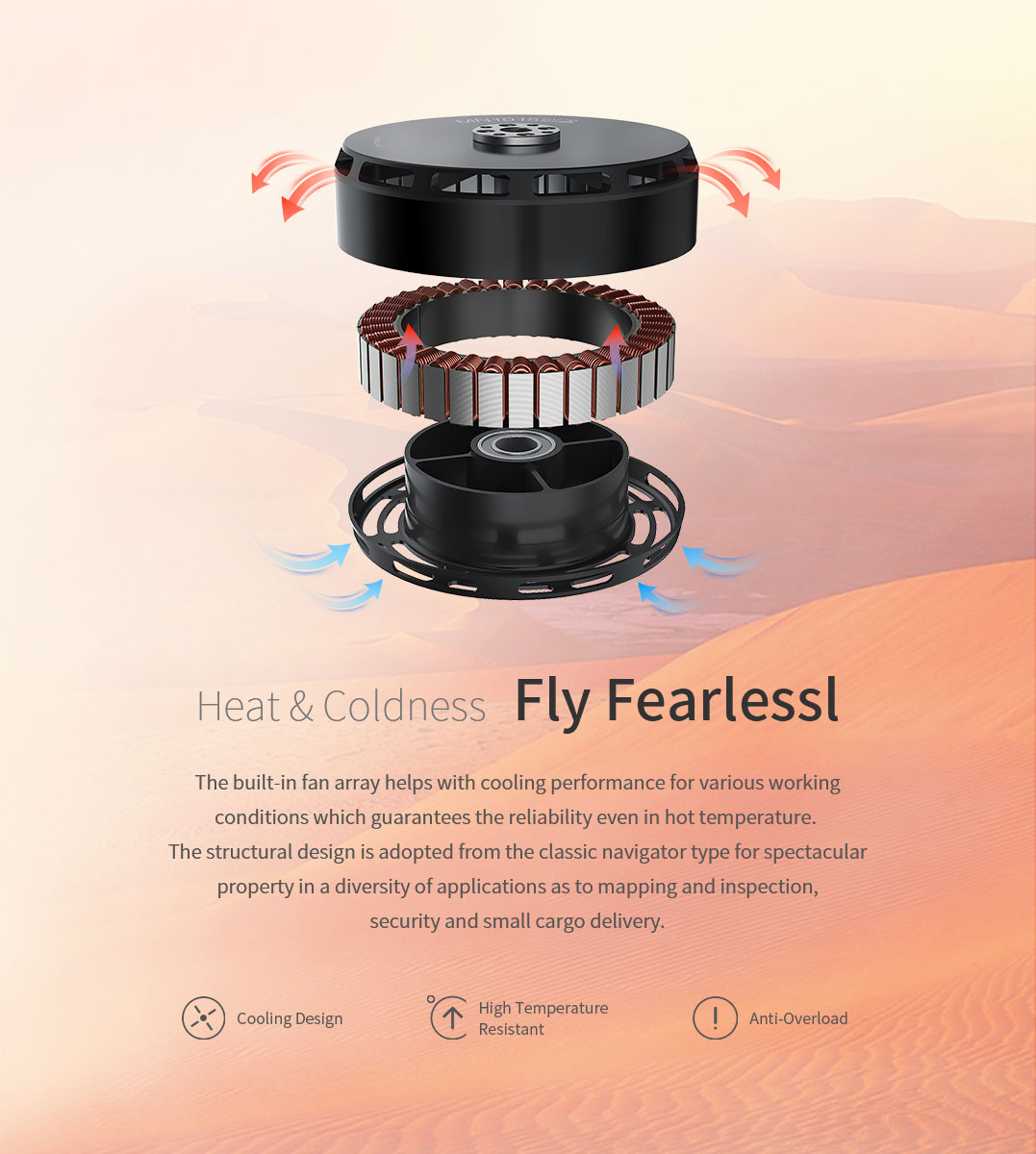

heat & coldness fly fearlessl

light reamrkable potential

smart and powerful driving soar at leisure

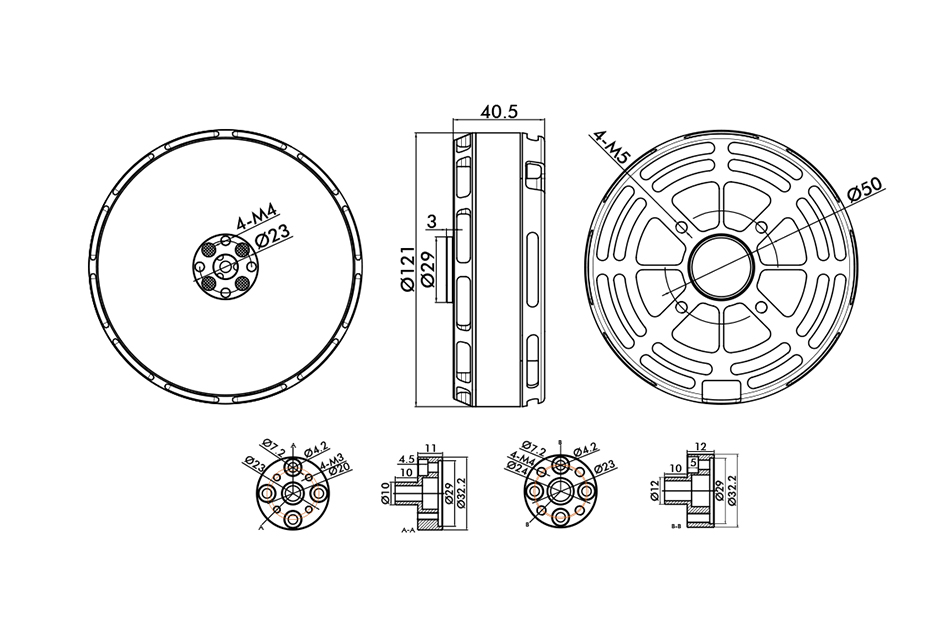

Technical Drawing


Specification
Motor SizeΦ121*43.5mmCopper Wire220℃ high temperature resistance: Level C
StatorImported silicon steel sheet; Anti-rust treatment;
150°Chigh temperature-resisting coatings		Coil Insulation Test1000V
Configuration36N42PCentrifugal Cooling DesignYES
Shaft DiameterIN：15mmRotor Dynamic Balance Standard≤5Mg
BearingImported 6902ZZMotor Dynamic Balance Standard≤10Mg
Magnet LevelN45SH

KV70Rated Voltage ( Lipo )12-24S
Idle Current（18V）1.35APropeller Recommendation34-36寸
Peak Current（180s）66.5AMotor Weight (indl. Cable)855g
Max.Power（180s）5800WPackage Weight1260g
Internal Resistance49mΩ

Test Data
TypePropellerThrottle

Voltage
(V)

Thrust
(g)		Torque
(N*m)		Current
(A)		RPM

Power
(W)

Effciency
(g/W)		Operating
Temperature
(℃)
MN1015-
KV70		G34*11.540%88.6669363.059.1122618088.59120℃
45%88.6180053.4611.2324329958.05
50%88.5691923.9513.65260412087.61
55%88.47105974.4916.89279414947.09
60%88.42119825.0319.99295517686.78
65%88.33133895.6223.76311220996.38
70%88.27148026.1827.40325824196.12
75%88.11170677.1333.97349529935.70
80%88.08187857.7337.70365733215.66
90%87.79217898.9148.60394442665.11
100%87.61243329.8756.87413749824.88
G36*11.540%88.6775283.429.7221708628.73195℃
45%88.6290084.0212.41236210998.20
50%88.54104764.6415.59253713817.59
55%88.46123535.4119.64273417387.11
60%88.38137585.9923.36288020656.66
65%88.26153706.6728.08301524786.20
70%88.20166647.2131.44312927736.01
75%88.05192708.3038.81335634175.64
80%87.96213809.2044.93352239525.41
90%87.692464310.4355.84375448975.03
100%87.432740611.5466.32393257984.73
Note: Motor temperature is motor surface temperature at 100% throttle running 5mins.
(Date above based on benchtest are for reference only,comparion with that of other motor types is not recommended.)

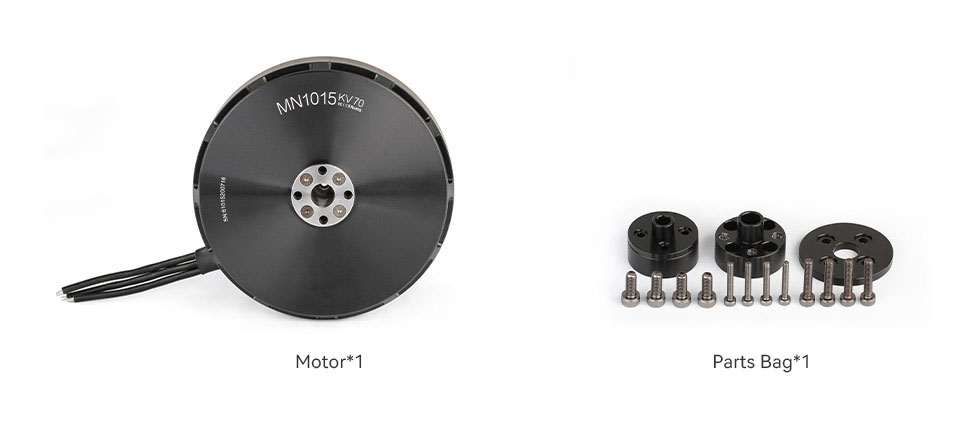

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
