MF3218-2PCS/PAIR

99.90

Available points: 5000 Points Points reward: 99 Points

• Prop Strength X2
• Ultimate durability, longer life time
• Energy-Snubber

• Caution: Polymer props for coaxial configuration are under testing. Please DO NOT run polymer props on coaxial frames

99.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

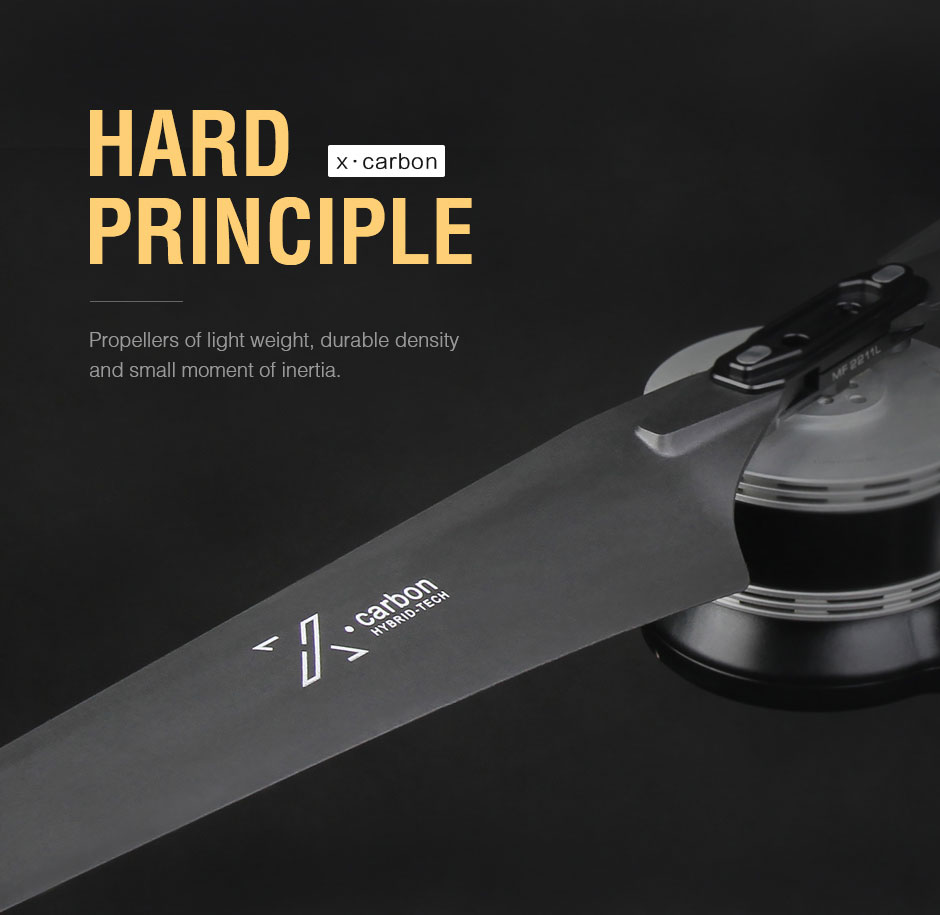

MF3218 propellers of light weight,durable density and small moment of inertia

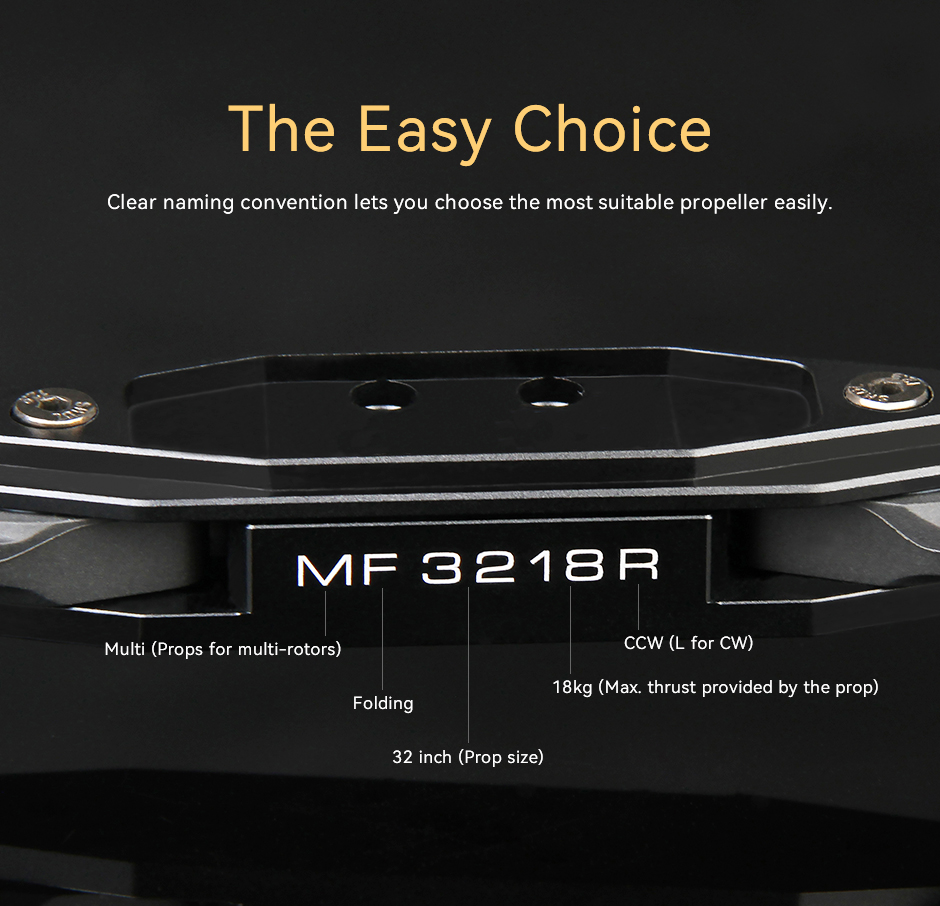

MF3218 Confirmation of propeller parameters based on naming

MF3218 abrasion resistance of prop surface raise 1.5 times,material density density by 3.5%,prop strength raise 1.5 times

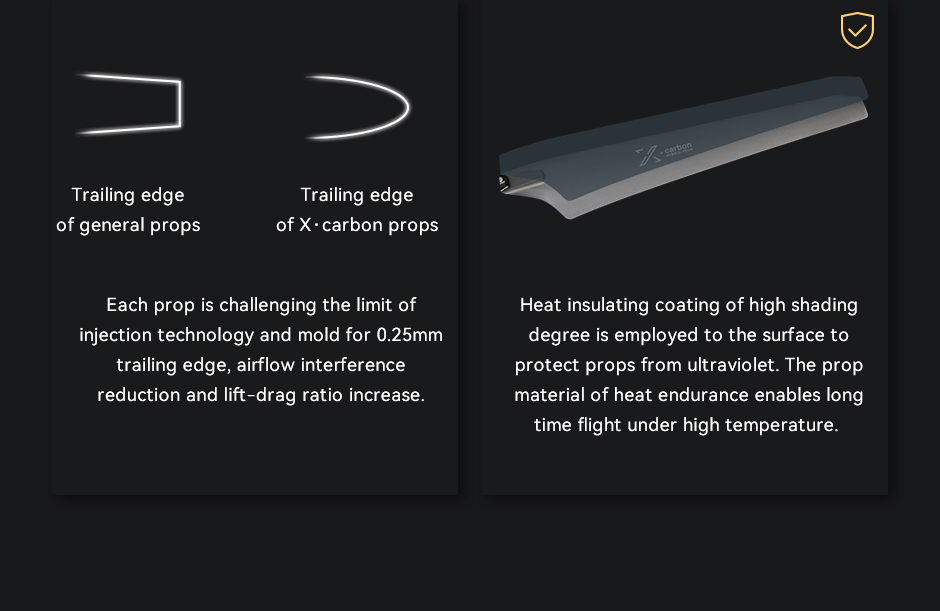

MF3218 each prop for 0.25mm trailing edge,airfloow interference reduction and lift-drag ratio increase,Heat insulating coating of high shading,long time flight under high temperature.

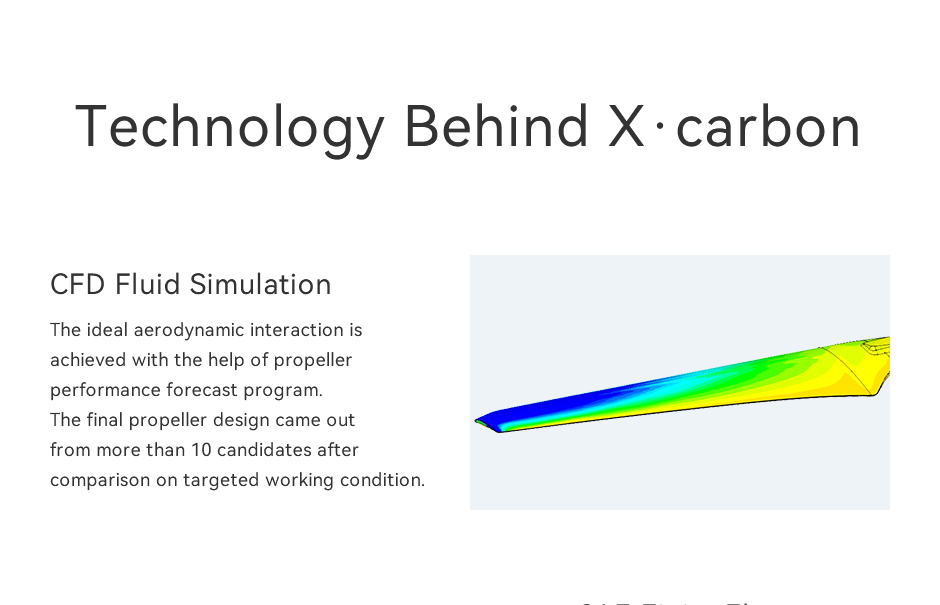

MF3218 CFD fluid simulation

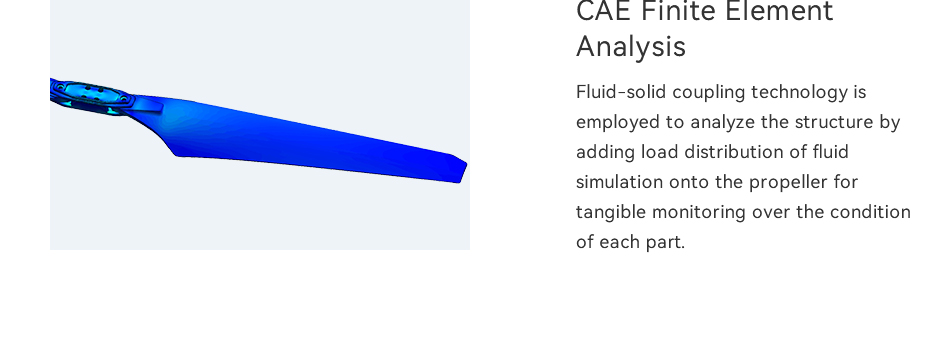

MF3218 CAE finite element analysis

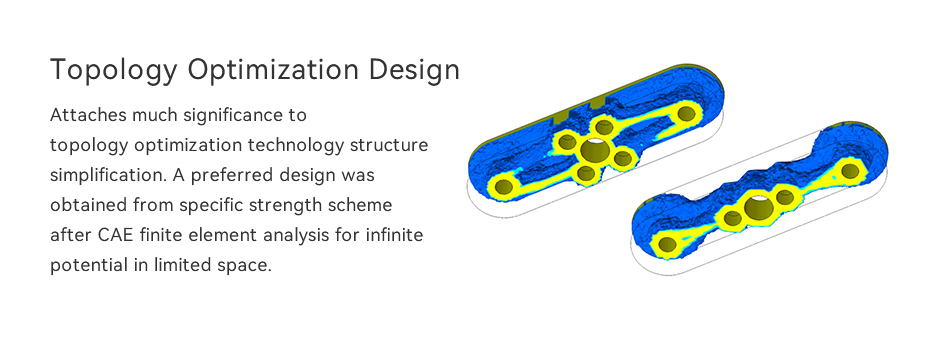

MF3218 Topology optimizationo design

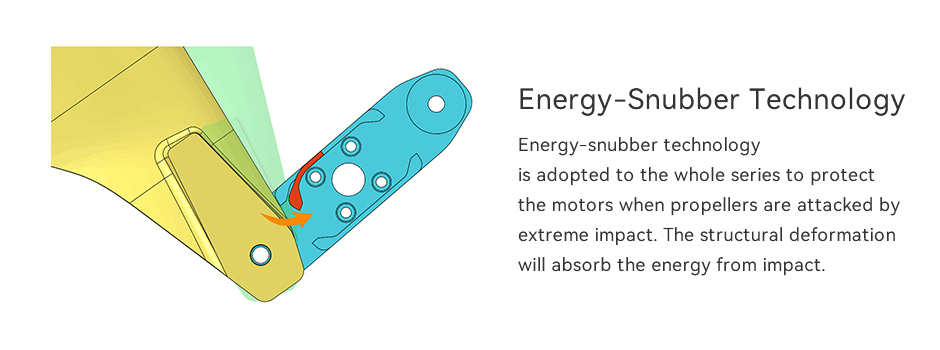

MF3218 energy-snubber technology

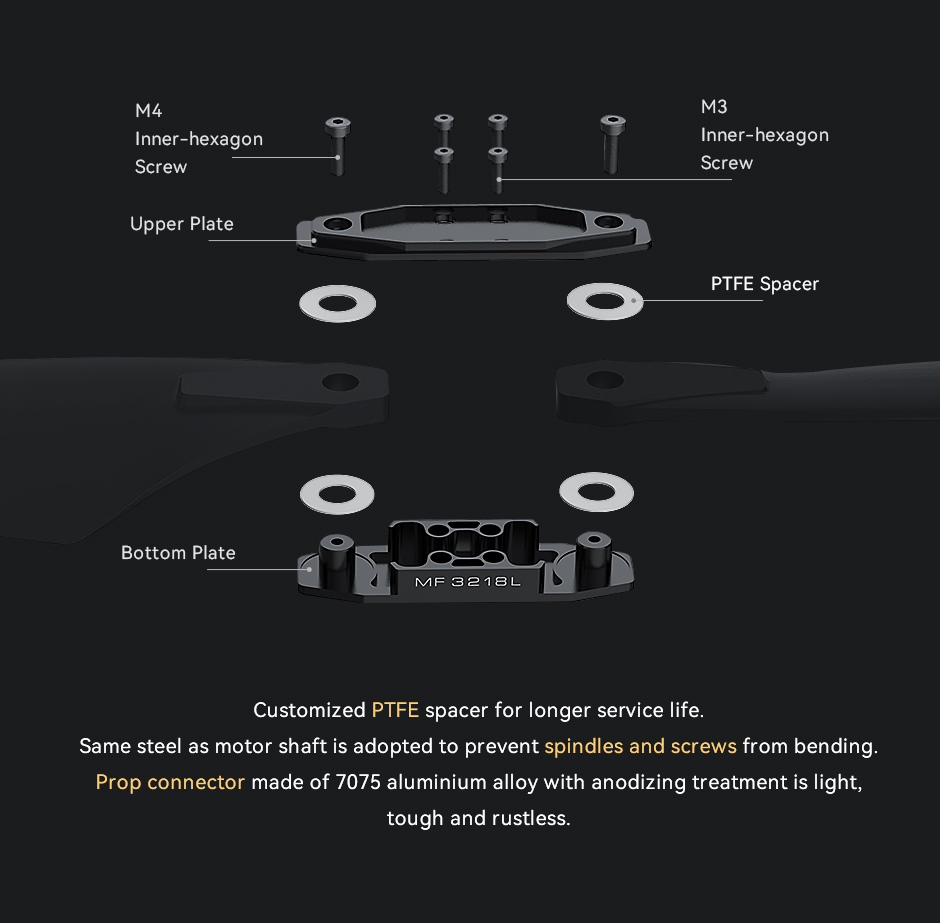

MF3218 Selection of customized and quality materials

MF3218 R&D team from optimized the magnetic circuit design of the corresponding motors and ALPHA ESCs for superb experience from control of fast response

MF3218 a 100,000--time folding test

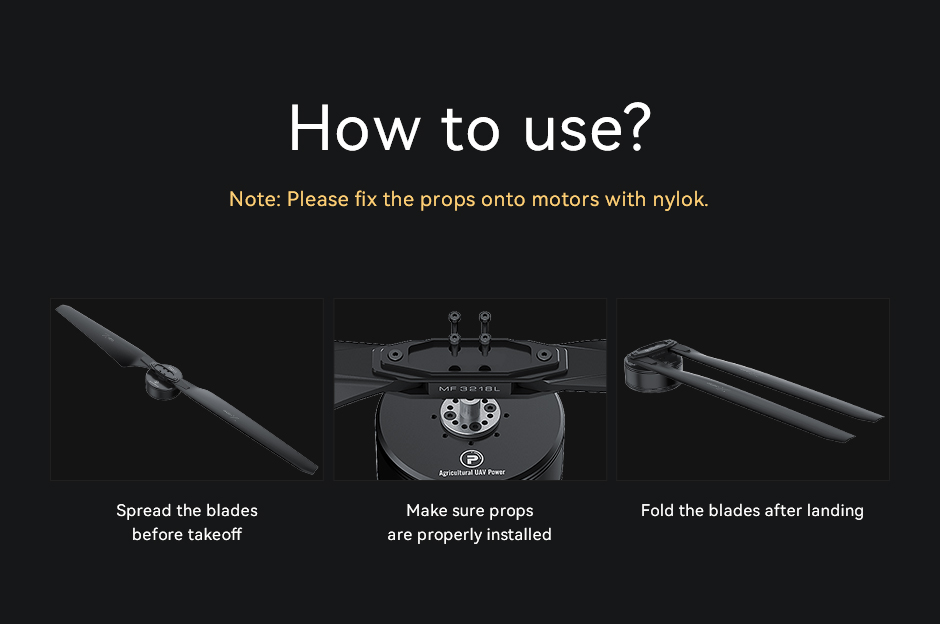

MF3218 Instructions for use

Technical Drawing


Specification
Model NO.MF3218LIGPOWER SeriesFolding
Weight(Single Blade)204gPackage Weight656g
Diameter32.4inch(823.6mm)Package Size405*158*67mm
Pitch11.6inch(293.9mm)MaterialPolymer+CF
Recommended Thrust/RPM5~10kg/2200-3000RPMRecommended Max Thrust/RPM18kg/4000RPM
Ambient Temp-40℃～65℃Storage Temp/Humidity-10℃～50℃/＜85%

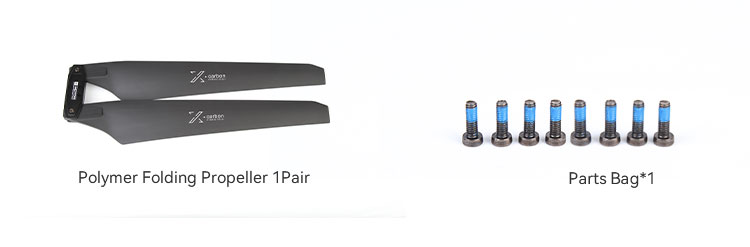

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers.

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need to replace them with good ones.

4.NEVER decompose the propellers. Decomposition of which will result in safety issues.  Do not use the propellers in hostile environments containing H2O,SO2,NO2,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4).

6.For long time storage of over 6 months, please keep it in sealed preservation.
