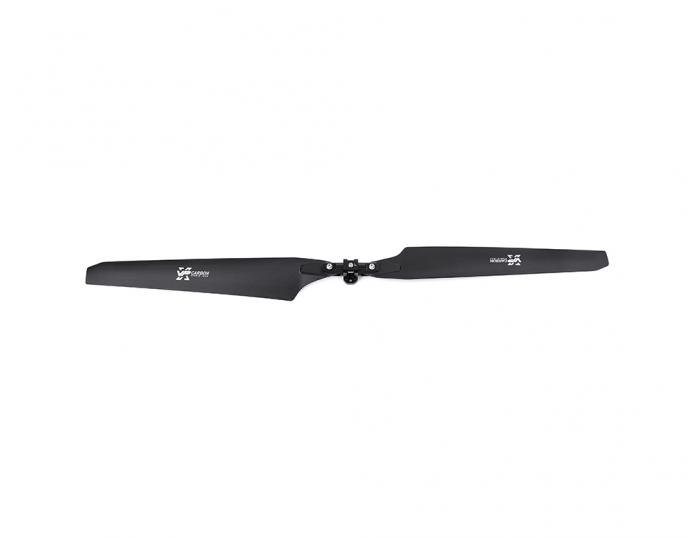

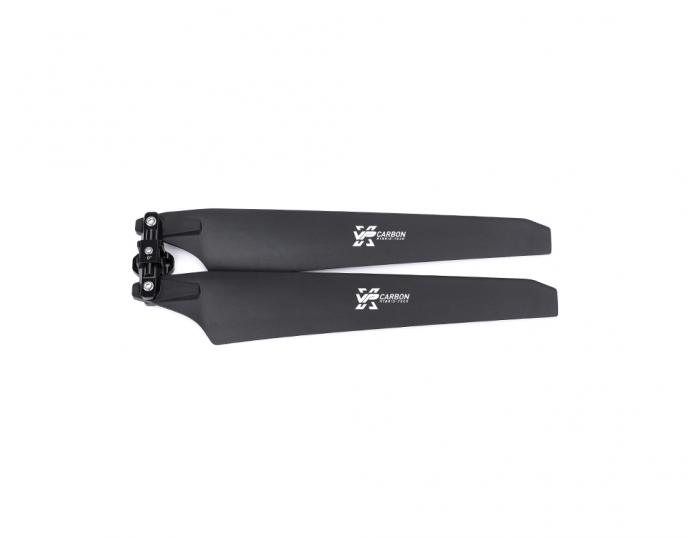

Name: MF2211VP Polymer Manual Variable Pitch Folding Propeller
Brand: LIGPOWER
SKU: LIGPOWER001394
Price: 84.90 USD
Availability: InStock

MF2211VP Polymer Manual Variable Pitch Folding Propeller

84.90

Available points: 0 Points Points reward: 84 Points

• Combined with a larger swept-back tip and downward curved winglets, It substantially enhances thrust capacity and operational efficiency.
• Reinforced propeller root for longer service life and adaptability to high pull conditions and co-axial power modes.

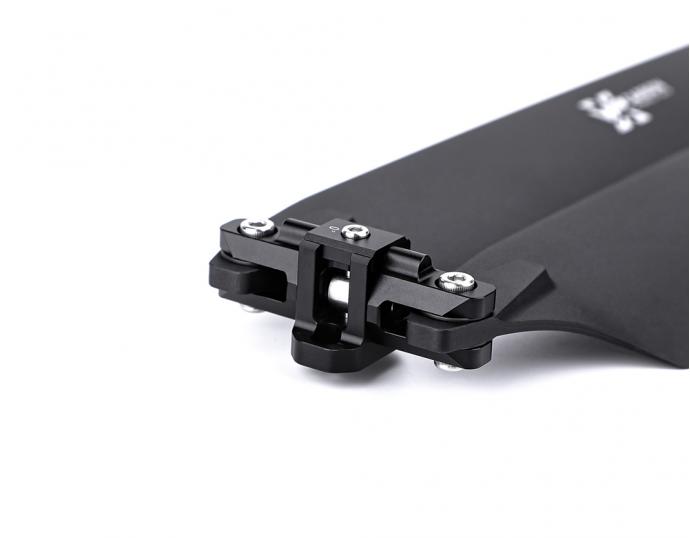

• Improved spacer design reduces rotational damping, minimizes vibration, and improves efficiency.

Quantity：

84.90

Free Shipping by DHL/UPS Express

About The MF2211VP Polymer Manual Pitch Folding Propeller

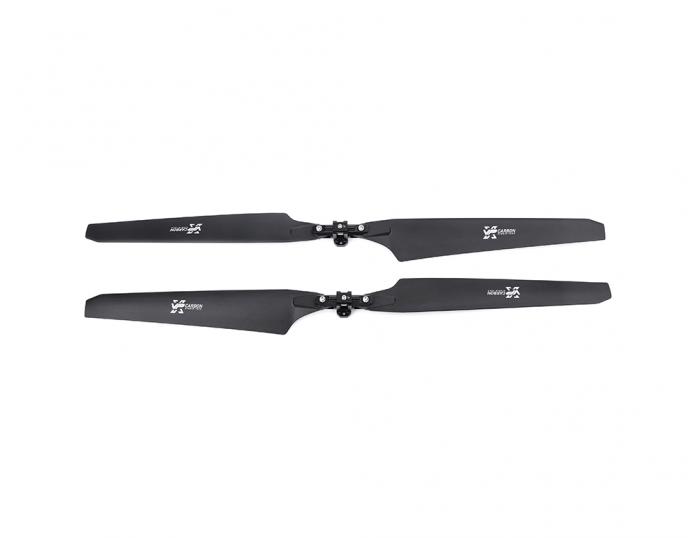

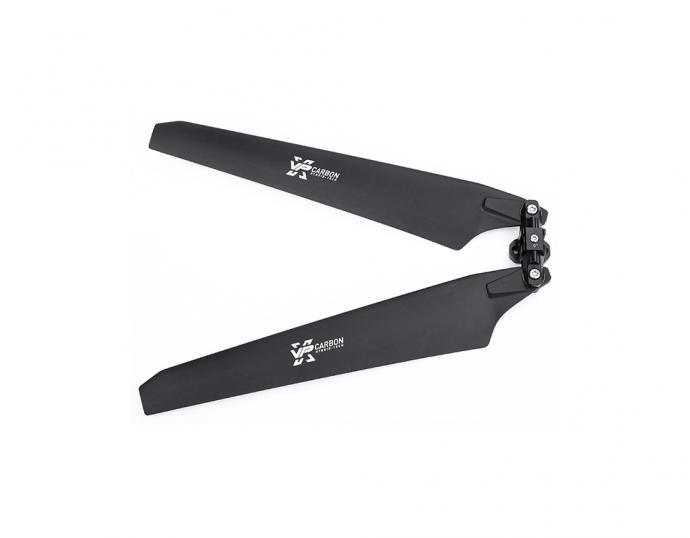

The MF2211VP is a cutting-edge 22.4*8 inch polymer manual pitch folding propeller expertly designed by LIGPOWER for multi-rotor and VTOL drones. In conciseness to traditional propeller systems, the MF2211VP is engineered to address complex and variable flight conditions and diverse power requirements. Its design facilitates manual pitch adjustment with a straightforward replacement of the positioning block, eliminating the need for additional tools. This feature enhances the efficiency of professional model development in dynamic, multi-scenario environments.

MF2211VP's Highlights:

- Its aerodynamic design enhances flight efficiency under high-speed and high-altitude conditions.

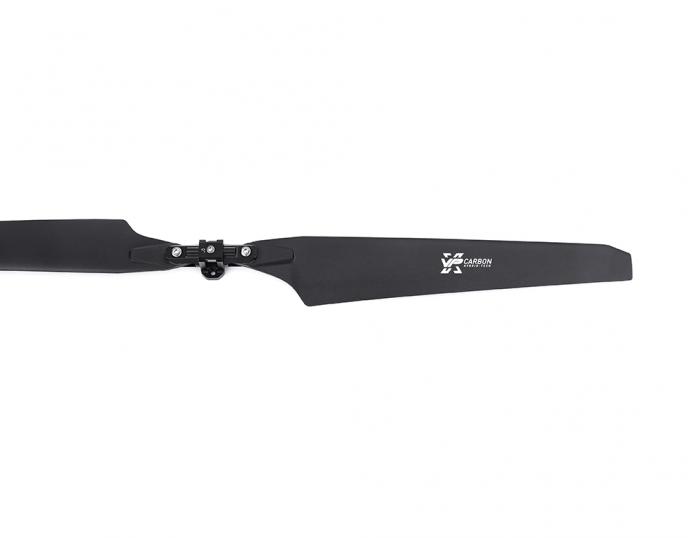

- The tip design, with its large swept back tip and downward curved winglets, optimizes tip vortex distribution, reducing energy consumption and vibration. This makes it ideal for professional users.
- The commonly used pulling force range is from 0.5 to 2.2 kilograms.
- The maximum pull force, when paired with the LIGPOWER MN4012 KV340 motor and FLAME 60A 12S V2.0 ESC, is 2.8kg at maximum throttle (with a 7.5° positioning block), and the recommended maximum pull force is 3kg.

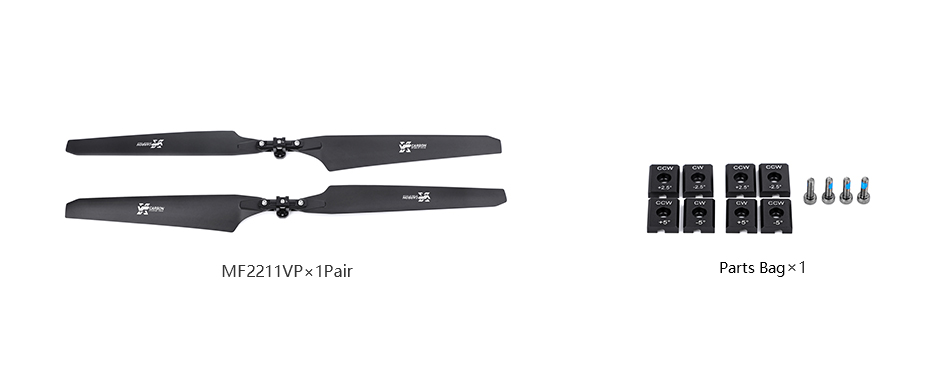

Packing List Includes:

Package size: 300*106*45mm

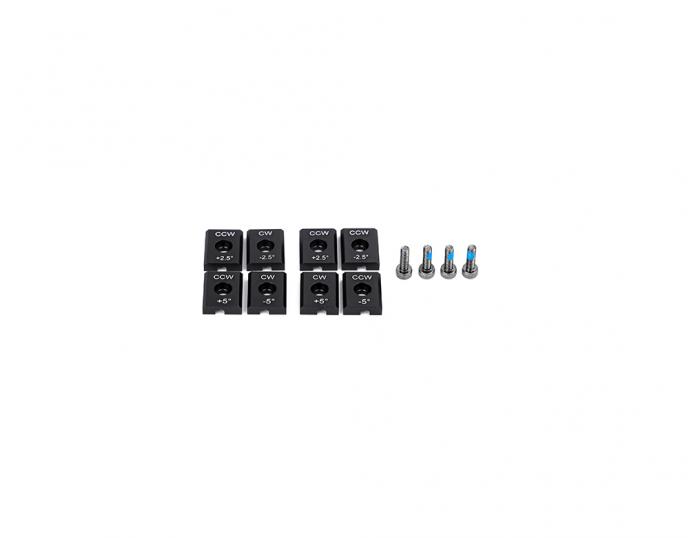

MF2211 center positioning block (+2.5°)-CCW*1
MF2211 Center Positioning Block (+2.5°)-CW*1
MF2211 Center Positioning Block (-2.5°)-CCW*1
MF2211 Center Positioning Block (-2.5°)-CW*1
MF2211 Center Positioning Block (+5°)-CCW*1
MF2211 center locating block (+5°)-CW*1
M3*10mm cup head socket head cap screws*4

MF VP SERIES PROPELLER

Manual Variable-Pitch Series

Simplicity Over Complexity, Consistency in Performance

Specially designed to address the issues of low flight efficiency at high speeds and high altitudes, this series is suitable for aircraft development and professional users requiring rapid switching across multiple scenarios.

Manual Variable-Pitch Series

Flexible and easy-to-use drone propulsion system enhances flight efficiency in various operating conditions.

Typical application scenarios include high-speed flight, high-altitude flight, adjustments for overall aircraft weight, and fine-tuning of custom propeller performance.

Limitations of Traditional Propellers: Fixed pitch and fixed aerodynamic characteristics leading to limited power and flight condition matching.

Drawbacks of the adjustable propellers available from the market: Low adjustment precision, complicated operation, requires large auxiliary tools, and cannot be quickly adjusted on-site.

LIGPOWER (New) manual adjustable variable-pitch series solution: Designed for complex and changing working conditions with diverse power demands, we provide flexible solutions that allow for quick manual pitch adjustment by simply changing the positioning blocks.

Quick Assembly and Disassembly Precise and Reliable

Quick to replace without requiring professional training—easy to learn and use. The pitch adjustment accuracy remains unaffected by manual operation errors with user-friendly operation.

Methodical Approach

Using calculation tables derived from extensive experimental data, users can quickly find the required pitch angle based on the operating scenario and simple parameters.

(7.5°, 10°, and other positioning blocks are available upon request for customization.)

Positioning Block Selection Reference Table

Performance Comparison

The efficiency curve of three positioning blocks (pitches) under different airflow speeds

(Example: MN605 KV170 + FLAME 180A 12S V2.0 + MF2211VP, Flight inclination 30°, S0, S5, S10, S15 respectively represents speed 0m/s, 5m/s, 10m/s, 15m/s, D0, D2.5, D5 respectively represents 0° positioning block, 2.5° positioning block, and 5° positioning block.)

Conclusion: As the positioning block angle (pitch) increases, the efficiency of the propeller improves at higher airflow speeds.

Multi-adaptability

The manual variable pitch propellers can not only support multi-rotor aircraft, but also effectively adapt to the needs of vertical take-off and landing aircraft, providing higher flexibility and performance to meet the requirements of different flight missions.

Multirotor

VTOL

Prototype Propellers Customization

Standard Customization

MOQ 1, with pitch angle customizable to 0.01°.

Assisted Customization

For mass production, engineers assist in determining the angle, and the customized pitch angle can be fixed before leaving the factory.

Model NO.	MF2211VP	LIGPOWER Series	Folding
Weight(Single Blade)	86.5g	Package Weight	286g
Diameter	22.4inch（568.96mm）	Package Size	30010645mm
Pitch	8inch（203.2mm）	Material	Polymer+CF
RecommendedThrust	1.5~5kg	Recommended Max Thrust	12kg
Ambient Temp	-40℃～65℃	StorageTemp/Humidity	-10℃～50℃/＜85%

Recommendation
Recommended ESC	FLAME 60A 12S V2.0/FLAME 180A 12S V2.0	Recommended Motor	MN605 KV170

Type	Throttle	Voltage (V)	Thrust (g)	Torque (N*m)	Current (A)	RPM	Power (W)	Effciency (g / W)	Operating Temperature (℃)
MN605 KV170 + FLAME 60A 12S V2.0 + MF2211VP (0°)	10%	48	482	0.15	0.81	1397	22	12.44	77 （Motor temperature after 3 minutes of operation） (Ambient Temperature:25℃)
	15%	48	748	0.22	1.30	1712	39	12.02
	20%	48	1043	0.30	1.90	1989	62	11.45
	25%	48	1378	0.38	2.65	2262	90	10.86
	30%	48	1763	0.49	3.58	2544	131	10.28
	35%	48	2266	0.62	5.00	2869	186	9.47
	40%	48	2891	0.78	7.04	3239	265	8.59
	45%	48	3402	0.92	9.09	3512	338	7.84
	50%	48	3961	1.06	10.95	3791	421	7.59
	55%	48	4554	1.21	13.33	4052	513	7.17
	60%	48	5101	1.35	15.59	4290	606	6.88
	65%	47	5670	1.49	18.28	4514	704	6.53
	70%	47	6260	1.65	21.27	4764	823	6.21
	75%	47	6885	1.81	24.48	4993	946	5.94
	80%	47	7495	1.97	27.82	5220	1077	5.70
	85%	47	8181	2.14	31.64	5443	1220	5.48
	90%	47	8813	2.30	35.56	5661	1363	5.27
	95%	47	9474	2.47	39.90	5862	1516	5.06
	100%	47	10479	2.73	47.12	6185	1768	4.76
MN605 KV170 + FLAME 60A 12S V2.0 + MF2211VP (+2.5°)	10%	48	563	0.17	0.85	1343	24	13.89	122 （Motor temperature after 3 minutes of operation） (Ambient Temperature:25℃)
	15%	48	875	0.27	1.45	1662	47	12.61
	20%	48	1231	0.37	2.18	1950	76	11.80
	25%	48	1618	0.48	3.13	2224	112	10.80
	30%	48	2065	0.61	4.30	2498	160	10.04
	35%	48	2598	0.76	5.96	2804	223	9.12
	40%	48	3371	0.98	8.64	3185	327	8.17
	45%	48	3906	1.14	10.74	3424	409	7.63
	50%	48	4565	1.33	13.36	3681	513	7.17
	55%	48	5211	1.51	16.35	3926	621	6.70
	60%	47	5849	1.70	19.54	4160	741	6.30
	65%	47	6413	1.86	22.41	4352	848	6.04
	70%	47	7101	2.05	26.07	4595	986	5.76
	75%	47	7740	2.24	29.97	4788	1123	5.47
	80%	47	8444	2.44	34.28	4986	1274	5.23
	85%	47	9163	2.64	38.94	5179	1432	5.01
	90%	47	9840	2.84	44.00	5366	1596	4.78
	95%	47	10553	3.05	49.46	5551	1773	4.57
	100%	46	11590	3.35	58.25	5797	2034	4.29
MN605 KV170 + FLAME 60A 12S V2.0 + MF2211VP (+5°)	10%	48	606	0.20	0.88	1306	27	14.28	103 （Motor temperature after 1 minutes of operation） (Ambient Temperature:25℃) （There is a risk of burnout）
	15%	48	954	0.31	1.57	1620	53	12.67
	20%	48	1349	0.44	2.45	1908	88	11.47
	25%	48	1782	0.57	3.57	2178	130	10.41
	30%	48	2283	0.73	4.99	2446	187	9.56
	35%	48	2872	0.91	6.94	2735	261	8.65
	40%	48	3502	1.11	9.29	3021	351	7.89
	45%	48	4264	1.36	12.58	3331	474	7.11
	50%	48	4933	1.57	15.73	3575	588	6.59
	55%	48	5606	1.79	19.15	3803	713	6.16
	60%	47	6251	2.00	22.69	4018	842	5.81
	65%	47	6940	2.22	26.84	4224	982	5.47
	70%	47	7539	2.41	30.67	4402	1111	5.21
	75%	47	8237	2.63	35.23	4598	1266	4.97
	80%	47	8939	2.86	40.55	4768	1428	4.70
	85%	47	9586	3.07	45.76	4925	1583	4.48
	90%	47	10229	3.29	51.65	5082	1751	4.25
	95%	46	10951	3.53	61.90	5246	1939	3.82
	100%	46	11680	3.77	72.77	5405	2134	3.49
MN605 KV170 + FLAME 60A 12S V2.0 + MF2211VP (+7.5°)	10%	48	655	0.24	0.98	1268	32	13.91	92 （Motor temperature after 30 Second of operation） (Ambient Temperature:25℃) （There is a risk of burnout）
	15%	48	1036	0.37	1.79	1582	61	12.06
	20%	48	1464	0.53	2.84	1865	104	10.74
	25%	48	1941	0.69	4.20	2132	154	9.65
	30%	48	2454	0.87	5.84	2394	218	8.78
	35%	48	3060	1.08	8.05	2664	301	7.96
	40%	48	3731	1.32	10.82	2930	405	7.22
	45%	48	4508	1.60	14.56	3216	539	6.51
	50%	48	5191	1.85	18.39	3453	669	5.94
	55%	47	5845	2.08	22.23	3658	797	5.55
	60%	47	6500	2.32	26.43	3851	936	5.20
	65%	47	7148	2.56	31.07	4033	1081	4.88
	70%	47	7766	2.79	36.01	4208	1230	4.59
	75%	47	8413	3.01	40.94	4356	1373	4.38
	80%	47	9022	3.24	46.93	4502	1527	4.12
	85%	46	9589	3.45	56.90	4625	1671	3.63
	90%	46	9962	3.60	63.40	4713	1777	3.40
	95%	46	10268	3.72	70.29	4784	1864	3.17
	100%	46	10709	3.89	81.39	4878	1987	2.88
MN605 KV170 + FLAME 60A 12S V2.0 + MF2211VP (+10°)	10%	48	660	0.28	1.08	1238	36	12.75	102 （Motor temperature after 20 Second of operation） (Ambient Temperature:25℃) （This angle is not recommended for static testing）
	15%	48	1074	0.43	2.00	1569	71	11.19
	20%	48	1502	0.60	3.18	1846	116	9.87
	25%	48	1992	0.78	4.73	2114	173	8.80
	30%	48	2533	0.99	6.62	2371	246	8.00
	35%	48	3142	1.23	9.10	2632	339	7.24
	40%	48	3781	1.50	12.14	2887	454	6.54
	45%	48	4583	1.83	16.75	3174	608	5.76
	50%	47	5220	2.09	20.71	3387	741	5.32
	55%	47	5824	2.35	24.98	3578	881	4.93
	60%	47	6448	2.61	29.68	3754	1026	4.61
	65%	47	7033	2.86	34.82	3925	1176	4.30
	70%	47	7574	3.11	40.33	4069	1325	4.01
	75%	47	8104	3.33	46.42	4206	1467	3.74
	80%	46	8475	3.51	56.10	4293	1578	3.25
MN605 KV170 + FLAME 60A 12S V2.0 + MF2211VP (-2.5°)	10%	48	455	0.12	0.78	1463	18	12.16	57 （Motor temperature after 3 minutes of operation） (Ambient Temperature:25℃)
	15%	48	680	0.18	1.16	1775	33	12.27
	20%	48	923	0.24	1.67	2071	52	11.52
	25%	48	1182	0.30	2.25	2332	73	10.95
	30%	48	1478	0.37	2.93	2612	101	10.51
	35%	48	1863	0.47	3.98	2939	145	9.78
	40%	48	2350	0.58	5.45	3321	202	9.01
	45%	48	2756	0.68	6.75	3617	258	8.55
	50%	48	3181	0.77	8.28	3906	315	8.04
	55%	48	3658	0.88	10.03	4191	386	7.64
	60%	48	4068	0.97	11.70	4433	450	7.29
	65%	48	4542	1.08	13.54	4697	531	7.04
	70%	48	5011	1.19	15.68	4967	619	6.71
	75%	48	5476	1.29	17.87	5221	705	6.45
	80%	47	5927	1.40	20.17	5483	804	6.19
	85%	47	6384	1.49	22.65	5739	896	5.94
	90%	47	6905	1.61	25.70	6033	1017	5.68
	95%	47	7360	1.70	28.33	6290	1120	5.50
	100%	47	7985	1.83	32.29	6668	1278	5.25
Note:Motortemperatureisthebelltemperatureat80%throttle. （Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.）
