MF1806-2PCS/PAIR

44.90

Available points: 2000 Points Points reward: 44 Points

• Polymer propellers are not recommended for coaxial setups
• Prop Strength X2
• Ultimate durability, longer life time
• Energy-Snubber

44.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

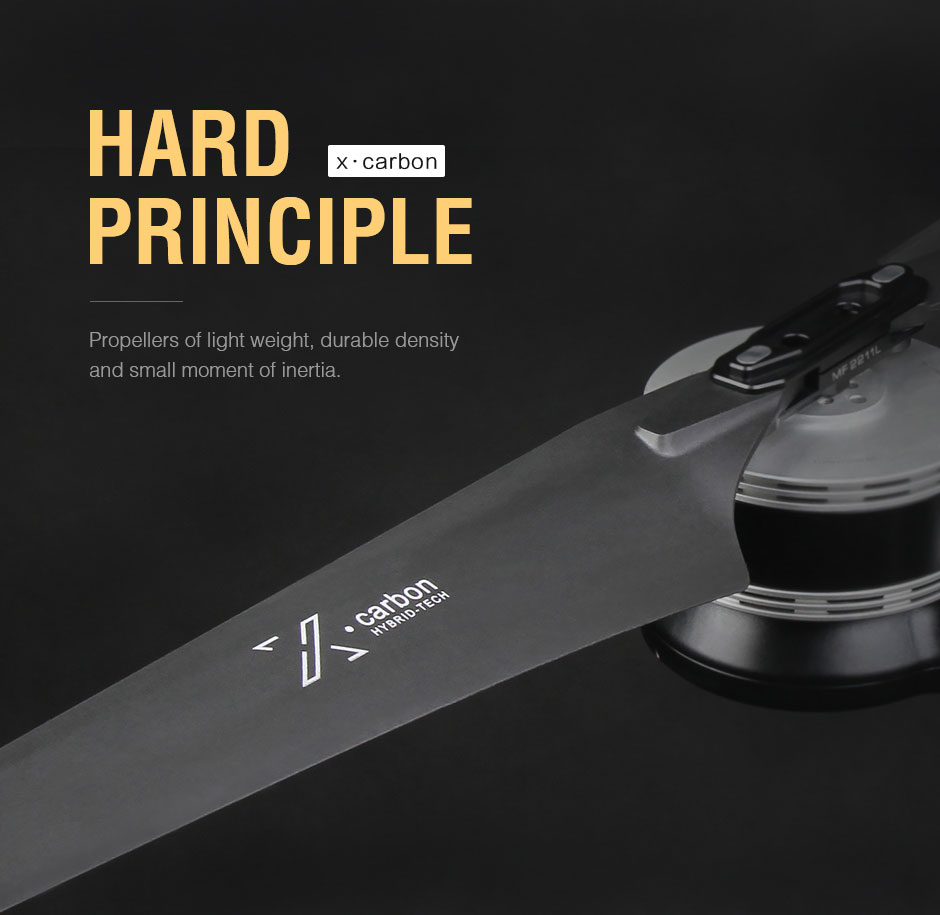

MF1806 Propellers with lightweight design, enhanced strength, and reduced moment of inertia

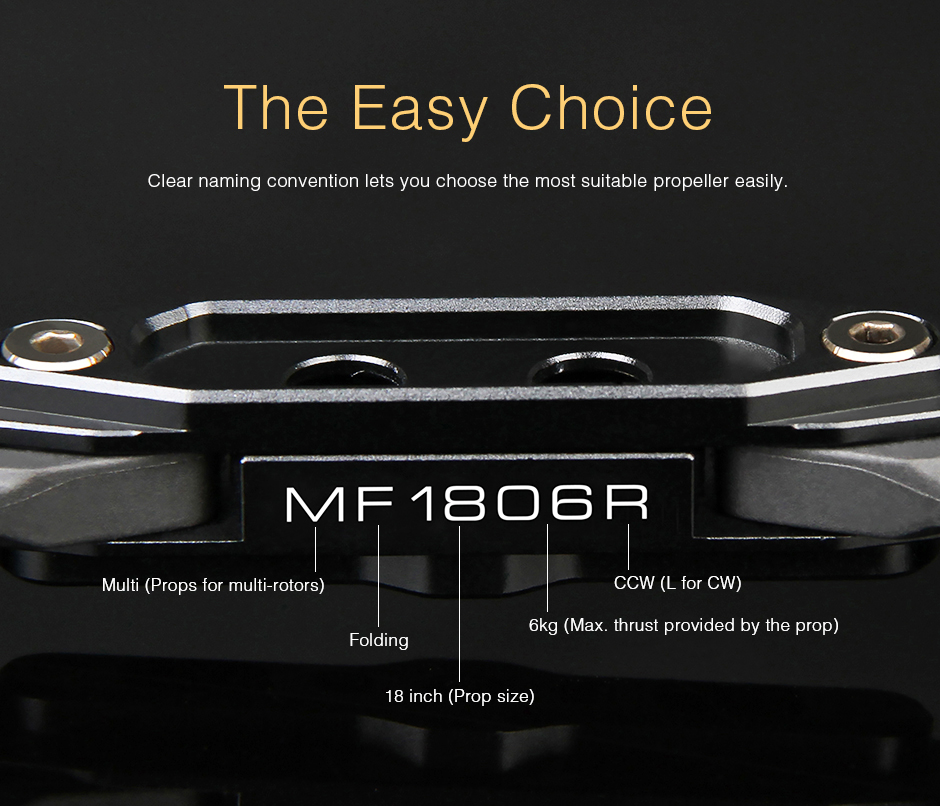

MF1806 Quick identification of propeller parameters based on naming convention

MF1806 Prop surface 1.5x more durable, 3.5% lighter, 2x stronger

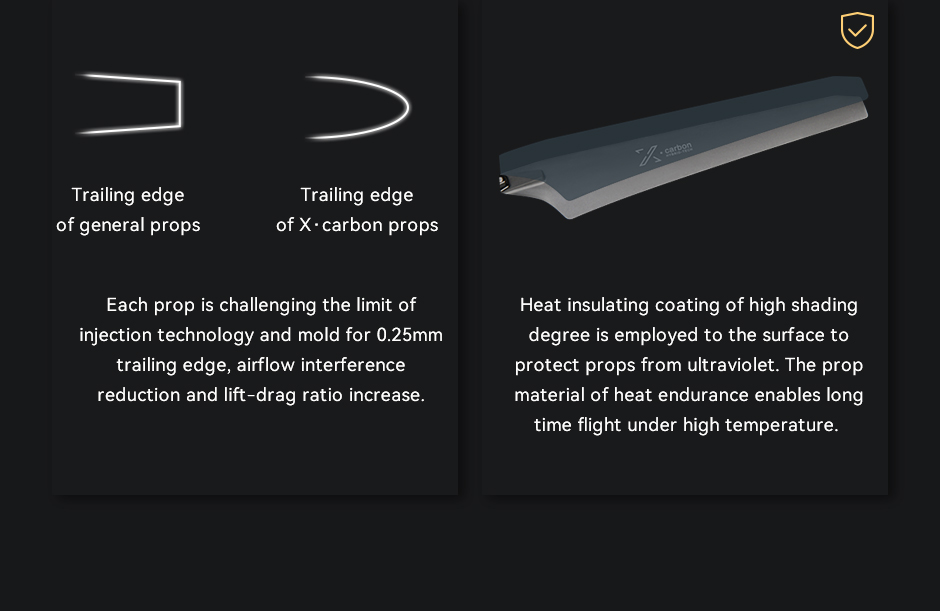

MF1806 Propeller with 0.25mm trailing edge, heat-insulating coating for long-time flight under high temperatures

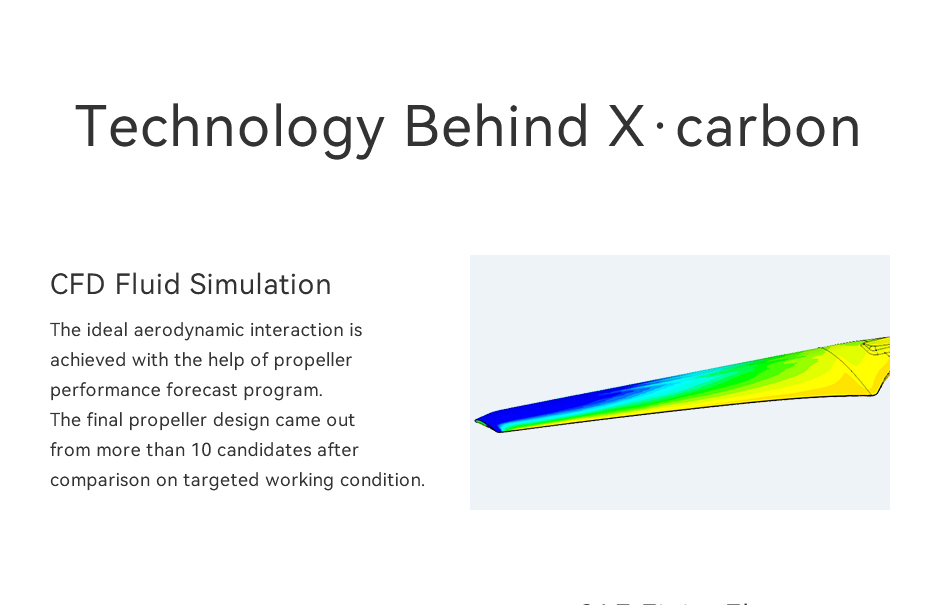

MF1806 Optimized aerodynamic performance through CFD fluid simulation

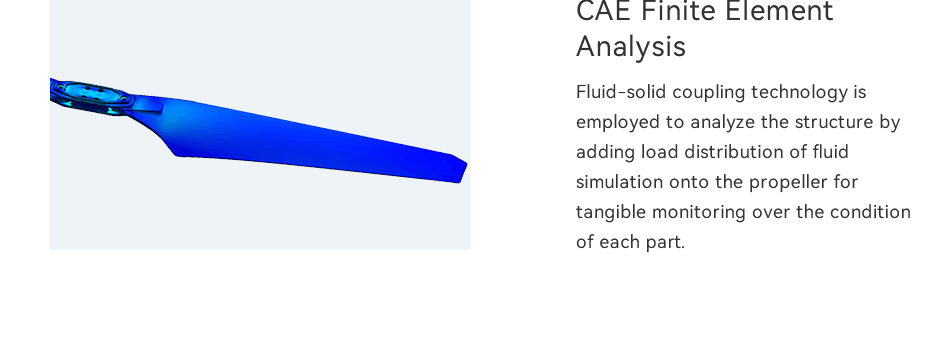

MF1806 Structural strength enhanced by CAE finite element analysis

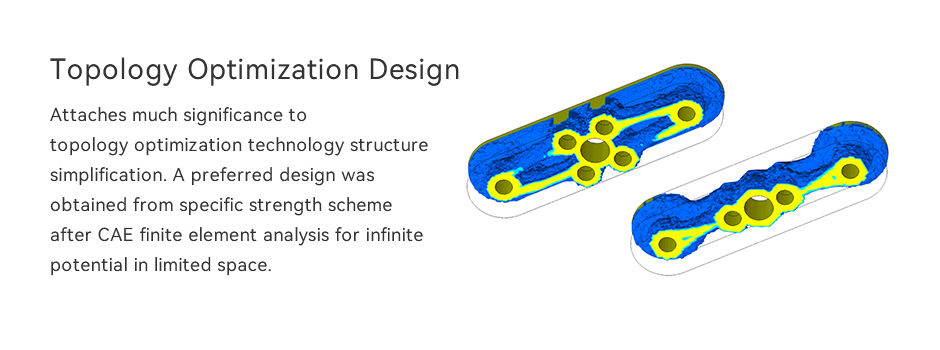

MF1806 Topology-optimized design for improved performance and stability

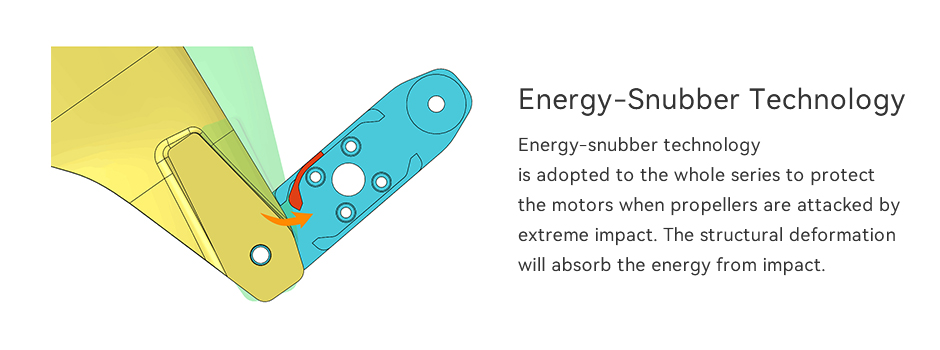

MF1806 EnergySnubber technology for improved energy efficiency

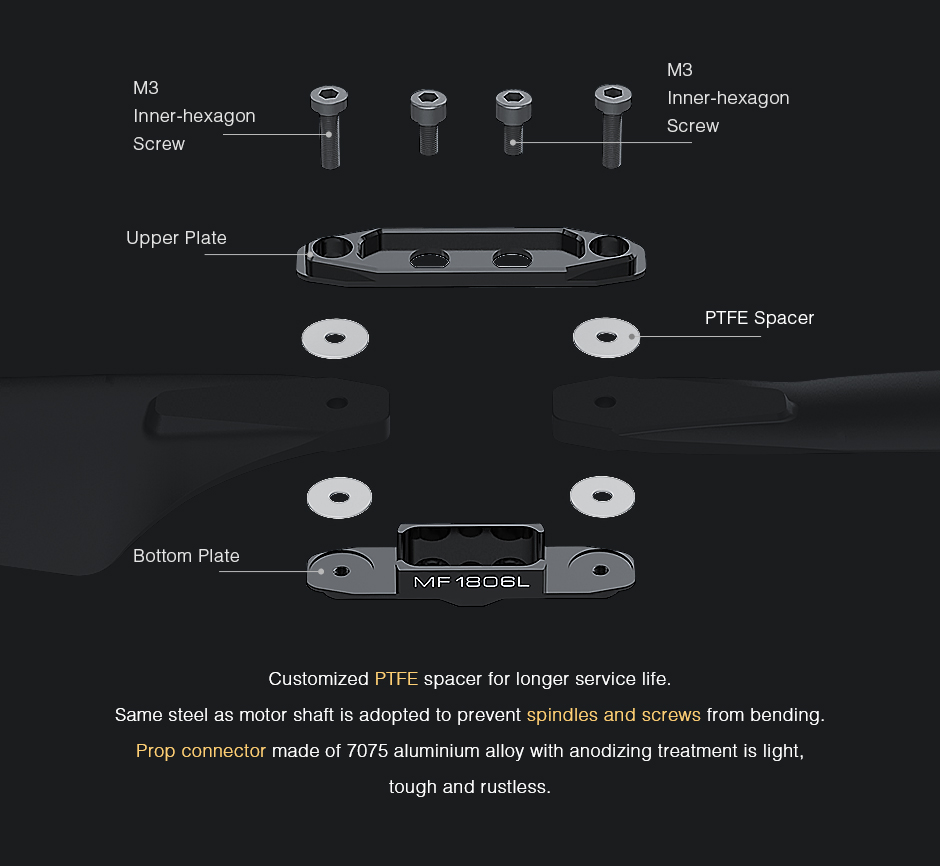

MF1806 Selection of high-quality customized materials for durability

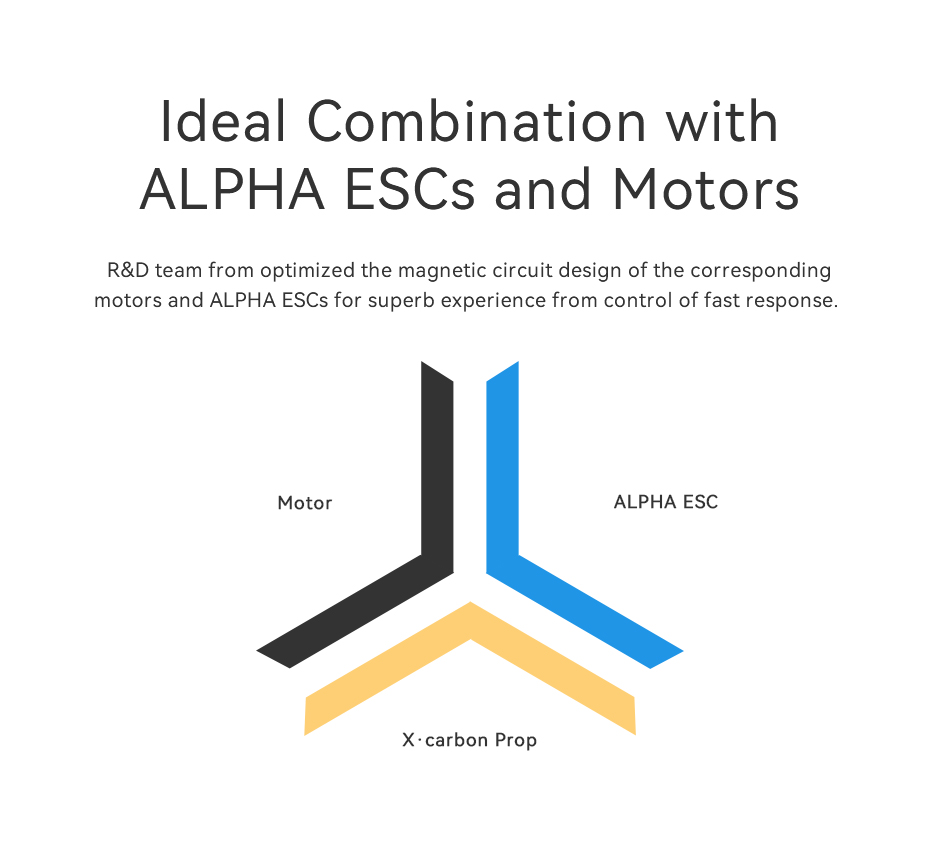

MF1806 Optimized motor magnetic circuit design for improved propeller compatibility

MF1806 Folding mechanism tested for 100,000 cycles to ensure durability

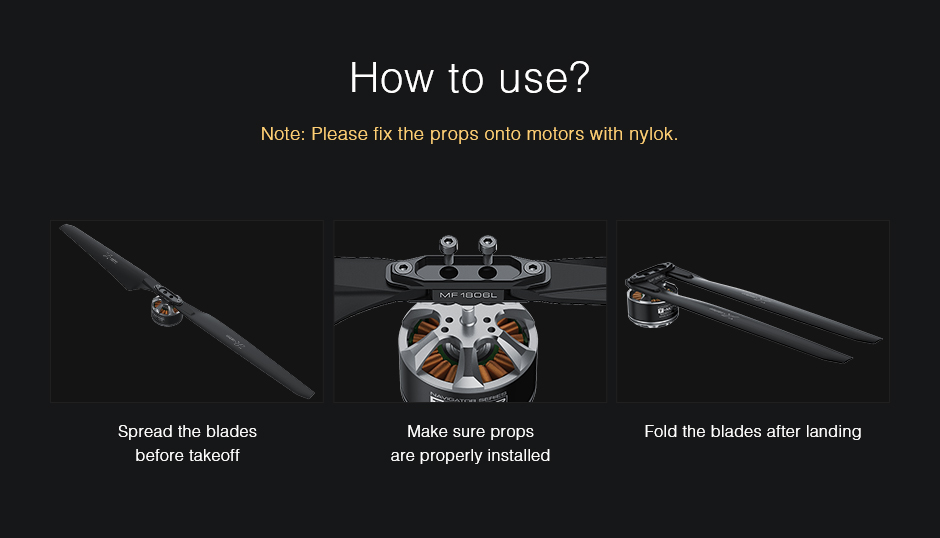

MF1806 User manual for easy guidance

Technical Drawing


Specification
Model NO.MF1806LIGPOWER SeriesFolding
Weight(Single Blade)37gPackage Weight130g
Diameter18.4inch(465.6mm)Package Size207*82*36mm
Pitch6.6inch(166.9mm)MaterialPolymer+CF
Recommended Thrust/RPM1～1.8kg/3200～4200RPMRecommended Max Thrust/RPM4kg/8000RPM
Ambient Temp-40℃～65℃Storage Temp/Humidity-10℃～50℃/＜85%

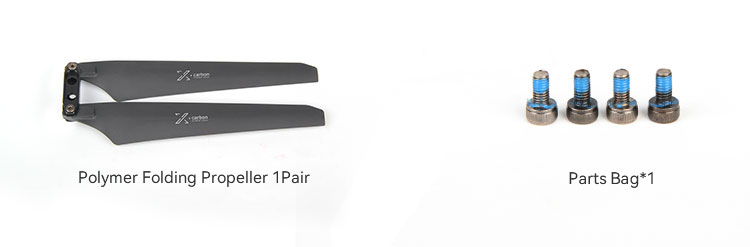

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers.

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need to replace them with good ones.

4.NEVER decompose the propellers. Decomposition of which will result in safety issues.  Do not use the propellers in hostile environments containing H2O,SO2,NO2,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4).

6.For long time storage of over 6 months, please keep it in sealed preservation.
