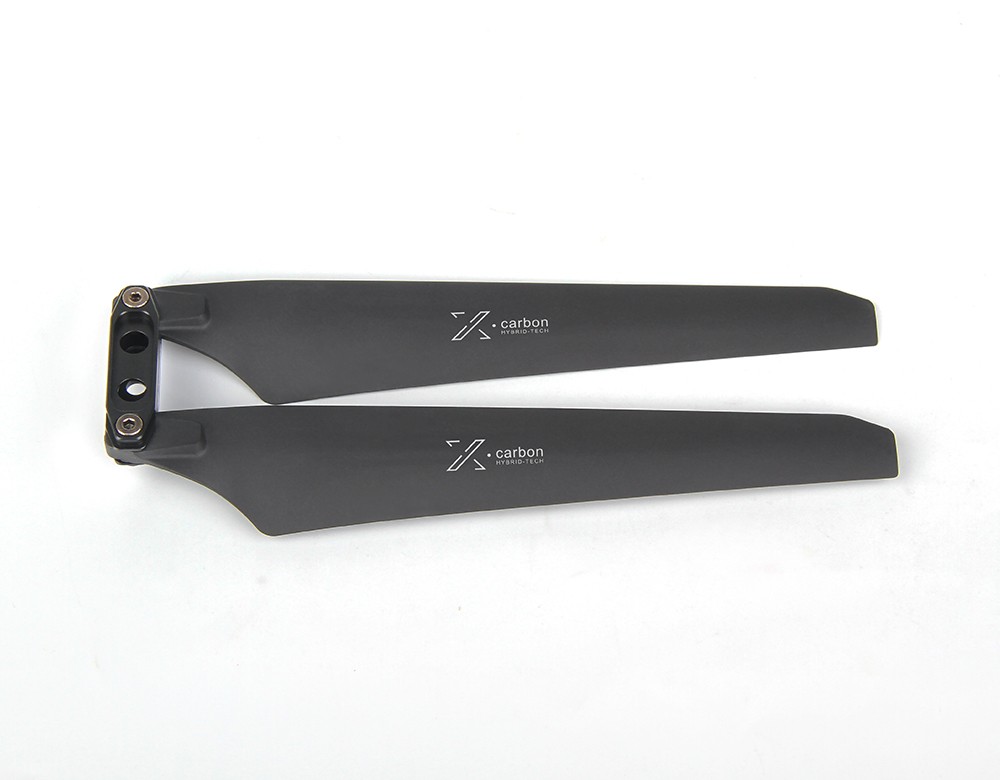

MF1302-2PCS/PAIR

29.90

Available points: 1400 Points Points reward: 29 Points

• Prop Strength X2
• Ultimate durability, longer life time
• Energy-Snubber

• Caution: Polymer props for coaxial configuration are under testing. Please DO NOT run polymer props on coaxial frames

29.90

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

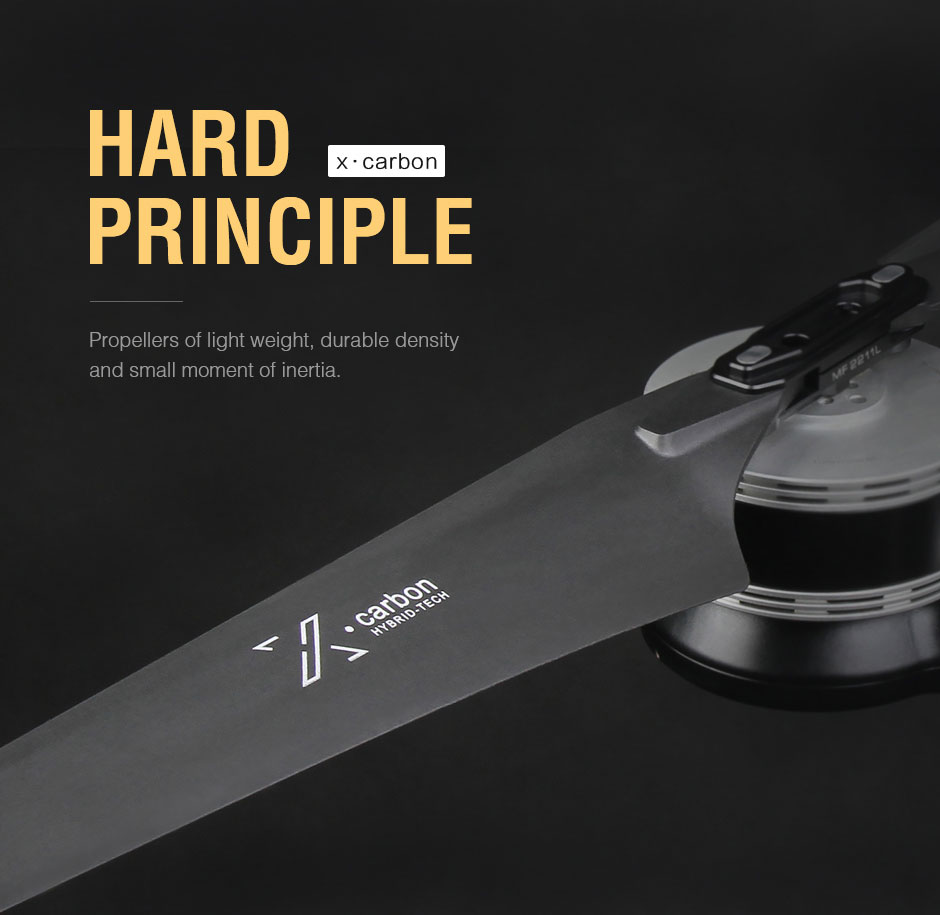

propellers of light weight,durable density and small moment of inertia

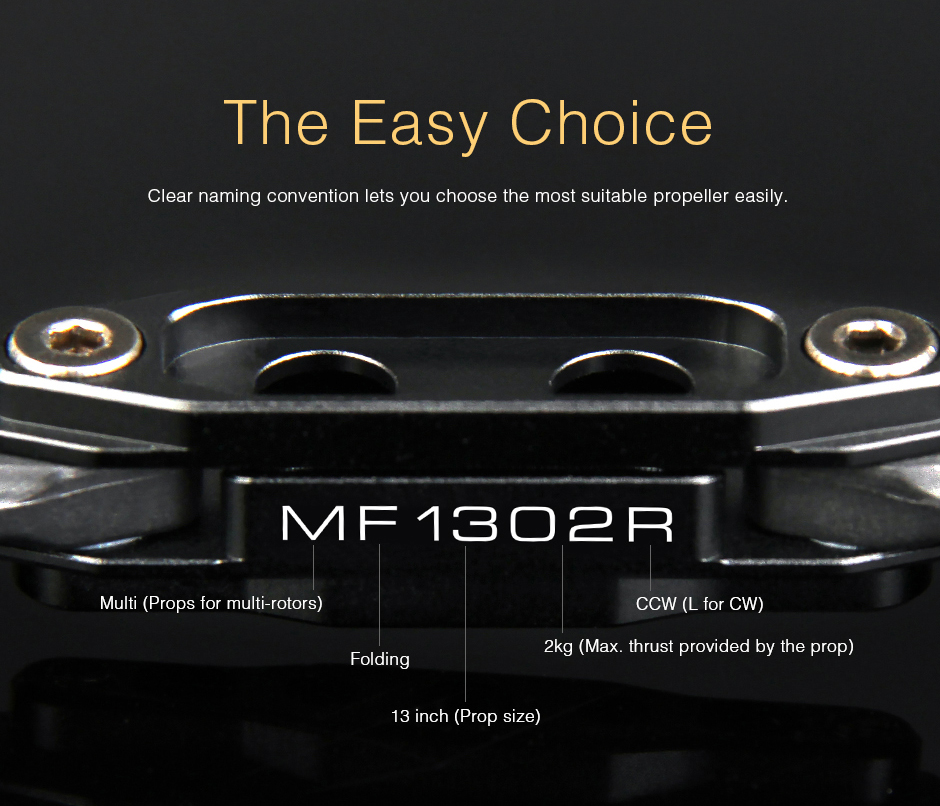

Confirmation of propeller parameters based on naming

abrasion resistance of prop surface raise 1.5 times,material density density by 3.5%,prop strength raise 1.5 times

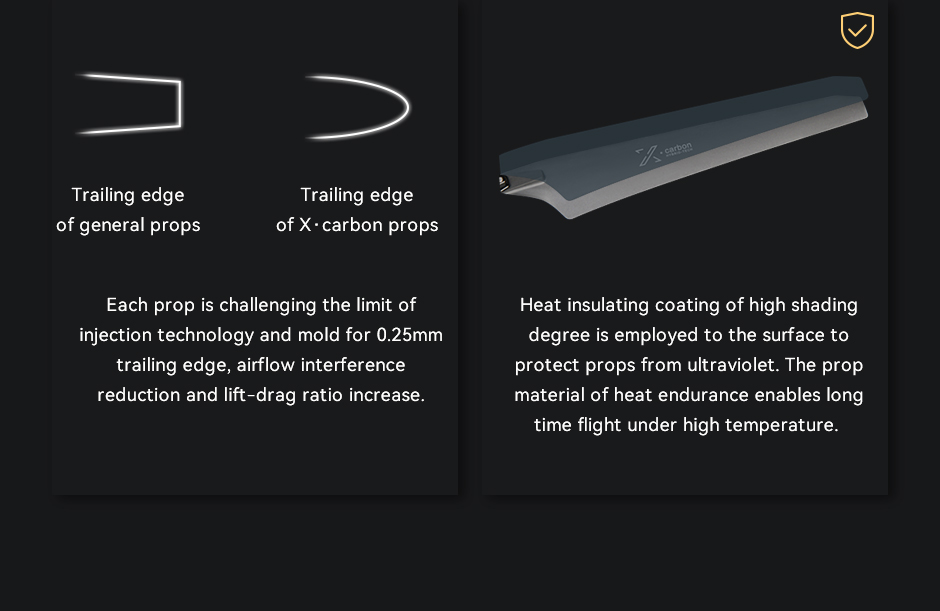

each prop for 0.25mm trailing edge,airfloow interference reduction and lift-drag ratio increase,Heat insulating coating of high shading,long time flight under high temperature.

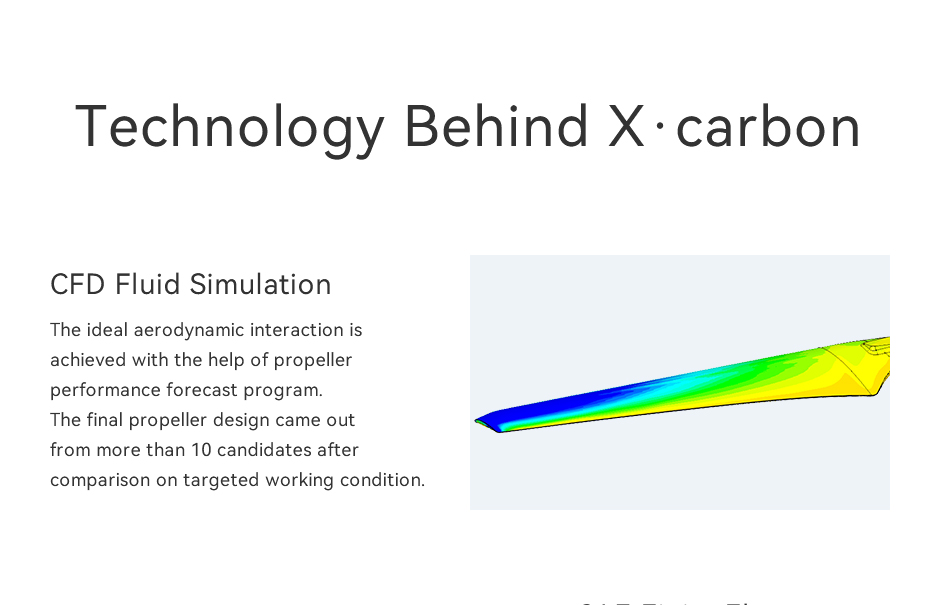

CFD fluid simulation

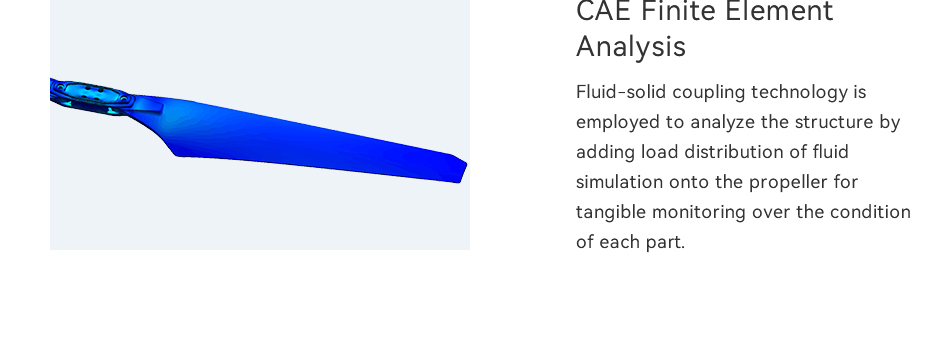

CAE finite element analysis

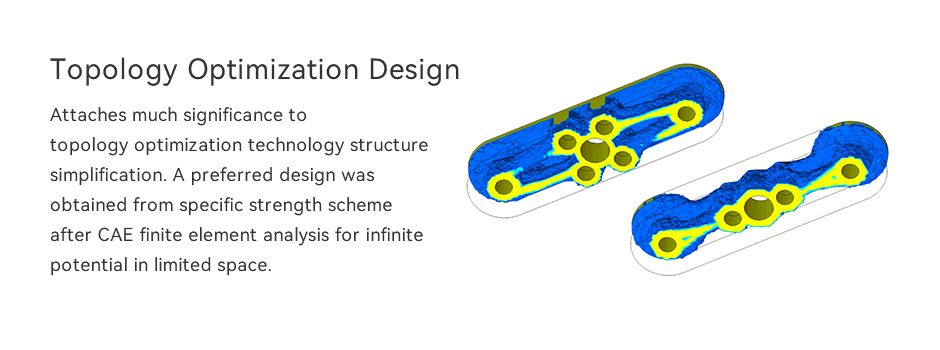

Topology optimizationo design

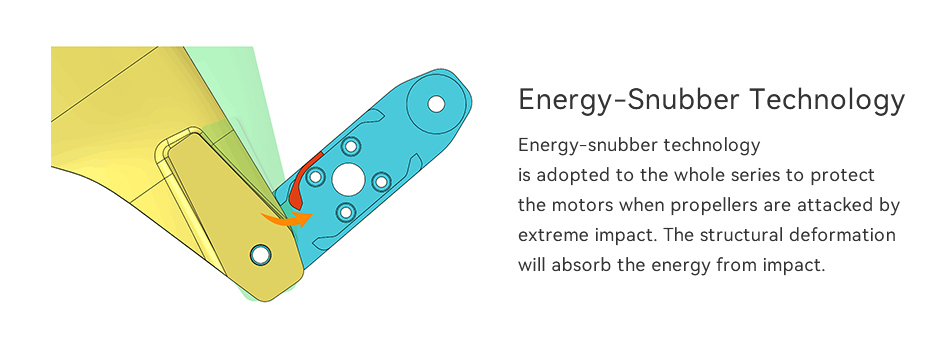

energy-snubber technology

Selection of customized and quality materials

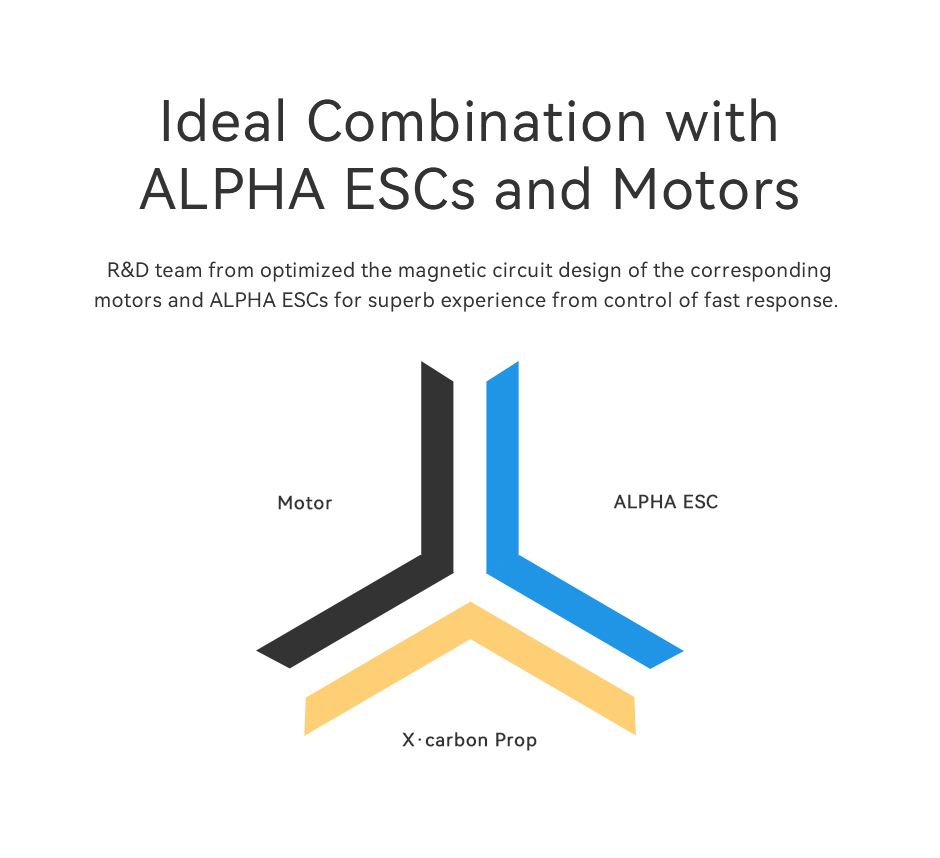

R&D team from optimized the magnetic circuit design of the corresponding motors and ALPHA ESCs for superb experience from control of fast response

a 100,000--time folding test

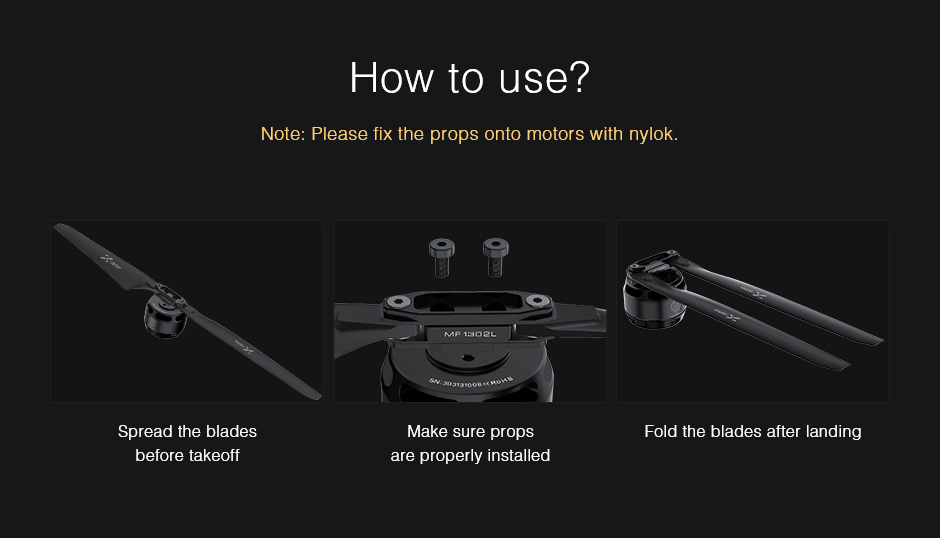

Instructions for use

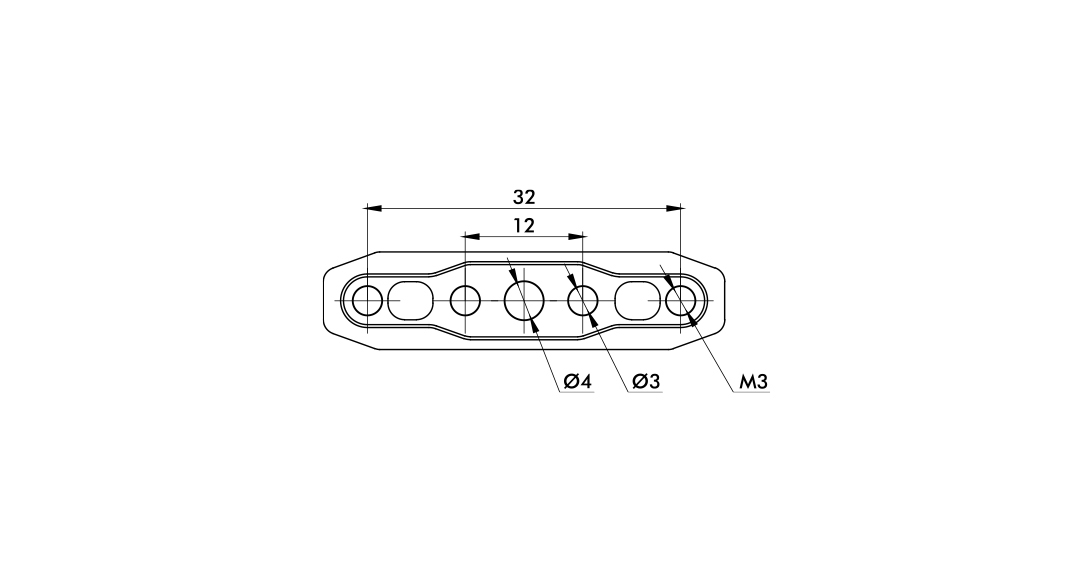

Technical Drawing


Specification
Model NO.MF1302LIGPOWER SeriesFolding
Weight(Single Blade)17gPackage Weight656g
Diameter13.4inch(339.8mm)Package Size405*158*67mm
Pitch4.8дюймa(121.6mm)MaterialPolymer+CF
Recommended Thrust/RPM5~10kg/2200-3000RPMRecommended Max Thrust/RPM18kg/4000RPM
Ambient Temp-40℃～65℃Storage Temp/Humidity-10℃～50℃/＜85%
Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Please make sure that screws of cover plates are mounted well.

2.Do not add force onto the propellers.

3.Fall-off or experience equivalent impact to propellers will lead to deformation or cracks. In this case, you will need to replace them with good ones.

4.NEVER decompose the propellers. Decomposition of which will result in safety issues.  Do not use the propellers in hostile environments containing H2O,SO2,NO2,Cl2,organosilicon,cyanogroup and phenol.

5.Keep the propellers away from the mentioned environments in (4).

6.For long time storage of over 6 months, please keep it in sealed preservation.
