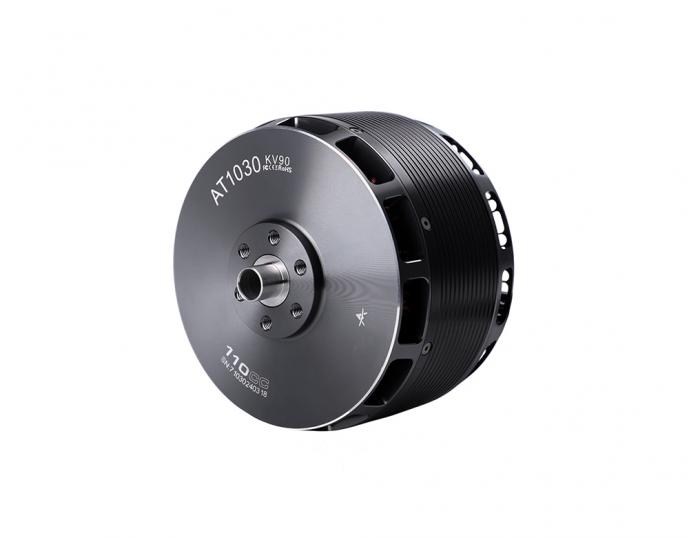

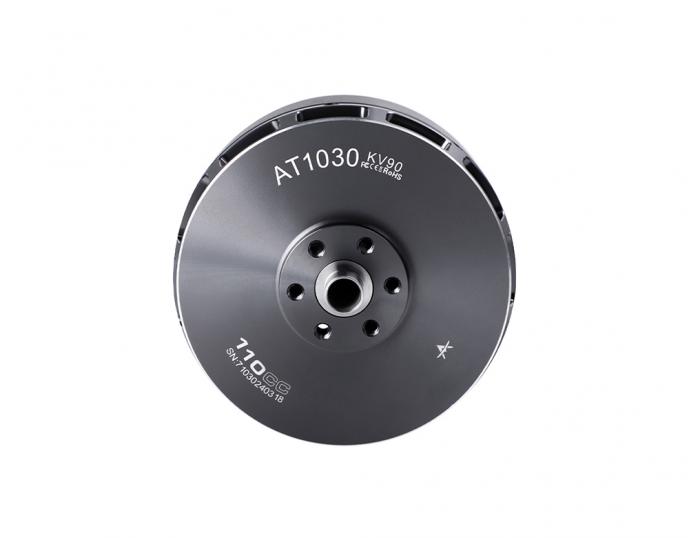

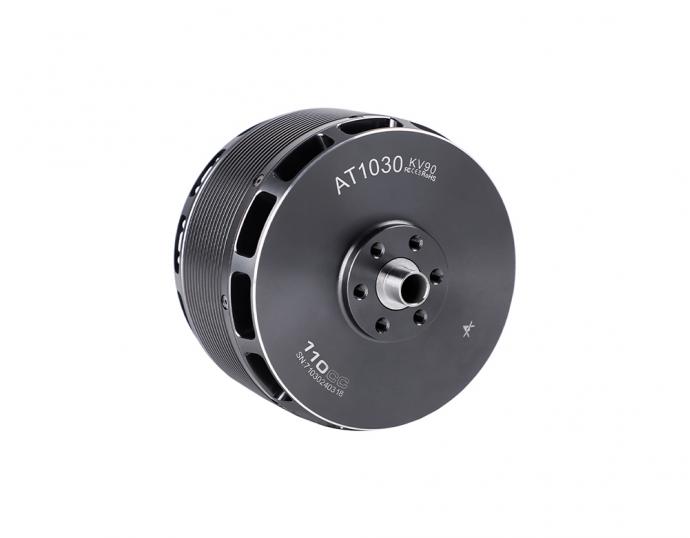

AT1030 Motors with 28kg Thrust for Heavy-lift Fixed Wing Drones

599.00

Available points: 0 Points Points reward: 599 Points

Quantity：

599.00

Free Shipping by DHL/UPS Express

Relevant Products
  • Detail information
  • Specifications

About AT1030 Motors with 28kg Thrust for Heavy-lift Fixed Wing Drones
The LIGPOWER AT1030 fixed-wing motor is engineered to replace traditional 110CC gas engines, delivering superior electric propulsion for heavy-lift drones. With a max continuous power of 4000W and 28kg of max thrust, this motor ensures unmatched performance for UAVs with takeoff weights of 55-60kg. Designed for reliability and safety, it integrates cutting-edge thermal management and real-time monitoring for seamless operation.


Key Features:

  • 110CC Engine Alternative: Perfect for transitioning from gas to electric propulsion.

  • Max Thrust & Power: 28kg thrust and 4000W continuous power for heavy-duty applications.

  • 24S Compatibility: Pairs with Thunder 200A 12-24S ESC and 26x12" propellers for optimal efficiency.

  • Real-Time Monitoring: Magnetic encoder compatibility ensures safe RPM tracking.

  • Removable Propeller Hubs: Supports fixed-wing, folding, and multi-prop setups.

  • Advanced Cooling: Bottom-mounted heatsink extends motor lifespan even under high loads.


Technical Specifications

  • KV Rating: 90 | Rated Voltage: 24S LiPo

  • Max Current: 93A | Idle Current (15V): 3.6A

  • Stator Technology: 150°C high-temp resistant coatings

  • Shaft Diameter: 15mm (in) / 12mm (out)

  • Weight: 1800g (incl. cables) | Dimensions: Φ110.6x99.8mm


Why Choose the AT1030?

  • Precision Engineering: 24N28P configuration and dynamic balance ≤30mg ensure smooth, vibration-free operation.

  • Durability: 6902/6202ZZ bearings and 220°C-rated enameled wires withstand extreme conditions.

  • Versatile Applications: Ideal for agricultural drones, cargo UAVs, and industrial fixed-wing platforms.

  • Optimized for Safety & Longevity：The AT1030’s 1000V pressure-resistant coils and real-time speed monitoring prevent overheating and motor failure, making it a reliable choice for mission-critical flights. Its lightweight design and efficient heat dissipation reduce energy waste while maximizing flight time.


Package Includes:

AT1030 KV90 Motor*1

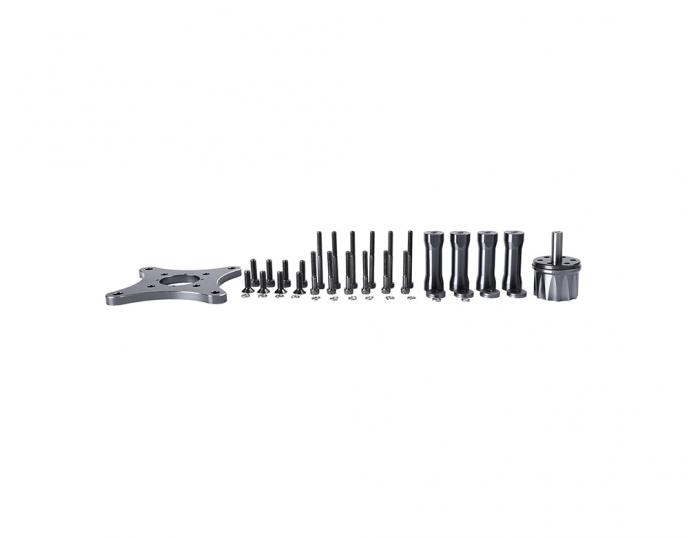

Accessory kit*1
Package size: 246x162x139mm


Upgrade Your Drone Today
Experience the power, precision, and reliability of the AT1030 fixed-wing motor – engineered for professionals who demand peak performance.

AT1030

AT1030 FIXED WING
MOTOR

Ideal alternative to a 110CC engine

AT1030+propeller 26*12+takeoff weight 55-60kg+esc thunder 200a 24s

RECOMMENDATIONS

AT1030

Compatible with magnetic encoder system

KEEP MONITORING FOR MOTOR
SPEED IN REAL TIME

KEEP MONITORING
FOR MOTOR
SPEED IN REAL TIME

AT1030

Compatible with magnetic encoder
system, ensure flight safety.

rmovable propellar hub for multiple applications

RMOVABLE PROPELLAR HUB FOR MULTIPLE APPLICATIONS

AT1030

Adapts to the installation of fixed wing one-price propellers, folding propellers and
other propellers. Provide convenient and safe way of locking propeller.

Adapts to the installation of fixed wing one-price propellers, folding
propellers and other propellers.
Provide convenient and safe way of locking propeller.

high efficiency and heat dissipation making last longer

HIGH EFFICIENCY AND
HEAT DISSIPATION
MAKING LAST LONGER

AT1030

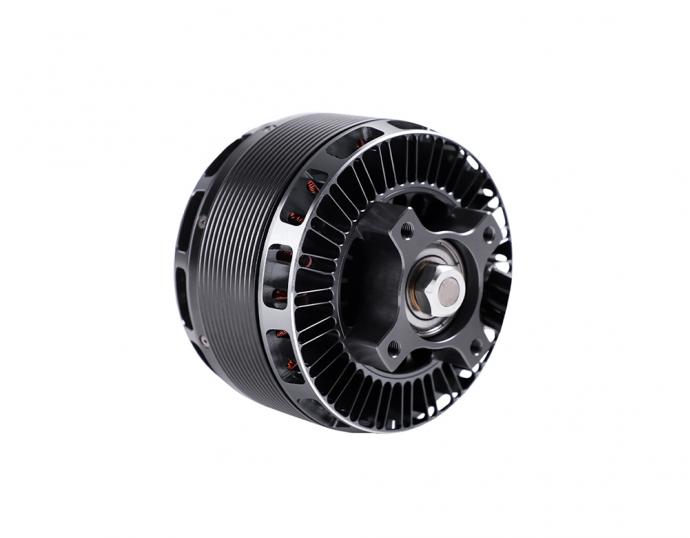

Bottom mounted heat sink.

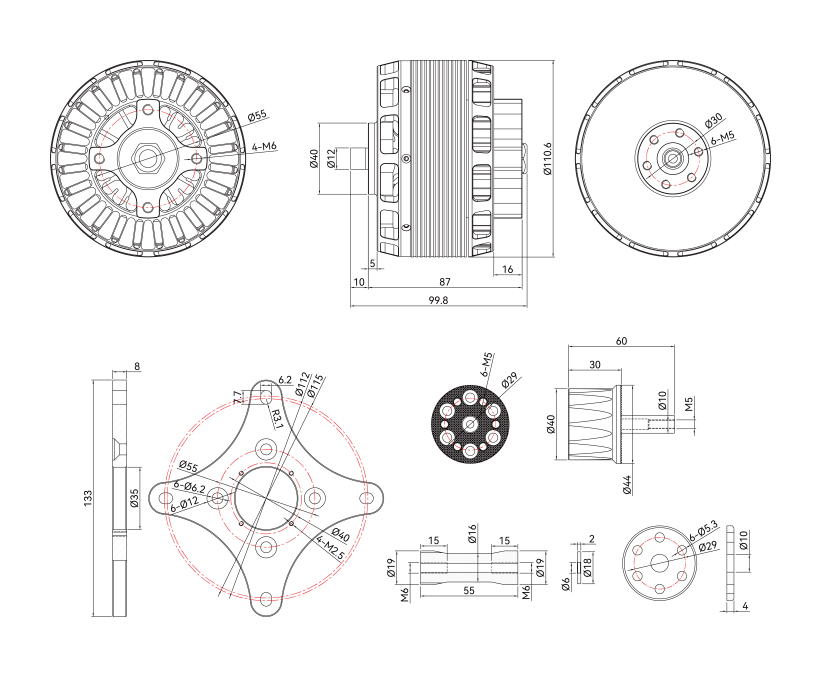

Technical Drawing


Specification
TypeAT1030Magnet Temperature Resistance Grade180℃
Motor DimensionΦ110.6*99.8mmLead x LengthEnameled Wire 100mm
Stator Technology150°C High Temperature-resisting CoatingsTemperature Resistance Of Enameled Wires220℃
Configuration24N28PCoil Pressure-resistant1000V/5s
Shaft DiameterIN:15mm
OUT:12mm		Dynamic Balance
Requirements Standards		≤30mg
Bearings6902/6202ZZ BearingsPacking Size246*162*139mm
KV90Idle Current (15V)3.6A
Max. Continuous Power4000WPeak Current93A
Rated Voltage (LiPo)24SInternal Resistance12mΩ
Max Thrust28kgWeight (Incl.cable)1800g
Test Data
TypePropellerThrottle
(%)		Voltage
(V)		Current
(A)		Power
(W)		RPMTorque
(N·m)		Thrust
(g)		Efficiency
(g/W)		Operating
Temperature
(℃)

AT1030
KV90

26*1240%88.4719.48172339543.0689275.18103

（Ambient
Temperature:

33℃）
45%88.4023.95211742723.56104004.91
50%88.2632.86290048014.53132024.55
55%88.1539.57348851275.22150964.33
60%88.0942.71376352725.52159994.25
65%88.0247.13414854605.95172294.15
70%87.9452.14458556516.41185834.05
75%87.8657.06501358246.86198673.96
80%87.8061.28538059657.26209903.90
90%87.6172.93639062998.25239113.74
100%87.3192.39806767339.75279383.46
27*1040%88.4319.62173540433.0393655.40109

（Ambient
Temperature:

33℃）
45%88.3523.70209443403.51108565.19
50%88.1735.94316950294.81148164.68
55%88.1139.04344051815.13158124.60
60%88.0542.43373653355.47168304.51
65%87.9846.87412355275.91181464.40
70%87.8951.80455357146.36194784.28
75%87.8256.27494158726.77206884.19
80%87.7460.45530460217.17218434.12
90%87.5373.77645764008.27249703.87
100%87.2291.90801568119.66286383.57
27*1240%88.4520.68182938773.3999485.44HOT

（Ambient
Temperature:

33℃）
45%88.3625.56225941883.98115795.13
50%88.2433.47295346204.88142054.81
55%88.0644.42391150806.04173984.45
60%87.9849.06431652606.50187404.34
65%87.8954.24476754397.01201914.24
70%87.7959.86525656187.52216164.11
75%87.7065.39573557848.01230324.02
80%87.6171.18623659438.52243213.90
90%87.4084.54738962619.60272583.69
100%87.14104.679122667411.15299683.29
Notes: Motor temperature is the bell temperature aftering running at 100% for 3 mins.
（Based on LIGPOWER test bench(es), all data are for reference only. LIGPOWER reserves the right of final interpretation.）

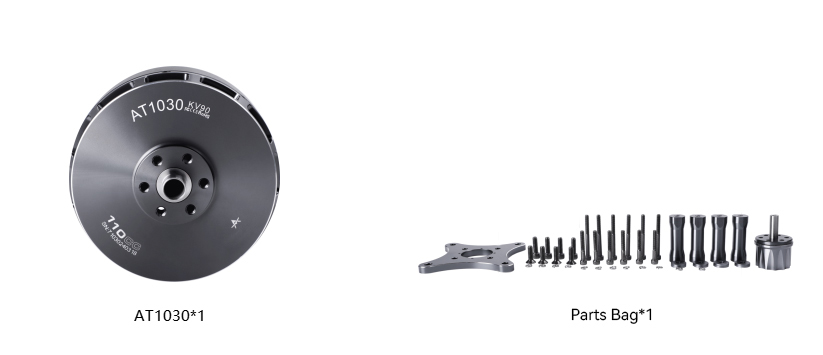

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
