Name: AT7224 40CC VTOL UAV Fixed Wing Aircraft Long Shaft Motor KV160/KV190
Brand: LIGPOWER
SKU: LIGPOWER001094
Price: 229.00 USD
Availability: InStock

Detail information
Specifications

About LIGPOWER AT7224 40CC VTOL Fixed Wing Aircraft Long Shaft Brushless Motor

AT7224 is a hi-end motor suitable for larger airplanes of the Outdoor category. LIGPOWER powerful AT7224 enables to mounting on the fixed-wing and multicopter.

The 6000w maximum power provides strong power for 40CC airplane with 17.72kg thrust. It supports 10-12S is capable to reach currents up to 135A shortly.

AT7224 40CC Highlights:

1.Light and flexible

2.Robust and enjoyable

3.Precise and smooth

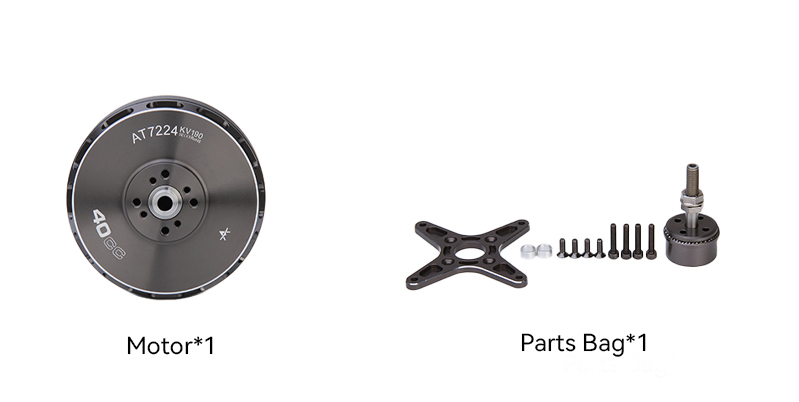

Packing List Includes:

1x LIGPOWER AT7224 Motor

1x Hardware Kit

Matching Guide:

AT 115A ESC

AT7224

various mounting ways

safety & long endurance

excellent cooling

double security,safety assurance

excellent control

durable and strong

Technical Drawing


Specification

Test Item	Long Shaft KV160	Weight (Incl. Cable)	780g
Motor Dimensions	Φ81.4*66.9mm	Internal Resistance	24mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mm OUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	3.1A	Peak Current(180s)	105A
Max. Power(180s)	4800W/12S

Test Item	Long Shaft KV190	Weight (Incl. Cable)	780g
Motor Dimensions	Φ81.4*66.9mm	Internal Resistance	16mΩ
Lead	Enameled Wire 100mm	Configuration	24N22P
Shaft Diameter	IN：10mm OUT：10mm	Rated Voltage(Lipo)	10-12S
Idle Current(10V)	3.5A	Peak Current(180s)	135A
Max. Power(180s)	6000W/12S

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT7224 KV160	21*10	40%	44.31	4.80	212.87	2893	0.539	1766	8.30	80 (Ambient Temperature: /)
		45%	44.27	6.25	276.86	3225	0.624	2212	7.99
		50%	44.22	8.79	388.73	3629	0.795	2814	7.25
		55%	44.16	11.35	501.16	4000	0.965	3429	6.84
		60%	44.11	13.79	608.49	4326	1.146	4022	6.61
		65%	44.04	16.93	745.62	4639	1.293	4622	6.20
		70%	43.95	20.86	916.88	4988	1.501	5365	5.85
		75%	43.83	26.42	1158.06	5373	1.773	6280	5.42
		80%	43.71	32.04	1400.68	5745	2.061	7144	5.10
		90%	43.46	44.15	1918.79	6360	2.592	8933	4.66
		100%	43.16	58.20	2511.99	6896	3.114	10676	4.25
	21*10	40%	47.93	5.34	255.98	3105	0.597	2045	7.99	/
		45%	47.89	6.96	333.46	3434	0.704	2501	7.50
		50%	47.83	9.69	463.32	3876	0.896	3196	6.90
		55%	47.73	13.03	621.96	4291	1.121	3935	6.33
		60%	47.71	15.53	741.01	4633	1.280	4539	6.13
		65%	47.64	18.81	896.24	4960	1.464	5209	5.81
		70%	47.56	23.04	1095.60	5339	1.732	6096	5.56
		75%	47.37	31.09	1472.55	5816	2.125	7315	4.97
		80%	47.25	36.56	1727.56	6144	2.395	8247	4.77
		90%	46.95	50.68	2379.68	6789	2.998	10299	4.33
		100%	46.51	71.24	3313.26	7109	3.711	12494	3.77
	22*10	40%	44.41	5.70	253.30	2850	0.635	2071	8.18	88 (Ambient Temperature: /)
		45%	44.37	7.49	332.34	3183	0.809	2608	7.85
		50%	44.30	10.25	454.21	3580	1.022	3269	7.20
		55%	44.23	13.82	611.41	3967	1.215	4002	6.55
		60%	44.15	17.18	758.35	4291	1.425	4723	6.23
		65%	44.10	20.38	898.65	4591	1.631	5427	6.04
		70%	43.97	26.02	1144.24	4934	1.923	6373	5.57
		75%	43.85	32.03	1404.60	5312	2.209	7432	5.29
		80%	43.70	39.36	1720.07	5669	2.627	8549	4.97
		90%	43.39	54.11	2347.54	6261	3.240	10526	4.48
		100%	43.05	70.38	3029.80	6780	3.864	12496	4.12
	22*10	40%	47.99	6.29	301.96	3057	0.732	2426	8.03	/
		45%	47.96	8.27	396.60	3412	0.928	2997	7.56
		50%	47.86	11.62	556.40	3831	1.138	3770	6.78
		55%	47.80	15.20	726.46	4237	1.372	4613	6.35
		60%	47.72	18.93	903.28	4585	1.623	5446	6.03
		65%	47.64	23.17	1103.76	4909	1.903	6315	5.72
		70%	47.50	29.04	1379.32	5278	2.178	7317	5.31
		75%	47.32	38.04	1800.27	5747	2.716	8753	4.86
		80%	47.17	45.06	2125.28	6063	3.013	9742	4.58
		90%	46.83	61.51	2880.40	6678	3.723	12037	4.18
		100%	46.42	81.47	3781.47	7213	4.499	14447	3.82
	23*10	40%	37.07	4.85	179.66	2404	0.462	1631	9.08	78 (Ambient Temperature: /)
		45%	37.02	6.54	242.14	2685	0.585	2052	8.48
		50%	36.96	9.11	336.65	3038	0.769	2642	7.85
		55%	36.89	12.16	448.81	3349	0.961	3262	7.27
		60%	36.83	15.32	564.24	3617	1.110	3832	6.79
		65%	36.78	18.07	664.53	3889	1.284	4471	6.73
		70%	36.70	22.32	819.19	4174	1.499	5225	6.38
		75%	36.57	27.90	1020.42	4475	1.739	6058	5.94
		80%	36.48	32.61	1189.50	4732	1.954	6810	5.72
		90%	36.22	45.16	1635.72	5231	2.439	8469	5.18
		100%	35.90	60.17	2160.31	5722	2.880	10050	4.65
	23*10	40%	42.00	5.81	243.81	2691	0.603	2016	8.27	/
		45%	41.95	7.64	320.56	3000	0.754	2542	7.93
		50%	41.87	10.82	452.90	3383	0.959	3269	7.22
		55%	41.80	14.73	615.52	3738	1.166	4019	6.53
		60%	41.72	18.23	760.66	4044	1.387	4821	6.34
		65%	41.64	22.10	920.32	4322	1.622	5609	6.10
		70%	41.53	27.22	1130.31	4648	1.888	6460	5.72
		75%	41.41	33.49	1386.94	4979	2.176	7520	5.42
		80%	41.26	40.27	1661.69	5261	2.458	8508	5.12
90%		40.92	57.16	2338.69	5858	3.045	10599	4.53
100%		40.56	74.08	3004.27	6335	3.587	12486	4.16
23*10	40%	44.24	6.26	276.99	2816	0.678	2252	8.13	86 (Ambient Temperature: /)
	45%	44.19	8.38	370.42	3139	0.844	2845	7.68
	50%	44.13	11.56	510.31	3531	1.074	3628	7.11
	55%	44.03	15.77	694.46	3904	1.332	4481	6.45
	60%	43.96	19.48	856.35	4223	1.560	5292	6.18
	65%	43.86	23.88	1047.27	4528	1.782	6082	5.81
	70%	43.73	29.77	1301.86	4857	2.071	7066	5.43
	75%	43.60	36.62	1596.54	5209	2.383	8176	5.12
	80%	43.42	45.32	1967.73	5551	2.717	9386	4.77
	90%	43.08	61.82	2663.09	6121	3.306	11502	4.32
	100%	42.69	80.29	3427.47	6620	3.893	13628	3.98
23*10	40%	47.87	7.06	338.01	3017	0.803	2627	7.77	/
	45%	47.82	9.31	445.30	3356	0.982	3303	7.42
	50%	47.73	13.36	637.77	3770	1.263	4227	6.63
	55%	47.63	17.84	849.98	4161	1.565	5234	6.16
	60%	47.54	22.28	1059.42	4501	1.835	6196	5.85
	65%	47.44	26.97	1279.61	4821	2.089	7098	5.55
	70%	47.32	33.44	1582.04	5181	2.397	8181	5.17
	75%	47.07	44.46	2092.95	5622	2.829	9776	4.67
	80%	46.93	51.86	2433.90	5924	3.145	10876	4.47
	90%	46.52	71.24	3313.98	6511	3.845	13337	4.02
	100%	46.05	93.17	4290.46	7028	4.524	15732	3.67
24*10	40%	36.93	5.21	192.58	2386	0.570	1862	9.67	74 (Ambient Temperature: /)
	45%	36.89	6.92	255.28	2664	0.681	2302	9.02
	50%	36.84	9.64	355.22	3015	0.873	2934	8.26
	55%	36.74	13.30	488.44	3326	1.033	3780	7.74
	60%	36.70	16.06	589.29	3596	1.193	4344	7.37
	65%	36.62	19.43	711.53	3858	1.352	4885	6.87
	70%	36.52	24.25	885.55	4148	1.592	5768	6.51
	75%	36.40	29.96	1090.57	4437	1.924	6881	6.31
	80%	36.29	35.28	1280.42	4692	2.201	7698	6.01
	90%	36.02	48.54	1748.45	5181	2.844	9416	5.39
	100%	35.66	65.48	2335.30	5638	3.170	11213	4.80
24*10	40%	41.92	6.22	260.94	2669	0.670	2305	8.84	/
	45%	41.88	8.24	345.20	2974	0.836	2861	8.29
	50%	41.80	11.85	495.18	3358	1.052	3835	7.75
	55%	41.69	16.69	695.92	3706	1.255	4654	6.69
	60%	41.63	19.73	821.19	4013	1.489	5499	6.70
	65%	41.55	23.65	982.63	4301	1.806	6395	6.51
	70%	41.43	29.46	1220.57	4610	2.118	7433	6.09
	75%	41.27	36.74	1516.18	4941	2.505	8536	5.63
	80%	41.13	43.86	1804.14	5214	2.847	9557	5.30
	90%	40.74	62.47	2544.92	5789	3.372	11807	4.64
	100%	40.37	80.20	3237.87	6253	4.009	13916	4.30
24*10	40%	44.34	6.77	300.20	2807	0.740	2613	8.70	87 (Ambient Temperature: /)
	45%	44.29	8.94	395.88	3127	0.944	3245	8.20
	50%	44.21	12.58	556.16	3525	1.212	4090	7.36
	55%	44.11	17.25	760.67	3891	1.472	5007	6.58
	60%	44.03	21.25	935.48	4212	1.654	6050	6.47
	65%	43.94	25.61	1125.34	4504	2.027	7004	6.22
	70%	43.80	32.06	1404.22	4834	2.404	8133	5.79
	75%	43.63	40.20	1753.94	5179	2.782	9373	5.34
	80%	43.42	50.11	2176.02	5508	2.915	10542	4.84
	90%	43.05	68.04	2928.99	6063	3.795	12990	4.43
	100%	42.61	88.56	3773.52	6529	4.475	15404	4.08
24*10	40%	47.89	7.54	361.11	2999	0.868	2966	8.21	/
	45%	47.84	9.91	474.10	3342	1.020	3817	8.05
	50%	47.73	14.38	686.33	3750	1.305	4762	6.94
	55%	47.64	19.08	908.85	4140	1.587	5961	6.56
	60%	47.53	24.19	1149.86	4493	2.032	7061	6.14
	65%	47.43	29.23	1386.23	4797	2.337	8049	5.81
	70%	47.26	36.77	1737.59	5144	2.697	9239	5.32
	75%	47.03	48.38	2275.34	5581	3.058	10855	4.77
	80%	46.85	56.71	2657.00	5864	3.529	12134	4.57
	90%	46.41	77.55	3599.39	6434	4.378	14926	4.15
	100%	45.90	101.25	4647.79	6921	5.246	17536	3.77
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT7224 KV190	21*10	40%	36.90	7.54	278.41	3162	0.645	2148	7.72	87 (Ambient Temperature: /)
		45%	36.84	10.48	386.22	3575	0.828	2772	7.18
		50%	36.75	14.53	534.06	3986	1.011	3459	6.48
		55%	36.67	18.01	660.49	4354	1.183	4099	6.21
		60%	36.61	21.71	794.80	4680	1.356	4739	5.96
		65%	36.49	27.03	986.48	5052	1.589	5528	5.60
		70%	36.30	35.99	1306.15	5516	1.924	6586	5.04
		75%	36.16	42.40	1533.50	5847	2.190	7429	4.84
		80%	36.00	50.29	1810.43	6169	2.461	8348	4.61
		90%	35.61	68.35	2433.99	6769	2.996	10188	4.19
		100%	35.54	71.61	2544.87	6852	3.101	10555	4.15
	21*10	40%	41.90	8.73	365.80	3530	0.711	2643	7.22	/
		45%	41.82	12.20	510.38	3997	0.911	3354	6.57
		50%	41.72	16.67	695.60	4452	1.154	4235	6.09
		55%	41.61	21.62	899.70	4853	1.406	5109	5.68
		60%	41.52	26.05	1081.48	5215	1.641	5859	5.42
		65%	41.33	35.26	1457.21	5744	2.026	7152	4.91
		70%	41.16	43.60	1794.42	6157	2.357	8283	4.62
		75%	40.97	52.10	2134.43	6509	2.665	9323	4.37
		80%	40.79	61.22	2497.16	6850	2.990	10416	4.17
		90%	40.29	83.86	3379.02	7512	3.645	12569	3.72
		100%	40.19	87.85	3530.50	7609	3.760	12867	3.64
	21*10	40%	44.31	7.87	348.64	3468	0.663	2471	7.09	91 (Ambient Temperature: /)
		45%	44.25	10.41	460.69	3856	0.838	3097	6.72
		50%	44.16	14.21	627.64	4306	1.061	3912	6.23
		55%	44.07	19.02	838.29	4752	1.323	4841	5.78
		60%	43.96	23.43	1030.26	5125	1.566	5591	5.43
		65%	43.83	30.49	1336.32	5598	1.908	6693	5.01
		70%	43.69	37.74	1648.70	6001	2.234	7782	4.72
		75%	43.48	46.51	2022.36	6404	2.554	8891	4.40
		80%	43.31	54.84	2375.19	6735	2.873	10010	4.21
		90%	42.88	75.03	3217.30	7394	3.541	12207	3.79
		100%	42.36	98.83	4186.79	7955	4.289	13963	3.34
	21*10	40%	47.88	9.19	440.10	3640	0.754	2859	6.50	/
		45%	47.82	11.89	568.49	4125	0.990	3679	6.47
		50%	47.71	16.23	774.27	4589	1.248	4603	5.95
		55%	47.60	21.80	1037.74	5066	1.558	5610	5.41
		60%	47.45	29.01	1376.61	5590	1.949	6838	4.97
		65%	47.34	34.84	1649.31	5971	2.258	7833	4.75
		70%	47.14	43.71	2060.80	6393	2.626	9113	4.42
		75%	46.94	54.00	2534.39	6817	3.026	10466	4.13
		80%	46.73	63.47	2965.88	7162	3.379	11639	3.92
		90%	46.20	88.09	4070.15	7842	4.194	14145	3.48
		100%	45.56	117.22	5340.63	8385	5.185	15565	2.91
	22*10	40%	36.89	7.12	262.47	2891	0.635	2152	8.20	80 (Ambient Temperature: /)
		45%	36.84	9.36	344.93	3224	0.843	2716	7.87
		50%	36.75	13.32	489.32	3606	1.037	3407	6.97
		55%	36.64	17.79	651.65	4000	1.284	4226	6.49
		60%	36.59	21.10	771.85	4319	1.491	4908	6.36
		65%	36.49	25.61	934.40	4614	1.683	5602	6.00
		70%	36.35	31.71	1152.89	4949	1.954	6519	5.66
		75%	36.20	39.56	1431.89	5309	2.298	7567	5.29
		80%	36.01	48.45	1745.00	5657	2.622	8565	4.91
		90%	35.64	66.13	2356.93	6223	3.224	10521	4.46
		100%	35.23	85.35	3006.64	6702	3.778	12378	4.12
	22*10	40%	41.81	8.47	354.23	3231	0.788	2744	7.75	/
		45%	41.75	11.33	472.81	3589	0.951	3362	7.11
		50%	41.65	15.70	653.86	4035	1.218	4257	6.51
		55%	41.54	20.70	859.97	4444	1.487	5193	6.04
		60%	41.43	25.66	1062.94	4798	1.764	6059	5.70
		65%	41.34	30.44	1258.42	5120	2.033	6867	5.46
		70%	41.12	41.15	1692.37	5612	2.484	8345	4.93
		75%	40.93	50.13	2051.85	5971	2.847	9473	4.62
		80%	40.75	58.56	2386.68	6288	3.140	10413	4.36
90%		40.28	80.81	3254.88	6882	3.872	12908	3.97
100%		39.75	105.26	4184.19	7394	4.565	15224	3.64
22*10	40%	44.29	9.27	410.71	3402	0.862	3022	7.36	88 (Ambient Temperature: /)
	45%	44.22	12.29	543.49	3784	1.055	3724	6.85
	50%	44.13	16.71	737.30	4233	1.343	4675	6.34
	55%	44.02	22.21	977.58	4671	1.653	5705	5.84
	60%	43.90	27.56	1210.00	5034	1.953	6611	5.46
	65%	43.71	36.66	1602.21	5502	2.359	7925	4.95
	70%	43.55	44.55	1940.16	5887	2.742	9124	4.70
	75%	43.31	55.26	2393.45	6272	3.132	10390	4.34
	80%	43.12	64.75	2792.01	6589	3.485	11599	4.15
	90%	42.59	89.21	3799.33	7197	4.262	14221	3.74
	100%	42.01	115.89	4868.09	7725	5.011	16542	3.40
22*10	40%	47.80	10.41	497.53	3584	0.918	3320	6.67	/
	45%	47.73	13.56	647.38	4049	1.209	4266	6.59
	50%	47.62	18.41	876.76	4508	1.517	5304	6.05
	55%	47.49	25.17	1195.14	4973	1.910	6518	5.45
	60%	47.30	34.04	1609.78	5490	2.351	7904	4.91
	65%	47.15	41.12	1938.57	5855	2.724	9064	4.68
	70%	46.94	51.11	2399.23	6269	3.153	10453	4.36
	75%	46.71	62.32	2910.67	6669	3.585	11916	4.09
	80%	46.47	73.37	3408.99	6999	3.979	13203	3.87
	90%	45.85	101.59	4658.39	7622	4.864	16113	3.46
	100%	45.14	133.15	6010.33	8139	5.893	17722	2.95
Note: Motor temperature is motor surface temperature at 100% throttle running 3mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.

Hot Products

P21*6.3 Prop-2PCS/PAIR

￥124.9
NS17*5.8 Prop-2PCS/PAIR

￥72.99
P80Ⅲ Without Pin KV100 Heavy Lift Agricultural UAV Motor with 16kg Max Thrust

￥199.9
