Name: AT4130 Long Shaft Fixed Wing VTOL Motor KV230/KV300/KV450
Brand: LIGPOWER
SKU: LIGPOWER000828
Price: 119.99 USD
Availability: InStock

Detail information
Specifications

About LIGPOWER AT4130 Long Shaft Fixed Wing VTOL Motor

LIGPOWER AT4130 LONG SHAFT 230KV motor with three different KV options which include 230KV 300KV and 450KV.

It can be worked under 6-12S lipos. Lightweight yet robust efficiecny design with around 405-408g. The AT4130 supporting a maximum power of approximately 3200W. And it also can be worked for 12-15kg VTOL fixed-wing.Recommended to be used with LIGPOWER AT115A and LIGPOWER FS15*8 folding propellers

AT4130 Highlights:

1.The LIGPOWER AT4130 Long Axis is a powerful and durable brushless motor ideal for multi-rotor applications. The engine's long-shaft design delivers superior performance and efficiency, making it ideal for heavy payloads and long flight times.

2.The motor is carefully built with high-quality materials, advanced in design, reliable and stable. Perfectly balanced rotors ensure smooth operation and reduce vibration, improving overall flight and image quality.

3.With its impressive power range, the LIGPOWER AT4130 Long Axis delivers the power needed for demanding flight applications.

4.The LIGPOWER AT4130 Long Axis is an essential engine for anyone looking for power, stability and durability in a multi-rotor platform. With its advanced features and reliable performance, this motor is an excellent choice for demanding drone applications.

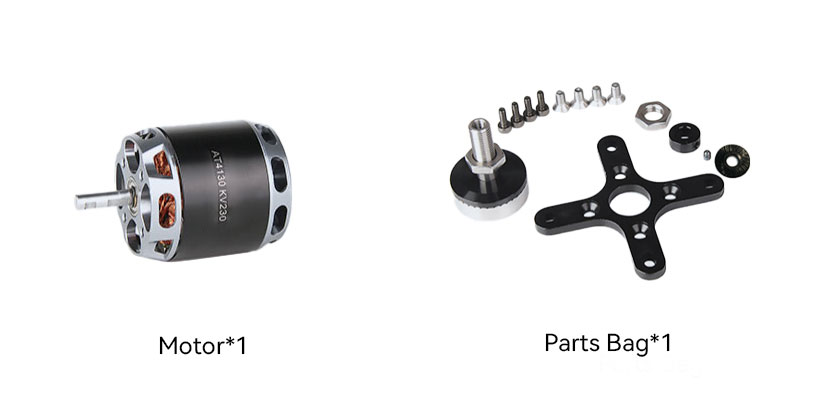

Packing List Includes:

1x LIGPOWER AT4130 Motor

1x Hardware pack

Matching Guide:

AT 115A ESC

AT4130 strong power,hand-made winding,preferred raw materials

AT4130 the upgraded at series are designed for fixed-wing model,VTOL UAV

AT4130 efficient cooling

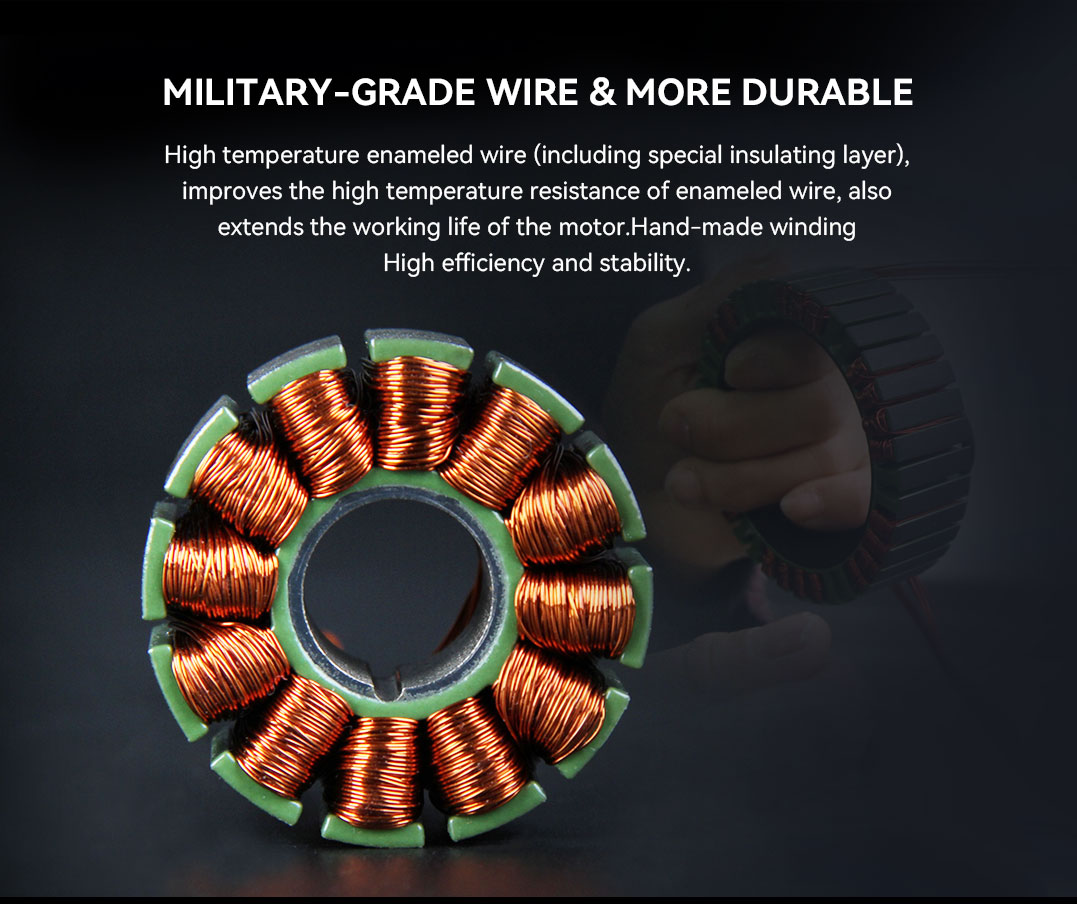

AT4130 hand-made winding high efficiency and stability

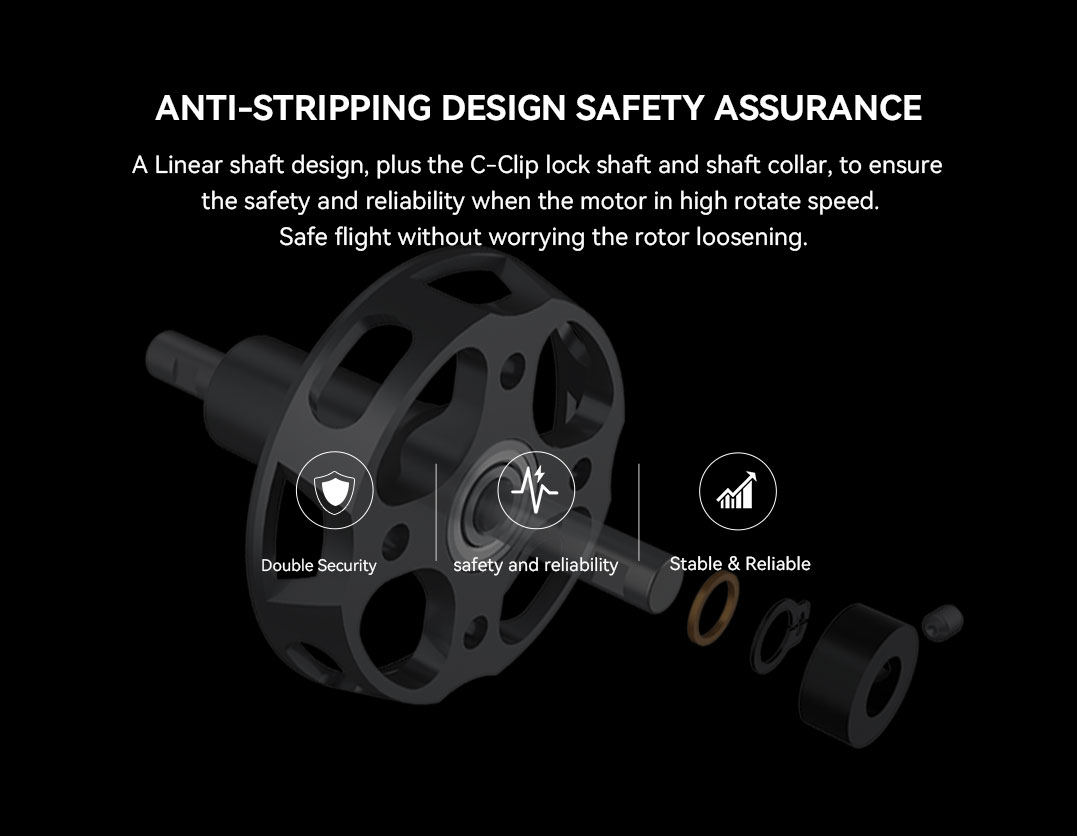

AT4130 double security,safe flight without worrying the rotor loosening

AT4130 preferred raw materials superb workmanship

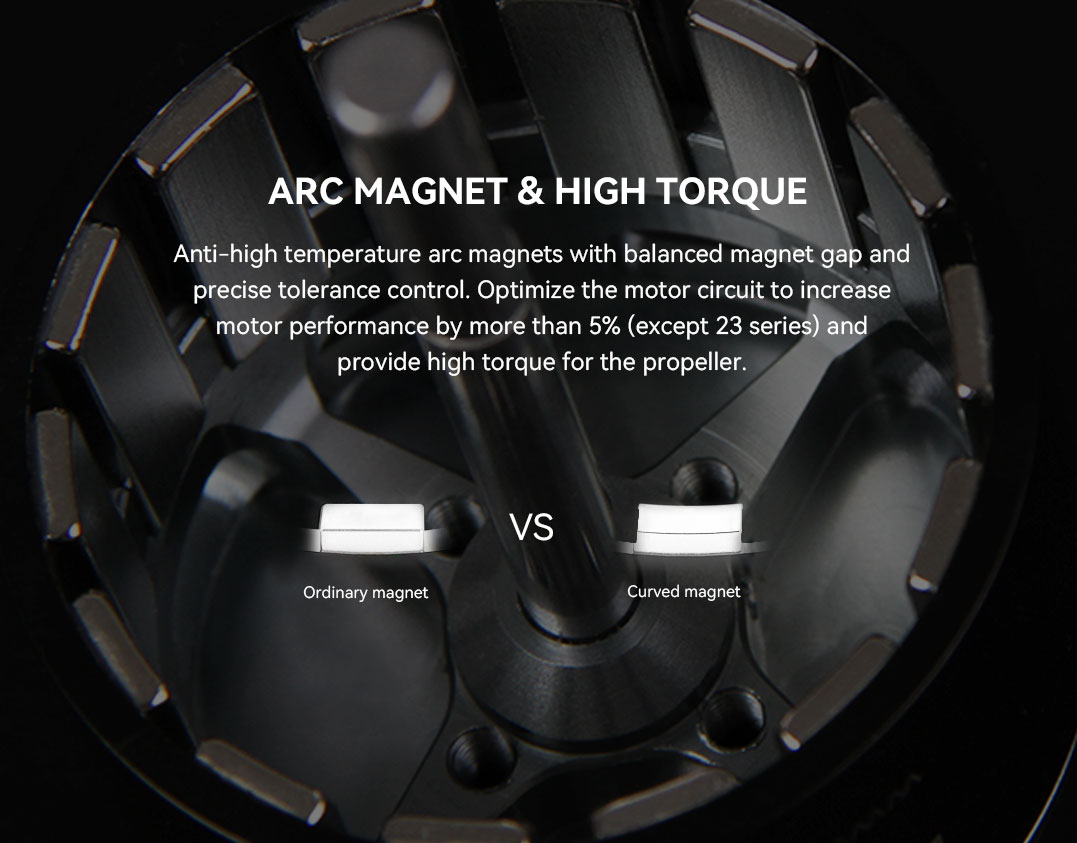

AT4130 optimize the motor circuit to increase motor performance by more than 5%

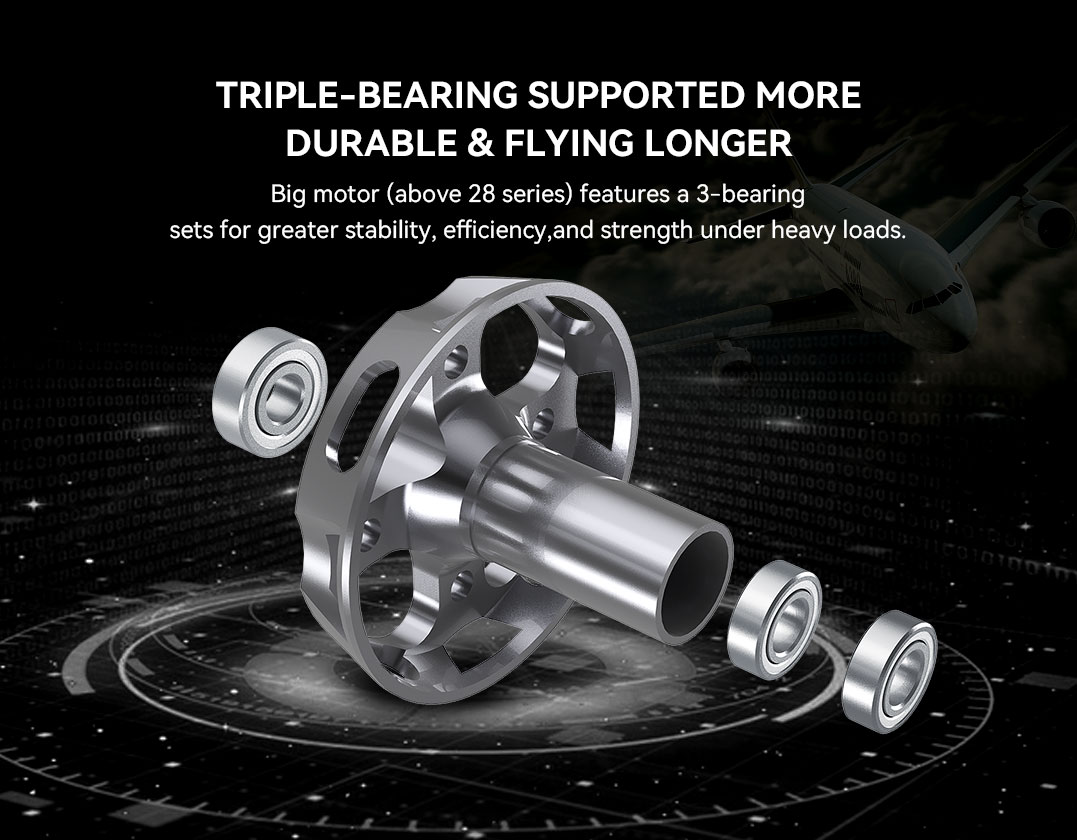

AT4130 tirple-bearing supported more durable & flying longer

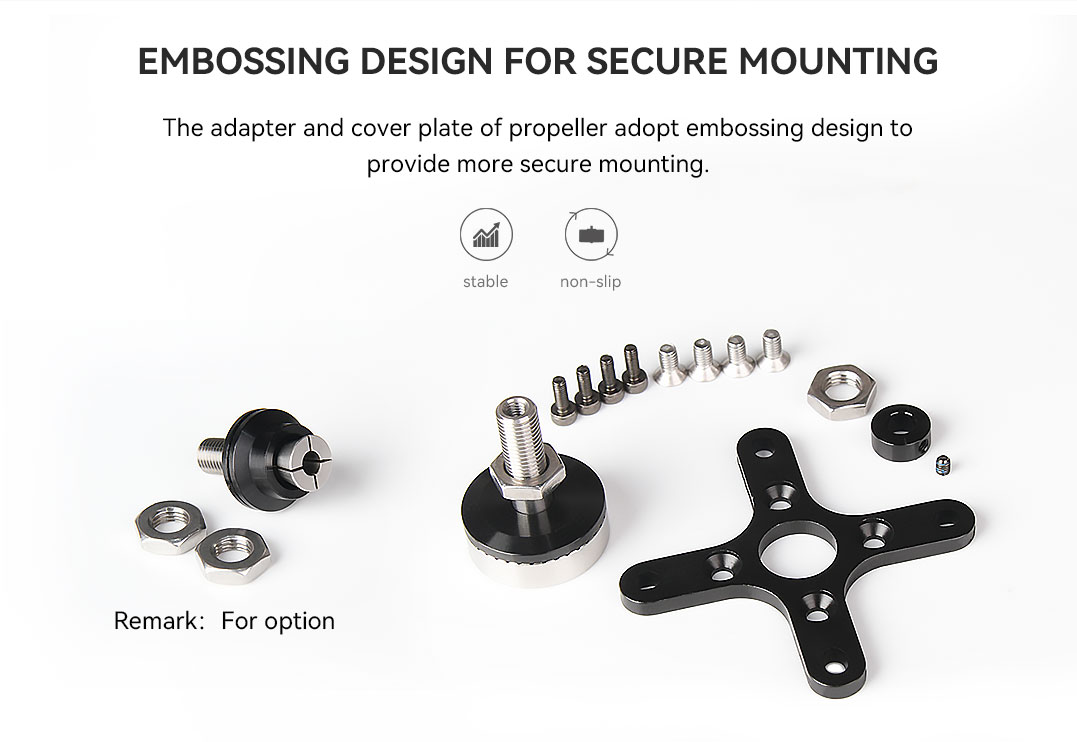

AT4130 embossing design for secure mounting

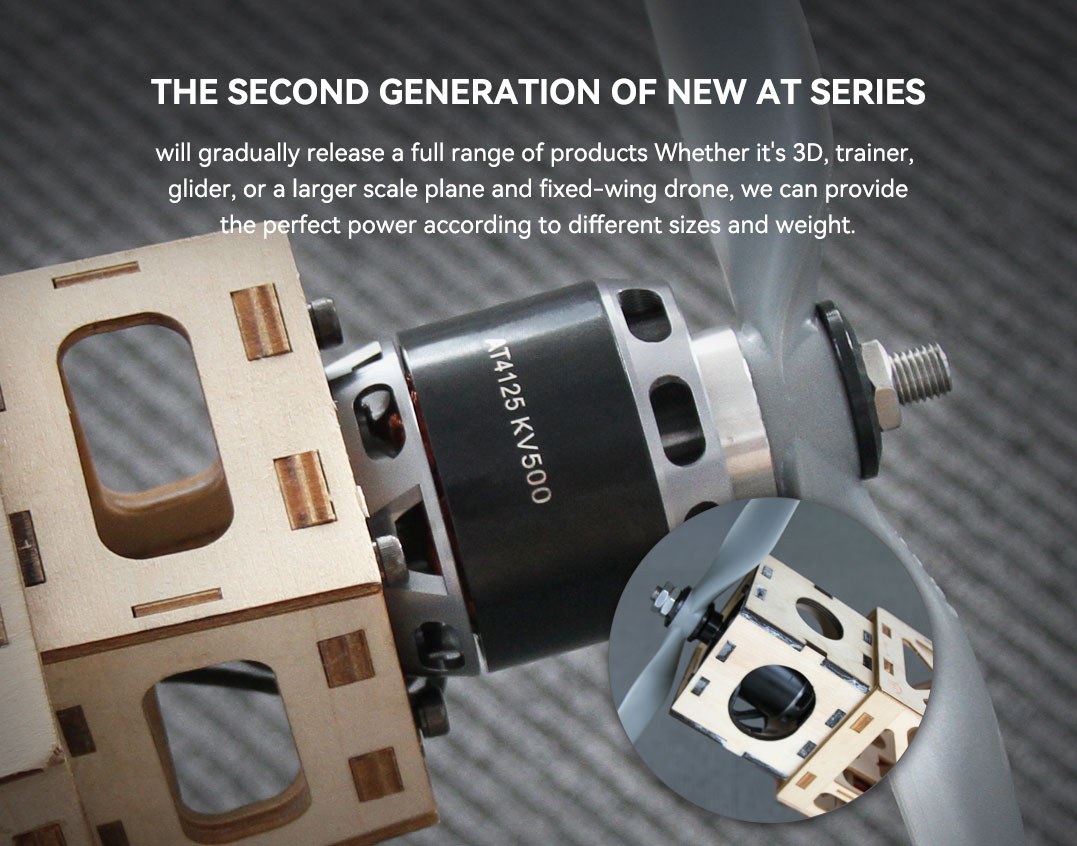

AT4130 the secone generation of new at series

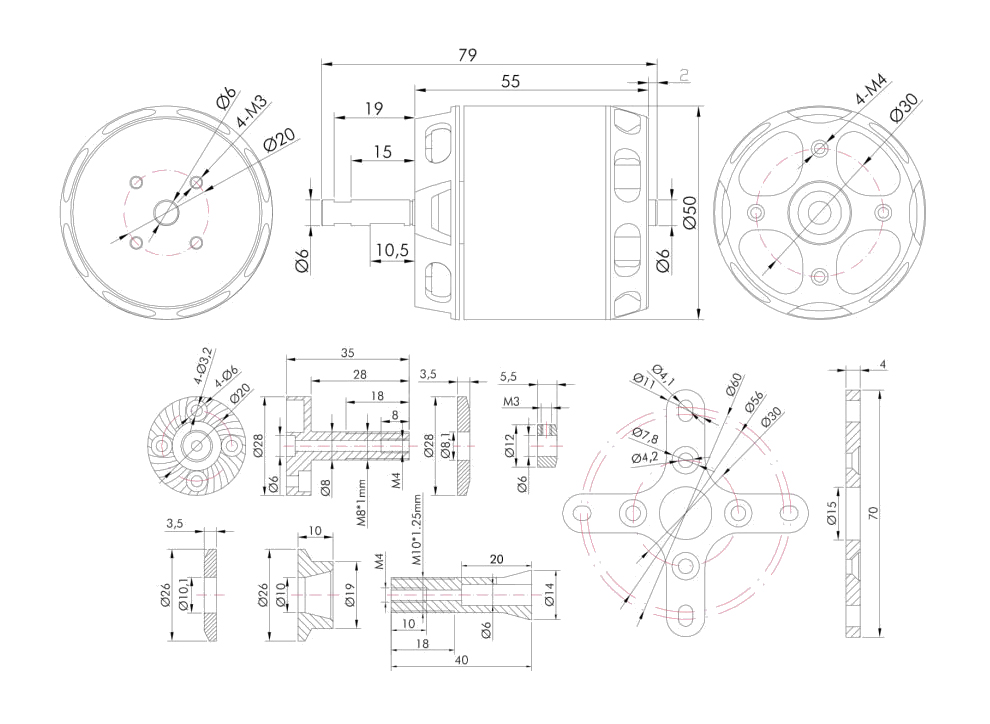

Technical Drawing


Specification

Test Item	Long ShaftKV230	Weight (Incl. Cable)	408g
Motor Dimensions	Φ50*79mm	Internal Resistance	60mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	12S
Idle Current(10V)	1.4A	Peak Current(180s)	60A
Max. Power(180s)	2500W	Recommendation	/

Test Item	Long ShaftKV300	Weight (Incl. Cable)	405g
Motor Dimensions	Φ50*79mm	Internal Resistance	32mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	6-12S
Idle Current(10V)	1.8A	Peak Current(180s)	75A
Max. Power(180s)	3200W	Recommendation	/

Test Item	Long ShaftKV450	Weight (Incl. Cable)	408g
Motor Dimensions	Φ50*79mm	Internal Resistance	16.8mΩ
Lead	Enameled Wire100mm	Configuration	12N14P
Shaft Diameter	IN：6mm OUT：6mm	Rated Voltage(Lipo)	6S
Idle Current(10V)	2.5A	Peak Current(180s)	75A
Max. Power(180s)	1800W	Recommendation	/

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
AT4130 Long Shaft KV230	APC 16*8	40%	44.40	2.87	127.58	3701	0.226	1087	8.52	78 (Ambient Temperature: /)
		45%	44.38	3.73	165.46	4105	0.284	1341	8.10
		50%	44.36	5.18	229.88	4664	0.366	1744	7.59
		55%	44.34	6.83	302.67	5143	0.450	2139	7.07
		60%	44.31	8.56	302.67	5546	0.531	2513	6.63
		65%	44.26	10.59	468.76	5941	0.616	2906	6.20
		70%	44.22	13.10	579.10	6363	0.719	3366	5.81
		75%	44.16	16.32	720.88	6827	0.841	3903	5.41
		80%	44.10	19.63	865.54	7215	0.958	4407	5.09
		90%	43.96	27.66	1215.78	7875	1.174	5293	4.35
		100%	43.78	38.25	1674.45	8646	1.521	6395	3.82
	APC 17*10	40%	44.52	3.84	171.08	3512	0.349	1459	8.53	97 (Ambient Temperature: /)
		45%	44.51	4.81	213.89	3869	0.424	1768	8.27
		50%	44.47	6.96	309.40	4395	0.547	2285	7.38
		55%	44.43	9.59	426.03	4902	0.690	2867	6.73
		60%	44.34	13.34	591.63	5359	0.835	3459	5.85
		65%	44.30	15.79	699.52	5679	0.948	3905	5.58
		70%	44.24	19.07	843.63	6038	1.087	4428	5.25
		75%	44.16	23.84	1052.67	6438	1.248	5069	4.82
		80%	44.08	28.30	1247.65	6806	1.410	5650	4.53
		90%	43.88	39.96	1753.67	7468	1.780	6939	3.96
		100%	43.62	55.63	2426.63	7891	2.101	7630	3.14
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT4130 Long Shaft KV300	APC 17*10	40%	29.90	4.05	121.08	3148	0.284	1175	9.70	68 (Ambient Temperature: /)
		45%	29.88	5.27	157.61	3471	0.351	1458	9.25
		50%	29.82	8.14	242.78	3959	0.458	1903	7.84
		55%	29.76	11.40	339.11	4399	0.566	2355	6.94
		60%	29.73	14.01	416.40	4747	0.669	2773	6.66
		65%	29.66	17.51	519.33	5085	0.772	3187	6.14
		70%	29.59	21.50	636.19	5475	0.900	3696	5.81
		75%	29.50	26.67	787.01	5821	1.027	4198	5.33
		80%	29.43	31.27	920.27	6126	1.145	4662	5.07
		90%	29.21	43.47	1269.79	6717	1.411	5652	4.45
		100%	29.01	55.72	1616.42	7215	1.670	6577	4.07
	APC 18*8	40%	29.90	4.08	122.11	3124	0.285	1246	10.20	85 (Ambient Temperature: /)
		45%	29.87	5.54	165.57	3478	0.355	1573	9.50
		50%	29.82	8.36	249.20	3969	0.462	2061	8.27
		55%	29.78	11.20	333.59	4404	0.577	2542	7.62
		60%	29.71	14.42	428.57	4781	0.681	3027	7.07
		65%	29.67	17.26	512.26	5093	0.771	3438	6.71
		70%	29.59	21.71	642.57	5476	0.906	4019	6.26
		75%	29.49	26.99	796.16	5800	1.034	4601	5.78
		80%	29.41	32.15	945.54	6147	1.169	5145	5.44
		90%	29.22	43.46	1269.83	6721	1.428	6224	4.90
		100%	29.01	55.77	1617.91	7201	1.672	7231	4.47
	APC 14*7	40%	44.53	3.40	151.51	4778	0.202	1086	7.17	82 (Ambient Temperature: /)
		45%	44.50	4.53	201.78	5356	0.258	1375	6.81
		50%	44.47	6.46	287.44	6077	0.339	1796	6.25
		55%	44.41	8.76	388.82	6659	0.418	2183	5.62
		60%	44.38	11.21	497.36	7306	0.509	2633	5.29
		65%	44.35	13.42	595.23	7783	0.586	2989	5.02
		70%	44.28	17.04	754.68	8371	0.699	3536	4.69
		75%	44.19	22.48	993.34	9045	0.837	4146	4.17
		80%	44.11	26.78	1181.17	9528	0.967	4686	3.97
		90%	43.89	39.41	1729.89	10475	1.290	5432	3.14
		100%	43.67	53.21	2323.39	11329	1.595	6283	2.70
	APC 15*8	40%	44.32	4.37	193.70	4605	0.294	1431	7.39	85 (Ambient Temperature: /)
		45%	44.31	5.73	253.89	5142	0.366	1779	7.01
		50%	44.25	8.48	375.21	5885	0.484	2342	6.24
		55%	44.20	11.61	513.33	6502	0.613	2928	5.70
		60%	44.13	15.12	667.08	7064	0.731	3484	5.22
		65%	44.07	18.52	816.06	7526	0.848	4010	4.91
		70%	44.01	22.29	981.04	8039	0.983	4569	4.66
		75%	43.84	30.92	1355.63	8623	1.208	5080	3.75
		80%	43.72	38.65	1689.88	9142	1.420	5694	3.37
		90%	43.43	55.53	2412.02	9931	1.801	6751	2.80
		100%	43.14	72.26	3117.41	10572	2.171	7787	2.50
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
AT4130 Long Shaft KV450	APC 17*10	40%	22.24	9.57	212.83	3706	0.397	1632	7.67	63 (Ambient Temperature: /)
		45%	22.21	11.55	256.58	3969	0.457	1873	7.30
		50%	22.16	14.22	315.17	4285	0.533	2182	6.92
		55%	22.08	18.77	414.61	4705	0.655	2671	6.44
		60%	22.01	23.17	510.03	5078	0.764	3124	6.13
		65%	21.92	28.60	627.00	5418	0.885	3610	5.76
		70%	21.82	34.25	747.18	5733	0.993	4039	5.41
		75%	21.72	40.63	882.51	6090	1.113	4486	5.08
		80%	21.57	49.20	1061.39	6405	1.274	5113	4.82
		90%	21.31	65.24	1390.48	6926	1.540	6091	4.38
		100%	21.16	74.27	1571.68	7167	1.676	6534	4.16
	APC 18*8	40%	22.24	9.57	212.80	3696	0.400	1778	8.35	81 (Ambient Temperature: /)
		45%	22.21	11.36	252.32	3953	0.454	2016	7.99
		50%	22.16	14.17	314.14	4283	0.533	2356	7.50
		55%	22.09	18.30	404.33	4684	0.643	2830	7.00
		60%	22.01	23.22	511.02	5082	0.765	3374	6.60
		65%	21.93	28.09	615.93	5403	0.870	3824	6.21
		70%	21.84	33.66	735.00	5719	0.994	4355	5.93
		75%	21.72	40.51	879.75	6048	1.120	4908	5.58
		80%	21.60	47.54	1026.98	6360	1.248	5409	5.27
		90%	21.34	63.11	1346.94	6905	1.503	6471	4.80
		100%	21.18	72.70	1540.06	7201	1.641	7017	4.56
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
