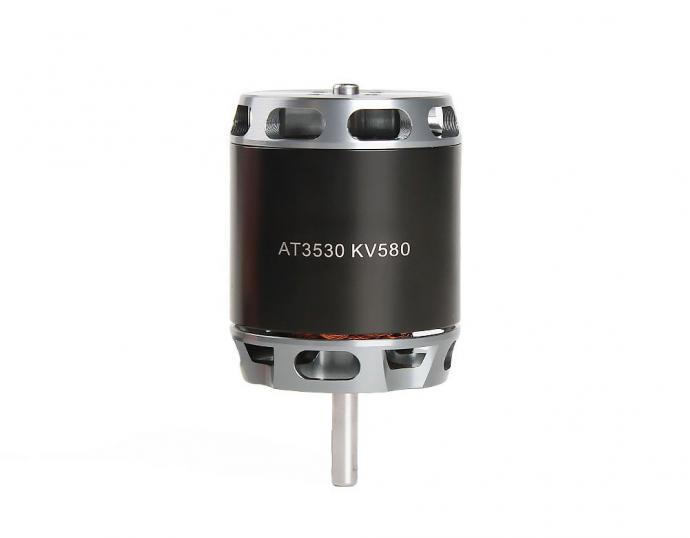

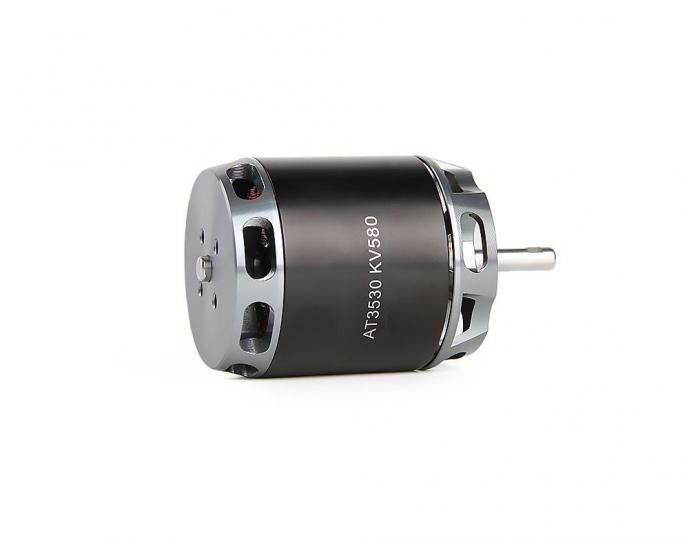

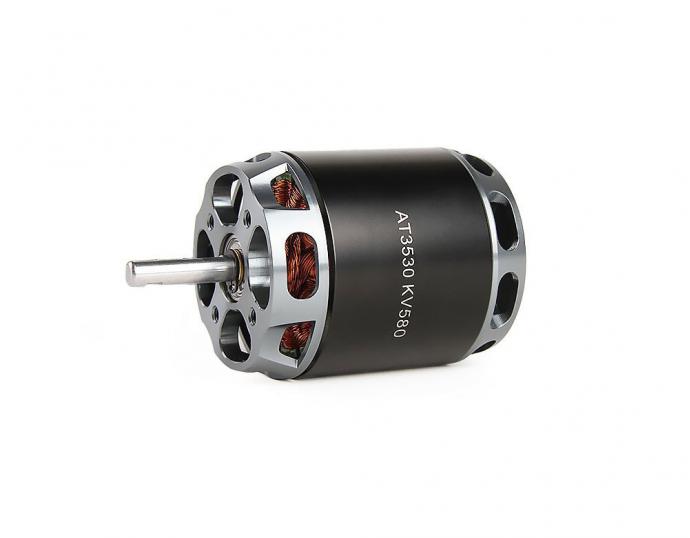

AT3530 VTOL Fixed Wing Aircraft Long shaft Motor KV580

99.99

Available points: 5000 Points Points reward: 99 Points

• Packaging Weight：420g，Packaging size：145*95*65mm
KV：
  • KV580
Quantity：

99.99

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications

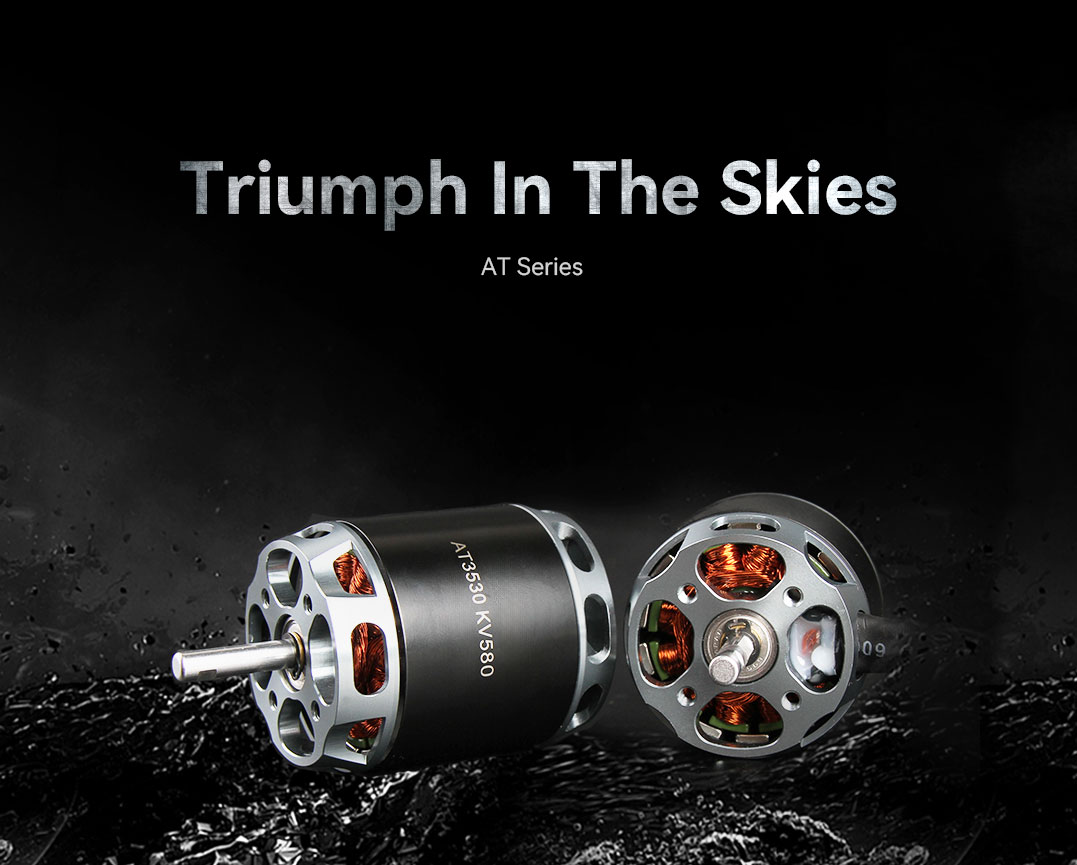

About LIGPOWER AT3530 VTOL Fixed Wing Aircraft Long shaft Motor

LIGPOWER AT3530 is a high-end motor suitable for supporting for larger UAV Fixed wing airplanes of 2.2-2.4kg.

AT3530 BLDC motor features with excellent heat dissipation structure which ensures the powerful flight.

The motor weight is 298g and the biggest thrust is 4.8KG, It is support 4-6s lipos，recommend with AT115A ESC

AT3530 Highlights:

1.Incorporating a high quality triple bearing design via 28 series AT motors and above, LIGPOWER offers a variety of AT motor power selections with high quality mounting hardware for ease of application.

2.AT series of motors offer incredible levels of high temperature resistance under heavy power demand, offering excellent thermal capability with substantial overall durability.

3.The motor dissipates ultra-efficient heat via lateral cooling vents、 high torque curved magnets for optimal performance and three-bearing layout optimizes stability and efficiency.

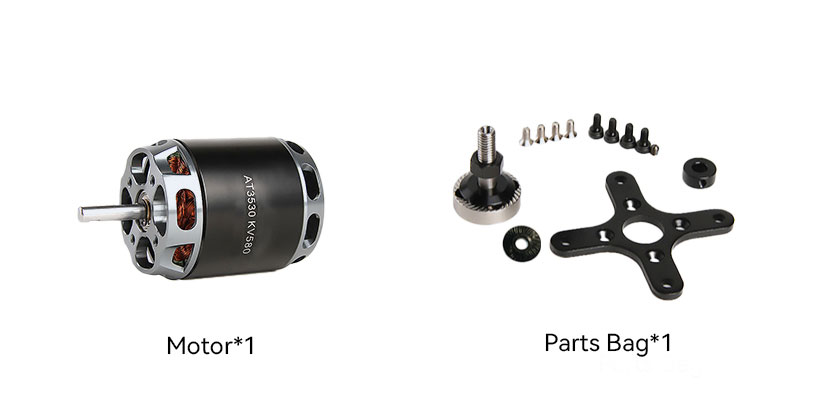

Packing List Includes:

1x LIGPOWER AT3530 Motor

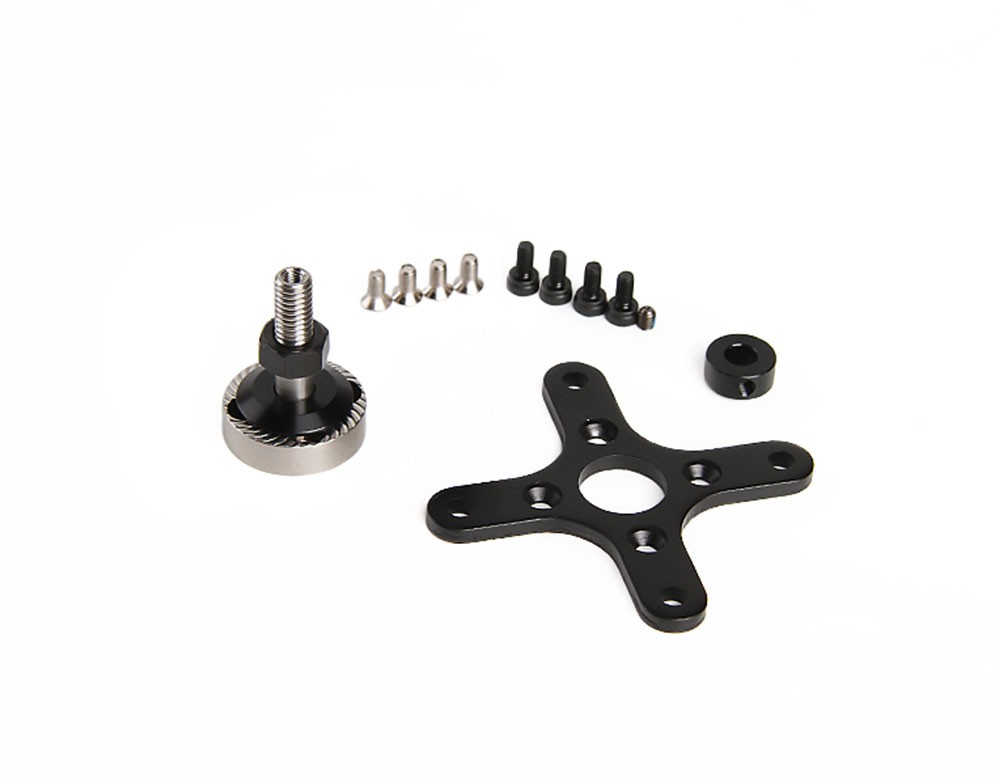

1x Hardware pack


Matching Guide:

AT 115A ESC

AT3530 strong power,hand-made winding,preferred raw materials

AT3530 the upgraded at series are designed for fixed-wing model,VTOL UAV

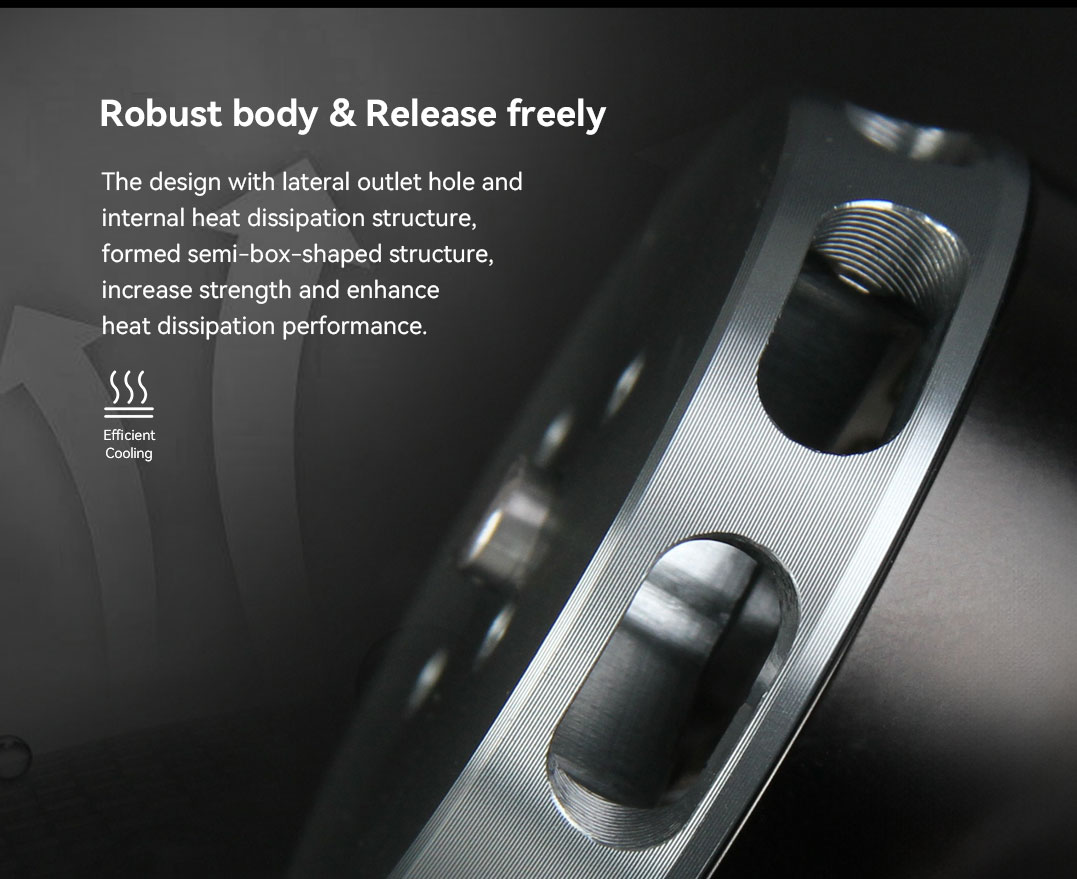

AT3530 efficient cooling

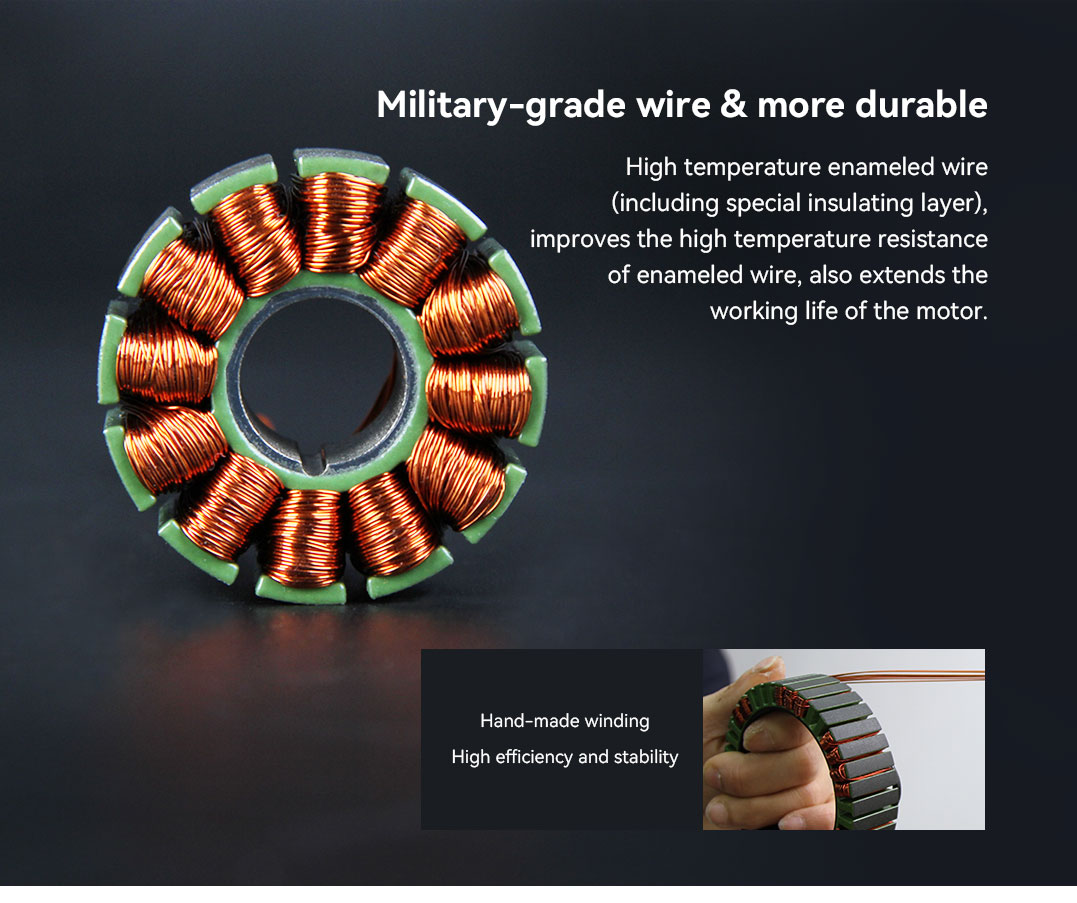

AT3530 hand-made winding high efficiency and stability

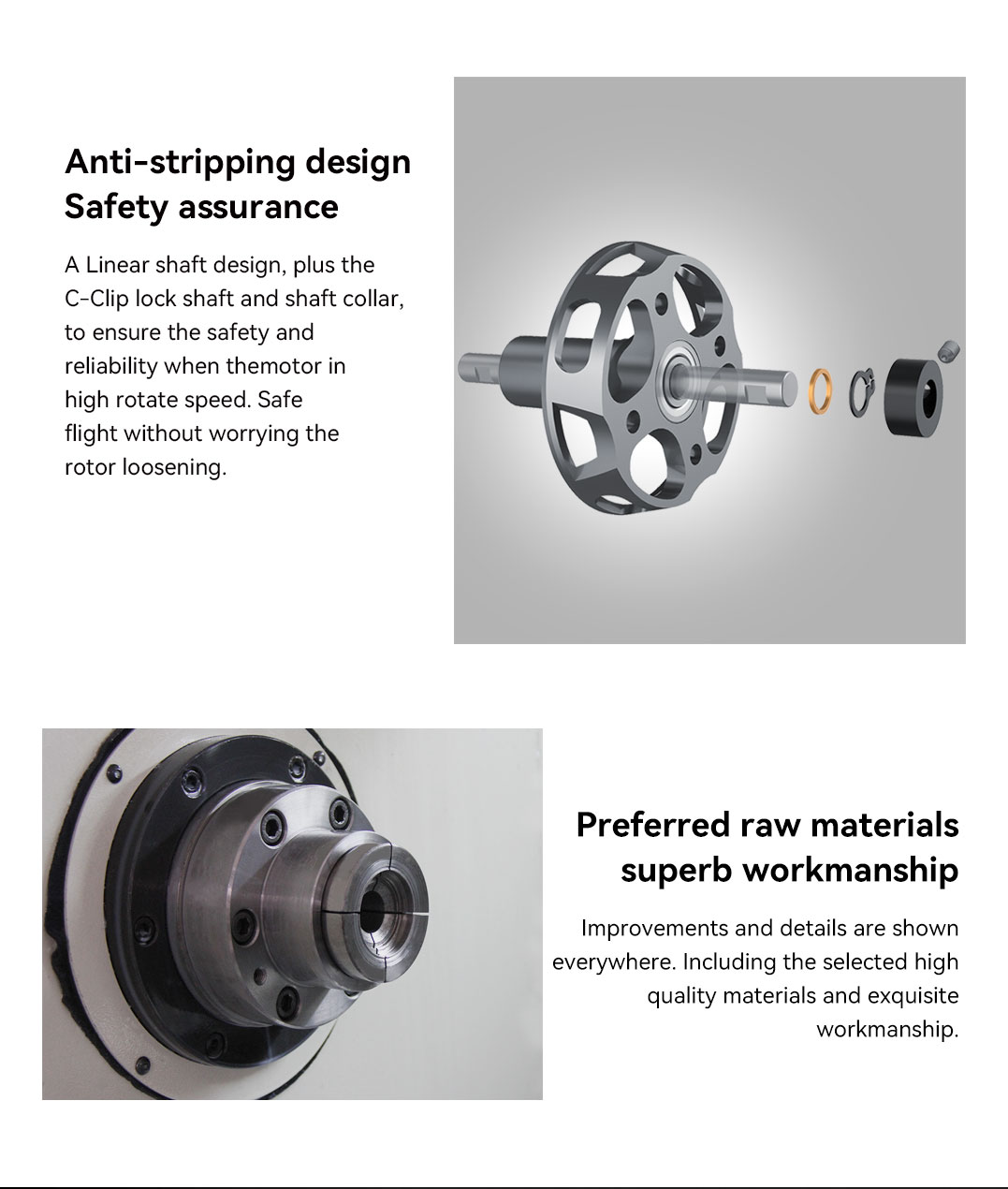

AT3530 double security,safe flight without worrying the rotor loosening,preferred raw materials superb workmanship

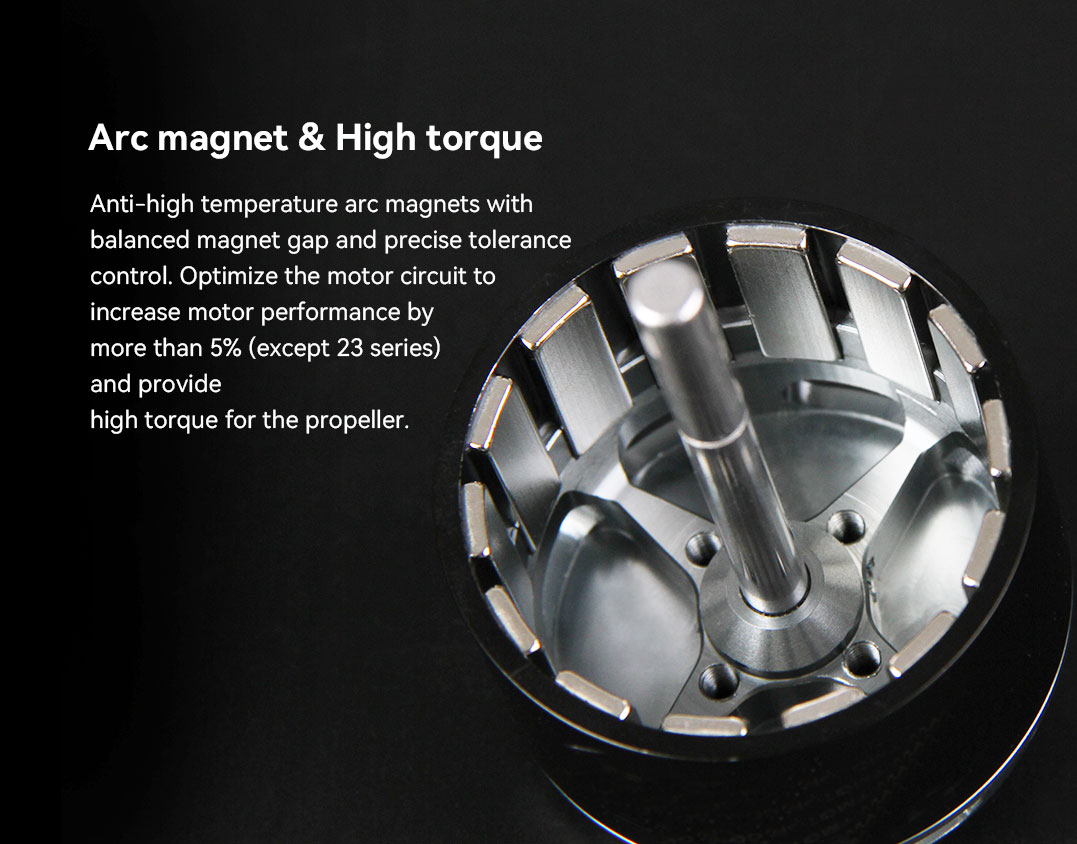

AT3530 optimize the motor circuit to increase motor performance by more than 5%

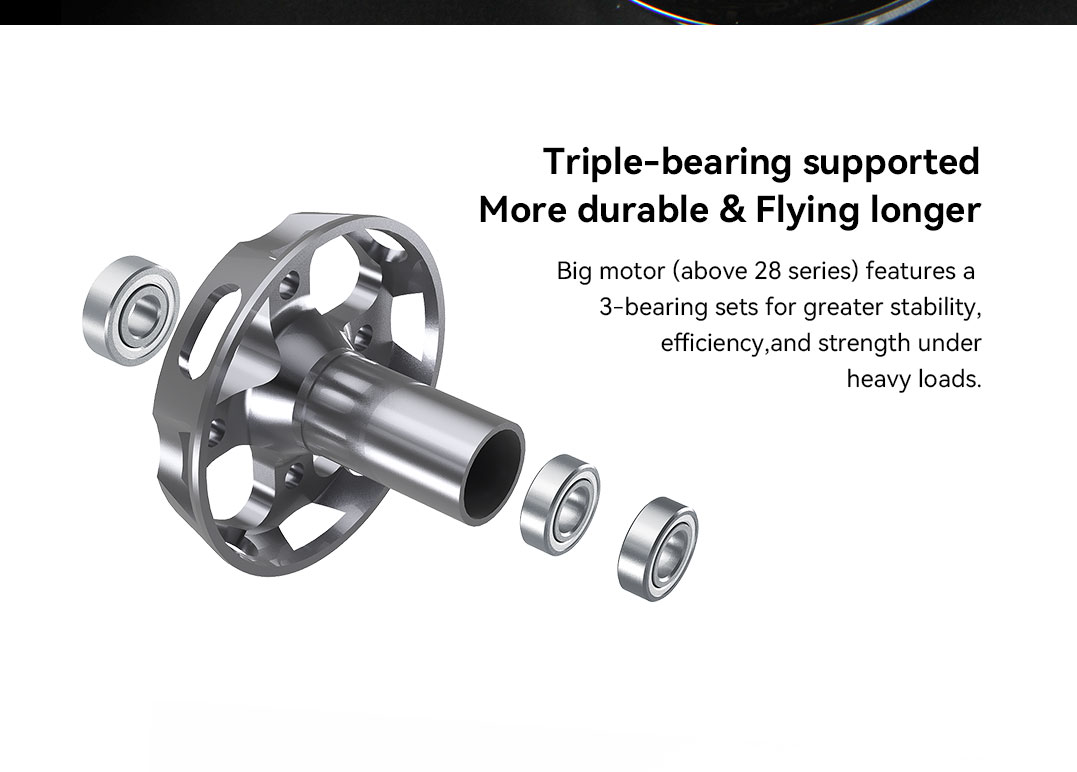

AT3530 tirple-bearing supported more durable & flying longer

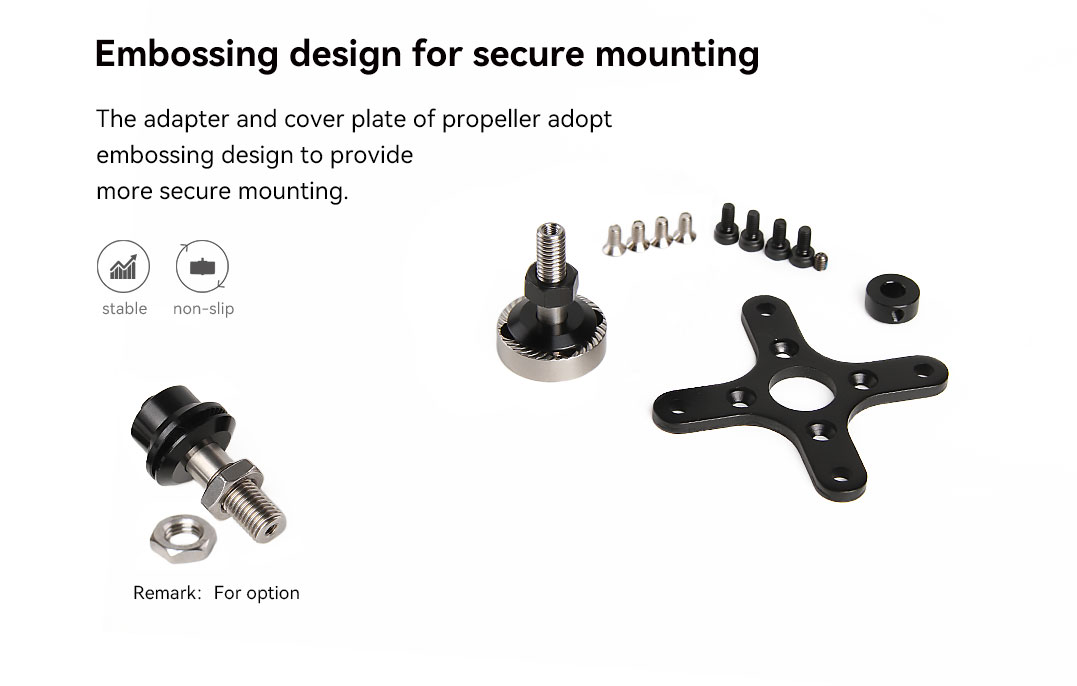

AT3530 embossing design for secure mounting

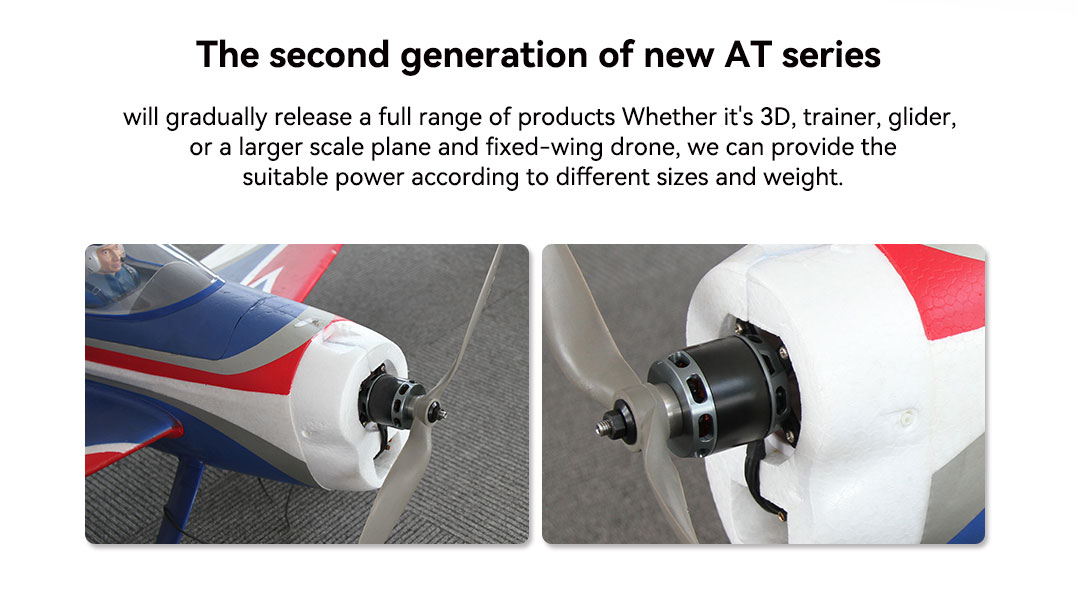

AT3530 the secone generation of new at series

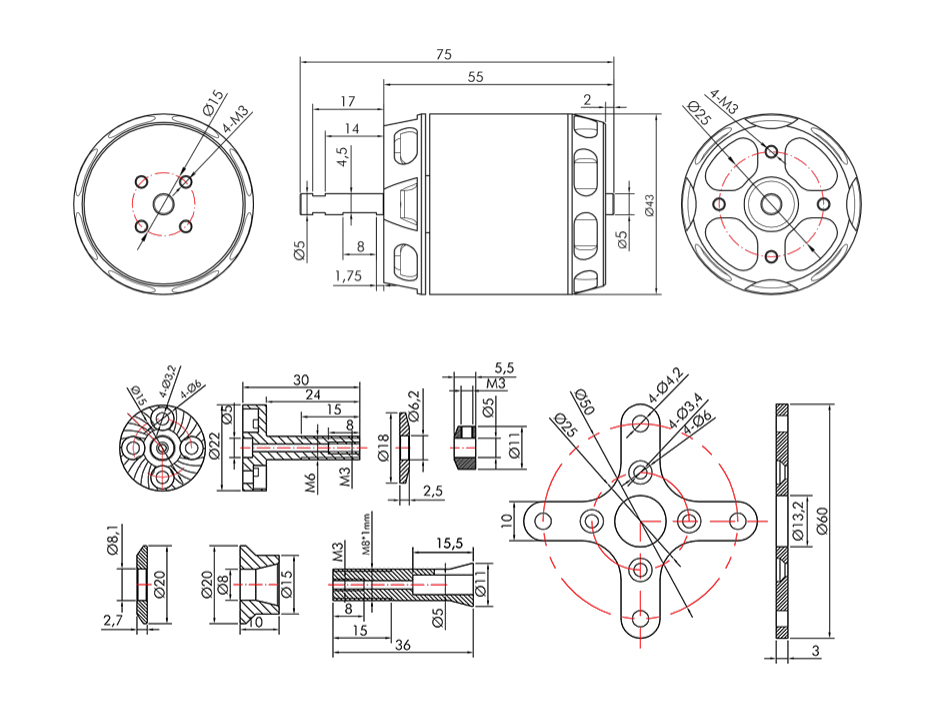

Technical Drawing


Specification
Test ItemLong Shaft KV580Weight (Incl. Cable)298g
Motor DimensionsΦ43*75mmInternal Resistance18mΩ
Lead100mmConfiguration12N14P
Shaft DiameterIN：5mm
OUT：5mm		Rated Voltage(Lipo)4-6S
Idle Current(10V)1.9APeak Current(180s)65A
Max. Power(180s)1400WRecommendation/
Test Data
TypePropellerThrottleVoltage
(V)		Current
(A)		Power
(W)		RPMTorque
(N*m)		Thrust
(g)		Efficiency
(g/W)

Operating

Temperature

(℃)
AT3530
Long Shaft
KV580		APC
13*8		40%22.458.28186.0254190.24512636.79/

(Ambient

Temperature:

/)

45%22.4210.02224.6758150.28214486.45
50%22.3911.88265.9961600.32416536.22
55%22.3613.93311.3164920.36518525.95
60%22.3116.71372.7769110.41421075.65
65%22.2420.48455.5573790.48224395.35
70%22.1824.14535.5177820.54127235.08
75%22.1128.75635.4882430.61430624.82
80%22.0233.81744.6186370.69032654.38
85%21.9041.07899.4289980.80134293.81
90%21.8047.321031.5193780.88037433.63
100%21.6954.041171.8896780.96840823.48
APC
14*7		40%22.448.67194.4952970.26213827.1174

(Ambient

Temperature:

/)

45%22.4110.30230.8256150.30115816.85
50%22.3712.36276.5159650.34417956.49
55%22.3315.00334.9063520.39820636.16
60%22.2818.33408.3667750.46023695.80
65%22.2022.60501.8572550.53627365.45
70%22.1227.38605.5276860.61131045.13
75%22.0531.93704.0380730.68634504.90
80%21.9637.14815.6484360.76638264.69
85%21.8444.15964.4088630.86442654.42
90%21.7251.401116.6192460.95846604.17
100%21.6158.461263.3394961.05248053.80
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins.
(Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
