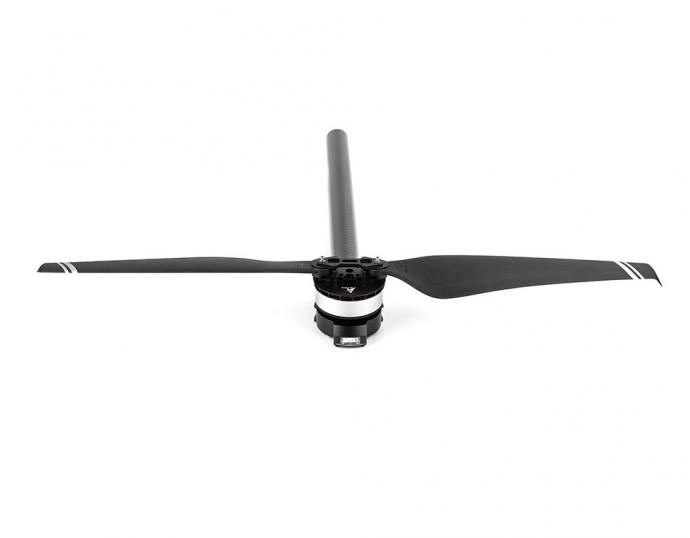

A8-X
A8-X
MODULARPROPULSION SYSTEM
The preferred solution for 10L and 16L agricultural drones

A8-X

MOTOR

14S FOC 80A

ESC

MF3119P

PROPELLER

A8-X RECOMMENDATIONS

Load capacity(liquid)

10L

Agriculture Quadcopter Drone

Load capacity(liquid)

16L

Agriculture Hexacopter Drone

Take-off weight

22~30kg

Quadcopter

Take-off weight

30~42kg

Hexacopter

Load capacity(liquid)

10L

Agriculture Quadcopter
Drone

Load capacity(liquid)

16L

Agriculture Hexacopter
Drone

Take-off weight

22~30kg

Quadcopter

Take-off weight

30~42kg

Hexacopter

Technical Drawing


Specification
Model No.A8-X KV115Tube size40mm
SetupA8-X (Motor)+14S FOC 80A (ESC)+MF3119P (Prop)Wire material,wire gauge, colorPower wires：12#AWG red & black Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1100±5mm
Rated thrust5~7kgWeight1150g±2%(incl. Wires+prop)
Efficiency at rated thrust8.5g/W (7kg)IPIPX6
Max. thrust19kgRecommended ambienttemperature-30℃～50℃
Motor specs.
Stator size81*20mmKV115
ESC specs.
Throttle range1100~1940us (fixed)Max. voltage61V
ProtocolDRONE CAN、 UAV CAN、CUBE CANPeak current(for a short time)80A
(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF3119P (Polymer Folding)Length31 inch(784mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A8-X KV115
+
14S FOC 80A
+
MF3119P		46.09301.6812136915.6100
(Ambient temperature:
30)
46.07352.7617847414.0
46.04404.1924697812.8
46.00456.1032728111.7
45.96508.5241788210.7
45.905511.525176839.8
45.846015.046234849.1
45.776519.237379848.4
45.697024.098574847.8
45.607529.329768847.3
45.508035.3011025836.9
45.408541.8312299836.5
45.319047.4213327826.2
45.249551.8114080826.0
45.2410051.7514058826.0
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A8-X KV115
+
14S FOC 80A
+
MF3119P		59.99302.5220197413.4160
(Ambient temperature:
30)
59.96354.1729787811.9
59.91406.5441378010.6
59.86459.535421829.5
59.795013.446902838.6
59.715518.128476837.8
59.636023.5410093837.2
59.536530.0611863836.6
59.417036.9513560826.2
59.297544.7815305815.8
59.178052.9216935805.4
59.038561.3518482795.1
58.969066.1419294785.0
58.959566.1919257784.9
58.9510066.2319215774.9
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

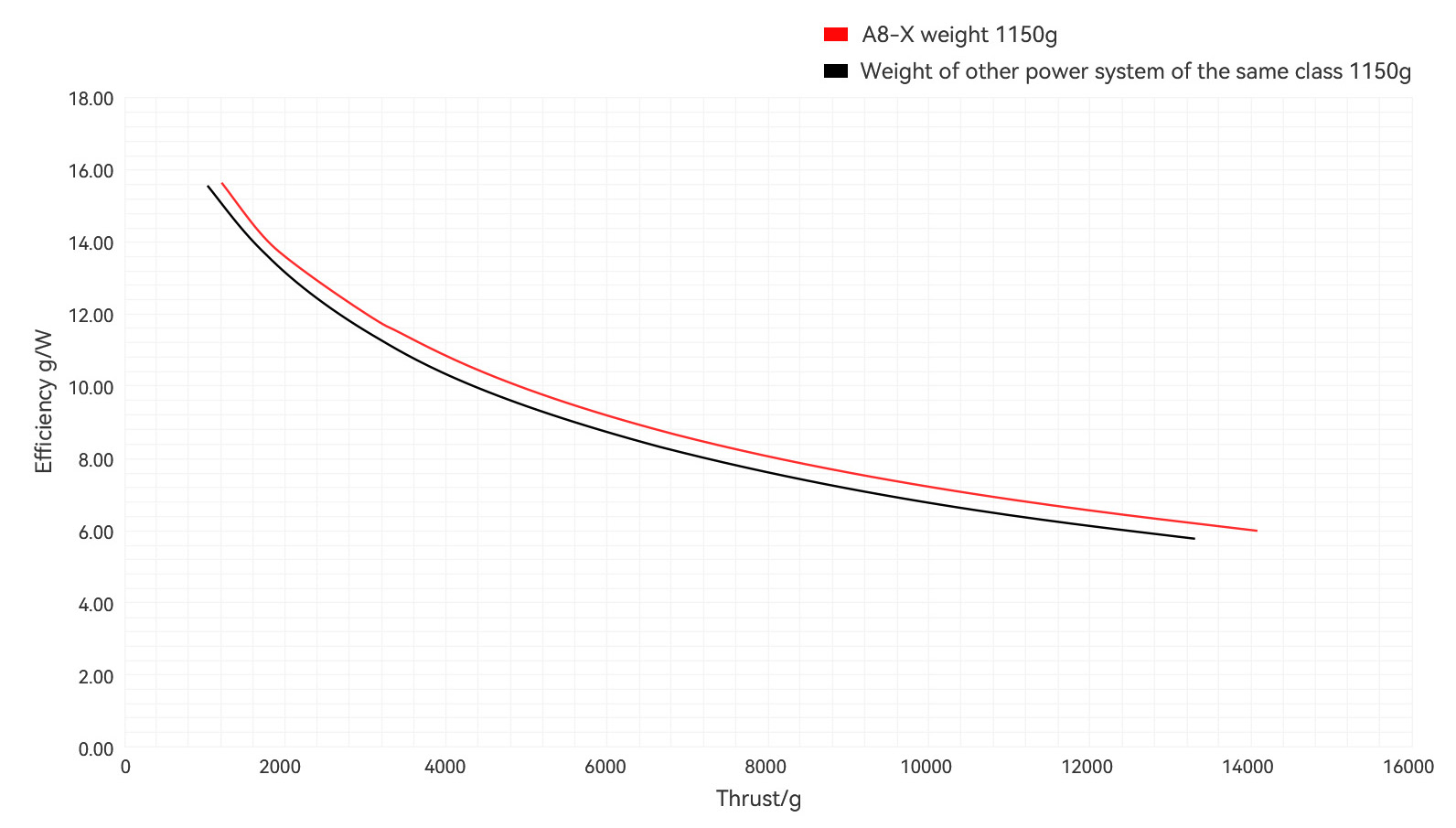

Analysis Chart

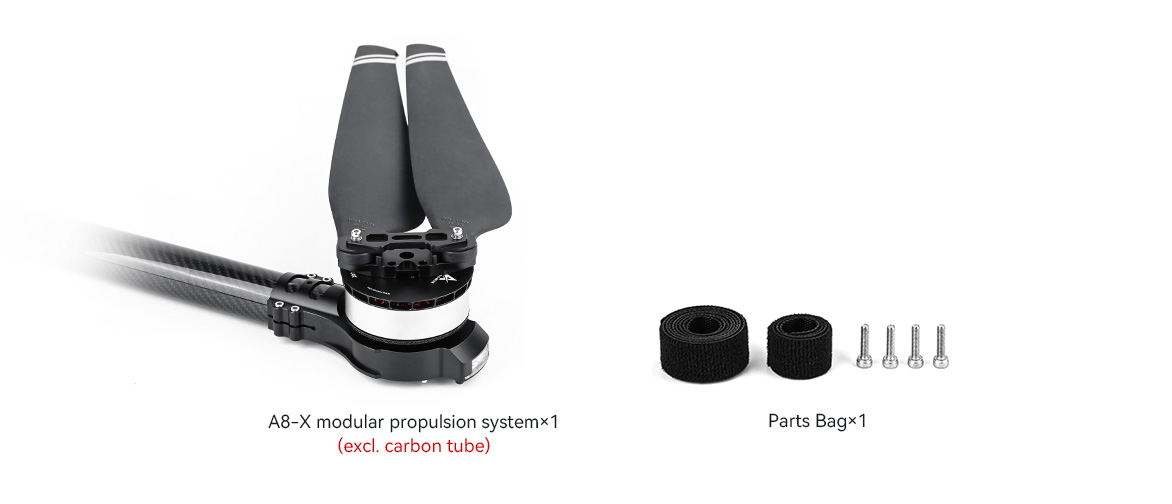

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
