A6L-X
A6L-X
MODULARPROPULSION SYSTEM
The preferred solution for 5L and 10L agricultural drones

A6L-X

MOTOR

14S FOC 80A

ESC

MF2407P

PROPELLER

A6L-X RECOMMENDATIONS

Load capacity(liquid)

5L

Agriculture Quadcopter Drone

Load capacity(liquid)

10L

Agriculture Hexacopter Drone

Take-off weight

16~22kg

Quadcopter

Take-off weight

24~33kg

Hexacopter

Load capacity(liquid)

5L

Agriculture Quadcopter
Drone

Load capacity(liquid)

10L

Agriculture Hexacopter
Drone

Take-off weight

16~22kg

Quadcopter

Take-off weight

24~33kg

Hexacopter

Technical Drawing


Specification
Model No.A6L-X KV160Tube size30mm
SetupA6L-X (Motor)+14S FOC 80A (ESC)+MF2407P (Prop)Wire material,wire gauge, colorPower wires:14#AWG red & black
Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1000±5mm
Rated thrust4~5.5kgWeight750g±2%(incl. Wires+prop)
Efficiency at rated thrust8.2g/W (4kg)IPIPX6
Max. thrust12kgRecommended ambienttemperature-30℃~50℃
Motor specs.
Stator size62*18mmKV160
ESC specs.
Throttle range1100~1940us (fixed)Max. voltage61V
ProtocolDRONE CAN、 UAV CAN、CUBE CANPeak current(for a short time)80A
(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF2407P (Polymer Folding)Length24 inch(622mm)
Test Data
TypeVoltage
(V)
Throttle
(%)
Current
(A)
Thrust
(g)
Motor
efficiency
(%)
Overall
efficiency
(gf/W)
Operating
temperature
(℃)
A6L-X KV160
+
14S FOC 80A
+
MF2407P
46.17301.468677312.9132
(Ambient temperature:
27.8)
46.33352.6614367811.6
46.31404.4221328210.4
46.25456.872945839.3
46.205010.073870868.3
46.145514.114885857.5
46.066019.075990866.8
45.976525.157204866.2
45.867032.418503855.7
45.747541.099869845.3
45.638051.2911274824.8
45.578557.5012060814.6
45.579057.3312029814.6
45.579557.2412020804.6
45.5710057.0111954804.6
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A6L-X KV160
+
14S FOC 80A
+
MF2407P
60.17301.179207113.1109
(Ambient temperature:
27.8)
60.31352.1415117611.7
60.27403.4921998010.5
60.24455.423026819.3
60.19507.923965848.3
60.145511.075001867.5
60.096014.956125856.8
60.026519.517314856.2
59.957025.028581845.7
59.867531.589946835.3
59.768039.5011394824.8
59.668547.3412647804.5
59.669047.4012640804.5
59.669547.4912607794.5
59.6610047.5912598794.4
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

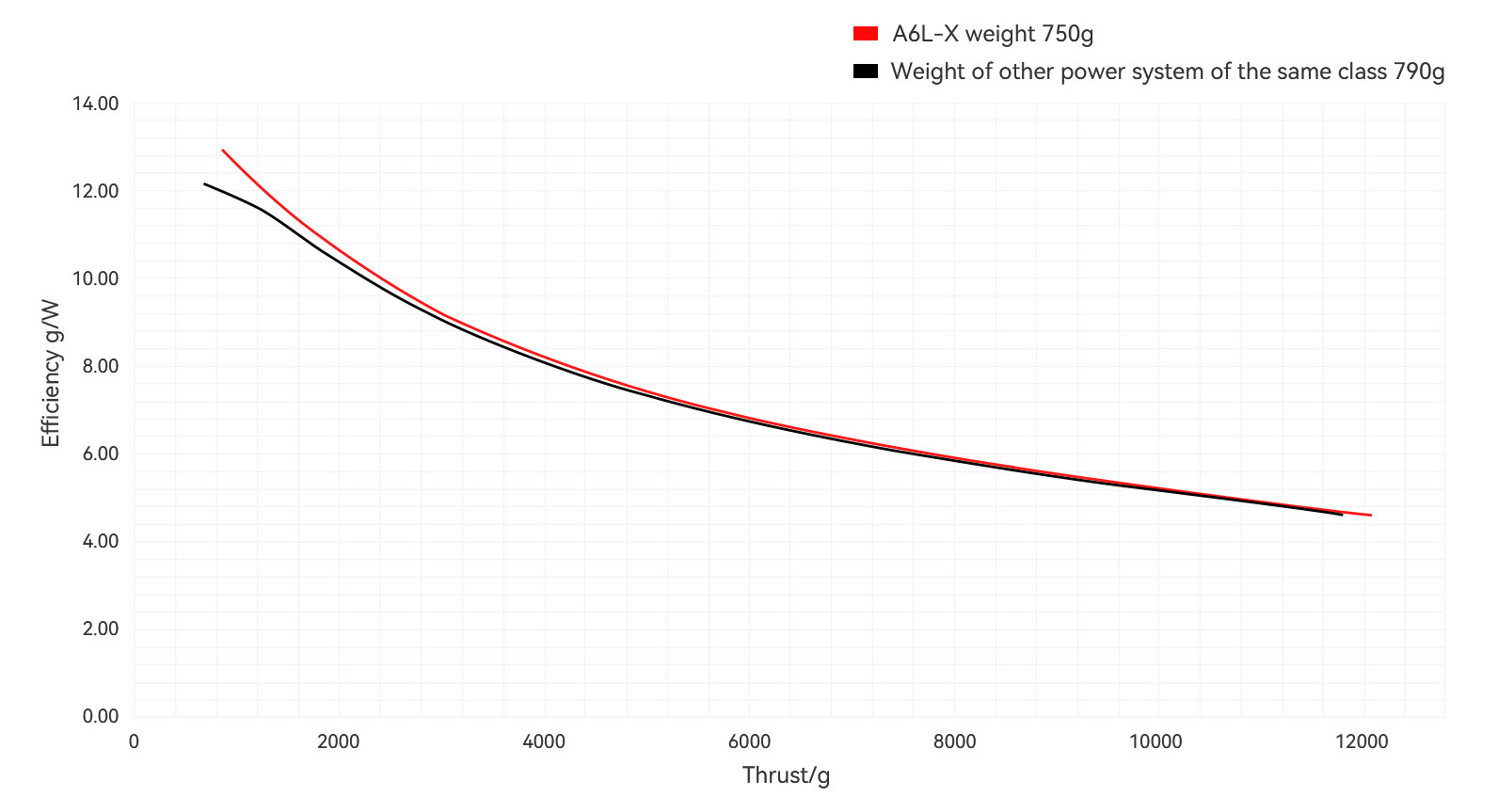

Analysis Chart

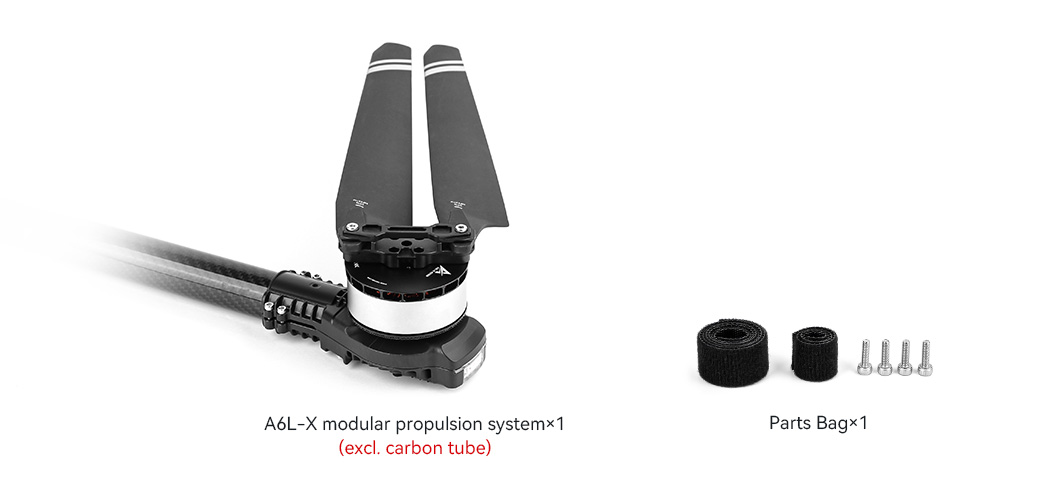

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
Note

1.Can I mount sprinklers to the drone? What are the hole patterns I can use?

- To mount the sprinklers, you can choose the basic hole pattern of 14-2*M3. Or you can choose to expand the pattern to 28.5-2*M3.

2.Can I demount the silicone covers myself?

- The silicone covers can be demounted for easy cleaning.

3.What should I do if I find that the dust filter is easy to deform?

- The dust filter is made of elastic deformation material, and can recover its shape by itself without strong impact. If plastic deformation occurs, it can be restored to shape by external force.

4.How to fix the folding propellers?

- The folding propellers can be fixed by the straps after flight.

5.How to clean a motor?

- If you encounter foreign objects such as mud and sand during use, you can rinse them with clean water. Please note to stand the motor for 1 hour after rinsing to dry the surface moisture before use.

6.How to check the motor if the power is not turned on before flight?

- Before each flight, it is recommended to turn the motor by hand to check whether it is stuck or not smooth when it is not powered on. If there is any abnormality, you need to contact the manufacturer for troubleshooting.

7.What should I do if there is any abnormality during power-on self-test before flight?

- If there is an error alarm in the power-on self-test before the flight, you can locate and fix it with reference to the abnormal summary on our website or contact the manufacturer.
