A14-18S

Price inquiry: onlinesales@ligpower.com

- Rated thrust/arm: 25~27kg
- Recommendation: 50L quadcopter or 60L hexacopter
- System weight (incl. prop): 4060g
- Battery: 18S (LiPo)
- Propulsion system: A14-18S Motor+18S FOC 150A ESC+MF5620P Prop
- Tube size: 50mm
- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download
A14-18S
A14-18S
MODULAR PROPULSION SYSTEM

A14-18S

MOTOR

18S FOC 150A

ESC

MF5620P

PROPELLER

A14-18S

MOTOR

MF5620P

PROPELLER

18S FOC 150A

ESC

A14-18S RECOMMENDATIONS

Load capacity(liquid)

50L

Agriculture Quadcopter Drone

Load capacity(liquid)

60L

Agriculture Hexacopter Drone

Take-off weight

100~108kg

Quadcopter

Take-off weight

150~162kg

Hexacopter

Load capacity(liquid)

50L

Agriculture Quadcopter
Drone

Load capacity(liquid)

60L

Agriculture Hexacopter
Drone

Take-off weight

100~108kg

Quadcopter

Take-off weight

150~162kg

Hexacopter

Technical Drawing


Specification
Model No.A14-18S KV49.6Tube size50mm
SetupA14-18S (Motor)+18S FOC 150A (ESC)+
MF5620P (Prop)		Wire material,wire gauge, colorPower wires：10#AWG red & black
Signal wires: 5P Teflon
Recommended battery18S (LiPo)Wire length1200±5mm
Rated thrust25~27kgWeight4060g±2%(incl. Wires+prop)
Efficiency at rated thrust10g/W (25kg)IPIPX6
Max. thrust62kgRecommended ambienttemperature-30℃～50℃
Motor specs.
Stator size138*25mmKV49.6
ESC specs.
Throttle range1040~1840us (fixed)Max. voltage75V
ProtocolDRONE CAN、 UAV CAN、CUBE CANPeak current
(for a short time)		150A
(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF56P (Polymer Folding)Length56 inch(1400mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A14-18S KV49.6
+
18S FOC 150A
+
MF56P		6030876248115.7180
(Ambient temperature:
31.8)
603513110098714.0
604020148188812.5
604529191339211.1
605039238089110.1
59555228762939.2
59606734103928.5
59658639662917.8
597010645252917.2
587512850738896.7
588015756691876.2
588517458917855.8
589017458681845.8
589517358753855.8
5810017358745855.8

Note: Temperature in the chart is the stator temperature after running @80% throttle for 2mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

A14-18S KV49.6
+
18S FOC 150A
+
MF56P		7630672148115.4173
(Ambient temperature:
27.8)
763510106158513.6
754016146859112.5
754522188849011.2
755031235539110.1
75554128439939.2
75605333657918.4
75656738986927.8
75708344590917.2
757510150309906.7
748012055868896.3
748514461494865.8
749014561730875.8
749514761907875.7
7410014561750875.8

Note: Temperature in the chart is the stator temperature after running @80% throttle for 2mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

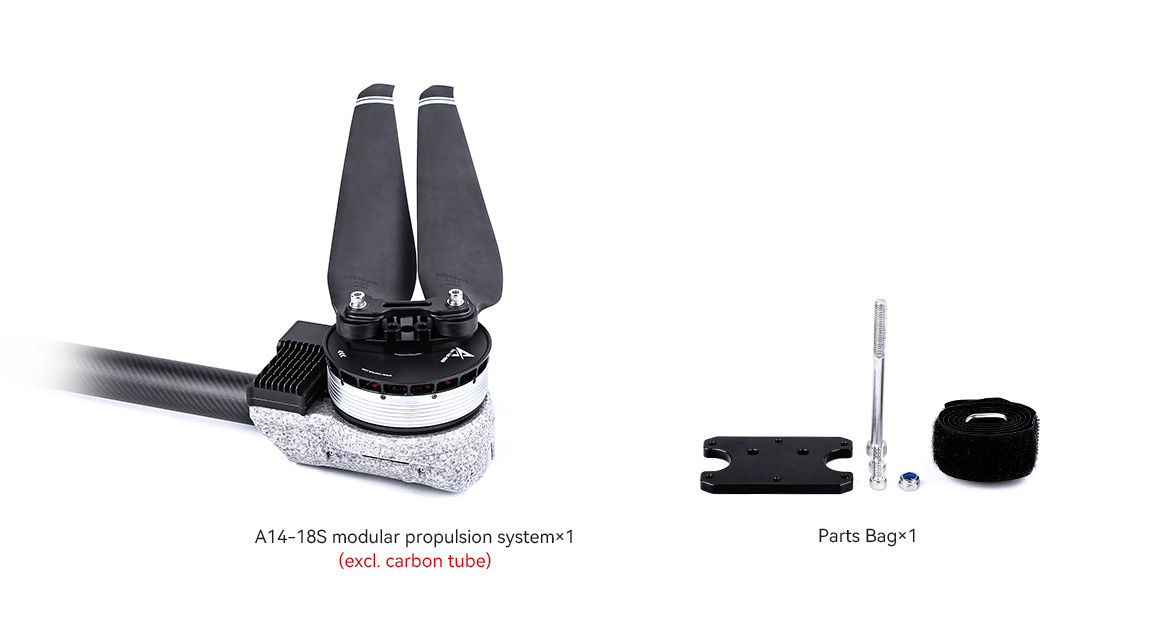

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
