A14-14S

Price inquiry: onlinesales@ligpower.com

- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download
A14-14S
A14-14S
MODULAR PROPULSION SYSTEM

A14-14S

MOTOR

14S FOC 200A

ESC

MF5620P

PROPELLER

A14-14S

MOTOR

MF56P

PROPELLER

14S FOC 200A

ESC

A14-14S RECOMMENDATIONS

Load capacity(liquid)

50L

Agriculture Quadcopter Drone

Load capacity(liquid)

60L

Agriculture Hexacopter Drone

Take-off weight

100~108kg

Quadcopter

Take-off weight

150~162kg

Hexacopter

Load capacity(liquid)

50L

Agriculture Quadcopter
Drone

Load capacity(liquid)

60L

Agriculture Hexacopter
Drone

Take-off weight

100~108kg

Quadcopter

Take-off weight

150~162kg

Hexacopter

Technical Drawing


Specification
Model No.A14-14S KV58Tube size50mm
SetupA14-14S (Motor)+14S FOC 200A (ESC)+MF5620P (Prop)Wire material,wire gauge, colorPower wires：10#AWG red & black Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1200±5mm
Rated thrust25~27kgWeight4050g±2% (incl. Wires+prop)
Efficiency at rated thrust10g/W (25kg)IPIPX6
Max. thrust63kgRecommended ambient temperature-30℃～50℃
Motor specs.
Stator size138*25mmKV58
ESC specs.
Throttle range1040~1880us (fixed))Max. voltage60V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak current(for a short time)190A
(Open environment
and temperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF56P (Polymer Folding)Length56 inch (1400mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A14-14S KV58
+
14S FOC 200A
+
MF56P		47.85309.33739584.516.4180
(Ambient temperature:
31.8)
47.913515.461065187.814.4
47.584023.651440793.612.7
47.544534.291856790.011.3
47.475047.412310192.010.2
47.165563.352801190.89.3
47.076082.043305090.98.5
46.7965103.353816190.17.9
46.4970128.434351989.17.2
46.0975155.494877088.06.7
45.8680177.045269487.26.4
45.9085181.615328288.46.4
45.7990185.315389287.96.3
45.9095185.445396586.86.3
45.91100186.565406187.56.3
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A14-14S KV58
+
14S FOC 200A
+
MF56P		59.88307.71732173.715.9182
(Ambient temperature:
31.8)
59.713512.791056279.613.8
59.744019.421435483.412.4
59.534527.951855485.811.2
59.675038.452306887.910.1
59.245551.062789488.09.2
59.176065.733294589.08.5
58.966582.783814088.57.8
58.7670101.804334088.37.2
58.4175122.904857586.86.8
58.1280146.925401986.36.3
57.8185171.665887484.35.9
57.6190194.426307883.35.6
57.5995194.436279483.95.6
57.61100194.436273883.75.6
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

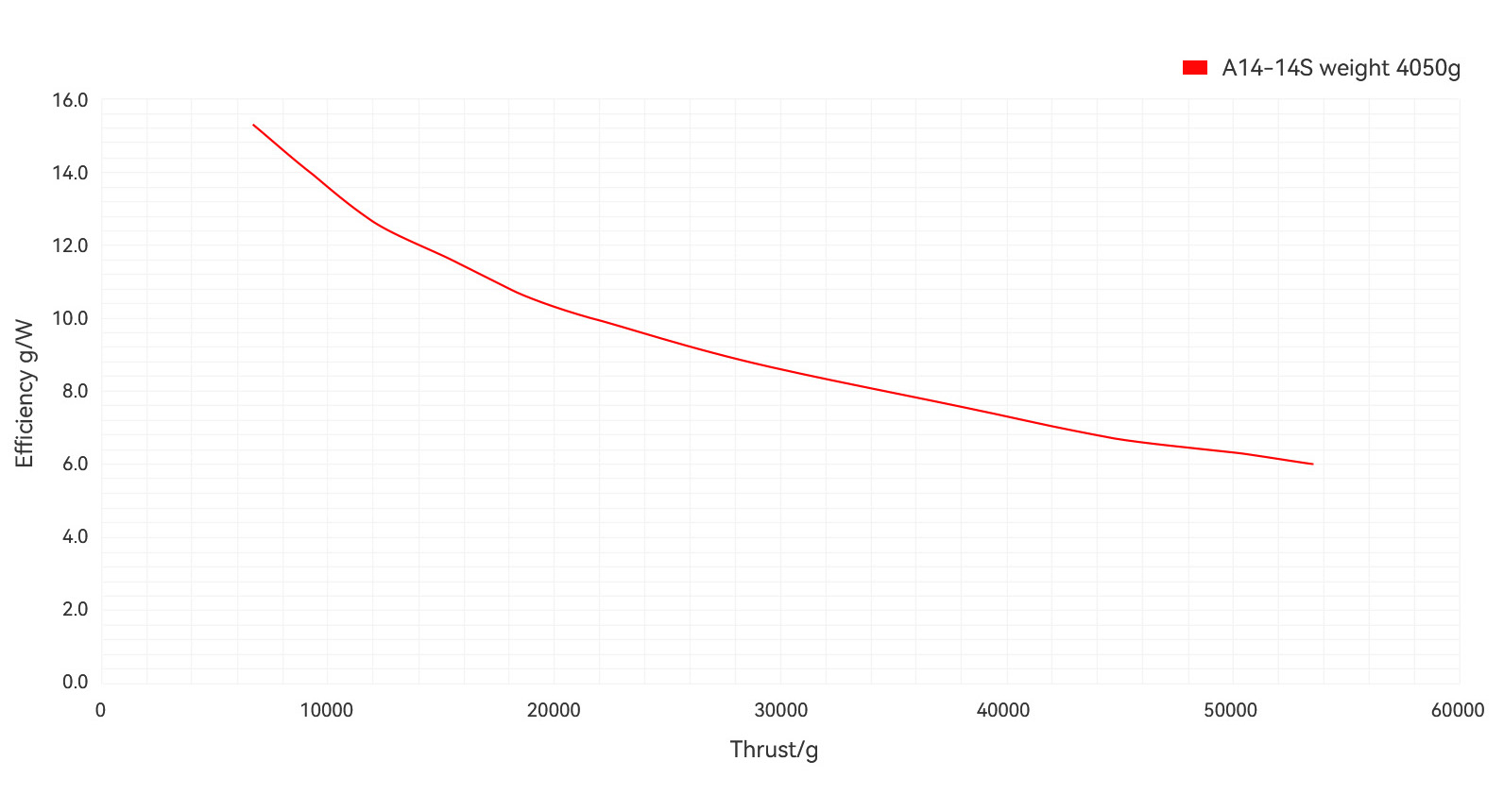

Analysis Chart

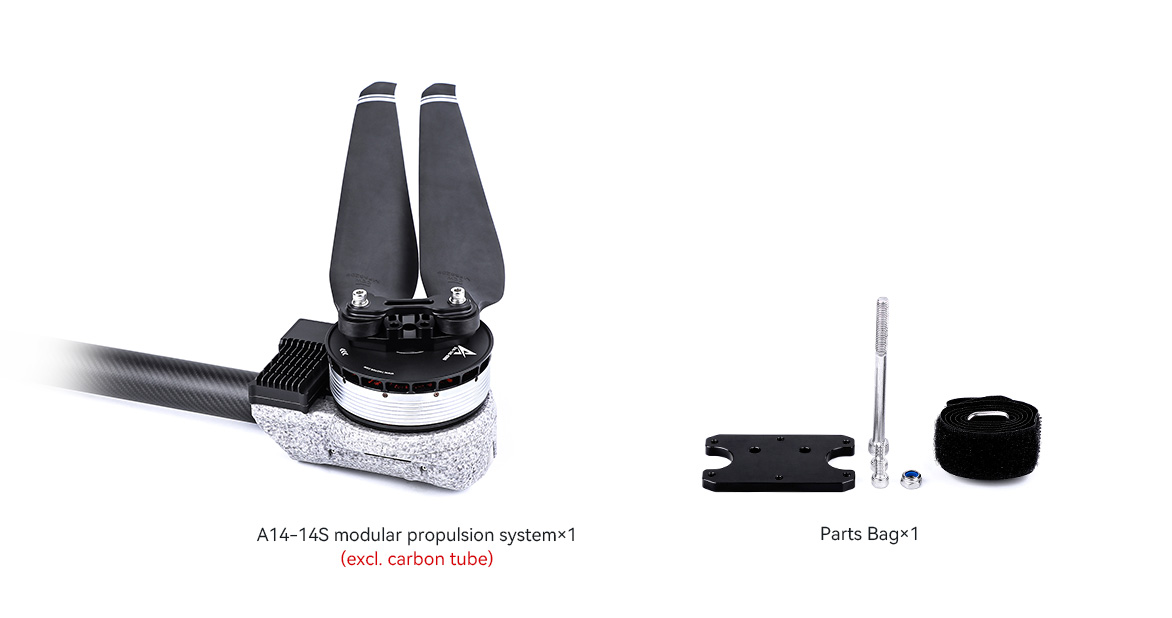

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
