A12XL-18S

Price inquiry: onlinesales@ligpower.com

- Rated thrust/arm: 20~22kg
- Recommendation: 40L quadcopter or 50L hexacopter
- System weight (incl. prop): 2800g
- Battery: 14~18S (LiPo)
- Propulsion system: A12XL-18S Motor+18S FOC 150A ESC+MF4918P Prop
- Tube size: 50mm
- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download

A12XL-18S
A12XL-18S
MODULAR PROPULSION SYSTEM

A12XL-18S

MOTOR

18S FOC 150A

ESC

MF4918P

PROPELLER

A12XL-18S

MOTOR

MF4918P

PROPELLER

18S FOC 150A

ESC

A12XL-18S RECOMMENDATIONS

Load capacity(liquid)

40L

Agriculture Quadcopter Drone

Load capacity(liquid)

50L

Agriculture Hexacopter Drone

Take-off weight

80~88kg

Quadcopter

Take-off weight

120~132kg

Hexacopter

Load capacity(liquid)

40L

Agriculture Quadcopter
Drone

Load capacity(liquid)

50L

Agriculture Hexacopter
Drone

Take-off weight

80~88kg

Quadcopter

Take-off weight

120~132kg

Hexacopter

Technical Drawing


Specification
Model No.A12XL KV64Tube size50mm
SetupA12XL-18S (Motor)+18S FOC 150A (ESC)+
MF4918P (Prop)		Wire material,
wire gauge, color		Power wires: 10#AWG red & black
Signal wires: 5P Teflon
Recommended battery14~18S (LiPo)Wire length1700±5mm
Rated thrust20~22kgWeight2800g±2%(incl. Wires+prop)
Efficiency at rated thrust9.1g/W (20kg)IPIPX6
Max. thrust43.5kgRecommended ambient
temperature		-30℃～50℃
Motor specs.
Stator size111*22mmKV64
ESC specs.
Throttle range1100~1940usMax. voltage76V
ProtocolDRONE CAN、 UAV CAN、
CUBE CAN		Peak current
(for a short time)		150A
(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF4918P (Polymer Folding)Length49 inch(1244.6mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A12XL KV64
+
18S FOC 150A
+
MF4918P		60.37305.89560577.915.8172
(Ambient temperature:
27.8)
60.34359.18792885.014.3
60.184013.801051387.912.7
59.994519.881333388.211.2
59.745026.841627088.510.1
59.315535.511943389.19.2
59.286045.462279088.28.5
59.126557.092635987.67.8
58.927070.442992886.37.2
58.597585.963356384.36.7
58.2580102.863686683.26.2
57.6485123.454044380.15.7
57.4290144.234341477.05.2
57.3495145.804332977.65.2
57.55100146.654319577.25.1

Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

A12XL KV64
+
18S FOC 150A
+
MF4918P		75.67304.59562179.016.2165
(Ambient temperature:
27.8)
75.66357.44793082.914.1
75.504011.101049386.312.5
75.504515.801338686.911.2
75.185021.551638888.110.1
74.995528.501966488.69.2
74.666036.432286188.08.4
74.426545.602648687.47.8
74.327055.952990886.87.2
74.127567.473346884.96.7
73.578081.513710783.36.2
73.408596.714052280.45.7
73.0690113.454358977.65.3
73.0795114.804359777.95.2
73.00100115.924350576.75.1

Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

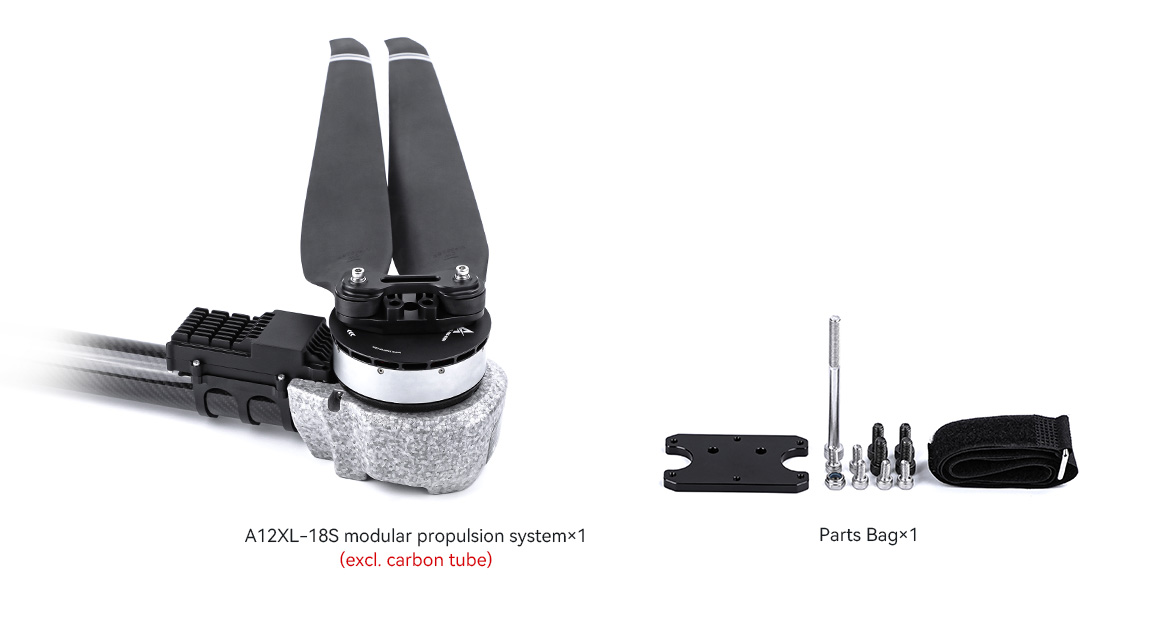

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
