A12L-24S

Price inquiry: onlinesales@ligpower.com

- Rated thrust/arm:15~18kg
- Recommendation: 30L quadcopter or 40L hexacopter
- System weight (incl. prop): 2400g
- Battery: 20~24S (LiPo)
- Propulsion system: A12L-24S Motor+24S FOC 120A ESC+MF4315P Prop
- Tube size: 50mm
- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download

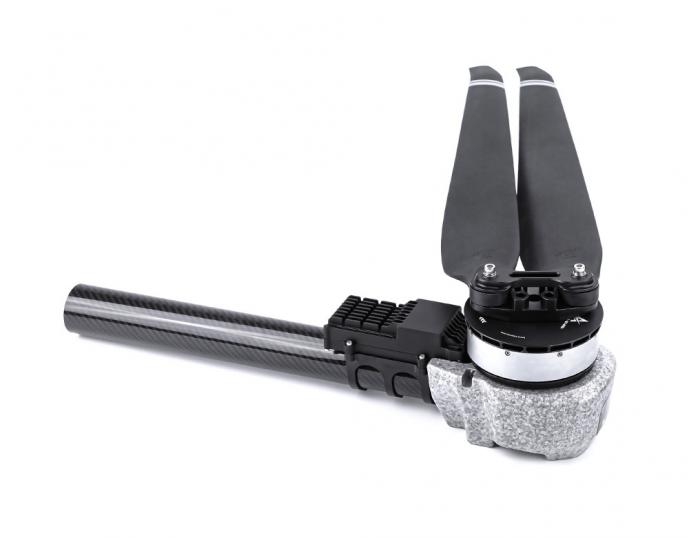

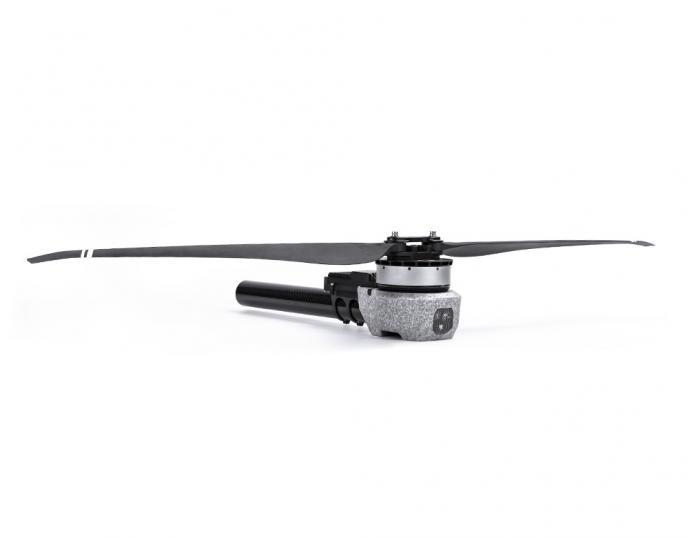

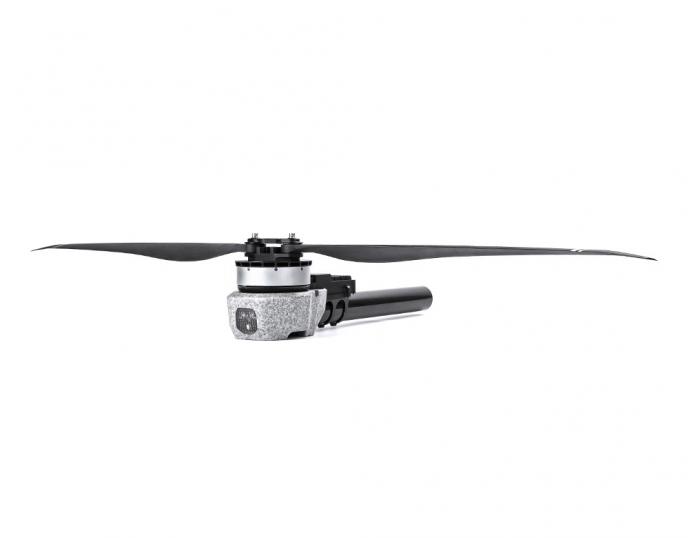

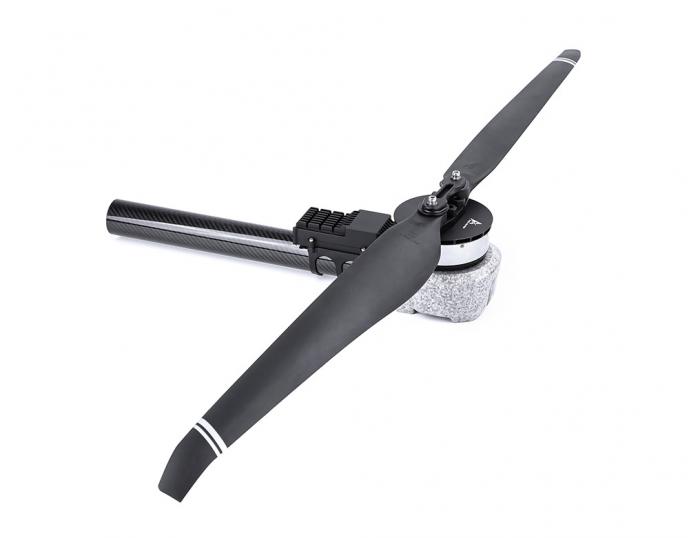

A12L-24S
A12L-24S
MODULARPropulsion System
The preferred solution for 30L and 40L agricultural drones

A12L-24S

MOTOR

24S FOC 120A

ESC

MF4315P

PROPELLER

A12L-24S

MOTOR

MF4315P

PROPELLER

24S FOC 120A

ESC

A12L-24S RECOMMENDATIONS

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~110kg

Hexacopter

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~110kg

Hexacopter

Technical Drawing


Specification
Model No.A12L KV49Tube size50mm
SetupA12L-24S (Motor)+24S FOC 120A (ESC)+MF4315P (Prop)Wire material,wire gauge, colorPower wires: 10#AWG red & black Signal wires: 5P Teflon
Recommended battery20~24S (LiPo)Wire length1700±5mm
Rated thrust15~18kgWeight2400g±2%(incl. Wires+prop)
Efficiency at rated thrust8.9g/W (17kg)IPIPX6
Max. thrust36.7kgRecommended ambient temperature-30℃～50℃
Motor specs.
Stator size111*18mmKV49
ESC specs.
Throttle range1000~1900usMax. voltage100V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak current
(for a short time)		120A(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF4315P (Polymer Folding)Length43 inch(1090.7mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A12L KV49
+
24S FOC 120A
+
MF4315P		79.81303.98505894.215.9151
(Ambient temperature:
27.8℃)
79.88356.58712793.813.6
79.90409.38934697.112.5
79.824513.541188697.611.0
79.815018.381437395.99.8
79.695523.521694995.79.0
79.836029.401961995.28.4
79.596535.452223894.67.9
79.377042.342484994.47.4
79.267549.272737194.57.0
79.408056.362981393.66.7
79.278563.303208093.16.4
79.169070.693421092.26.1
79.179573.353484891.16.0
79.0210073.693489191.86.0

Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

A12L KV49
+
24S FOC 120A
+
MF4315P		98.99303.29514991.715.8158
(Ambient temperature:
27.8℃)
99.14355.56722187.913.1
99.14408.28945589.711.5
98.954511.361181992.510.5
98.935015.131438492.99.6
98.865519.381706893.18.9
98.796024.191973992.58.3
98.776529.242234892.87.7
98.677034.482483492.87.3
98.647540.102736392.36.9
98.518046.052990692.06.6
98.518551.403202791.46.3
98.399056.863392490.46.1
98.279559.623489690.76.0
98.2410059.723487390.95.9

Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.

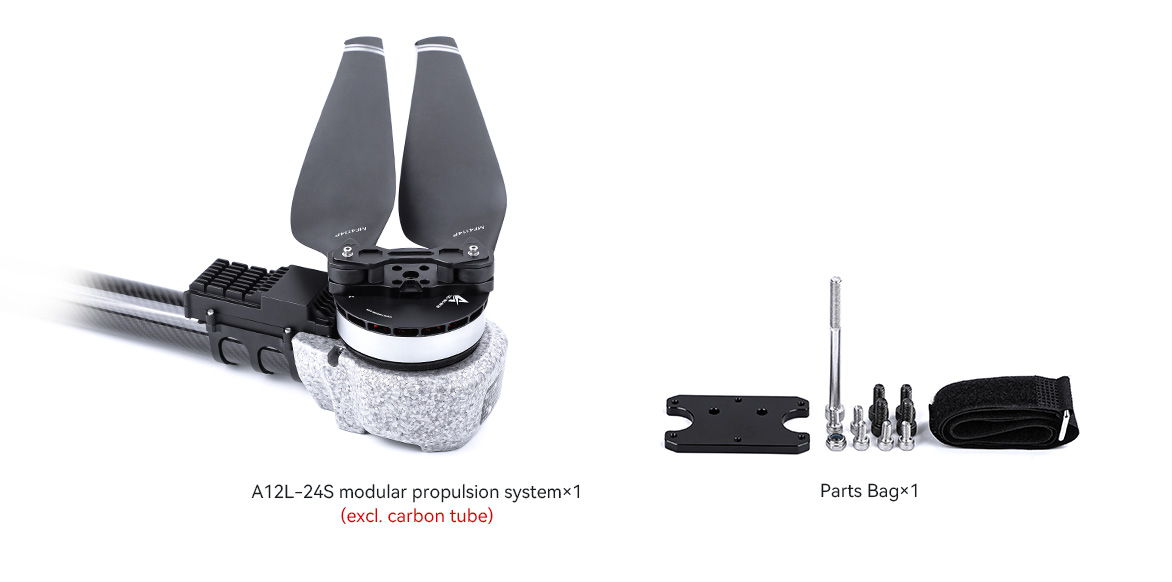

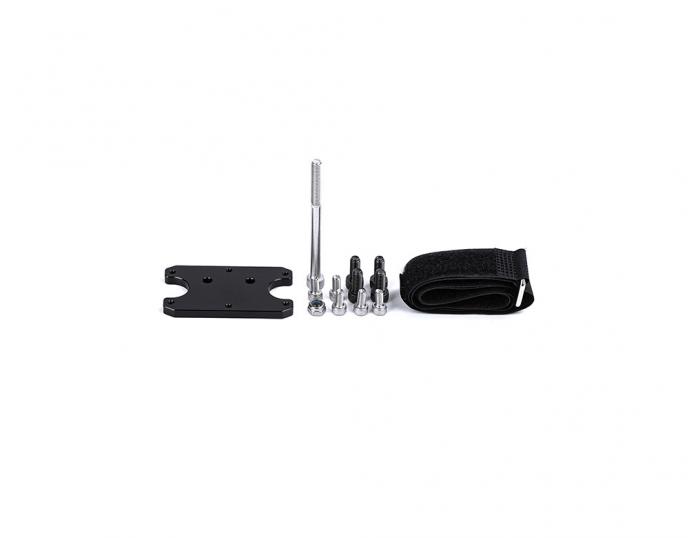

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
