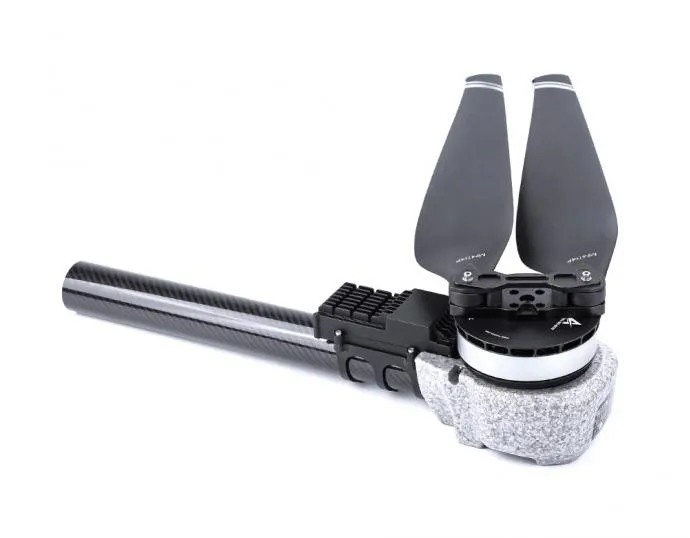

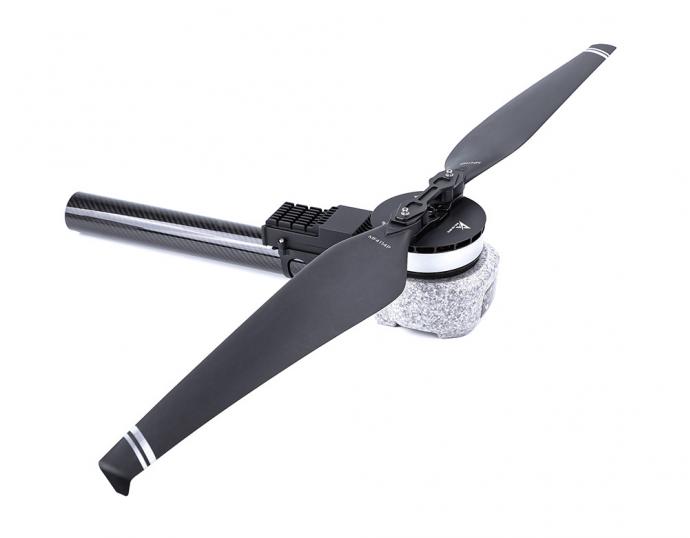

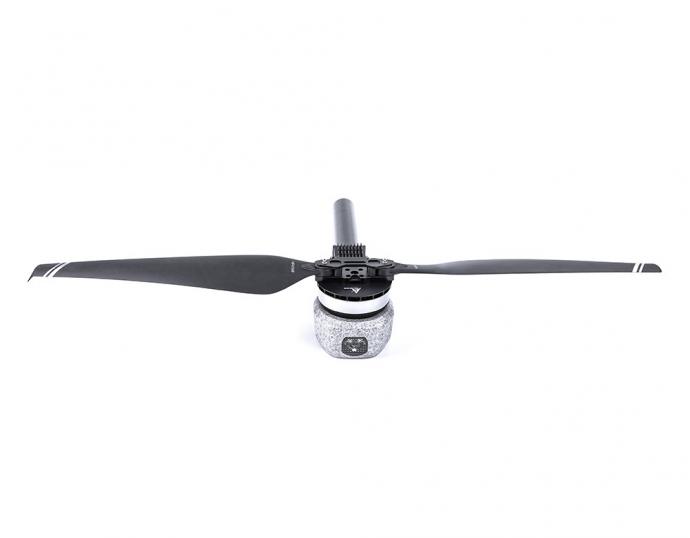

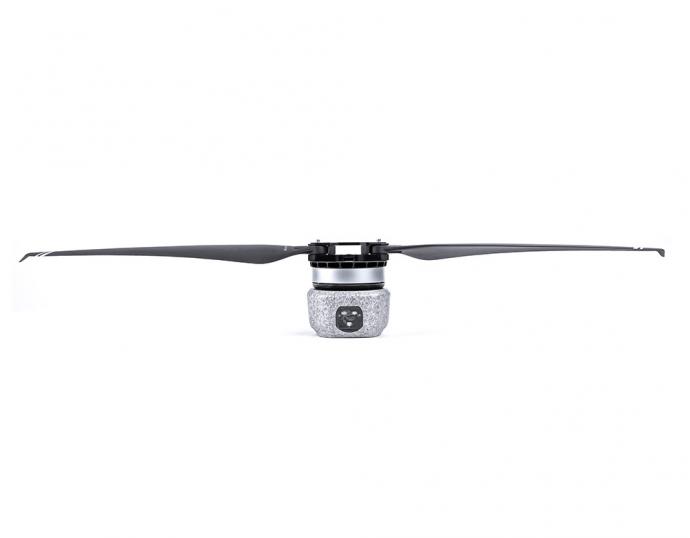

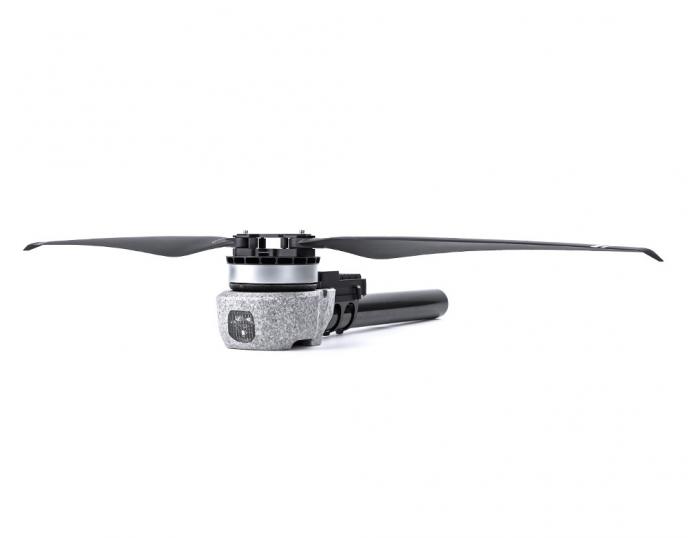

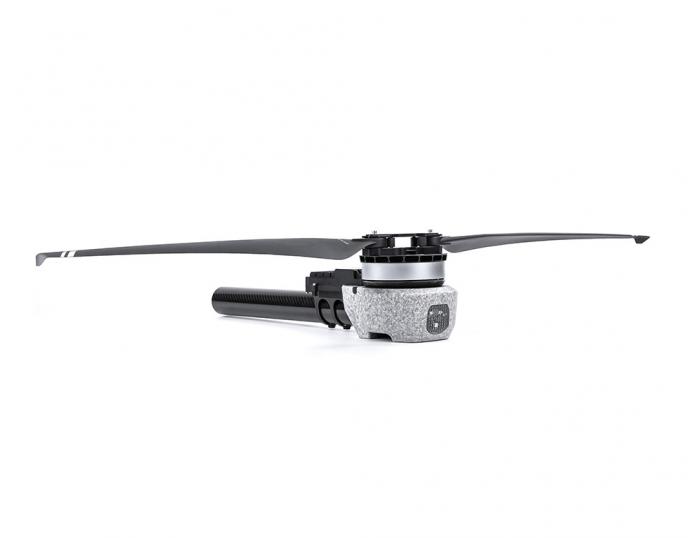

A12L-18S

Price inquiry: onlinesales@ligpower.com

- Rated thrust/arm: 15~18kg
- Recommendation: 30L quadcopter or 40L hexacopter
- System weight (incl. prop): 2400g
- Battery: 14~18S (LiPo)
- Propulsion system: A12L-18S Motor+18S FOC 150A ESC+MF4315P Prop
- Tube size: 50mm
- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download
A12L-18S
A12L-18S
MODULAR PROPULSION SYSTEM

A12L-18S

MOTOR

18S FOC 150A

ESC

MF4315P

PROPELLER

A12L-18S

MOTOR

MF4315P

PROPELLER

18S FOC 150A

ESC

A12L-18S RECOMMENDATIONS

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Load capacity(liquid)

30L

Agriculture Quadcopter
Drone

Load capacity(liquid)

40L

Agriculture Hexacopter
Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Technical Drawing


Specification
Model No.A12L KV70Tube size50mm
SetupA12L-18S (Motor)+18S FOC 150A (ESC)+
MF4315P (Prop)		Wire material,
wire gauge, color		Power wires：10#AWG red & black
Signal wires: 5P Teflon
Recommended battery14~18S (LiPo)Wire length1700±5mm
Rated thrust15~18kgWeight2400g±2%(incl. Wires+prop)
Efficiency at rated thrust8.9g/W (17kg)IPIPX6
Max. thrust36.7kgRecommended ambient
temperature		-30℃～50℃
Motor specs.
Stator size111*18mmKV70
ESC specs.
Throttle range1100~1940usMax. voltage76V
ProtocolDRONE CAN、 UAV CAN、
CUBE CAN		Peak current
(for a short time)		150A
(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF4315P (Polymer Folding)Length43 inch(1090.7mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A12L KV70
+
18S FOC 150A
+
MF4315P		60.28305.61491884.514.5165
(Ambient temperature:
34.2℃)
60.22358.78695390.213.2
60.304013.13929490.011.7
60.034518.521188593.310.7
60.205024.911454993.09.7
59.975532.471734992.68.9
59.826040.762017693.58.3
59.716550.012302493.37.7
59.567060.132592093.37.2
59.487571.302879992.06.8
59.378083.053156891.76.4
59.368595.993436289.56.0
59.2090107.213658688.45.8
58.9995108.283679789.05.8
59.07100108.763672688.55.7

Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

A12L KV70
+
18S FOC 150A
+
MF4315P		75.63304.31491685.615.1162
(Ambient temperature:
34.2)
75.64356.98695987.713.2
75.424010.53923390.611.6
75.464514.841181790.910.6
75.405019.901446193.29.6
75.375525.911734993.28.9
75.256032.572017692.68.2
75.306540.092301891.67.6
75.097048.422602690.57.2
74.907557.052883791.16.7
74.798066.813174189.96.4
74.638577.133459788.66.0
74.659085.493662287.25.7
74.639586.173665588.15.7
74.6410087.183679187.35.7

Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

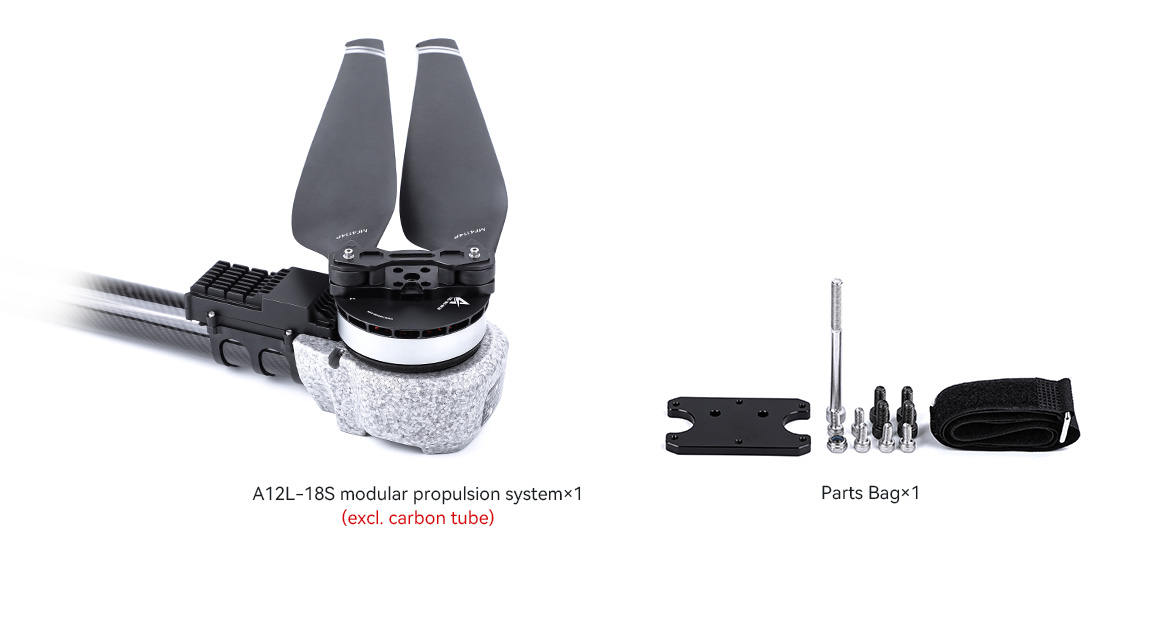

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
