Power wires：10#AWG red & black Signal wires: 5P Teflon
Recommended battery
12~14S (LiPo)
Wire length
1700±5mm
Rated thrust
15~18kg
Weight
2400g±2% (incl. Wires+prop)
Efficiency at rated thrust
8.8g/W (17kg)
IP
IPX6
Max. thrust
35kg
Recommended ambient temperature
-30℃～50℃
Motor specs.
Stator size
111*18mm
KV
92
ESC specs.
Throttle range
1100~1940us
Max. voltage
61V
Protocol
DRONE CAN、UAV CAN、CUBE CAN
Peak current(for a short time)
200A (Open environment and temperature≤60℃)
Control method
PWM/CAN
BEC
NO
Prop specs
Model No.
MF4315P (Polymer Folding)
Length
43 inch (1090.7mm)
Test Data
Type
Voltage (V)
Throttle (%)
Current (A)
Thrust (g)
Motor efficiency (%)
Overall efficiency (gf/W)
Operating temperature (℃)
A12L KV92 + 14S FOC 200A + MF4315P
47.92
30.00
7.00
5109.00
92.60
15.20
178 (Ambient temperature: 27.8)
48.07
35.00
11.24
7122.11
92.60
13.20
47.97
40.00
16.45
9376.80
94.90
11.90
47.86
45.00
23.41
11861.80
95.20
10.60
47.83
50.00
31.38
14440.20
94.40
9.60
47.59
55.00
40.65
17077.73
94.20
8.80
47.59
60.00
50.49
19671.00
92.20
8.20
47.43
65.00
61.83
22362.70
91.50
7.60
47.29
70.00
73.63
24958.90
91.10
7.20
47.14
75.00
87.06
27583.70
90.30
6.70
46.85
80.00
100.77
30091.73
88.90
6.40
46.85
85.00
114.21
32295.11
87.20
6.00
46.58
90.00
128.49
34472.00
86.00
5.80
46.52
95.00
136.20
35539.00
85.20
5.60
46.46
100.00
136.52
35551.75
85.80
5.60
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins. (Data above based on benchtest at LIGPOWER lab are for reference only.)
A12L KV92 + 14S FOC 200A + MF4315P
59.97
30.00
5.54
5117.20
91.50
15.40
169 (Ambient temperature: 27.8)
60.05
35.00
9.07
7169.50
88.40
13.20
60.18
40.00
13.42
9406.50
90.50
11.60
60.04
45.00
18.87
11825.30
91.10
10.40
59.96
50.00
25.20
14399.30
91.10
9.50
59.92
55.00
32.47
17075.70
92.10
8.80
59.70
60.00
40.19
19613.10
90.90
8.20
59.73
65.00
48.68
22238.82
91.80
7.60
59.57
70.00
58.47
24892.10
90.30
7.10
59.38
75.00
68.58
27524.50
89.60
6.80
59.39
80.00
78.79
29919.00
88.90
6.40
59.29
85.00
89.38
32154.50
87.50
6.10
59.07
90.00
100.18
34358.90
86.70
5.80
58.99
95.00
106.00
35395.30
86.20
5.70
58.91
100.00
106.21
35367.00
86.20
5.70
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins. (Data above based on benchtest at LIGPOWER lab are for reference only.)

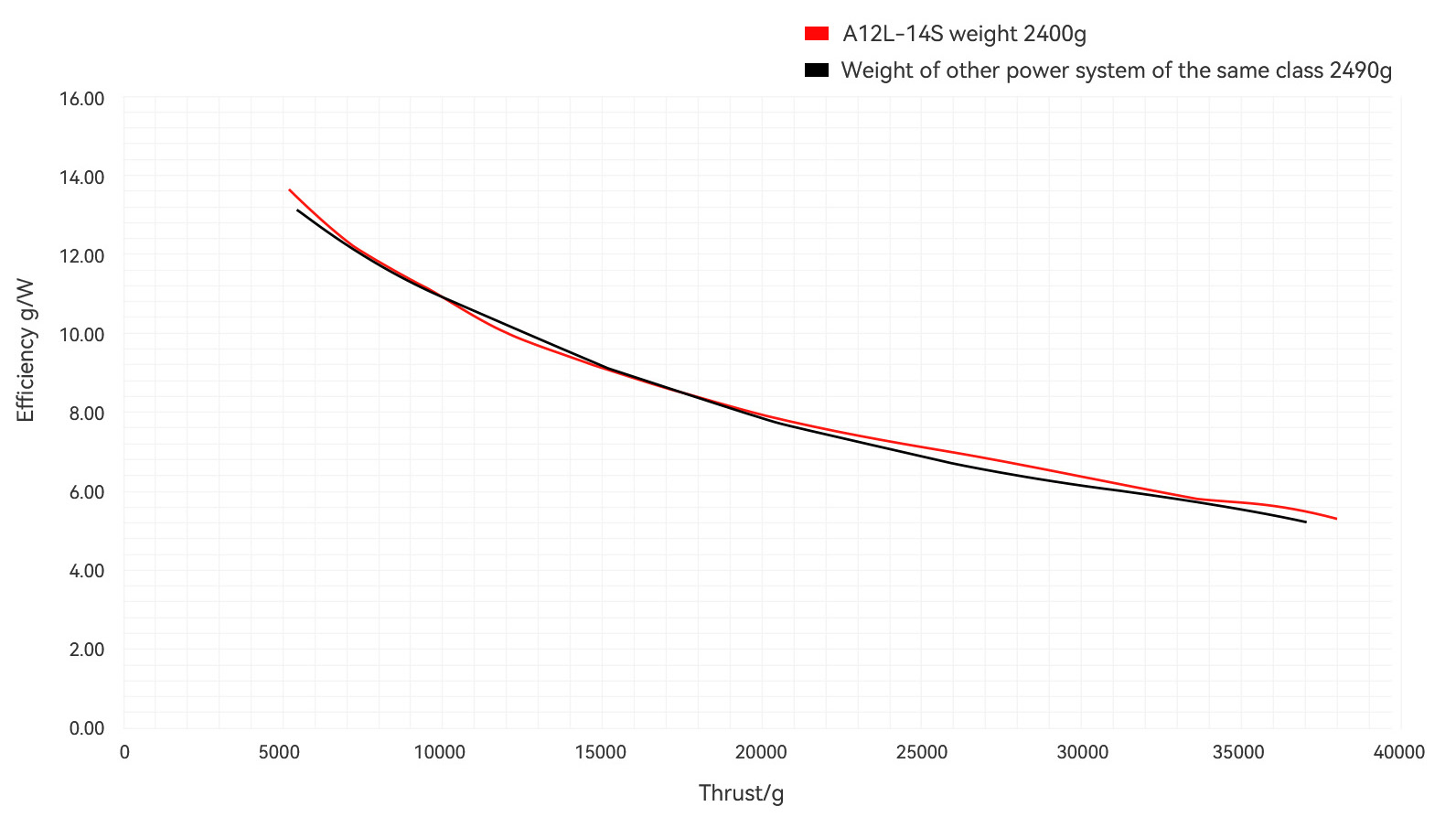

Analysis Chart

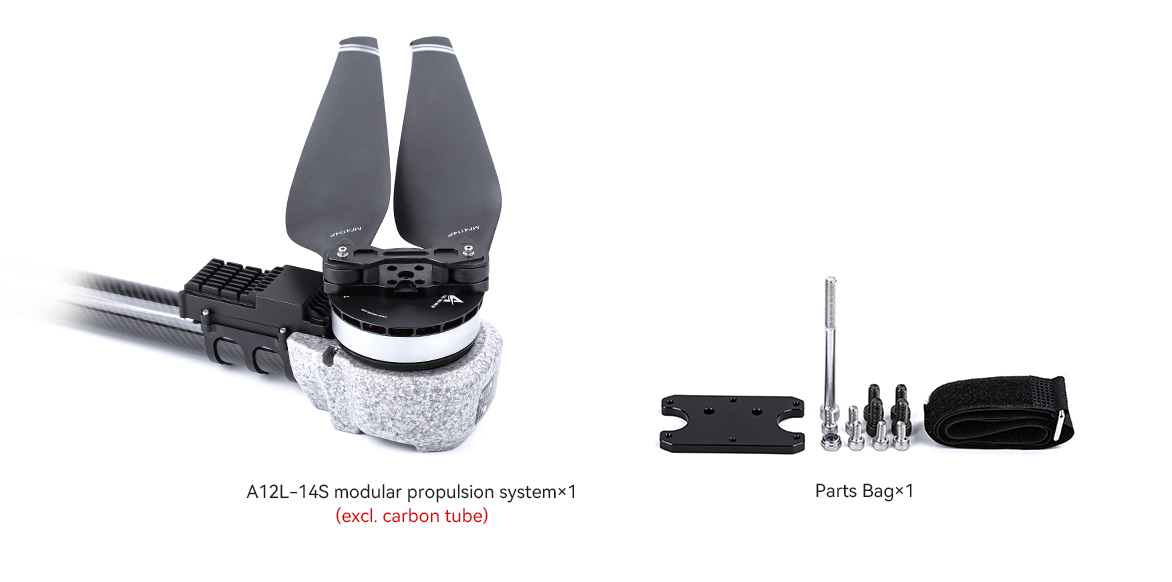

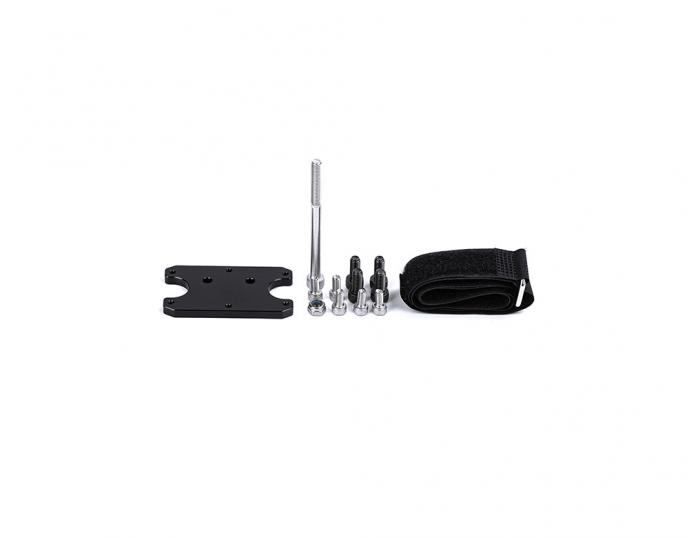

Packing List
Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
