A12-24S

Price inquiry: onlinesales@ligpower.com

- Rated thrust/arm:15~18kg
- Recommendation: 30L quadcopter or 40L hexacopter
- System weight (incl. prop): 2285g
- Battery: 20~24S (LiPo)
- Propulsion system: A12-24S Motor+24S FOC 120A ESC+MF4114P Prop
- Tube size: 50mm
- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download
A12-24S
A12-24S
MODULARPropulsion System
The preferred solution for 30L and 40L agricultural drones

A12-24S

MOTOR

24S FOC 120A

ESC

MF4114P

PROPELLER

A12-24S

MOTOR

MF4114P

PROPELLER

14S FOC 200A

ESC

A12-24S RECOMMENDATIONS

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~70kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~70kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Technical Drawing


Specification
Model No.A12 KV50Tube size50mm
SetupA12-24S (Motor)+24S FOC 120A (ESC)+MF4114P (Prop)Wire material,wire gauge, colorPower wires: 10#AWG red & black Signal wires: 5P Teflon
Recommended battery20~24S (LiPo)Wire length1700±5mm
Rated thrust15~18kgWeight2285g±2%(incl. Wires+prop)
Efficiency at rated thrust8.1g/W (16kg)IPIPX6
Max. thrust35.6kgRecommended ambient temperature-30℃～50℃
Motor specs
Stator size111*15mmKV50
ESC specs
Throttle range1100~1940usMax. voltage100.8V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak current(for a short time)120A(Openenvironment andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF4114P (Polymer Folding)Length41 inch(1043.5mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A12 KV50
+
24S FOC 120A
+
MF4114P		80.22301.90215471.914.1180
(Ambient temperature:
32℃)
80.15353.74393579.913.1
80.15406.35595884.311.7
79.99459.70827788.110.7
80.035014.101086288.49.6
79.915519.311362890.98.8
79.876025.581651491.28.1
79.736532.621949691.27.5
79.817040.762251089.46.9
79.647549.562553788.86.5
79.458058.902839989.06.1
79.298573.263120281.95.4
79.149076.023168081.75.3
79.149576.073154181.25.2
79.4010076.243139380.45.2

Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

A12 KV50
+
24S FOC 120A
+
MF4114P		98.40301.46231575.616.1180
(Ambient temperature:
32℃)
98.39353.05410479.813.7
98.27405.12608089.412.1
98.30457.90839888.510.8
98.205011.391101490.29.8
98.095515.691373491.18.9
98.166020.991667490.58.1
98.136526.611953190.57.5
98.007033.342264390.36.9
97.867540.532561389.16.5
97.668048.322845588.26.0
97.568556.553115486.45.6
97.589065.343376284.05.3
97.429572.983560881.85.0
97.3510074.043562681.34.9

Note: Temperature in the chart is the bell temperature after running @80% throttle for 2mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

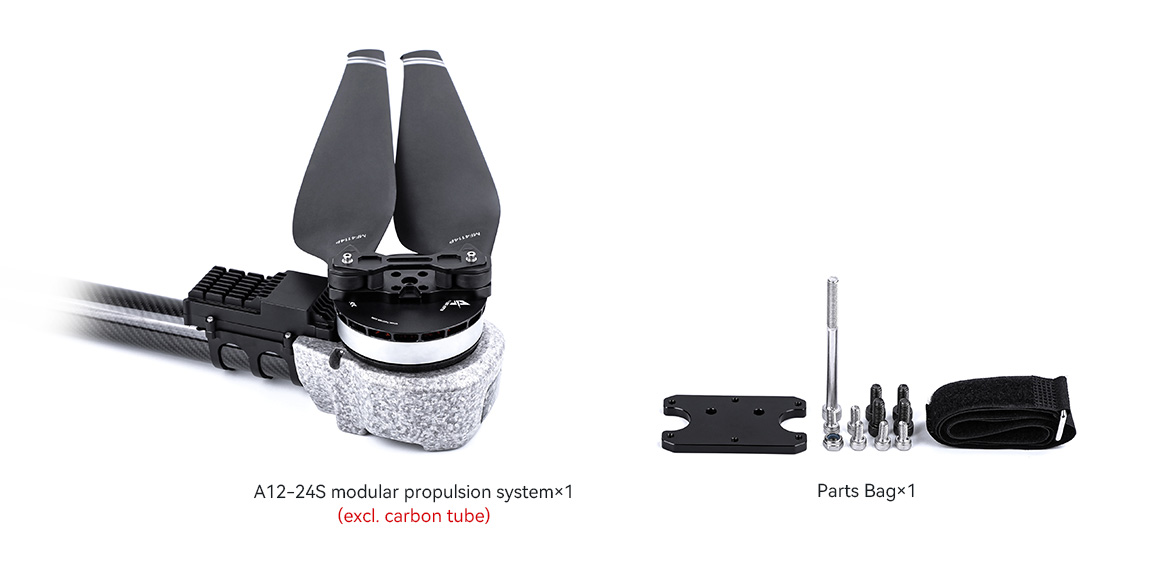

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
