A12-18S

Price inquiry: onlinesales@ligpower.com

- Rated thrust/arm: 15~18kg
- Recommendation: 30L quadcopter or 40L hexacopter
- System weight (incl. prop): 2285g
- Battery: 14~18S (LiPo)
- Propulsion system: A12-18S Motor+18S FOC 150A ESC+MF4114P Prop
- Tube size: 50mm
- Excl. carbon tube
Quantity：

0.00

Free Shipping by DHL/UPS Express

  • Detail information
  • Specifications
  • Download
A12-18S
A12-18S
MODULAR PROPULSION SYSTEM

A12-18S

MOTOR

18S FOC 150A

ESC

MF4114P

PROPELLER

A12-18S

MOTOR

18S FOC 150A

ESC

MF4114P

PROPELLER

A12-18S RECOMMENDATIONS

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Technical Drawing


Specification
Model No.A12 KV67Tube size50mm
SetupA12-18S (Motor)+18S FOC 150A (ESC)+MF4114P (Prop)Wire material,
wire gauge, color		Power wires：10#AWG red & black
Signal wires: 5P Teflon
Recommended battery14~18S (LiPo)Wire length1700±5mm
Rated thrust15~18kgWeight2285g±2%(incl. Wires+prop)
Efficiency at rated thrust8.6g/W (16kg)IPIPX6
Max. thrust36.2kgRecommended ambienttemperature-30℃～50℃
Motor specs.
Stator size111*15mmKV67
ESC specs.
Throttle range1100~1940usMax. voltage76V
ProtocolDRONE CAN、 UAV CAN、CUBE CANPeak current
(for a short time)		150A
(Openenvironment
andtemperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF4114P (Polymer Folding)Length41 inch(1043.5mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A12 KV67
+
18S FOC 150A
+
MF4114P		60.2530.003.673170.0070.3014.30180℃
(Ambient temperature:
27.8℃)
60.1935.006.635247.0079.4013.10
60.1740.0010.687590.0086.5011.80
59.9845.0016.3710253.0087.8010.40
60.0750.0023.4513163.0089.609.30
59.8755.0032.2016271.0089.808.40
59.7060.0042.4519499.0090.407.70
59.6365.0054.4922845.0089.307.00
59.3970.0067.9926112.0087.506.50
59.2875.0083.3029370.0085.805.90
59.0880.00101.4332114.0080.505.40
58.9385.00101.8032077.0081.405.30
58.9590.00101.8531836.0080.405.30
58.9495.00101.9131686.0080.305.30
58.90100.00102.0731595.0079.405.30

Note: Temperature in the chart is the stator temperature after running @75% throttle for 3mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

A12 KV67
+
18S FOC 150A
+
MF4114P		75.3930.002.423184.0089.3017.50180
(Ambient temperature:
27.8)
75.3135.004.745217.0093.2014.60
75.3440.008.157545.0093.8012.30
75.2345.0012.6110223.0092.7010.80
75.1650.0018.2313120.0094.309.60
75.0155.0025.3616310.0092.808.60
75.0460.0033.2419452.0092.307.80
74.9465.0042.7822794.0090.907.10
74.7970.0053.4026058.0089.206.50
74.6075.0065.1829167.0087.906.00
74.4380.0078.1132235.0084.705.50
74.2985.0092.8835202.0081.605.10
74.1890.0097.9635957.0080.404.90
74.2395.0099.9636235.0079.104.90
74.14100.00100.3236119.0078.504.90

Note: Temperature in the chart is the stator temperature after running @75% throttle for 3mins.

(Data above based on benchtest at LIGPOWER lab are for reference only.)

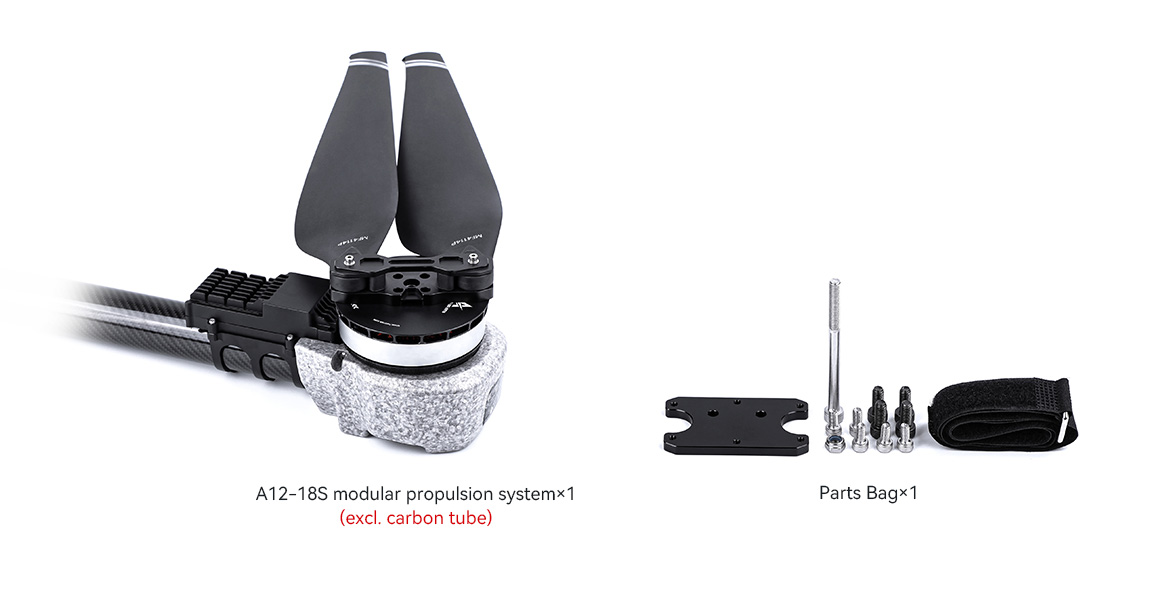

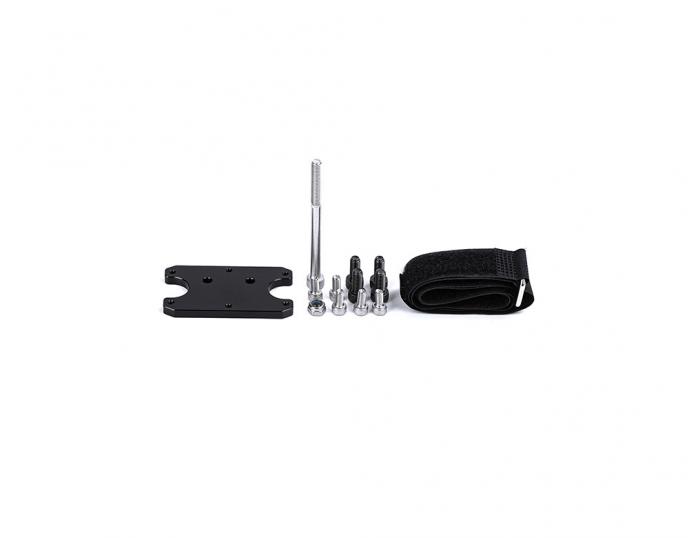

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
