A12-14S
A12-14S
MODULAR PROPULSION SYSTEM

A12-14S

MOTOR

14S FOC 200A

ESC

MF4114P

PROPELLER

A12-14S

MOTOR

14S FOC 200A

ESC

MF4114P

PROPELLER

A12-14S RECOMMENDATIONS

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Load capacity(liquid)

30L

Agriculture Quadcopter Drone

Load capacity(liquid)

40L

Agriculture Hexacopter Drone

Take-off weight

60~72kg

Quadcopter

Take-off weight

90~108kg

Hexacopter

Technical Drawing


Specification
Model No.A12 KV86Tube size50mm
SetupA12-14S (Motor)+14S FOC 200A (ESC)+
MF4114P (Prop)		Wire material,wire gauge, colorPower wires：10#AWG red & black
Signal wires: 5P Teflon
Recommended battery12~14S (LiPo)Wire length1700±5mm
Rated thrust15~18kgWeight2285g±2% (incl. Wires+prop)
Efficiency at rated thrust8.2g/W (17kg)IPIPX6
Max. thrust35.7kgRecommended ambient temperature-30℃～50℃
Motor specs.
Stator size111*15mmKV86
ESC specs.
Throttle range1100~1940usMax. voltage61V
ProtocolDRONE CAN、UAV CAN、CUBE CANPeak current(for a short time)200A
(Open environment
and temperature≤60℃)
Control methodPWM/CANBECNO
Prop specs
Model No.MF4114P (Polymer Folding)Length41 inch (1043.5mm)
Test Data
TypeVoltage
(V)		Throttle
(%)		Current
(A)		Thrust
(g)		Motor
efficiency
(%)		Overall
efficiency
(gf/W)		Operating
temperature
(℃)
A12 KV86
+
14S FOC 200A
+
MF4114P		48.0430.003.102425.0074.5016.30180
(Ambient temperature:
27.8)
48.1035.005.884202.0085.7014.90
48.0540.0010.166234.0090.8012.80
47.9945.0015.648509.0091.7011.30
48.1150.0022.7411068.0093.0010.10
47.7655.0031.5013782.0094.509.20
47.6960.0041.9016636.0092.908.30
47.6165.0054.4219684.0092.007.60
47.4070.0067.6122459.0090.807.00
47.3375.0082.9225448.0090.306.50
47.0280.0099.8628314.0086.806.00
46.7485.00120.0231014.0084.805.50
46.7490.00122.6731346.0085.105.50
46.7295.00122.6731274.0084.705.50
46.77100.00122.5431080.0083.605.40
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)
A12 KV86
+
14S FOC 200A
+
MF4114P		59.8530.002.632543.0076.3016.20180
(Ambient temperature:
27.8)
59.9535.004.864280.0086.0014.70
59.9940.008.416298.0089.5012.50
59.7445.0012.918554.0090.7011.10
59.7050.0018.7511144.0091.3010.00
59.5655.0025.7713885.0091.809.00
59.5960.0034.4016772.0091.208.20
59.4765.0044.1619804.0091.107.50
59.2970.0055.0622627.0090.006.90
59.1175.0067.0025620.0088.906.50
58.9480.0080.4728610.0087.806.00
58.9285.0094.6031217.0086.105.60
58.6690.00109.6533880.0083.105.30
58.4995.00123.8535715.0081.304.90
58.33100.00123.8435584.0081.404.90
Note: Temperature in the chart is the stator temperature after running @80% throttle for 3mins.
(Data above based on benchtest at LIGPOWER lab are for reference only.)

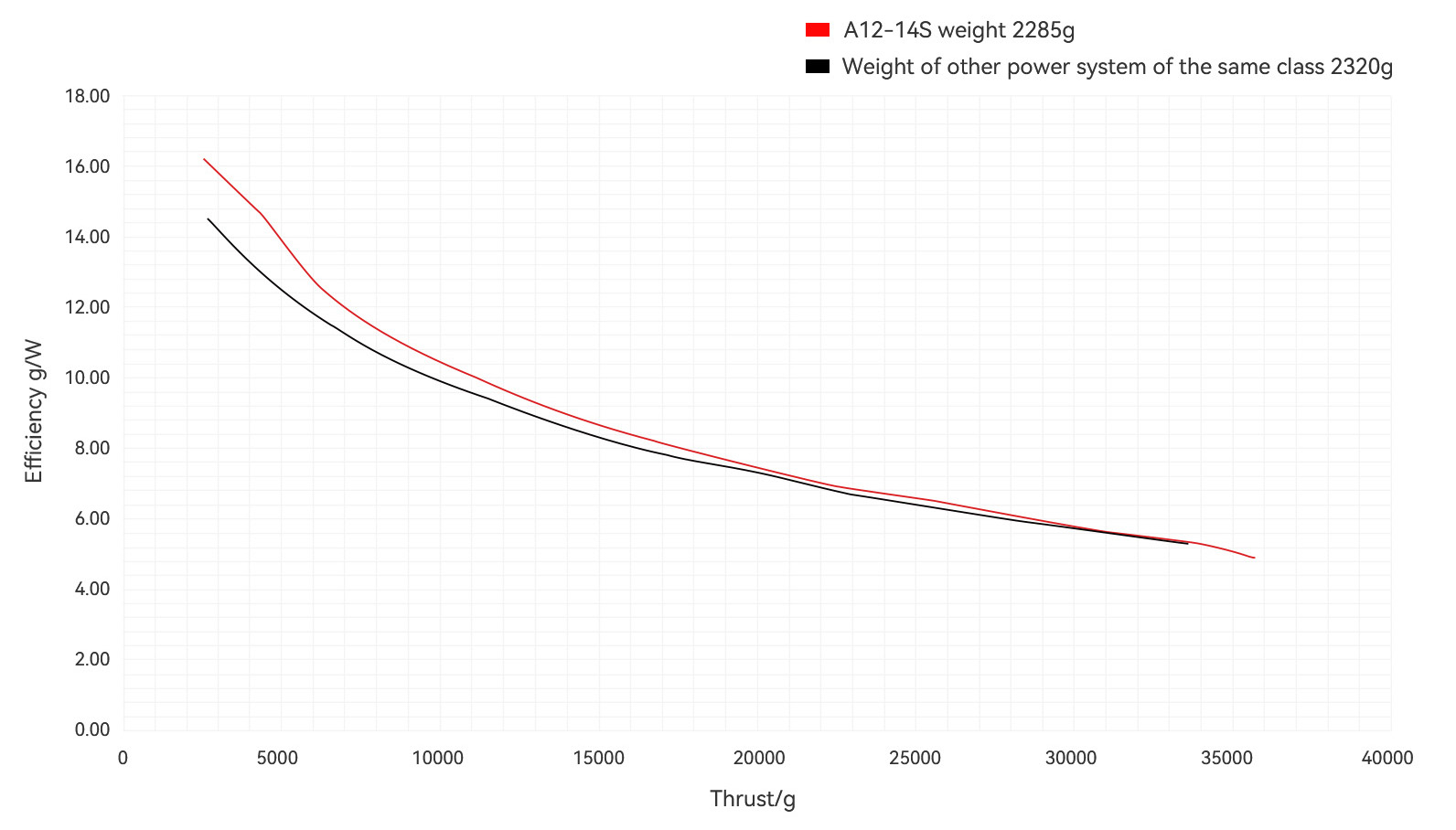

Analysis Chart

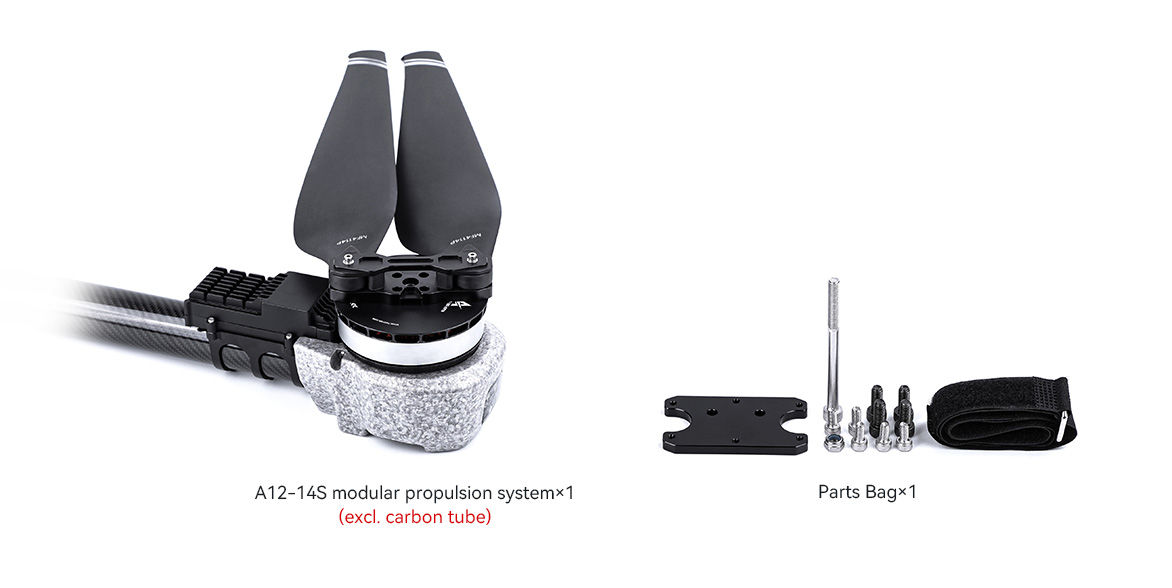

Packing List


Before using this product, please check if all the items listed above are included in the packaging. If there are any missing items, please contact our online customer service or leave message to " onlinesales@ligpower.com " in time.
